Product Number: SDM30
Variations

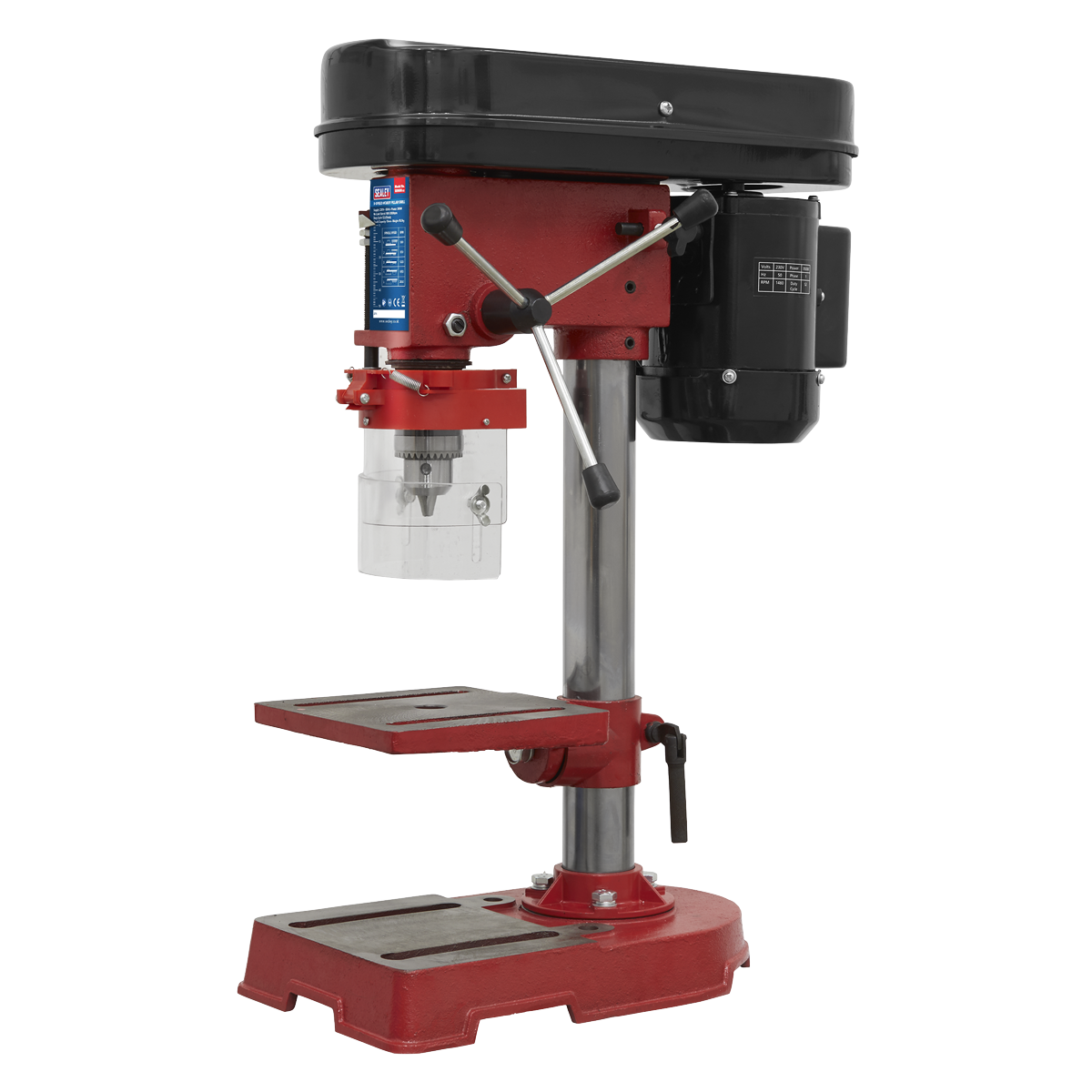

Finding a bench pillar drill that balances compact size with genuine drilling capability for wood, plastic and metal is a common challenge in light workshop, hobby and educational settings. The Sealey SDM30 addresses this with a 185W motor (350W input power) and five speed settings ranging from 580 to 2650rpm, allowing the correct speed to be matched to the material and bit size in use. The 13mm capacity chuck accepts standard drill bits, while the MT2 spindle nose taper adds versatility for appropriate tooling. At 580mm overall height and with a 200 x 310mm base, it is designed for bench mounting where space is at a premium. A rack and pinion feed shaft with preset depth control makes repetitive drilling accurate and consistent. Safety is built in: a no-volt release switch, a protection guard, and mechanical protection that prevents access to the drive belt during operation all combine to meet insurance company requirements for use in educational establishments. Chuck-to-column distance is 104mm, spindle travel is 50mm, and the maximum spindle-to-base distance is 290mm.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | SDM30 |
|---|---|
| Base Size | 200 x 310mm |
| Brand | Sealey |
| Collar Diameter | Ø40mm |
| Column Diameter | Ø46mm |
| Drilling Capacity (Chuck Size) | 13mm |
| Maximum Distance Spindle to Base | 290mm |
| Maximum Distance Spindle to Table | 200mm |
| Motor Power (Start) | 185W(350W) |
| Nett Weight | 11kg |
| Number of Speeds | 5 |
| Overall Height | 580mm |
| Speed Range | 580-2650rpm |
| Spindle Centre to Column | 104mm |
| Spindle Nose Taper | MT2 |
| Spindle Travel | 50mm |
| Supply | 230V |
| Swing | 208mm |
| Working Base Surface Size | 138 x 180mm |
| Working Table Surface Size | 158 x 160mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
MA10 | Sealey MA10 Wood Mortising Attachment 40-65mm with Chisels for Drills | 1 Unit |
£57.16
£56.04
|
Add |
sealey-pillar-drill-5-speed-hobby-model-580mm-height-350w230v.pdf
|
Open Now |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey GDM140F Floor Pillar Drill 12-Speed 370W 1500mm
£368.12
£360.90
2% OFF
Free delivery in UK Mainland
|
Sealey GDM150B 16-Speed Bench Pillar Drill 1070mm 650W 230V
£466.57
£457.42
2% OFF
Free delivery in UK Mainland
|
Sealey GDM160F Floor Pillar Drill 16-Speed 550W 230V
£464.40
£455.29
2% OFF
Free delivery in UK Mainland
|
Sealey PDM155B Pillar Drill Bench 16-Speed 1050mm Height 230V
£565.03
£553.95
2% OFF
Free delivery in UK Mainland
|
Clarke CDP502F 12 Speed Floor Standing Industrial Drill Press (230V)
£835.48
£819.10
2% OFF
Free delivery in UK Mainland
|
Draper 95043 12 Speed Heavy Duty Floor Standing Drill, 1500W
£1,050.86
£1,030.25
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | GDM120B | GDM140F | GDM150B | GDM160F | PDM155B | DPG230 | 6505592 | 7610850 | 7610860 | 95043 |
| Base Size | 420 x 250mm | 420 x 250mm | 460 x 275mm | 420 x 250mm | 495 x 290mm | 580 x 450mm | ||||
| Collar Diameter | 60mm | Ø60mm | 60mm | Ø60mm | Ø60mm | 75 | 92mm | |||
| Length (mm) | 250 | 1500 | 1070 | 250 | 1050 | 450 | ||||
| Spindle Travel | 80mm | 60mm | 80mm | 80mm | 80mm | 120mm | ||||
| Weight (kg) | 47 | 41.0 | 60 | 51 | 55 | 148 | ||||
A. The SDM30 offers five speed settings ranging from 580 to 2650rpm, allowing you to match the speed to the material and drill bit being used.
A. The SDM30 is fitted with a 13mm (1/2") capacity chuck.
A. The SDM30 has a motor power of 185W with an input power of 350W, running on a 230V supply.
A. The SDM30 is designed to cut through wood, plastic and metal.
A. Yes. The SDM30 is fitted with a no-volt release switch, which allows insurance company approval for use in educational establishments. Access to the drive belt is also denied during operation by mechanical protection, and a protection guard is fitted.
A. The SDM30 has an overall height of 580mm, a base size of 200 x 310mm, a spindle centre-to-column distance of 104mm, a spindle travel of 50mm, a column diameter of 46mm, and a maximum spindle-to-base distance of 290mm. The machine weighs 15.2kg.
A. Yes. The GDM50B is a variant in the same Sealey pillar drill family and may offer a different specification. Contact Parts for Machines for further details.
A. Several alternative pillar drills are available for heavier-duty requirements, including the GDM120B, GDM140F, GDM150B and GDM160F. These are different products serving the same function at higher capacities.
A. Yes. The SDM30 is fitted with a rack and pinion feed shaft with preset depth control, making it suitable for repetitive work requiring consistent hole depths.
