Product Number: GDM1630FR
Variations

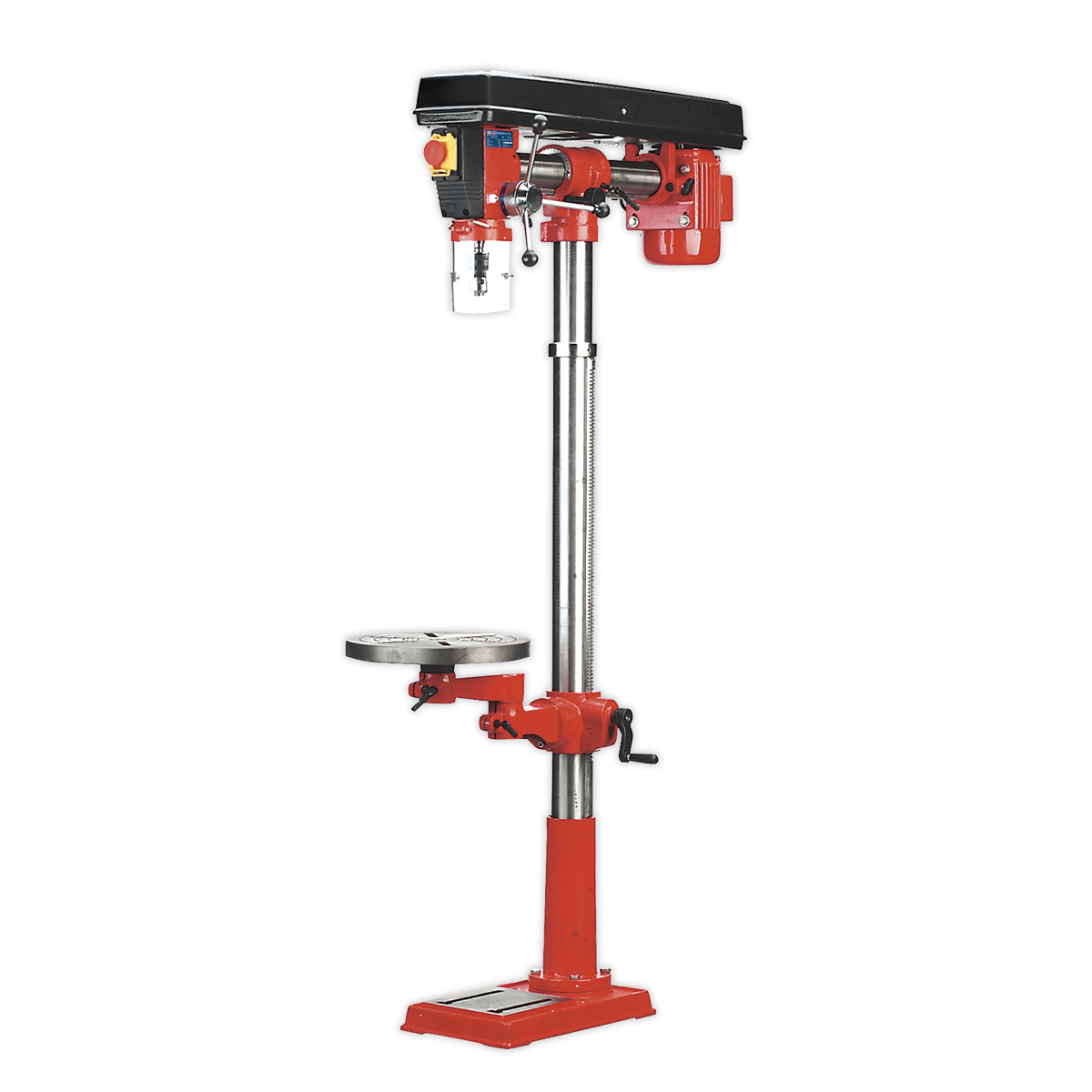

When standard pillar drills fall short limited reach, fixed-position tables, no capacity for off-table or angled work the Sealey GDM1630FR Radial Pillar Drill delivers the flexibility and power professional workshops demand. Standing 1620mm tall and driven by a 550W motor, this floor-standing radial drill combines heavy-duty construction with precision control across a full range of applications. The radial arm, controlled by a rack and pinion assembly, allows fine positioning of the drill bit and extends to a maximum throat depth of 420mm with 285mm of radial arm travel enabling off-table drilling and angle drilling that fixed-column machines simply cannot achieve. A 16mm (5/8") MT2 chuck handles a wide range of bit sizes, while five speeds spanning 500-2450rpm allow the correct cutting speed to be selected for different materials and drill sizes. Spindle travel is 80mm, maximum distance from spindle to base is 1280mm, and from spindle to table is 830mm. The 70mm diameter column provides a stable, rigid platform, and the base measures 420 x 250mm. Safety is built in: a no-volt release switch and a pulley cover cut-out microswitch are both fitted as standard. A mortise attachment is available separately (order model MA10), and an optional keyless chuck is available under GDMX/KC. Also available as a bench-mounting version see GDM790BR.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | GDM1630FR |
|---|---|
| Base Size | 420 x 250mm |
| Brand | Sealey |
| Collar Diameter | Ø60mm |
| Column Diameter | Ø70mm |
| Drilling Capacity (Chuck Size) | 16mm |
| Maximum Distance Spindle to Base | 1280mm |
| Maximum Distance Spindle to Table | 830mm |
| Motor Power | 550W |
| Nett Weight | 59kg |
| Number of Speeds | 5 |
| Optional Accessories | GDMX/KC - Keyless Pillar Drill Chuck 16mm |
| Overall Height | 1620mm |
| Radial Arm Travel | 285mm |
| Speed Range | 500-2450rpm |
| Spindle Centre to Column | 420mm |
| Spindle Nose Taper | MT2 |
| Spindle Travel | 80mm |
| Supply | 230V |
| Swing | 840mm |
| Working Base Surface Size | 210 x 190mm |
| Working Table Surface Size | Ø310mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
MA10 | Sealey MA10 Wood Mortising Attachment 40-65mm with Chisels for Drills | 1 Unit |
£57.16
£56.04
|
Add |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey GDM150B 16-Speed Bench Pillar Drill 1070mm 650W 230V
£466.57
£457.42
2% OFF
Free delivery in UK Mainland
|
Sealey GDM160F Floor Pillar Drill 16-Speed 550W 230V
£464.40
£455.29
2% OFF
Free delivery in UK Mainland
|
Sealey PDM210F Floor-Standing Pillar Drill 16-Speed 1610mm 370W 230V
£594.56
£582.90
2% OFF
Free delivery in UK Mainland
|
Sealey GDM140F Floor Pillar Drill 12-Speed 370W 1500mm
£368.12
£360.90
2% OFF
Free delivery in UK Mainland
|
Clarke CDP502F 12 Speed Floor Standing Industrial Drill Press (230V)
£835.48
£819.10
2% OFF
Free delivery in UK Mainland
|
Draper 95043 12 Speed Heavy Duty Floor Standing Drill, 1500W
£1,050.86
£1,030.25
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | ||||||||
|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | GDM150B | GDM160F | PDM210F | GDM140F | 6505592 | 7610850 | 7610860 | 95043 |
| Base Size | 460 x 275mm | 420 x 250mm | 495 x 290mm | 420 x 250mm | 580 x 450mm | |||
| Collar Diameter | 60mm | Ø60mm | Ø60mm | Ø60mm | 92mm | |||
| Length (mm) | 1070 | 250 | 1610 | 1500 | 450 | |||
| Spindle Travel | 80mm | 80mm | 80mm | 60mm | 120mm | |||
| Weight (kg) | 60 | 51 | 62 | 41.0 | 148 | |||
A. The GDM1630FR is fitted with a 550W motor and offers five speeds ranging from 500 to 2450rpm.
A. The maximum throat depth (spindle centre to column) is 420mm, and the radial arm travel is 285mm.
A. The drill is fitted with a 16mm (5/8") capacity chuck with an MT2 taper. An optional keyless chuck (GDMX/KC) is also available.
A. The GDM1630FR includes a no-volt release switch and a pulley cover cut-out microswitch as standard safety devices.
A. Yes. The radial feature allows both off-table drilling and angle drilling, with the radial arm positioned precisely via a rack and pinion assembly.
A. Yes. A mortise attachment is available separately - order model MA10.
A. The overall height is 1620mm, the base size is 420 x 250mm, the column diameter is 70mm, and the machine weighs 59kg.
A. The GDM1630FR is the floor-standing radial version. A bench-mounting variant is also available - see GDM790BR.
A. Alternative pillar drill options include the GDM120B, GDM140F, GDM150B, and GDM160F - each a different product offering similar drilling functionality.
