Product Number: 05712
Variations

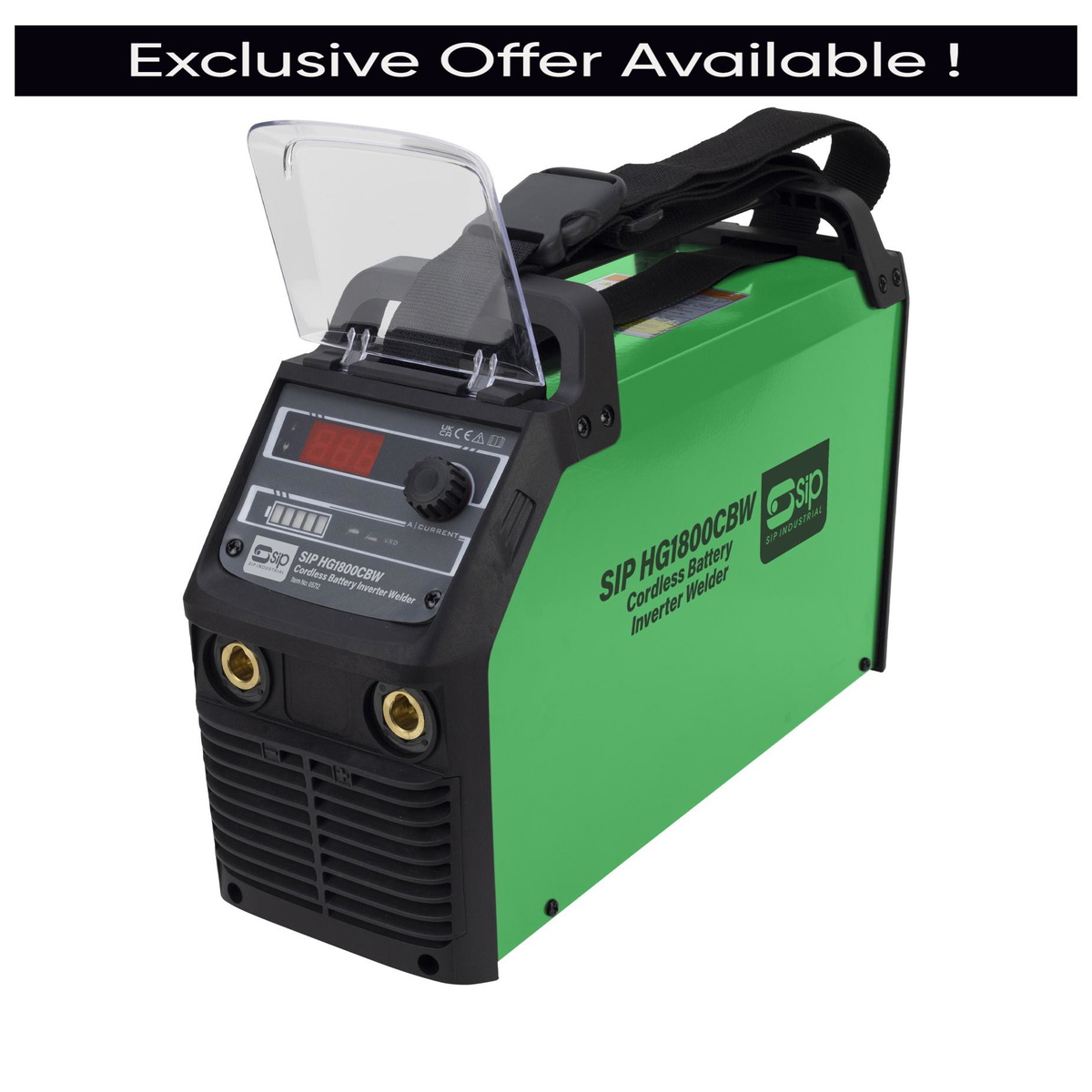

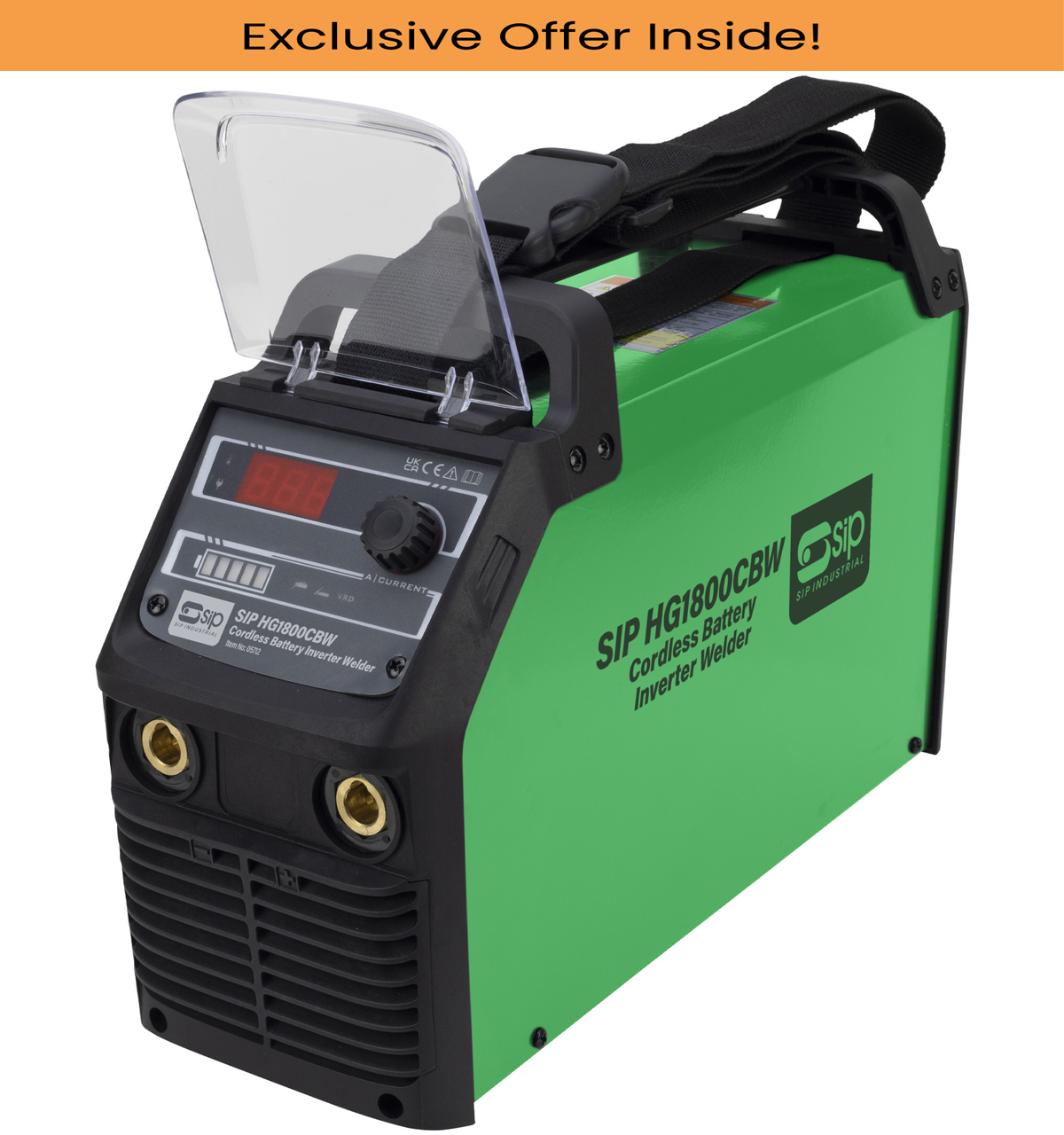

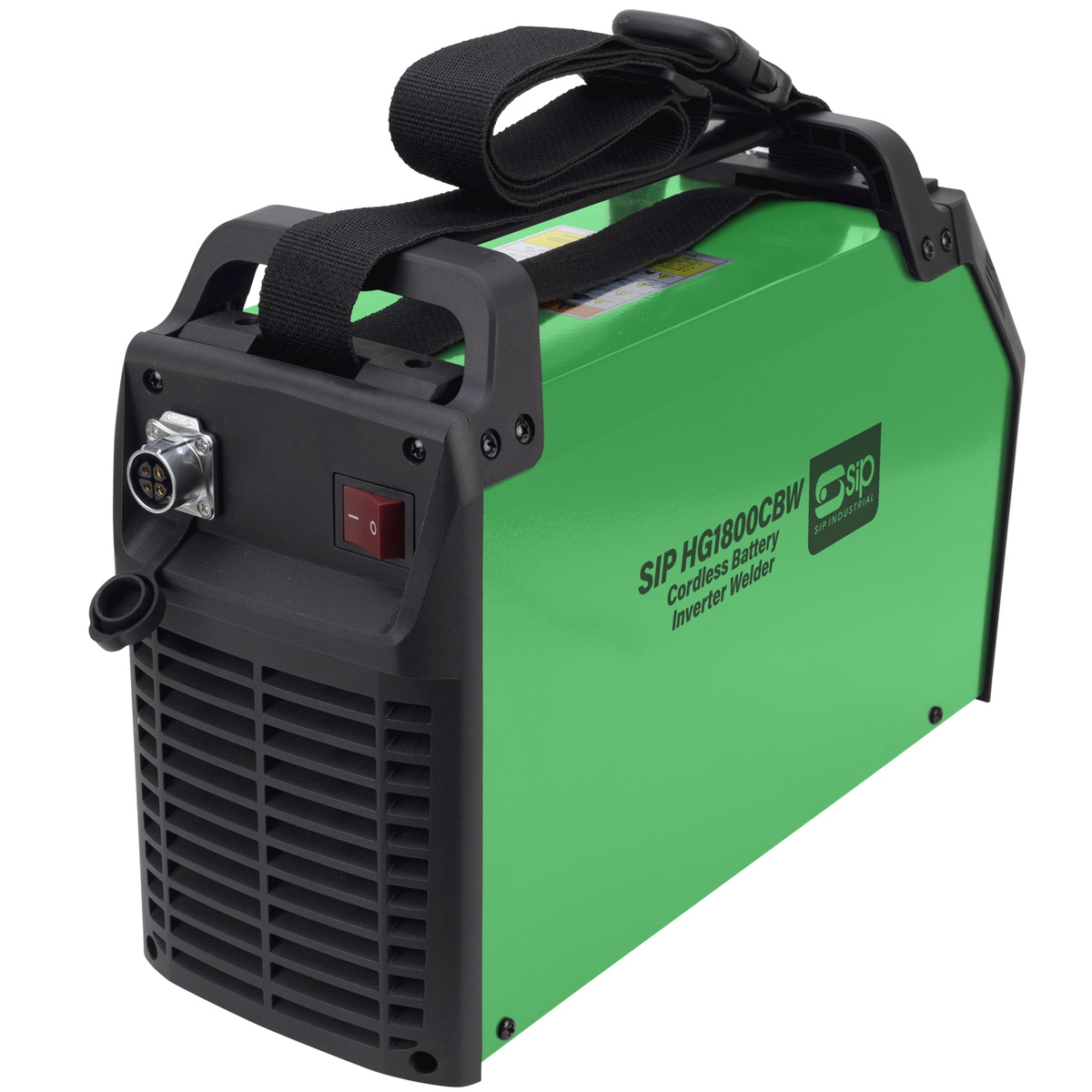

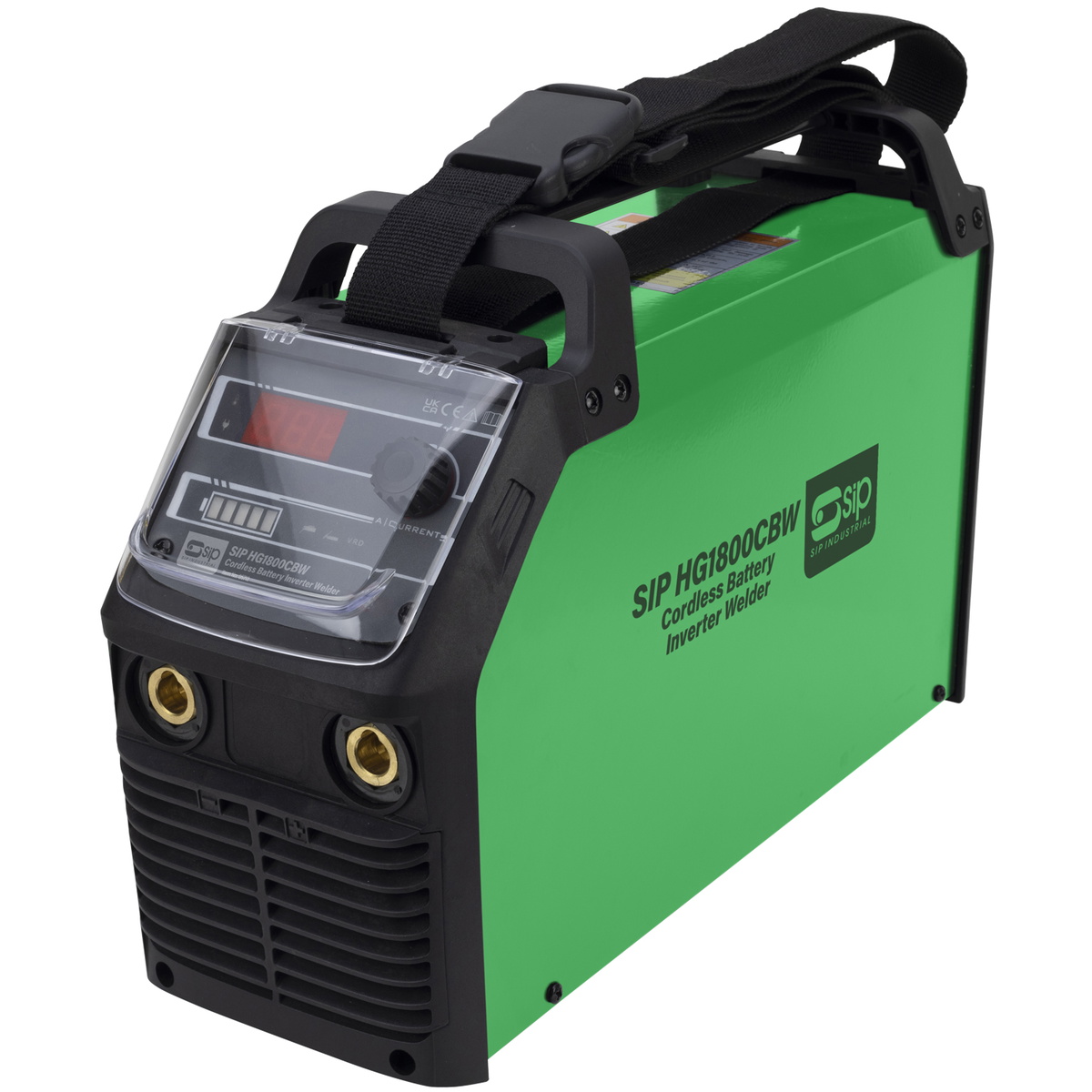

No mains supply? No problem. The SIP 05712 HG1800CBW Battery-Powered Inverter Welder, Input Supply - 230V, Single Phase, Output Current - 180A (05712) provides exactly that: a lithium-ion battery-powered ARC/TIG inverter delivering Range: 10A - 180A (MMA) / 10A - 150A (TIG) output with no cable, no generator, and no compromise on weld quality. At 11.6kg, it carries over one shoulder to wherever the work is.

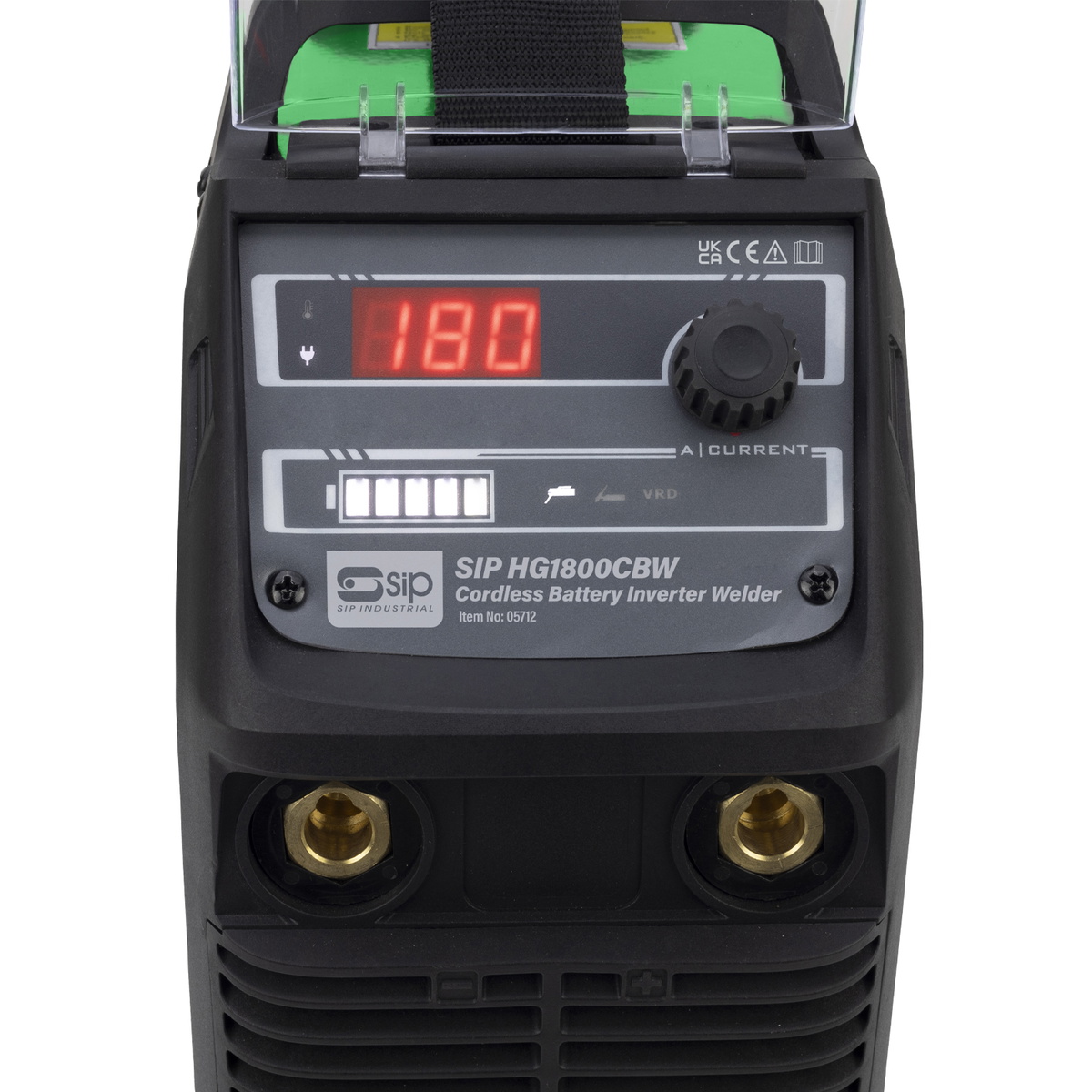

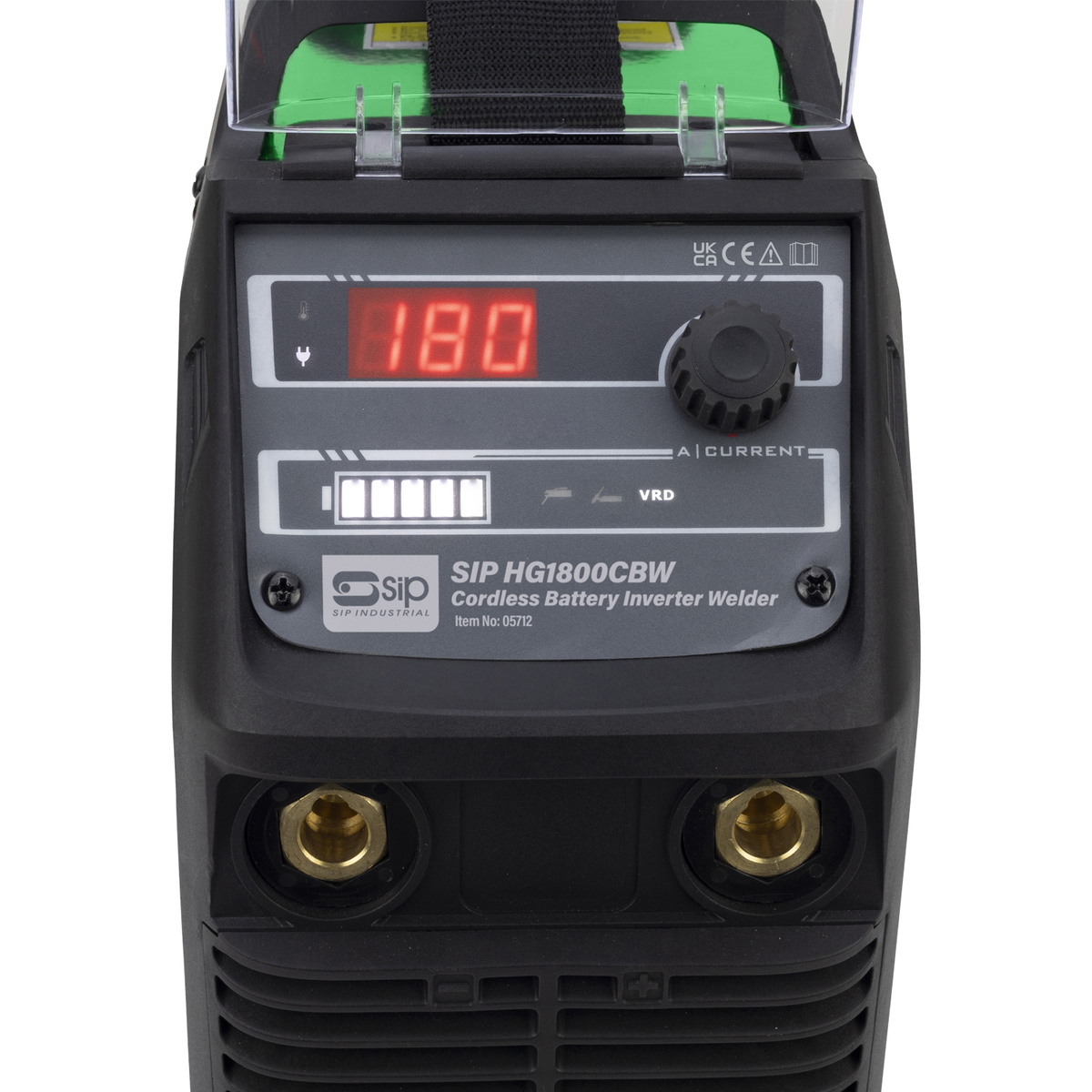

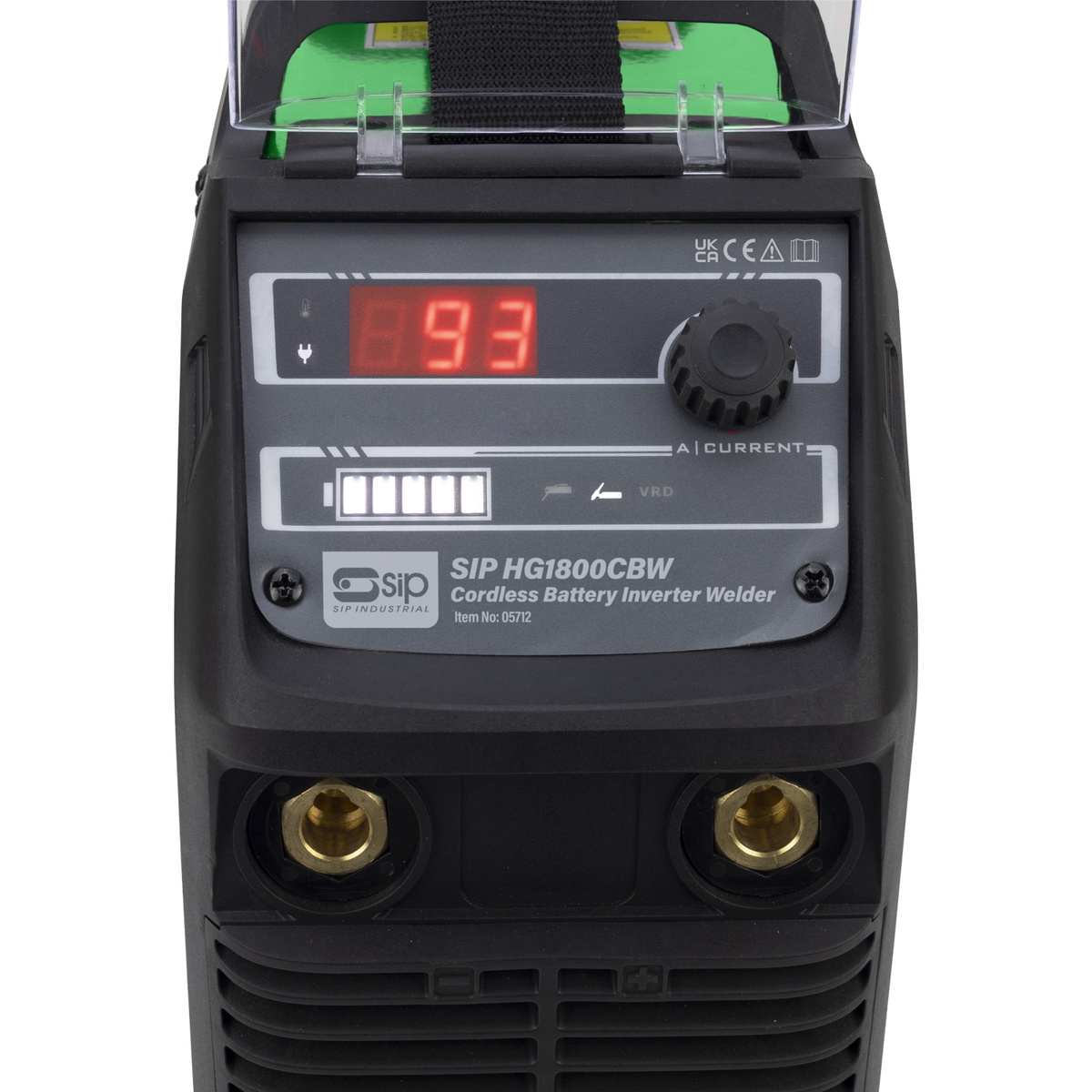

Lift-TIG start. VRD (Voltage Reduction Device). Additional features include digital volt/amp display, carry strap, battery-powered (lithium-ion), 2-year warranty.
Supplied with:
Fan-assisted cooling manages operating temperature during sustained welding. Automatic thermal overload protection cuts output if the machine exceeds safe temperature. Buyers comparing ARC/MMA inverter welders will find the 05712 delivers stable arc performance with electrode compatibility across the rated range. Inverter technology provides a smoother arc than transformer-based machines, with lower power consumption. Replacement consumables for the 05712 are available at PartsForMachines.com.
Additional Information:

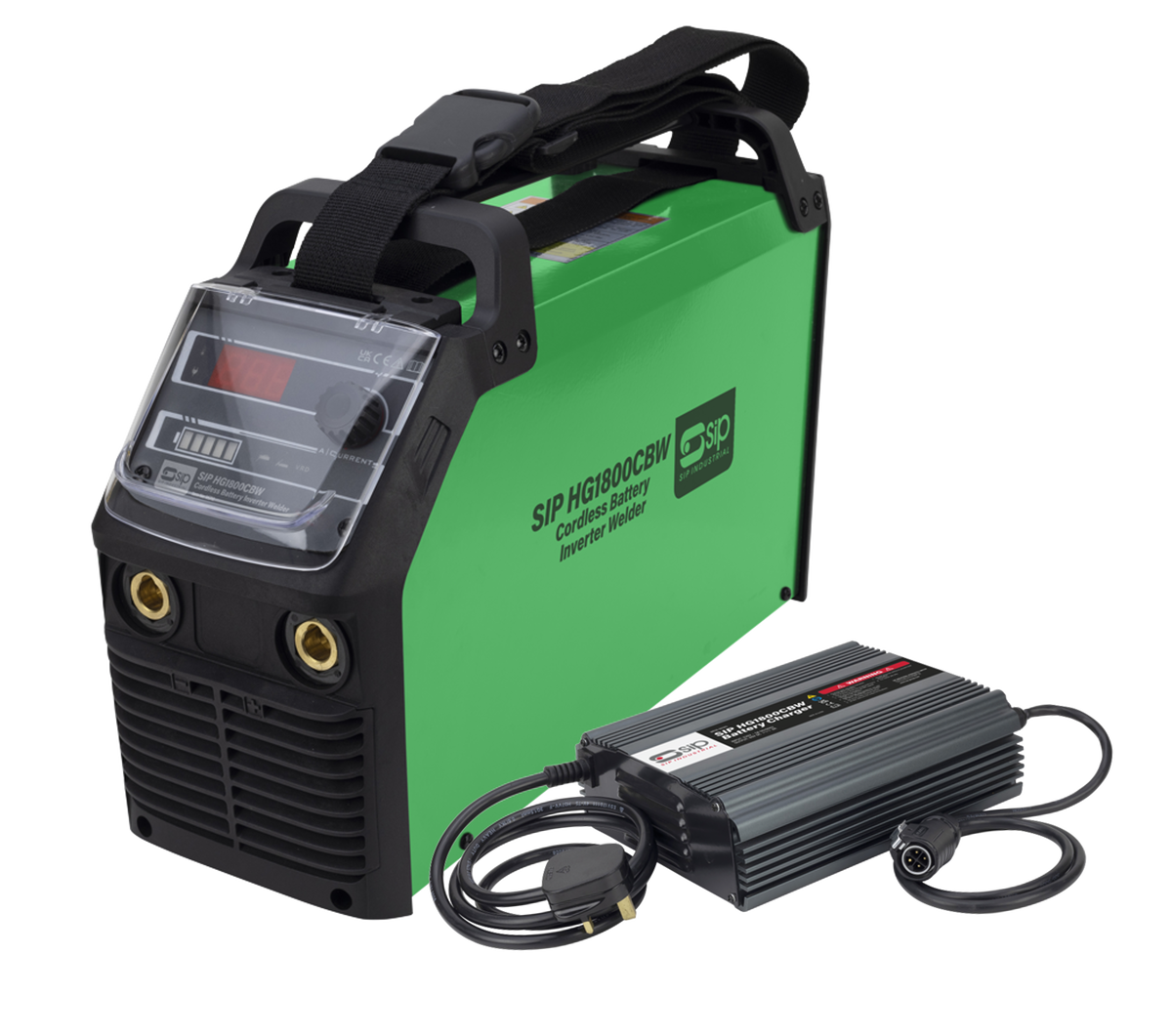

No power? No problem! The SIP HG1800CBW Battery-Powered Inverter Welder provides 180A of powerful and portable welding current in a lightweight and compact design weighing just 11.6kg, utilising the latest inverter technologies to give you high-quality ARC/MMA and TIG welding from a single charge. Perfect for welding in remote locations, construction sites, and wherever no mains electricity supply is available. Supplied with 3mtr 25mm2 electrode lead, Earth lead, and over-shoulder carry strap.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 05712 |
|---|---|
| Battery Type | Lithium-Ion* (*Ensure a discharge/recharge cycle is performed every 3 months. Always keep welder battery above 50% charge when not in use) |
| Battery Capacity | 740Wh |

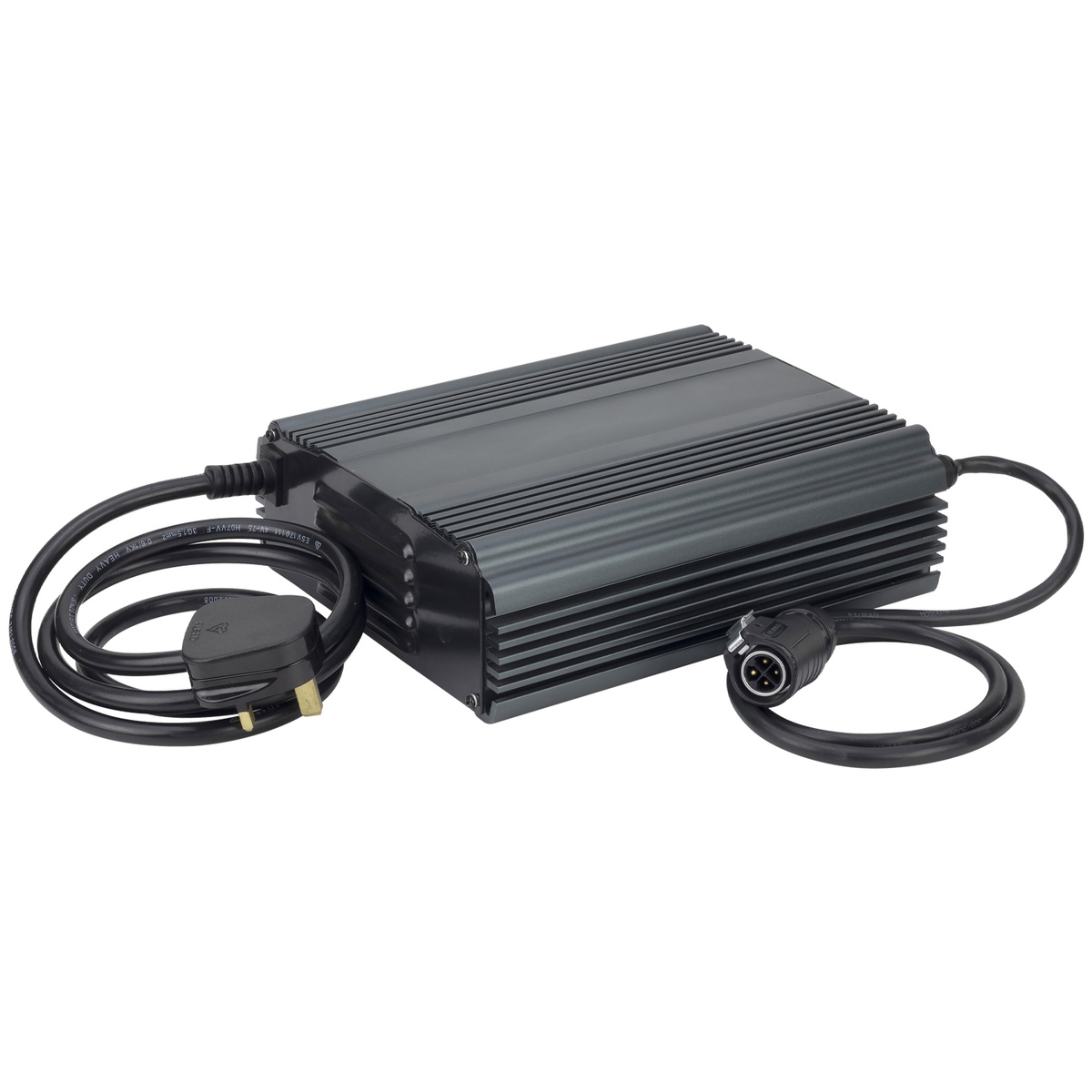

| Charger Voltage | 230v AC +/- 10% |
| Charging Time | 1.5hrs |
| Battery Output Voltage | 74v |
| Charging Current | 8A |
| Welding Current Range | 10A - 180A (MMA) / 10A - 150A (TIG) |
| Duty Cycle | 180A @ 10% / 130A @ 20% / 60A @ 100% |
| Welding Rod / Ø Electrode | 2.5mm x 300mm / 3.2mm x 350mm / 4mm x 450mm |
| Welding Capability (on full charge) | 20 rods @ 85A / 14 rods @ 115A / 6 rods @ 160A |
More Info
|
Open Now |
Pro Tips for Buying Welding Machines: Types, Uses, and Choosing the Perfect Fit Introduction:Welding, the art of joining metals through heat and precision, has evolved significantly with the advent of adv...
Standard Delivery: Channel Island Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 05795 PEDAL PRO AC/DC TIG/ARC Welder with Foot Pedal, Input Supply - 230V, Single Phase, Output Current - 200A / 160A
£1,010.44
£990.63
2% OFF
Free delivery in Channel Island
|
SIP 05795 WELDMATE® PRO 200A AC/DC TIG/ARC Welder with Pulse
£960.10
£941.27
2% OFF
Free delivery in Channel Island
|
SIP 05769 HG2400 MIG/ARC Inverter Welder, Input Supply - 230V, Single Phase, Output Current - 200A / 200A
£912.48
£894.59
2% OFF
Free delivery in Channel Island
|
||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 05795PEDAL | 05795 | 05769 | 70029 | 69939 |
| Input Supply | 230 | 230 | 230 | 230 | |
| Warranty | 24 | ||||
| Input current | 16 | 16 | |||
| Output Current (max) | 0 | 0 | 200 | 0 | 0 |
| Output Current (min) | 0 | 0 | 50 | 0 | 0 |
A. The 05712 supports multiple welding processes. Output spans Range: 10A - 180A (MMA) / 10A - 150A (TIG) across all modes. Suitable for mild steel.
A. The 05712 requires a 230V AC +/- 10% supply. If you are unsure whether your supply is adequate, consult a qualified electrician before installation.
A. The 05712 has a duty cycle of 180A @ 10% / 130A @ 20% / 60A @ 100%. Duty cycle is measured over a 10-minute period — a 60% duty cycle means 6 minutes of continuous welding followed by a 4-minute cool-down. Operating at lower amperages increases available run time.
A. The 05712 is supplied with 2.5mm, 3.2mm, and, 4mm rods. Additional consumables are available separately through PartsForMachines.com.
A. The 05712 weighs 11.6kg and includes a carry handle for transport between locations. It can be moved by a single person and is suited to workshop use.
A. The 05712 is primarily suited to mild steel.
A. On a full charge (approximately 1.5 hours), the battery delivers around 20 electrode welds at 85A, 14 at 115A, or 6 at 160A. Capacity reduces over time with repeated charge cycles — a monthly discharge/recharge cycle is recommended when the machine is not in regular use.
A. The 05712 is primarily designed for workshop use. For outdoor or site use, protect the machine from rain and dust. IP21S rating provides limited splash resistance but not weatherproofing.
A. Match electrode diameter to material thickness and the machine's output range. As a guide: 1.6 mm electrodes suit sheet up to ~2 mm; 2.5 mm for 3–5 mm plate; 3.2 mm for 5–8 mm; 4.0 mm for 8 mm and above. Start at the lower amperage end of the electrode's range and increase until the arc runs smoothly.
