Product Number: 05717
Generator-friendly ARC inverter for site and remote work. Lift-TIG start provides clean arc ignition. VRD (Voltage Reduction Device) reduces open-circuit voltage in standby for additional operator safety.Generator-friendly design makes it suitable for site and remote use.
Anti-stick. hot start. Additional features include arc force, digital volt/amp display, 2-year warranty.
Supplied with:
Suitable for welding mild steel and stainless steel. Buyers comparing ARC/MMA inverter welders will find the 05717 delivers stable arc performance with electrode compatibility across the rated range. Inverter technology provides a smoother arc than transformer-based machines, with lower power consumption. Open-circuit voltage: 90v. Replacement consumables including contact tips, nozzles, and electrodes for the 05717 are available at PartsForMachines.com. Refer to the operating manual for full setup instructions, safety information, and recommended maintenance intervals.
Additional Information:

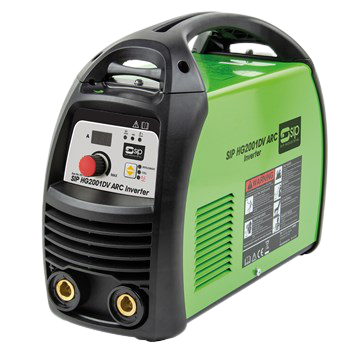

The SIP HG2001DV ARC Inverter Welder is built with Power Factor Correction (PFC) to help reduce mains power consumption and is incorporated in it's electronic design, and offers other benefits including Hot Start, Arc Force, and electrode selection. Supplied with 2mtr electrode lead and 2mtr Earth lead.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 05717 |
|---|---|
| Input Supply | 230v (32A) / 110v (16A) |
| Output Current | 20A - 200A (230v) / 20A - 120A (110v) |
| Output Voltage | 20.8v - 28v (230v) (ARC) / 20.8v - 24.8v (110v) (ARC) / 10.8v - 18v (230v) (TIG) / 10.8v - 14.8v (110v) (TIG) |
| Duty Cycle | 200A @ 40% (230v) / 120A @ 40% (110v) |
| Electrode Diameter | Ø 1.6mm - 5mm (230v) / Ø 1.6mm - 3.2mm (110v) |
| Welding Thickness | 1.5mm - 9mm (230v) / 1.5mm - 5mm (110v) |
| Open Circuit Voltage | 90v |
| Power Factor | 0.99 |
| Efficiency Level | 85% |
| Protection Level | IP21S |
| Insulation Class | Class H |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Pro Tips for Buying Welding Machines: Types, Uses, and Choosing the Perfect Fit Introduction:Welding, the art of joining metals through heat and precision, has evolved significantly with the advent of adv...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 05712 HG1800CBW Battery-Powered Inverter Welder, Input Supply - 230V, Single Phase, Output Current - 180A
£1,535.90
£1,505.78
2% OFF
Free delivery in Channel Island
|
||
| Technical Specification | |||
|---|---|---|---|
| PRODUCT NUMBER | 57096 | 70087 | 05712 |
| Type | Inverter MIG | ||
| Duty Cycle | 180A @ 10% / 130A @ 20% / 60A @ 100% | ||
| Length (mm) | 300 | ||
| Voltage (V) | 230 | ||
| Weight (kg) | 0.039 | ||
A. The 05717 supports ARC/MMA stick welding. Output spans 20A - 200A (230v) / 20A - 120A (110v) across all modes. Suitable for mild steel.
A. Yes. The 05717 is a dual-voltage machine operating on 230V for full output or 110V for site-safe reduced output. On 110V the maximum current is lower — consult the full spec table for 110V current limits.
A. The 05717 has a duty cycle of 200A @ 40% (230v) / 120A @ 40% (110v). Duty cycle is measured over a 10-minute period — a 60% duty cycle means 6 minutes of continuous welding followed by a 4-minute cool-down. Operating at lower amperages increases available run time.
A. The 05717 is supplied with 2mtr electrode lead, 2mtr Earth lead. Additional consumables are available separately through PartsForMachines.com.
A. Yes — the 05717 is generator-friendly and designed for varied environments including site and remote use.
A. The 05717 is primarily suited to mild steel.
A. VRD stands for Voltage Reduction Device. When the 05717 is in standby between welds, the VRD reduces the open-circuit voltage to a safer level, reducing the risk of electric shock — particularly relevant in confined spaces and site environments.
A. Yes — the 05717 is generator-friendly and designed to perform in outdoor and site environments as well as workshop use.
A. Match electrode diameter to material thickness and the machine's output range. As a guide: 1.6 mm electrodes suit sheet up to ~2 mm; 2.5 mm for 3–5 mm plate; 3.2 mm for 5–8 mm; 4.0 mm for 8 mm and above. Start at the lower amperage end of the electrode's range and increase until the arc runs smoothly.
