Product Number: 05635

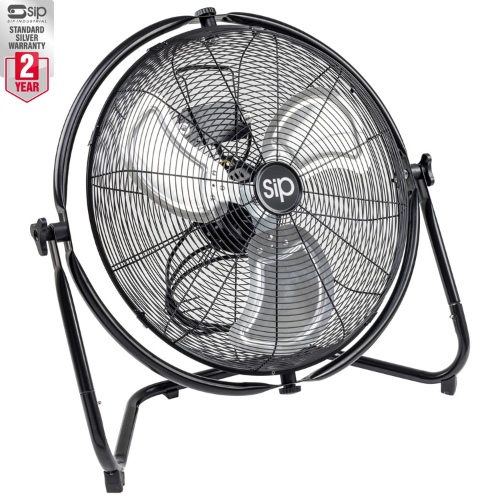

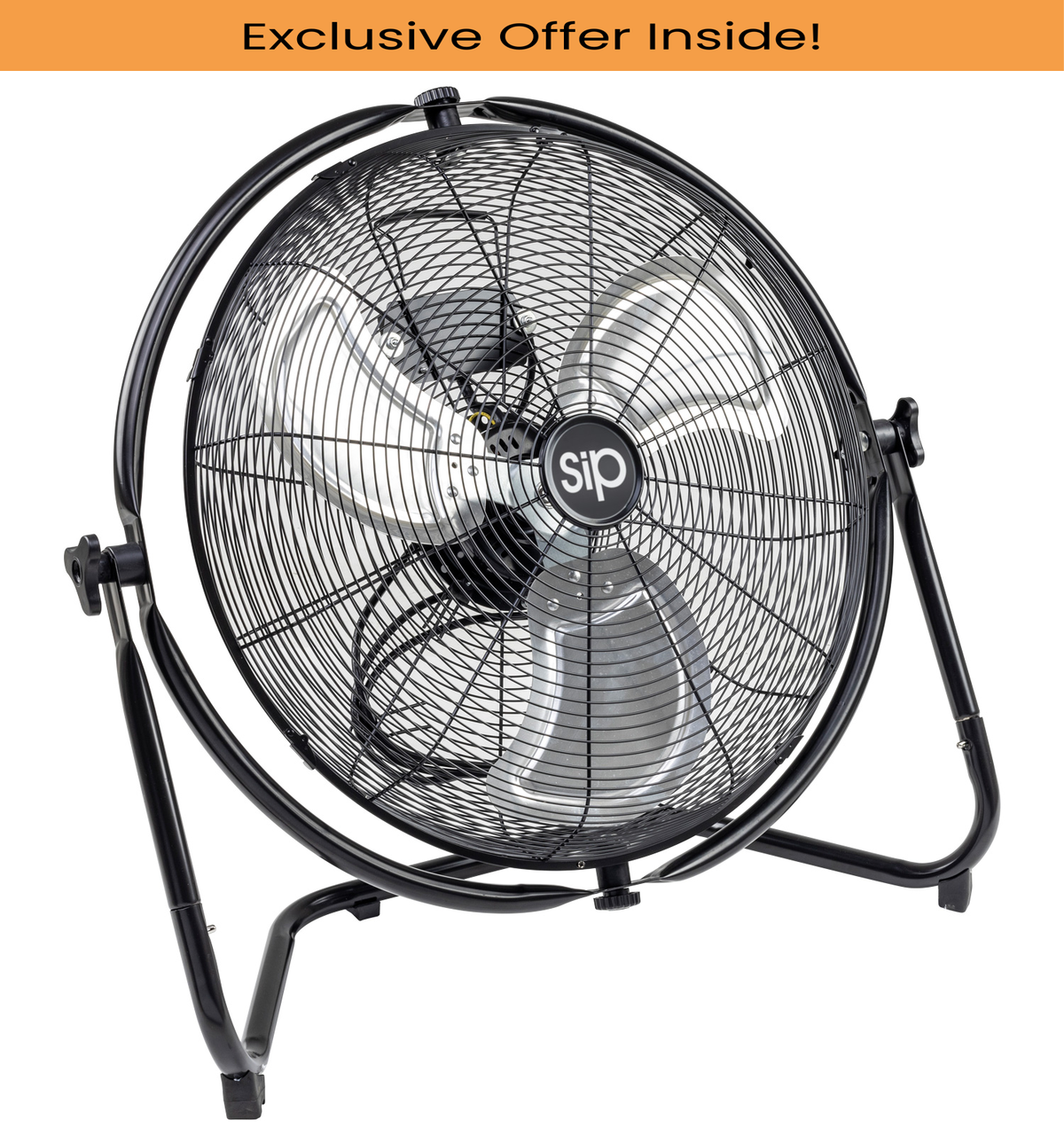

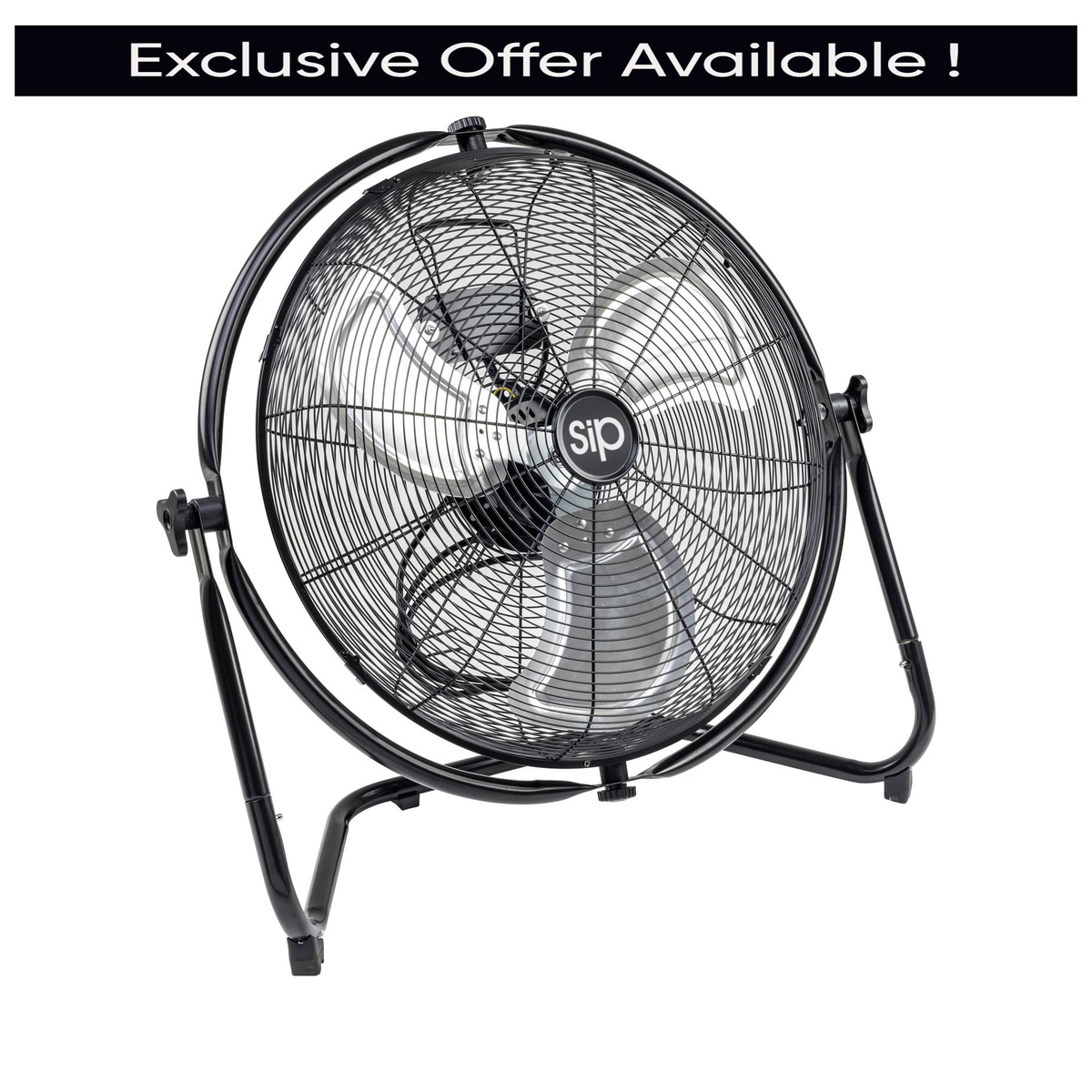

The SIP 05635 20" Heavy-Duty Orbital Floor Fan is a 120W, 230V mains-powered industrial floor fan designed to deliver powerful multi-directional airflow for cooling and air circulation across a range of indoor environments. With a fan diameter of 508mm (20"), it is built for sustained use in industrial, commercial and agricultural workshop settings where consistent ventilation is essential.

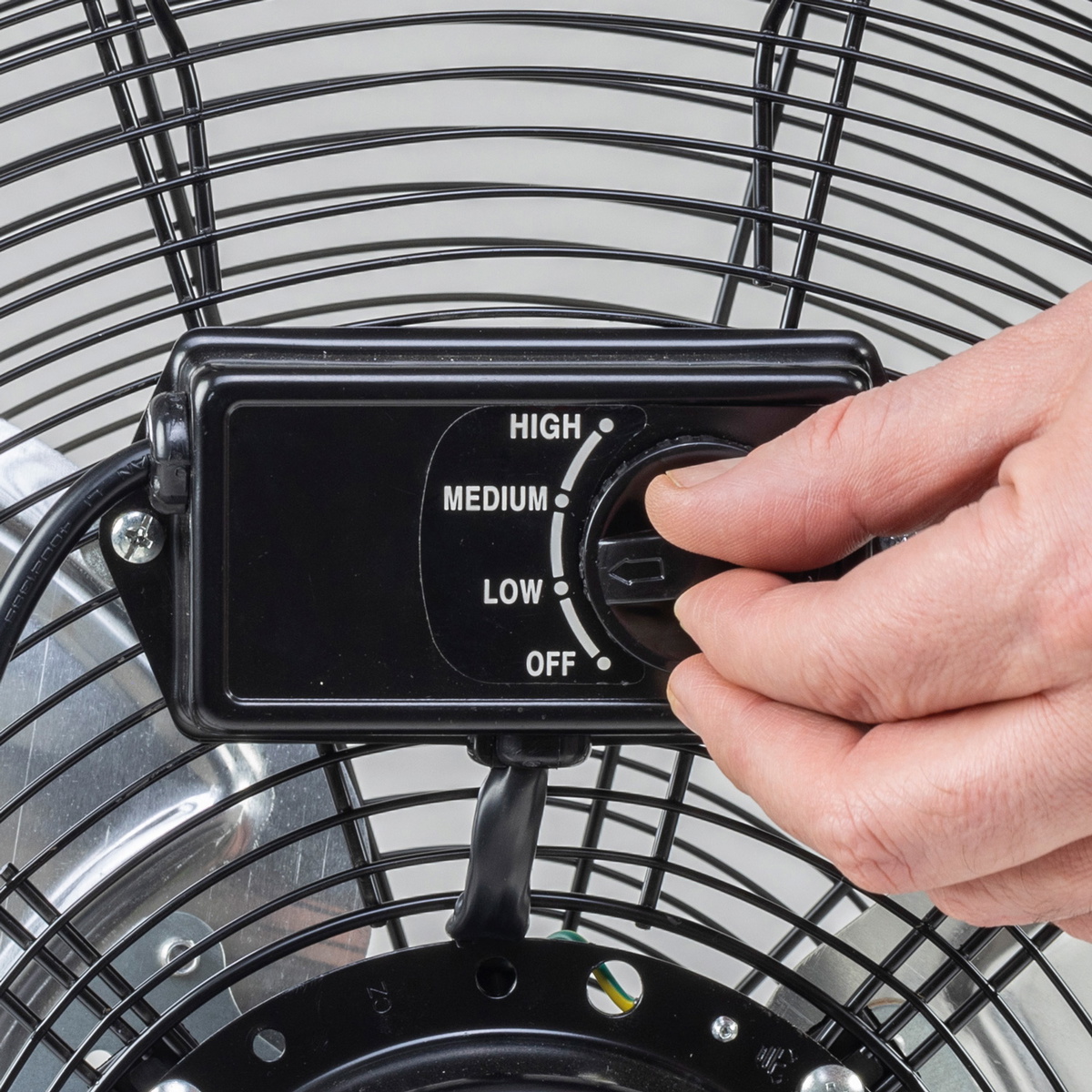

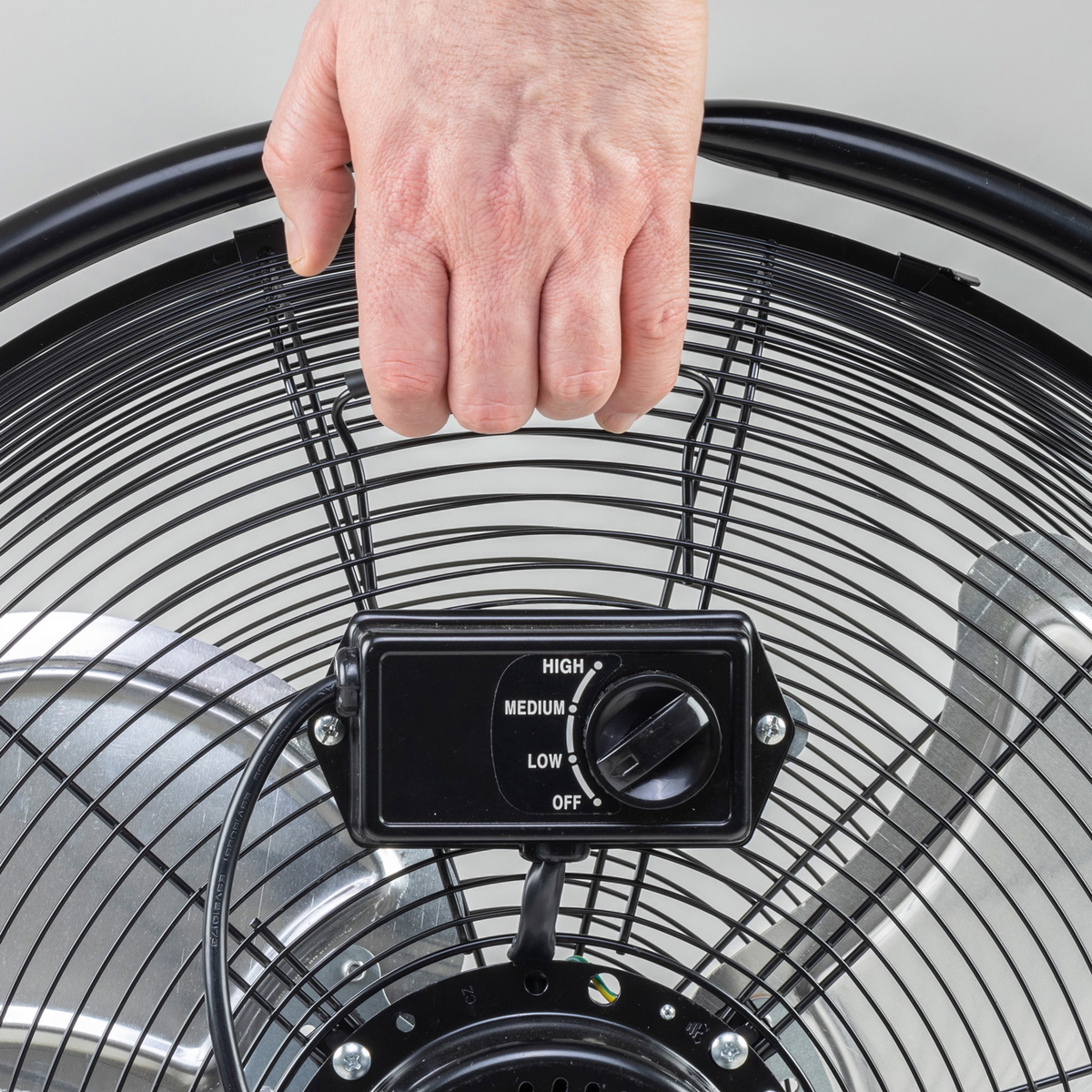

At the heart of the fan's performance is a heavy-duty 3-blade assembly driven by the 120W motor, fully enclosed within solid mesh steel guarding for enhanced user safety. Three selectable speed settings give the operator precise control over airflow output: Low (900rpm), Medium (1100rpm) and High (1300rpm). The variable speed range allows the fan to be matched to the demands of the working environment, whether circulating air gently or delivering maximum ventilation.

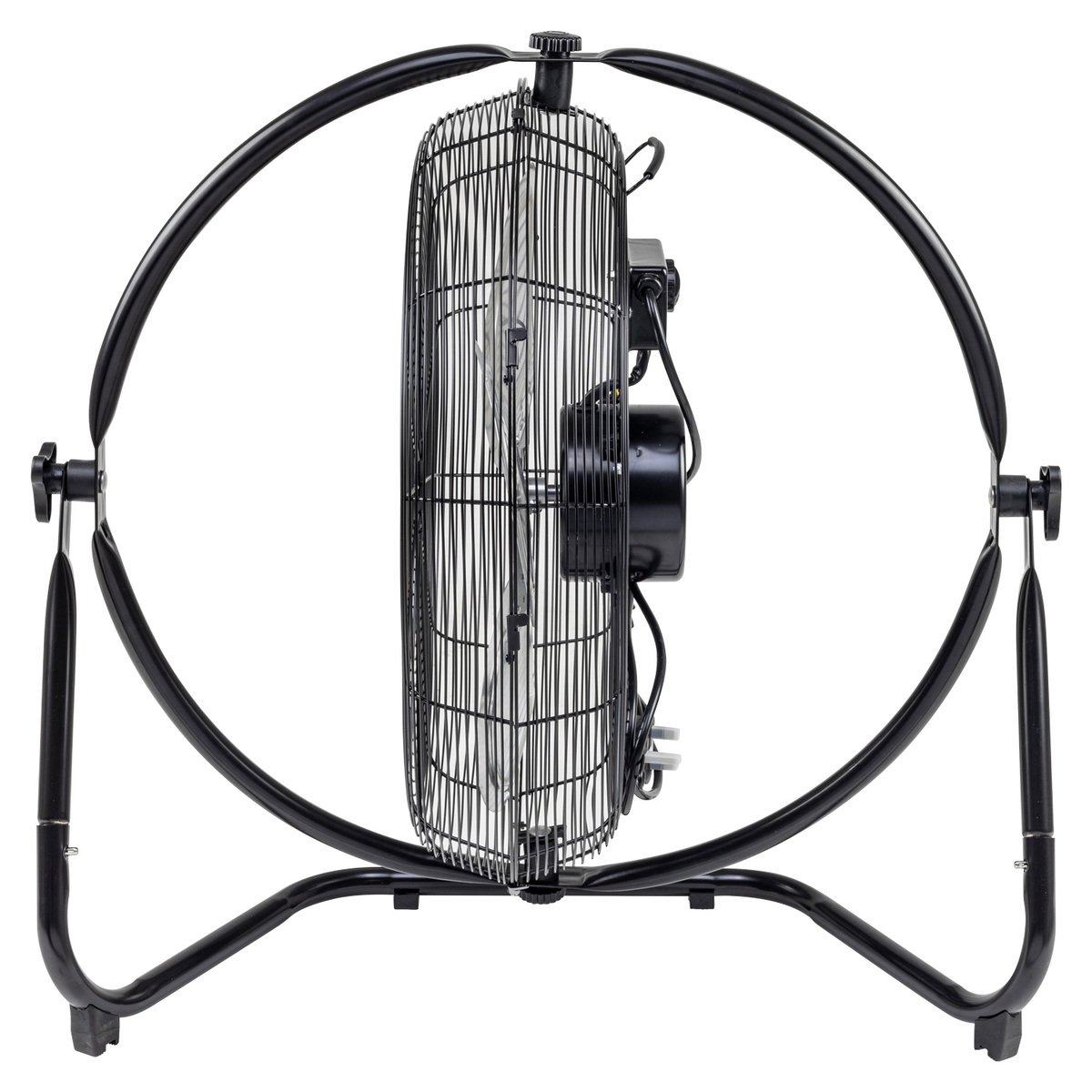

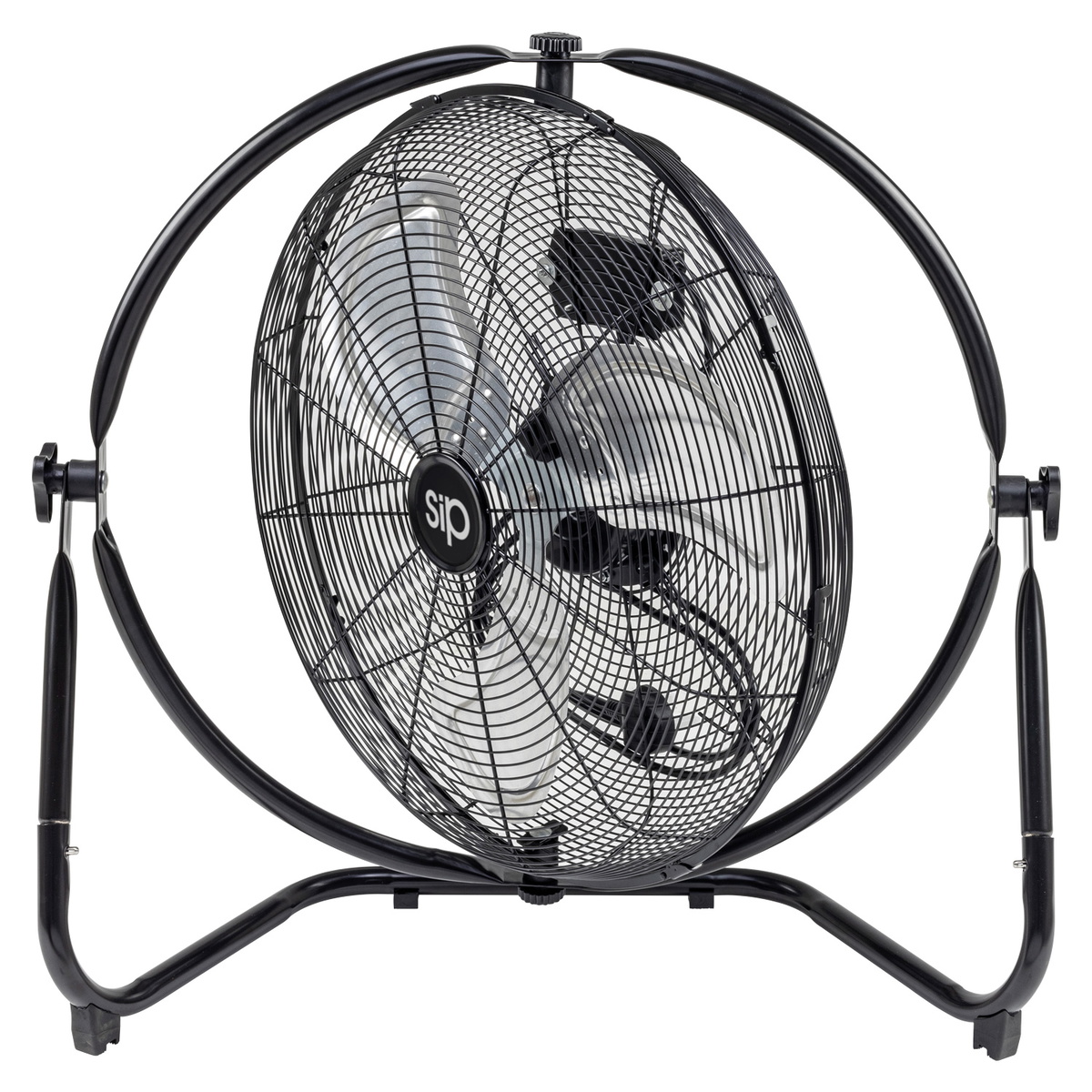

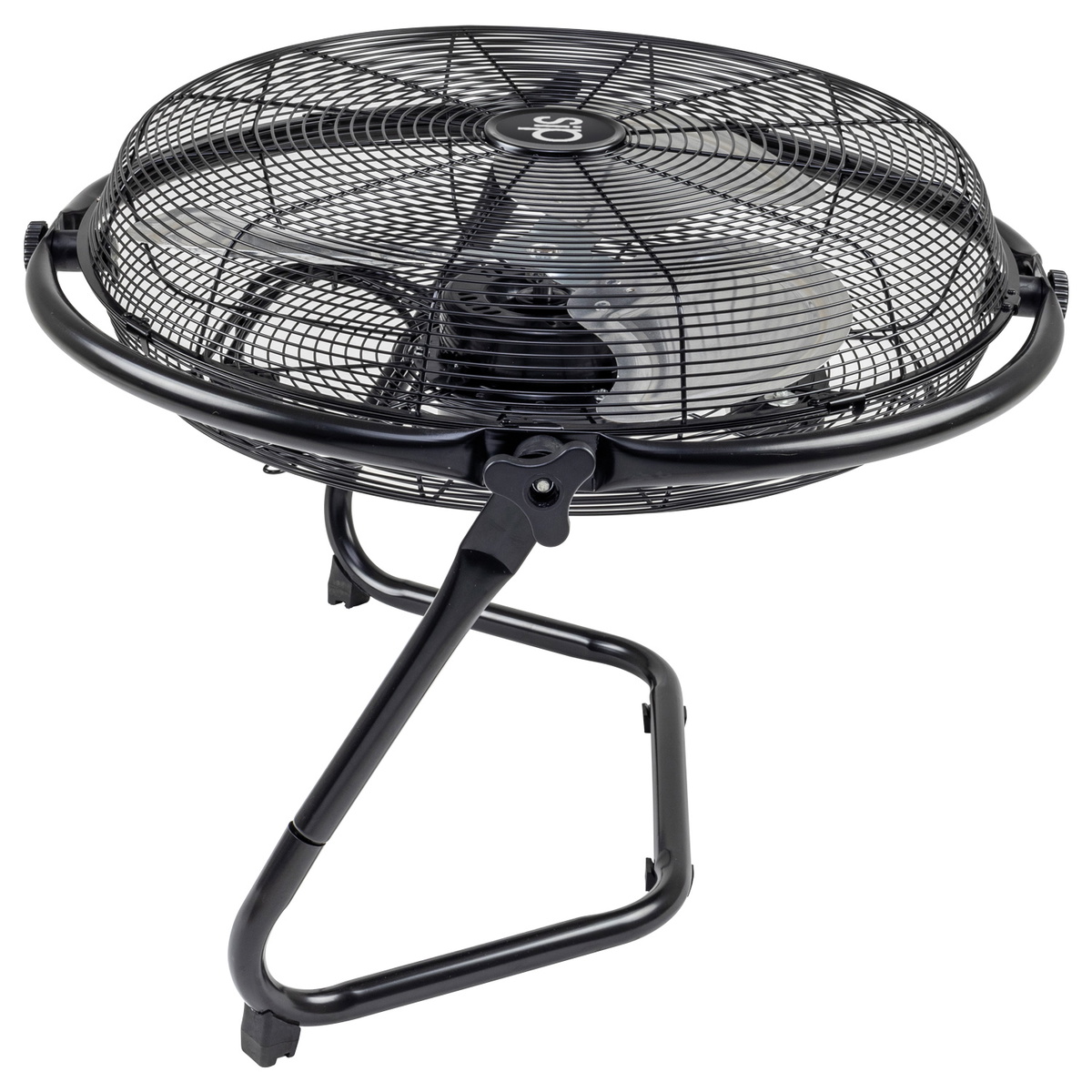

The defining feature of the 05635 is its orbital airflow function. The fan head is manually adjustable, rotating 360° on its horizontal axis and 360° on its vertical axis to achieve a combined 720° coverage. This orbital movement maximises airflow reach, directing air to areas that a fixed fan cannot serve. The unit is mounted at four points on a robust steel tube frame, which provides the stability and balance required for safe floor operation. The sturdy, compact footprint also allows the fan to be repositioned easily between work areas. The 180cm power cable provides practical reach from a standard 13A socket.
SIP covers this product under their 2-Year Standard Silver Warranty. The fan operates at a measured noise level of 68dB(A), providing powerful ventilation without excessive acoustic impact in the workspace.
Additional Information:
The SIP 20" Heavy-Duty Orbital Floor Fan delivers powerful multi-directional airflow to help cool spaces and circulate air in a variety of indoor environments. Mounted at four points on a steel tube frame, this heavy-duty 3-blade fan can be rotated and fixed between 720° on both its horizontal and vertical axis. This creates an orbital effect which maximises airflow coverage. Fans are essential in helping to provide improved air quality to indoor spaces. Applications & uses: Delivers powerful variable speed air circulation to indoor spaces. Perfect for industrial, commercial and agricultural workshop areas. SIP 2-Year Standard Silver WarrantyAbout PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 05635 |
|---|---|
| Input Supply | 230v (13A) |
| Motor Power | 120w (0.16hp) |
| Power Cable | 180cm |
| Fan Diameter | Ø 20" (508mm) |
|
Speed Settings: 3 speed settings (Low: 900rpm, Medium: 1100rpm, High: 1300rpm)
|
|
| Noise Level | 68dB(A) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
More Info
|
Open Now |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||
| Technical Specification | ||
|---|---|---|
| PRODUCT NUMBER | HVF20 | HVF18 |
| Type | Fan | Fan |
| Model No | HVF20 | HVF18 |
| Power (W) | 115 | 110 |
| Voltage (V) | 230 | 230 |
| Weight (kg) | 03 | 55 |
A. The SIP 05635 is designed to deliver powerful multi-directional airflow in a variety of indoor environments. It is particularly suited to industrial, commercial and agricultural workshop areas where consistent air circulation and ventilation are required.
A. The fan head can be manually rotated 360° on its horizontal axis and a further 360° on its vertical axis, giving a combined 720° range of adjustment. Once positioned, the head can be fixed in place. This orbital range allows the fan to direct airflow across a much wider area than a fixed-head fan, maximising ventilation coverage throughout the workspace.
A. The fan has three speed settings. Low runs at 900rpm, Medium at 1100rpm and High at 1300rpm. These settings allow the operator to match airflow output to the requirements of the working environment.
A. The SIP 05635 has a measured noise level of 68dB(A), providing substantial airflow without excessive acoustic impact in the workspace.
A. The fan runs on a standard 230V (13A) single-phase supply. The power cable is 180cm in length.
A. The fan blades are fully enclosed within solid mesh steel guarding to protect the user during operation. The fan is also mounted at four points on a robust steel tube frame, providing balance and stability when in use on the workshop floor.
A. The SIP 05635 is covered by the SIP 2-Year Standard Silver Warranty.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.,
