Three jobs share this leaf and each has its own number. Moving air is measured in fan diameter. Taking moisture out of it is measured in litres per day. Cooling it is measured in Btu per hour. None of those figures compares with another, so the job is settled first and the number follows from it. Getting that wrong is why a fan is sometimes bought for a job that needed a dehumidifier.

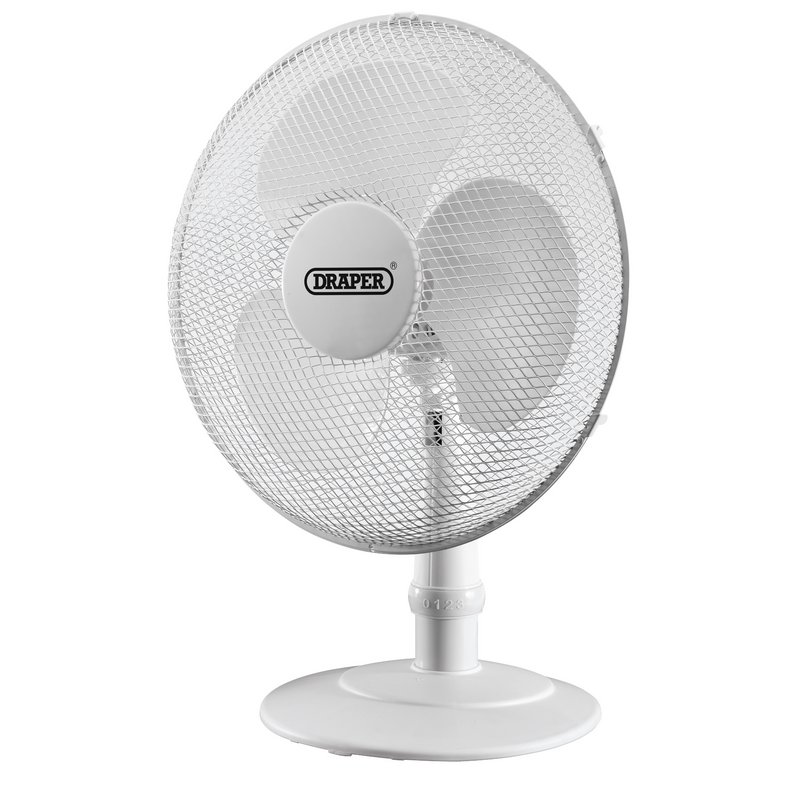

Fans run 4in up to 36in across desk, floor, pedestal, tower, wall, drum and orbital drum forms. Small fans move air in a room; high velocity drum fans throw it across a workshop. Oscillating and orbital heads spread that throw rather than concentrating it, and Draper hold drum, floor, pedestal and high flow bodies in both 110V and 230V.
Dehumidifiers are sized in litres extracted per day, running 10L on a portable up to 90L on the industrial machines, with Clarke IDH bodies in 110V and 230V. A machine undersized for the space runs continuously and never catches up. Portable ventilators at 200mm and 300mm with 5m ducting move air into a confined space rather than around a room. Clarke hold IDH industrial bodies in both 110V and 230V, with Draper and SIP machines across the same span.
Cooling runs 5,000 to 12,000Btu per hour across portable air conditioners and coolers, with 3-in-1, 4-in-1 and 5-in-1 machines that also dehumidify and heat. Air dryers and blowers at 356cfm and 2860cfm sit alongside. Voltage is stated on 80 of the 111 lines. Sizing questions go over WhatsApp on 07754288583. Baridi appliances are seated on this leaf as well, covering cooker hoods, hand dryers and pedestal fans.
| Model No | DH107 |
|---|---|
| Airflow | 220m³/h |
| Cable Length | 1.5m |
| Colour | Black |
| Energy Rating | C |
| Model No | HVF18 |
|---|---|
| Brand | Sealey |
| Current | 0.5A |
| Fan Diameter | Ø450mm(18") |
| Maximum Airflow | 107m³/min(3760cfm) |
| Model No | HVF20 |
|---|---|
| Brand | Sealey |
| Current | 0.5A |
| Fan Diameter | Ø550mm(20") |
| Maximum Airflow | 110m³/min(3900cfm) |
| ITEM NO | 05633 |
|---|---|
| Input Supply | 230v (13A) |
| Motor Power | 100w (0.13hp) |
| Power Cable | 250cm |
| Fan Diameter | Ø 18" (457mm) |
| Model No | DH378 |
|---|---|
| IP Rating | IP24 |
| Material | ABS |
| Maximum Air Speed | 105m/s |
| Maximum Air Volume | 28L/S |
| Model No | DH379 |
|---|---|
| IP Rating | IP24 |
| Material | ABS |
| Maximum Air Speed | 105m/s |
| Maximum Air Volume | 28L/S |
| Voltage | 230V |
|---|---|
| Frequency | 50Hz |
| Rated input | 180W |
| Dimensions | W 34 x H 25 x D29.5 cm |
| Hose length | 5m |
| Model No | HVF20PO |
|---|---|
| Brand | Sealey |
| Current | 0.5A |
| Fan Diameter | 550mm(20") |
| Height | 1080-1410mm |
| Voltage | 230V |
|---|---|
| Frequency | 50Hz |
| Rated input | 350W |
| Dimensions | W 42 x H 34 x D 42cm |
| Hose length | 5m |
| Model No | ADB300 |
|---|---|
| Brand | Sealey |
| Current | 0.5A |
| Maximum Airflow | 10m³/min(356cfm) |
| Nett Weight | 3.5kg |
| Model No | DH147 |
|---|---|
| Energy Rating | EF=1.60 |
| Working Tempreature | 5°C - 35°C |
| Max Air Curculation | 120m³/hr |
| Power Cord Length | 1.5m |
| Model No | VEN200 |
|---|---|
| Airflow | 1233m³/hr(725cfm) - 20.55m³/min |
| Brand | Sealey |
| Fan Diameter | Ø200mm |
| Fan Speed | 2800rpm |
| Model No | HVD24 |
|---|---|
| Brand | Sealey |
| Current | 0.52A |
| Fan Diameter | Ø610mm(24") |
| Maximum Airflow | 155.3m³/min(5484cfm) |
| Model No | VEN250 |
|---|---|
| Airflow | 2700m³/hr(1589cfm) - 45m³/min |
| Brand | Sealey |
| Fan Diameter | Ø250mm |
| Fan Speed | 2800rpm |
| Model No | DH148 |
|---|---|
| Energy Rating | EF=1.68 |
| Nett Weight | 13.5kg |
| Noise Power/Pressure | =43dB |
| Product Depth (Front to Back) | 23.5 |
| Model No | SDH102 |
|---|---|
| Brand | Sealey |
| CO2 Equivalent | 0 |
| Condensate Tank | 2L (with Auto-Shut-Off) |
| Dehumidifying Capacity | 10L/Day @ 30?, 80% RH |
| Model No | DH125 |
|---|---|
| Cable Length | 1.2m |
| Capacity | 55L |
| Colour | Stainless Steel |
| Energy Rating | A |
| Model No | DH124 |
|---|---|
| Cable Length | 1.2m |
| Capacity | 55L |
| Colour | Black |
| Energy Rating | A |
| Model No | VEN300 |
|---|---|
| Airflow | 3900m³/hr(2295cfm) - 65m³/min |
| Brand | Sealey |
| Fan Diameter | Ø300mm |
| Fan Speed | 2800rpm |
| Model No | DH110 |
|---|---|
| Cable Length | 1.2m |
| Capacity | 55L |
| Colour | Black |
| Energy Rating | A |
| ITEM NO | 05648 |
|---|---|
| Input Supply | 230v (13A) |
| Input Current | 1.48A |
| Input Power | 320w |
| Dehumidifying Capacity | 20ltr/dat (30°C 80%) / 10ltr/day (27°C 60%) |
| Model No | HVD30 |
|---|---|
| Brand | Sealey |
| Current | 0.52A |
| Fan Diameter | Ø760mm(30") |
| Maximum Airflow | 283.4m³/min(10008cfm) |
| Model No | SDH20 |
|---|---|
| Brand | Sealey |
| CO2 Equivalent | 0.00018t |
| Condensate Tank | 6.5L (with Auto-Shut-Off) |
| Dehumidifying Capacity | 20L/day(30? RH 80%) |
| Model No | DH413 |
|---|---|
| Cooling Capacity | 7000Btu/hr |
| Discharge Side Pressure | 3.2MPa |
| Energy Class | A |
| Exhaust Hose Length | 650mm |
| Model No | DH150 |
|---|---|
| IP Rating | IP24 |
| Material | Case = ABS |
| Maximum Air Speed | 92m/s |
| Maximum Air Volume | 50L/S |

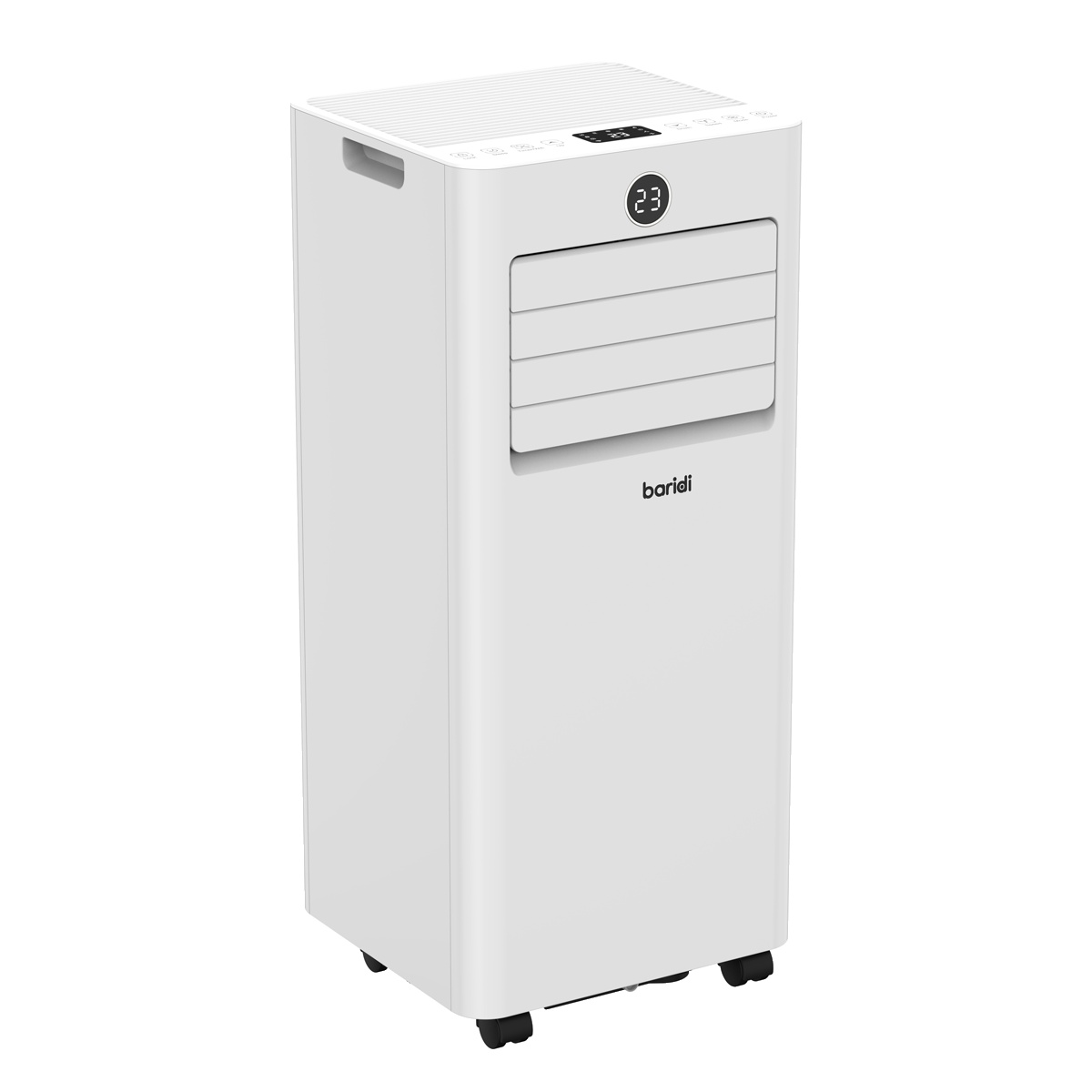

| Model No | DH414 |
|---|---|
| Cooling Capacity | 9000Btu/hr |
| Discharge Side Pressure | 3.2MPa |
| Energy Class | A |
| Exhaust Hose Length | 650mm |
| Model No | ADB3000 |
|---|---|
| Brand | Sealey |
| Current | 5A |
| Maximum Airflow | 81m³/min(2860cfm) |
| Nett Weight | 16.6kg |
| ITEM NO | 01964 |
|---|---|
| Input Supply | 230v (13A) |
| Motor Power | 750w (1.00hp) |
| Inlet Size | 1x Ø 100mm |
| Impeller Size | Ø 230mm |
| Model No | HVD36P |
|---|---|
| Brand | Premier |
| Current | 1.78A |
| Fan Diameter | Ø915mm(36") |
| Maximum Airflow | 363m³/min(12,855cfm) |
| Model No | SDH30 |
|---|---|
| Brand | Sealey |
| CO2 Equivalent | 0.0006t |
| Condensate Tank | 7L (with Auto-Shut-Off) |
| Dehumidifying Capacity | 30L/day(30°CRH80%) |
