Product Number: 01717

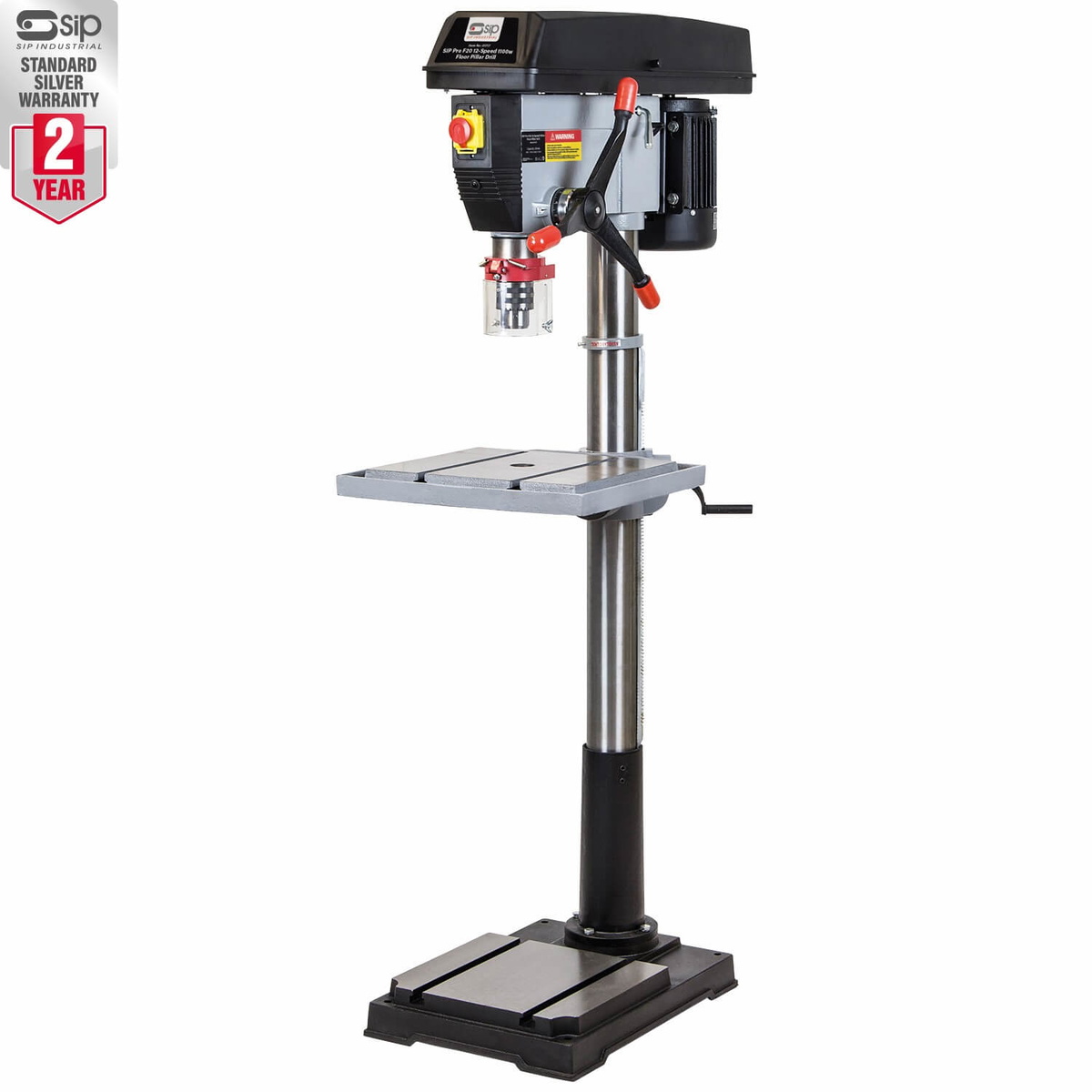

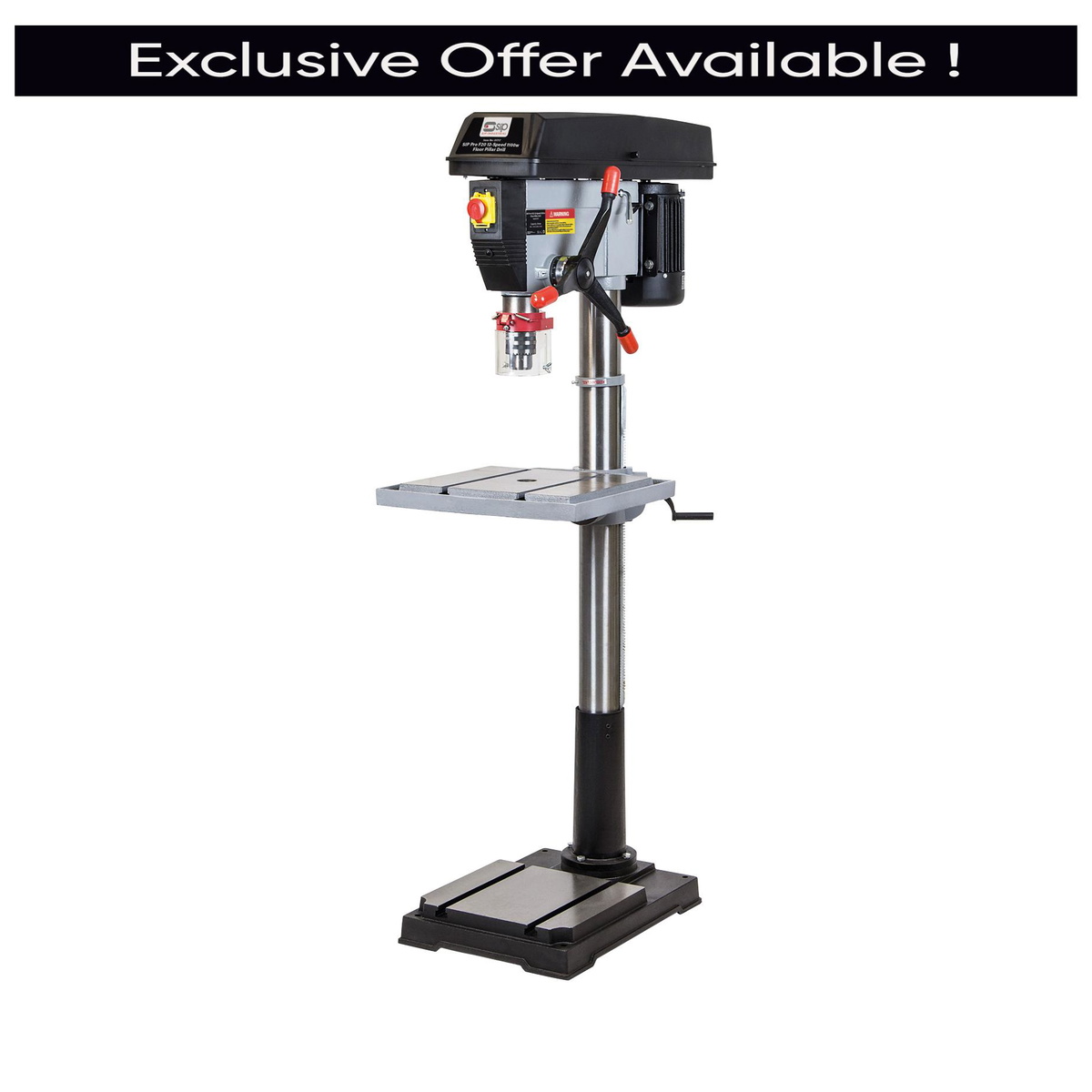

The SIP Pro F20 (SKU 01717) is a 1100W, 230V floor-mounted pillar drill designed for professional workshop use across a wide range of workpiece materials. Built to handle ferrous and non-ferrous metals, hard and soft woods, and high-density plastics, it delivers the performance and capacity demanded by engineering, metalwork and woodwork environments.

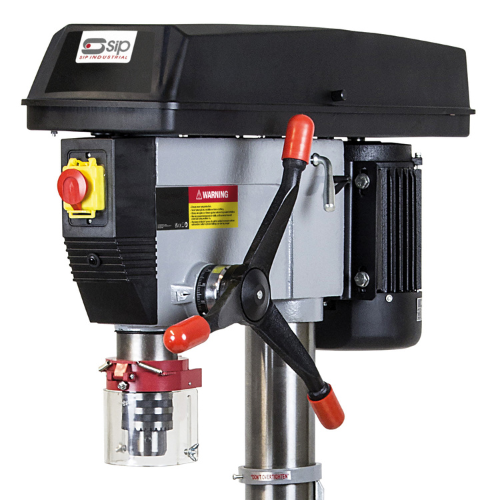

At the heart of the Pro F20 is a high-power brushless induction motor producing consistent drilling performance across 12 spindle speeds, ranging from 150RPM to 2500RPM. Multi-speed functionality gives the operator precise control over hole size and material finish throughout the drilling spectrum. The MT4 spindle taper provides a larger drilling capacity, accommodating drill bit sizes from 5mm to 20mm and a maximum drilling capacity of 32mm — making it well suited to pilot, blind, batch and general drilling duties, as well as heavy-duty larger-hole work with engineering components.

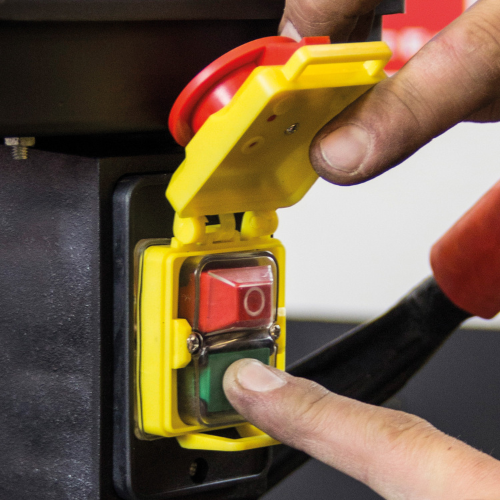

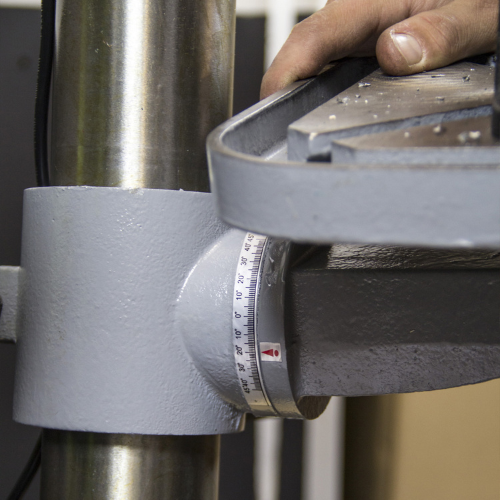

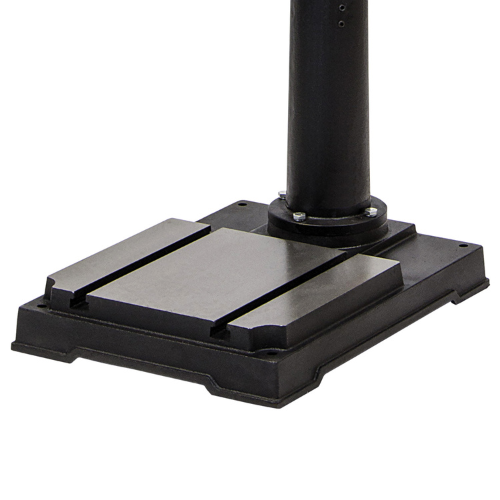

The adjustable tilting table (420mm x 470mm) with tilt scale enables accurate workpiece positioning, whilst the three-lever handle ensures smooth, controlled drilling force. A fitted drilling depth stop maintains consistency for repetitive and blind hole drilling, helping to minimise material wastage. The safety interlock switch permits confident motor belt adjustment without risk of accidental start-up. Integrated chuck guards reduce user risk, and a sturdy cast iron base provides the stability essential for floor-mounted professional use. The machine stands 1720mm in height with a 506mm swing and 120mm spindle travel.
This product is a standalone floor pillar drill. No variant siblings are listed for this SKU.
The SIP Pro F20 01717 is supplied with a SIP 2-Year Standard Silver Warranty. Net weight is 109.60kg. Manufactured by SIP.
Additional Information:
The SIP Pro F20 12-Speed 1100w 230v Floor Pillar Drill makes light work of preparing and finishing a variety of workpiece materials including ferrous and non-ferrous metals, woods and plastics. Using an adjustable tilting table and tilt scale, it can be easily positioned for accurate drilling. Plus, it's MT4 fitting allows for a larger drilling capacity. Longevity and safety are paramount to this pillar drill, using integrated chuck guards to reduce user risk and a sturdy cast iron base for added stability. With a floor-mounted design, it is perfect for a range of professional applications in workshop settings. Applications & uses: Suitable for ferrous and non-ferrous metals, woods, and plastics. The MT4 fitting offers a larger drilling capacity making it perfect for pilot, blind, batch and general drilling use, heavy-duty use for larger hole drilling with engineering workshop components, plus metalwork and woodwork environments.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO. | 01717 |
|---|---|
| Input Voltage | 230v (13A) |
| Motor Power | 1100w |
| No. of Speeds | 12 speeds |
| Speed Range | 150rpm - 2500rpm |
| Drill Bit Size | 5mm - 20mm |
| Max. Drilling Capacity | 32mm |
| Spindle Taper | MT4 |
| Table Size | 420mm x 470mm |
| Base Size | 570mm x 425mm |
| Column Diameter | Ø 92mm |
| Swing | 506mm |
| Height | 1720mm |
| Spindle Travel | 120mm |
| Collar Diameter | Ø 92mm |
| Max. Distance | 620mm (chuck to table) |
|
1095mm (chuck to base)
|
|
| Net Weight | 109.60kg |
| Gross Weight | 117.00kg |
| Product Dimensions | 1720(H) x 470(W) x 570mm(D) |
| Packaged Dimensions | 305(H) x 1415(W) x 650mm(D) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
68328 | SIP 68328 75mm Chuck Guard | 1 Unit |
£19.61
£19.23
|
Add |
Bench or Floor Pillar Drill? Speeds, Big Holes and Chuck Wobble Bench or floor, and how slow must a pillar drill turn for big holes? Or does yours wobble or keep dropping its chuck? Here is how to choose well and cure bot...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey SDM30 Pillar Drill 5-Speed Hobby Model 580mm Height 350W 230V
£155.08
£151.98
2% OFF
Free delivery in UK Mainland
|
Sealey GDM160F Floor Pillar Drill 16-Speed 550W 230V
£448.06
£439.10
2% OFF
Free delivery in UK Mainland
|
Sealey SM2502 Mini Drilling & Milling Machine
£1,282.59
£1,256.94
2% OFF
Free delivery in UK Mainland
|
SIP 01712 Pro B16 16-Speed 550w Bench Pillar Drill
£336.55
£329.95
2% OFF
Free delivery in UK Mainland
|
SIP 01713 Pro B20 16-Speed 750w Bench Pillar Drill
£380.41
£372.95
2% OFF
Free delivery in UK Mainland
|
SIP 01714 Pro F16 16-Speed 550w Floor Pillar Drill
£340.63
£333.95
2% OFF
Free delivery in UK Mainland
|
SIP 01715 Pro F20 16-Speed 750w Floor Pillar Drill
£395.71
£387.95
2% OFF
Free delivery in UK Mainland
|
SIP 01716 Pro F20 12-Speed 750w Floor Pillar Drill
£472.58
£463.31
2% OFF
Free delivery in UK Mainland
|
SIP 01718 Pro F20 12-Speed 1100w 400v Floor Pillar Drill
£831.25
£814.95
2% OFF
Free delivery in Channel Island
|
Draper 95043 12 Speed Heavy Duty Floor Standing Drill, 1500W
£1,069.70
£1,048.73
2% OFF
Free delivery in UK Mainland
|
Draper 95314 16 Speed Heavy Duty Bench Drill, 650W
£493.99
£484.30
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | SDM30 | GDM92B | GDM120B | GDM160F | SM2502 | 01710 | 01711 | 01712 | 01713 | 01714 | 01715 | 01716 | 01718 | 95043 | 95314 |
| Type | Pillar Drill | Pillar Drill | Pillar Drill | Pillar Drill | Pillar Drill | Pillar Drill | Pillar Drill | Pillar Drill | Pillar Drill | Pillar Drill | Pillar Drill | Pillar Drill | Pillar Drill | Pillar Drill | Pillar Drill |
| Base Size | 200 x 310mm | 345 x 215mm | 420 x 250mm | 420 x 250mm | 290mm x 182mm | 340mm x 205mm | 410mm x 245mm | 460mm x 270mm | 460mm x 270mm | 460mm x 270mm | 460mm x 270mm | 570mm x 425mm | 580 x 450mm | 460 x 275mm | |
| Collar Diameter | Ø40mm | Ø60mm | 60mm | Ø60mm | Ø N/A | Ø 58mm | Ø 72mm | Ø 72mm | Ø 72mm | Ø 72mm | Ø 80mm | Ø 92mm | 92mm | 60mm | |
| Length (mm) | 580 | 215 | 250 | 250 | 100 | 13 | 16 | 16 | 16 | 16 | 20 | 20 | 20 | 450 | 275 |
| Spindle Travel | 50mm | 60mm | 80mm | 80mm | 50mm | 60mm | 80mm | 80mm | 80mm | 80mm | 80mm | 120mm | 120mm | 80mm | |
| Weight (kg) | 11 | 32 | 47 | 51 | 68 | 00 | 00 | 00 | 50 | 60 | 30 | 50 | 148 | 71 | |
A. The SIP Pro F20 01717 is suitable for ferrous and non-ferrous metals, hard and soft woods, and high-density plastics, making it appropriate for metalwork, woodwork and engineering workshop applications.
A. The SIP Pro F20 01717 has a maximum drilling capacity of 32mm. It accepts drill bit sizes from 5mm to 20mm via an MT4 spindle taper, which provides an enlarged drilling capacity for heavier-duty work.
A. The drill operates across 12 spindle speeds ranging from 150RPM to 2500RPM, allowing precise control to suit different materials and hole sizes.
A. The SIP Pro F20 01717 stands 1720mm tall with a table size of 420mm x 470mm, a base size of 570mm x 425mm, a 506mm swing, 120mm spindle travel, and a column diameter of 92mm. Net weight is 109.60kg.
A. The drill is fitted with integrated chuck guards to reduce user risk and a safety interlock switch that allows motor belt adjustment to be carried out with confidence, preventing accidental start-up during the process.
A. The SIP Pro F20 01717 is designed for pilot drilling, blind hole drilling, batch drilling and general drilling duties, as well as heavy-duty larger-hole work with engineering workshop components in metalwork and woodwork environments.
A. The SIP Pro F20 01717 is covered by the SIP 2-Year Standard Silver Warranty.
A. The SIP Pro F20 01717 operates on a 230V, 13A single-phase supply with a 1100W motor.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
