Product Number: 01565

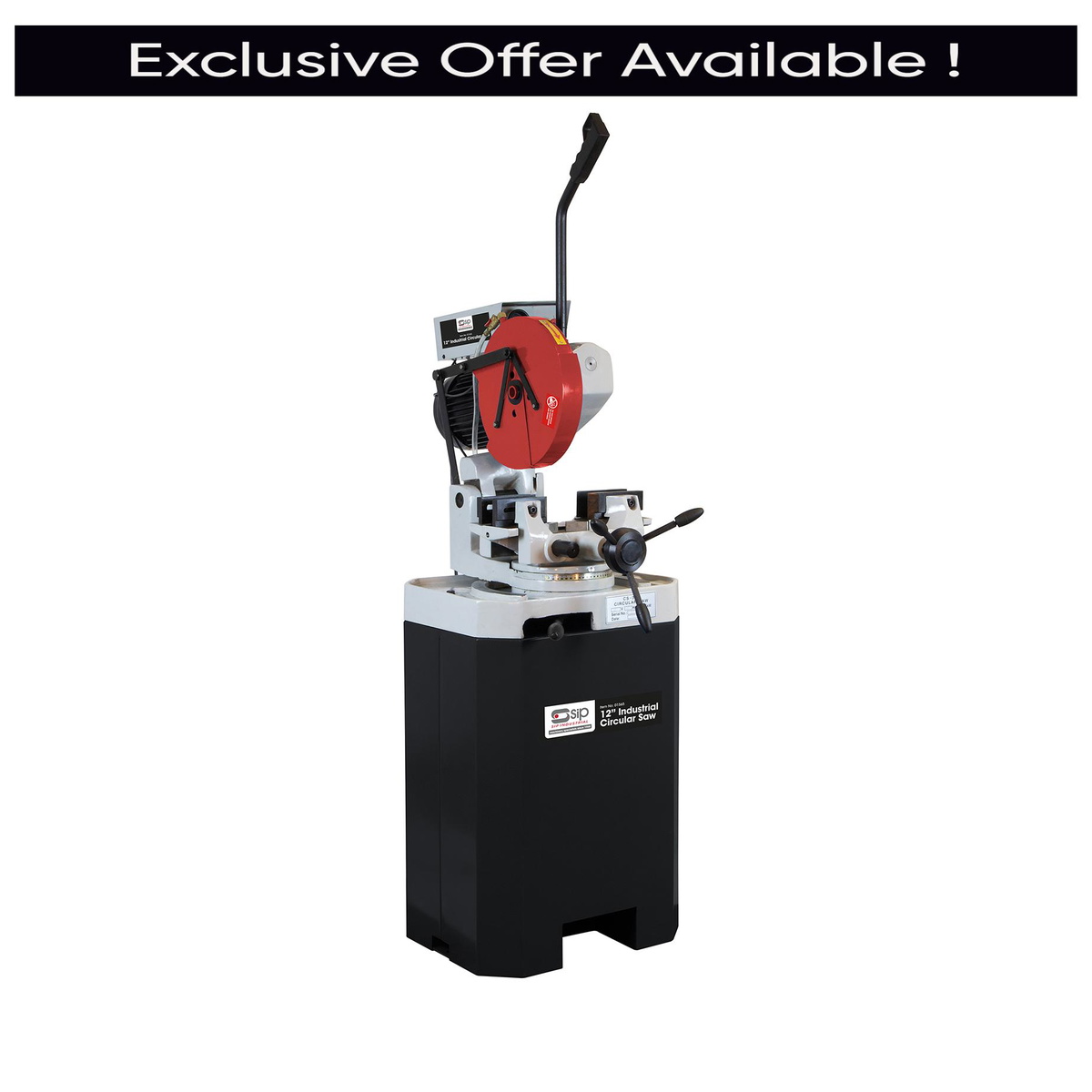

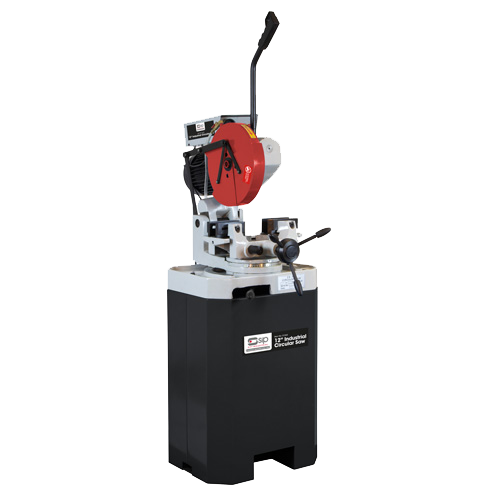

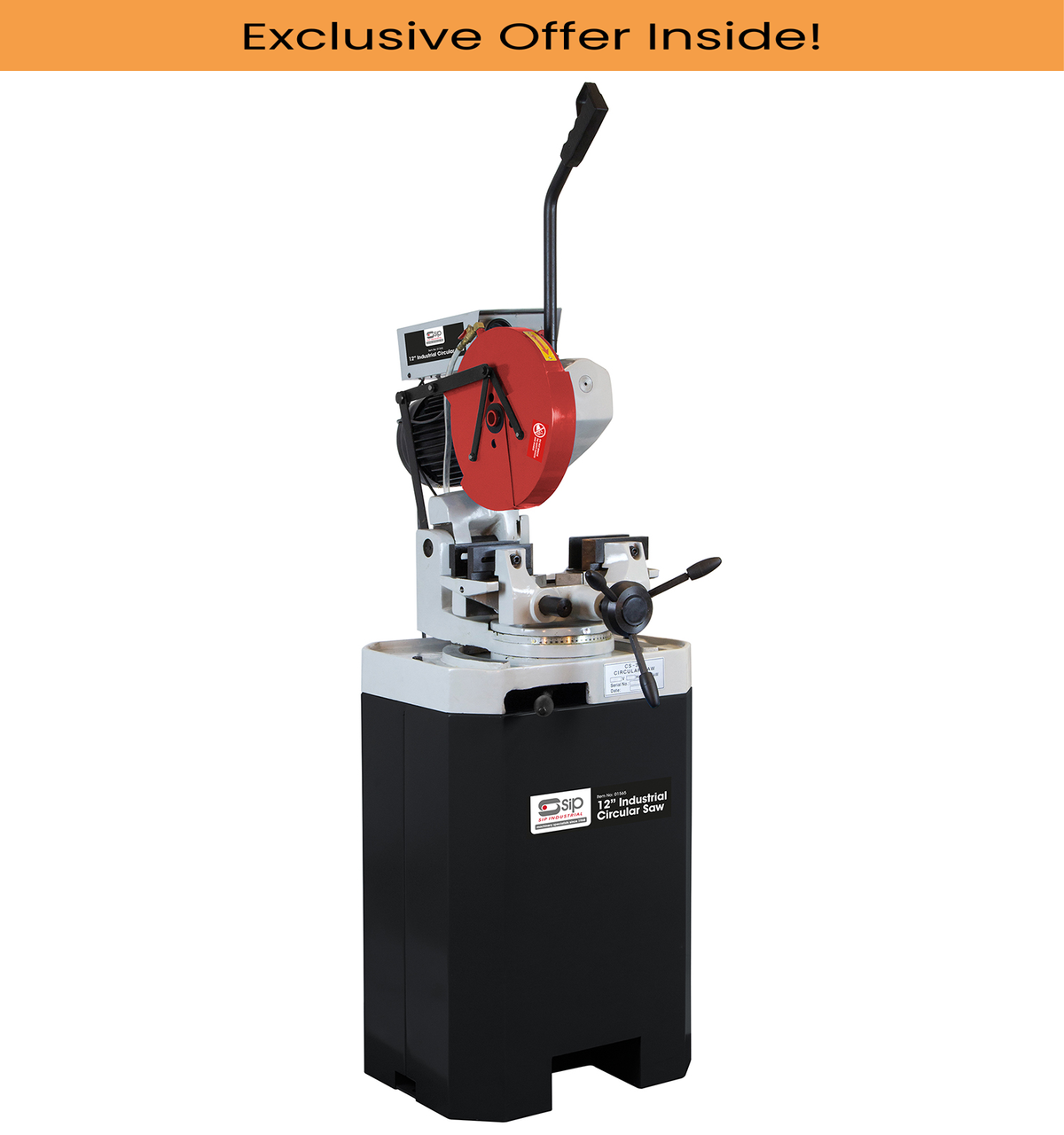

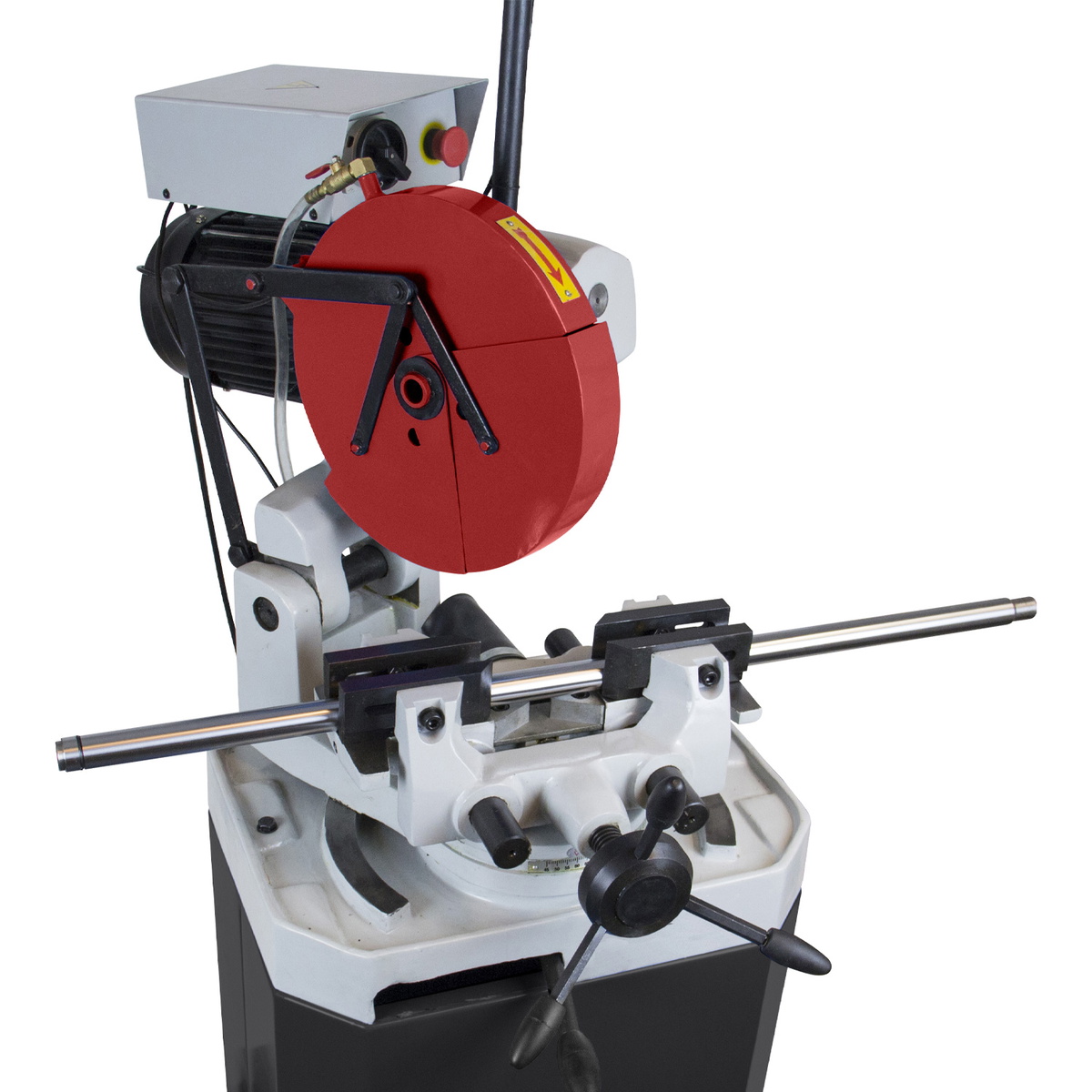

The SIP 01565 12" Industrial Circular Saw is a three-phase metal-cutting circular saw designed for heavy industry-grade workshop applications. Built to cut a range of ferrous metals via a slow-cutting blade, it combines high accuracy with ease of use to meet the demands of professional and industrial environments.

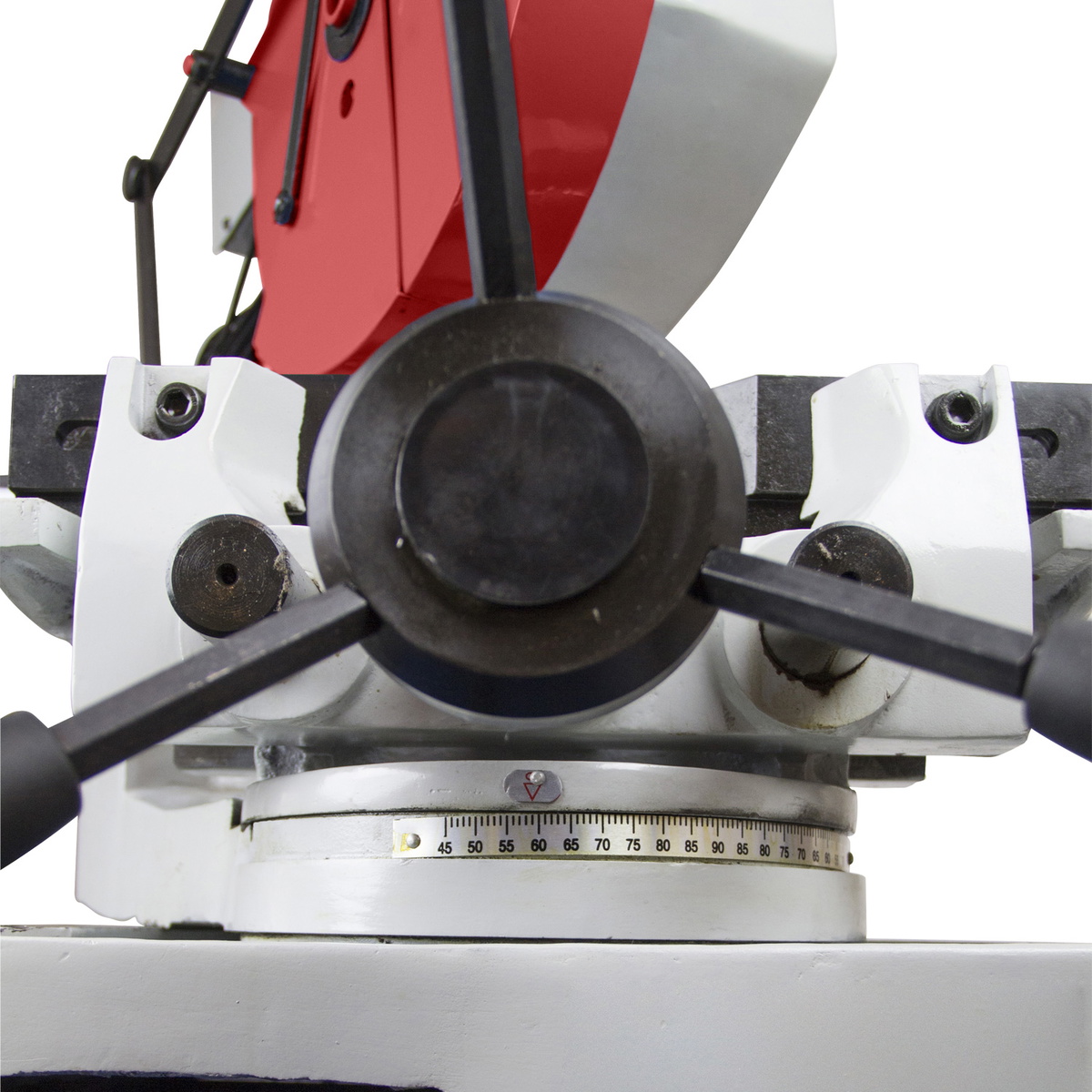

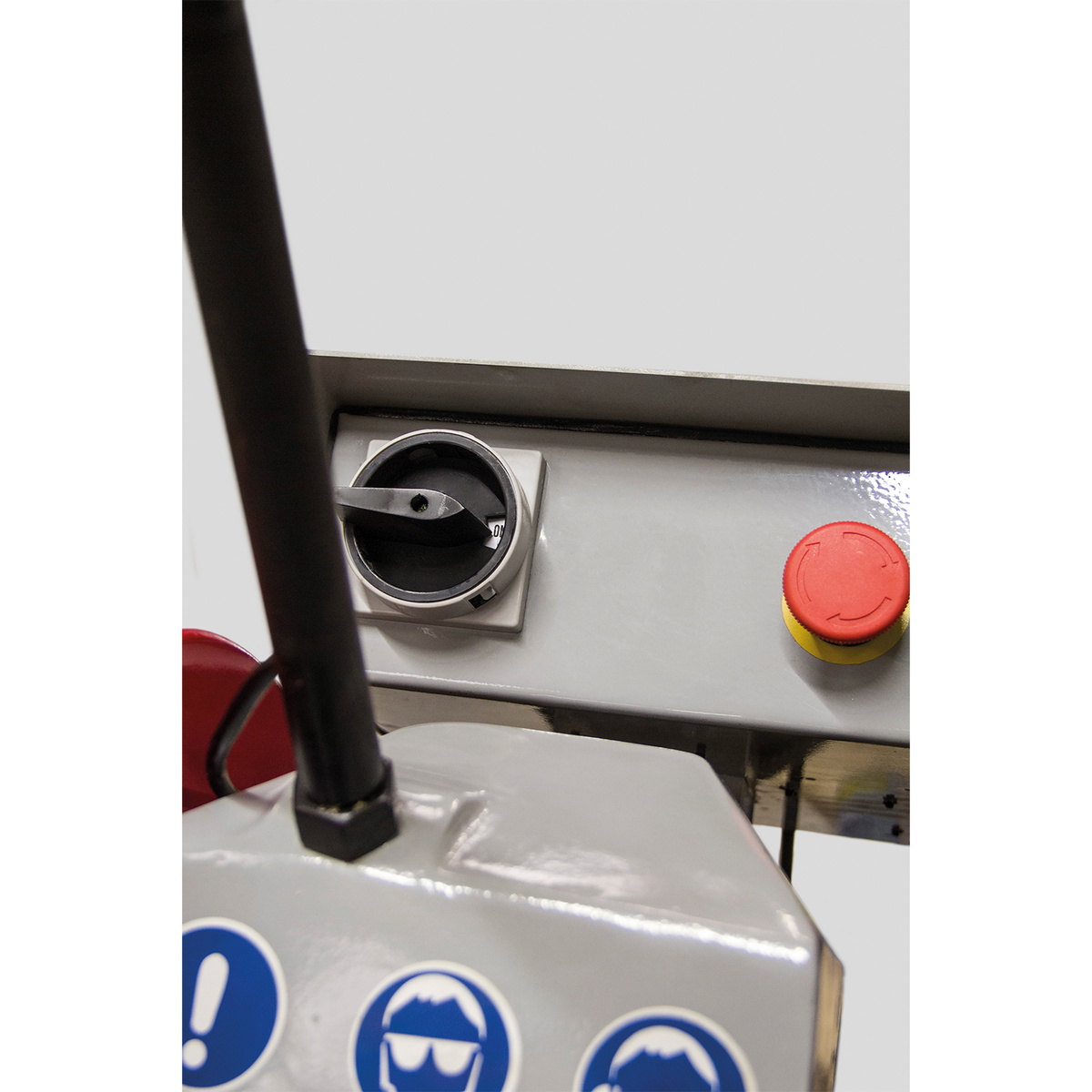

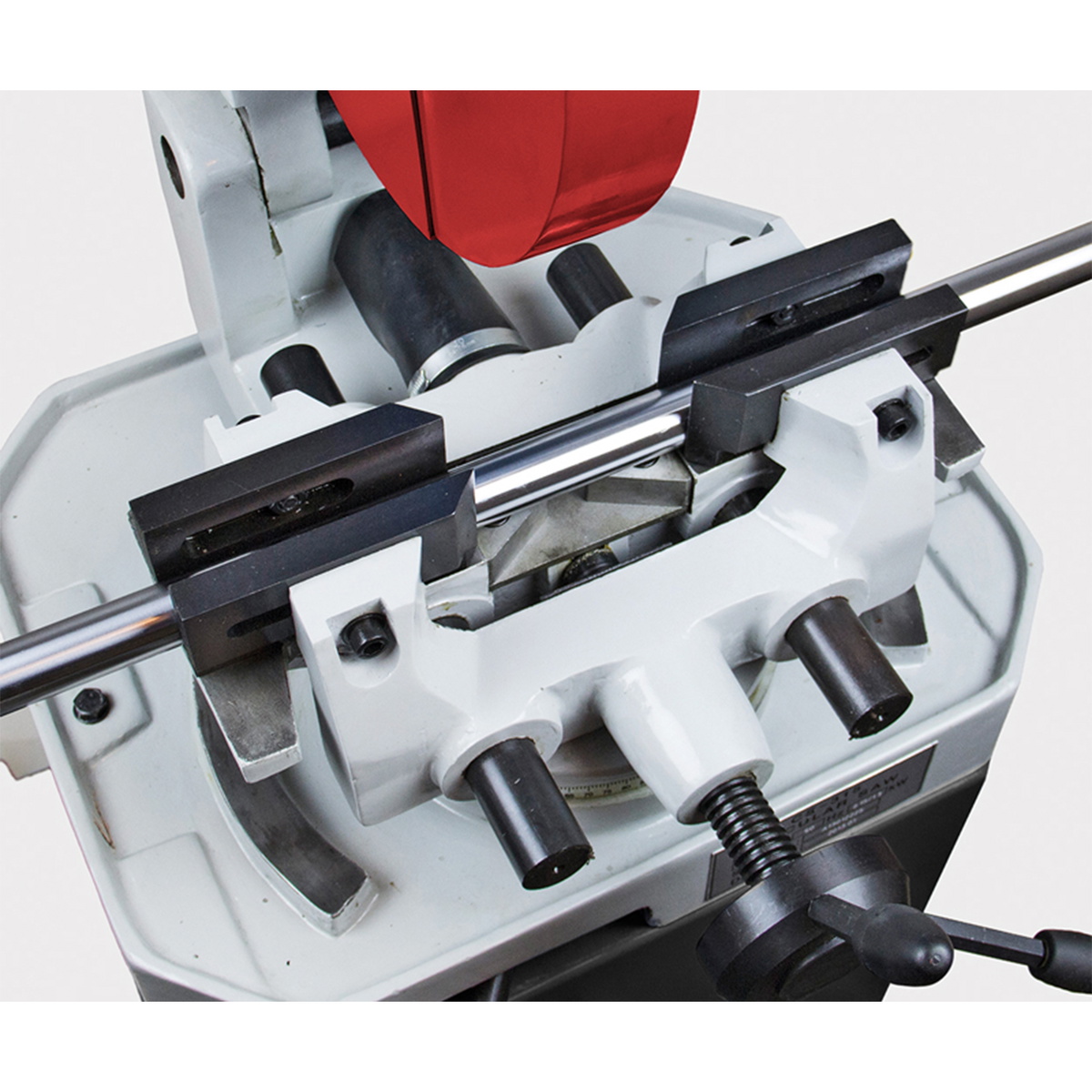

At the heart of the machine is a heavy-duty 3-phase motor drawing a 400V (5A) supply and delivering either 1hp (0.75kW) or 1.7hp (1.1kW) depending on operational mode, with corresponding blade speeds of 18rpm and 36rpm respectively. The swivel head design enables accurate angled cutting, whilst the cranked pull-down handle integrates an ON/OFF switch and emergency stop control for safe, comfortable operation across all users. A twin jaw vice provides precise workpiece positioning and higher accuracy, and a quick-release vice handle supports efficient repetitive cutting cycles.
The saw accommodates a maximum blade size of 315mm and delivers a cutting capacity at 90° of 140mm x 90mm for box section and Ø100mm for round tube, reducing to 100mm x 90mm box section and Ø90mm round tube at 45°. An electric pump cooling system actively cools both the blade and the workpiece during operation, extending blade life and maintaining cut quality. Sturdy cast iron construction underpins the machine's durability in sustained industrial use.
The SIP 01565 is covered by SIP's 2-Year Standard Silver Warranty. Manufactured to perform in demanding workshop environments, it is supplied ready for direct installation on a 400V 3-phase supply.
Additional Information:
The SIP 12" Industrial Circular Saw utilises a range of heavy-duty features that ensure comfortable use in a selection of heavy industry-grade environmental, easily cutting a range of ferrous metals via a slow-cutting blade. Designed for high accuracy and ease-of-use, the 12" Industrial Circular Saw is built with a twin jaw vice and cranked pull-down handle with control switch to comfortably accommodate all users and materials.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 01565 |
|---|---|
| Input Supply | 400v (5A) |
| Motor Power | 1hp (0.75kW) / 1.7hp (1.1kW) |
| Blade Speed | 18rpm @ 1hp / 36rpm @ 1.7hp |
| Blade Size | max. 315mm |
| Max. Cutting Capacity | |
| 90° | 140mm x 90mm (Box) |
| 45° | 100mm x 90mm (Box) |
| 90° | Ø 100mm (Round Tube) |
| 45° | Ø 90mm (Round Tube) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
06160 | SIP 06160 315 x 30mm 60T TCT Circular Saw Blade | 1 Unit |
£63.69
£62.44
|
Add |
|
06128 | SIP 06128 254 x 30mm 40T TCT Circular Saw Blade | 1 Unit |
£41.60
£40.78
|
Add |
|
05210 | SIP 05210 T5 Z160 Blade - 250 x 2.0 x 32mm | 1 Unit |
£94.65
£92.79
|
Add |
|
05212 | SIP 05212 T4 Z200 Blade - 250 x 2.0 x 32mm | 1 Unit |
£94.65
£92.79
|
Add |
|
07773 | SIP 07773 254 x 16mm 40T TCT Circular Saw Blade | 1 Unit |
£45.60
£44.71
|
Add |
|
06156 | SIP 06156 315 x 30mm 30T TCT Circular Saw Blade | 1 Unit |
£47.06
£46.14
|
Add |
|
05199 | SIP 05199 Z160 Blade - 315 x 2.5 x 40mm | 1 Unit |
£174.97
£171.54
|
Add |
Metalworking Essentials: Types, Uses, and Tips to Buy the Perfect One Introduction: In the intricate world of metalworking, the ability to cut with precision is paramount. Metal cutting equipment...
Standard Delivery: Channel Island Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 01948 3" Heavy-Duty Belt Linisher
£927.12
£908.94
2% OFF
Free delivery in Channel Island
|
|||
| Technical Specification | ||||
|---|---|---|---|---|
| PRODUCT NUMBER | 01307 | 08210 | 01948 | 07625 |
| Input Supply | 230 | 230 | 400 | 230 |
| Motor Power | 2.3 | 2.2 | 3000 | 370 |
| Warranty | 24 | 24 | ||
A. The SIP 01565 requires a 400V (5A) 3-phase supply. It is not compatible with single-phase domestic power.
A. The machine operates at either 1hp (0.75kW) with a blade speed of 18rpm, or 1.7hp (1.1kW) with a blade speed of 36rpm.
A. The maximum blade size is 315mm. At 90°, cutting capacity is 140mm x 90mm for box section and Ø100mm for round tube. At 45°, capacity is 100mm x 90mm for box section and Ø90mm for round tube.
A. The SIP 01565 is designed to cut a range of ferrous metals. It uses a slow-cutting blade that is specifically suited to ferrous metal cutting and provides enhanced blade life.
A. Yes. The swivel head design allows the saw to be positioned for angled cutting, with a verified cutting capacity at 45° of 100mm x 90mm box section and Ø90mm round tube.
A. The saw is fitted with a twin jaw vice for precise workpiece positioning and higher accuracy, along with a quick-release vice handle for efficient repetitive cutting. The cranked pull-down handle includes an integrated ON/OFF switch and emergency stop control.
A. Yes. An electric pump cooling system actively cools both the blade and the workpiece during cutting, helping to extend blade life and maintain consistent cut quality.
A. The SIP 01565 is covered by SIP's 2-Year Standard Silver Warranty.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
