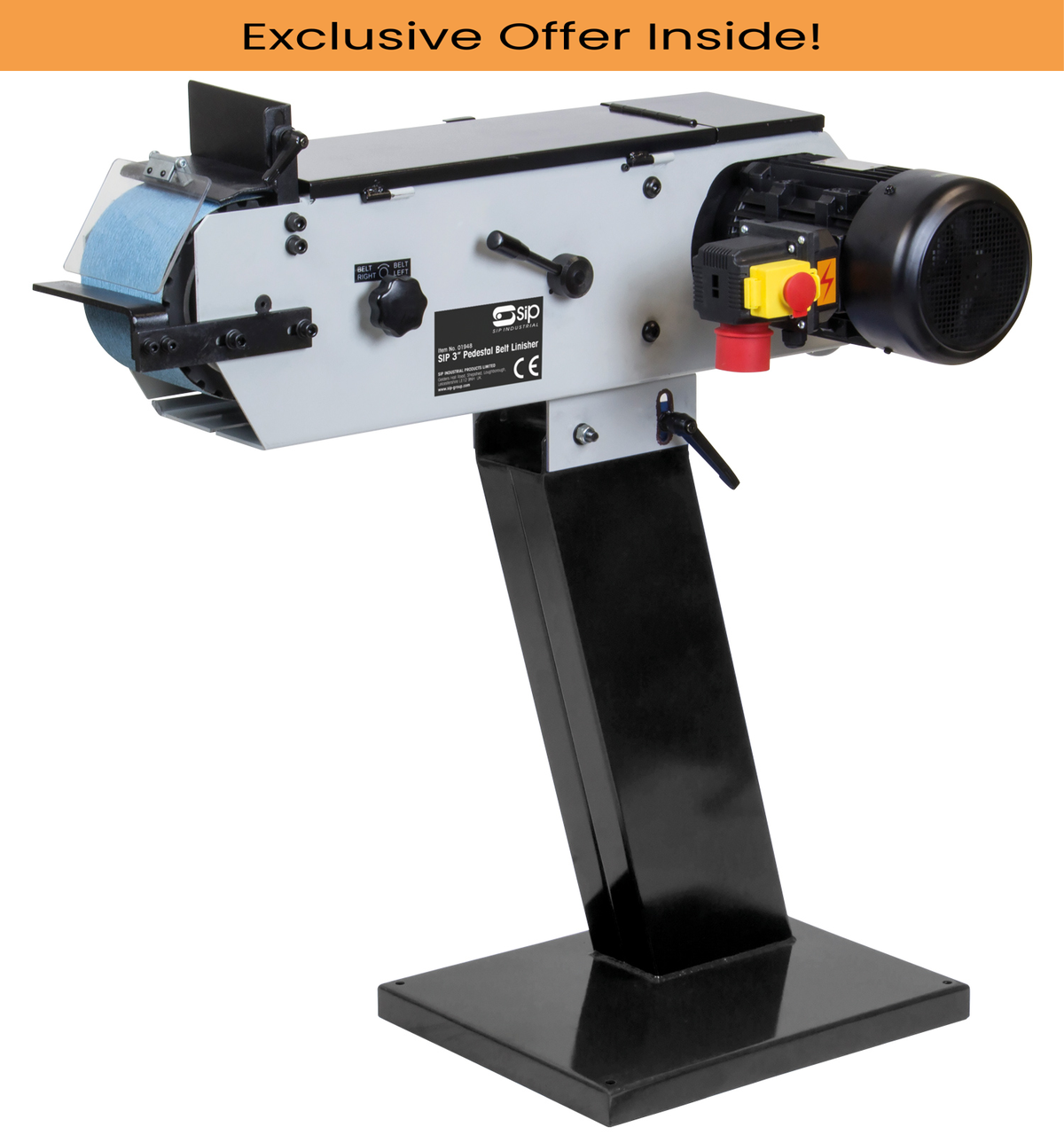

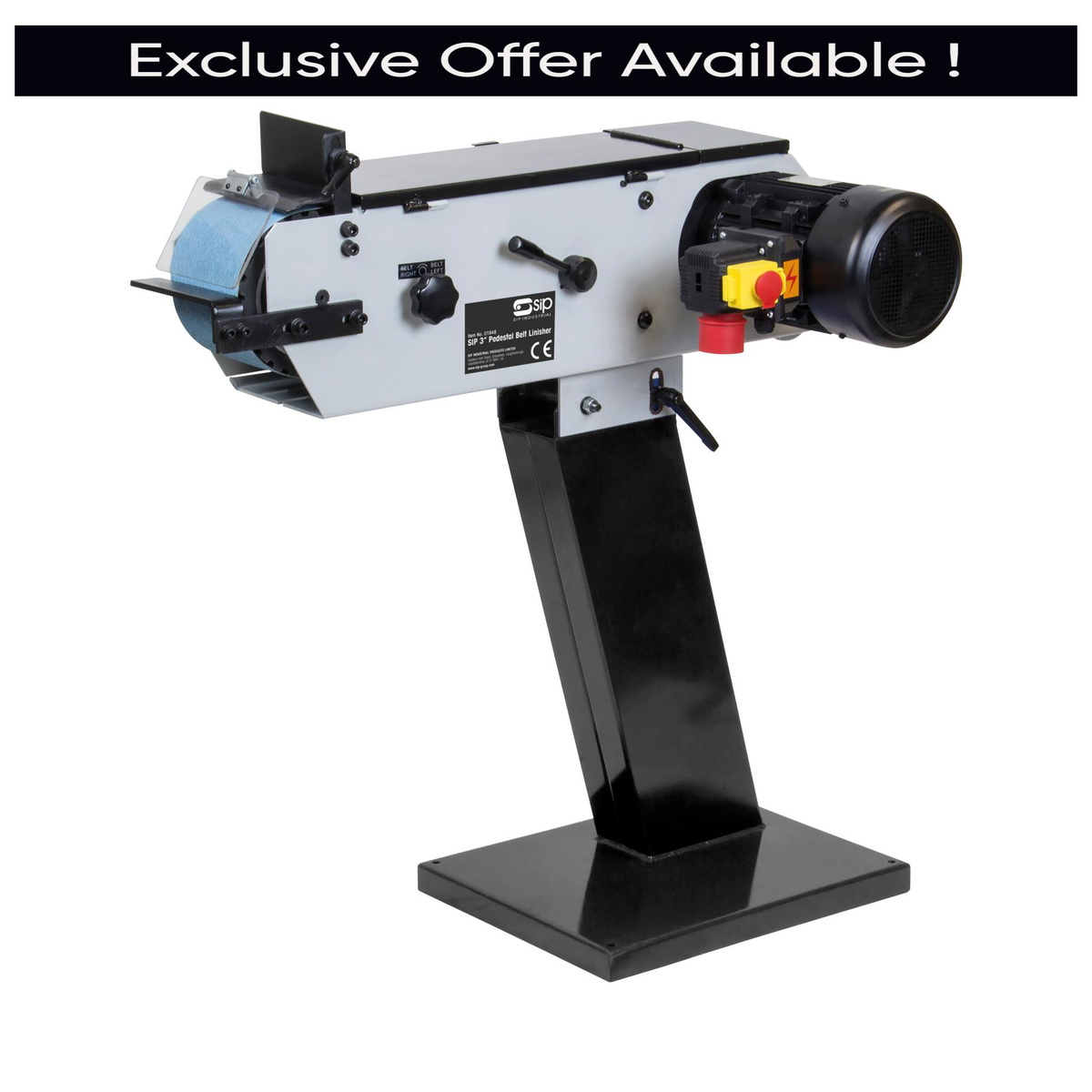

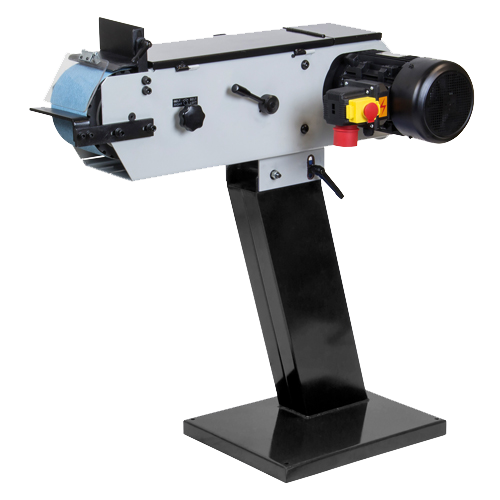

The SIP 01948 is a 3-inch heavy-duty belt linisher rated at 3kW (4hp) and supplied on 400V three-phase input, designed for removing sharp edges and burrs from workpieces and finishing metalwork products. It is suitable for cleaning, grinding and finishing of tubes, profiles and flat sections in mild steel, aluminium and stainless steel, making it an essential machine for professional engineering, fabrication and metalwork workshops.

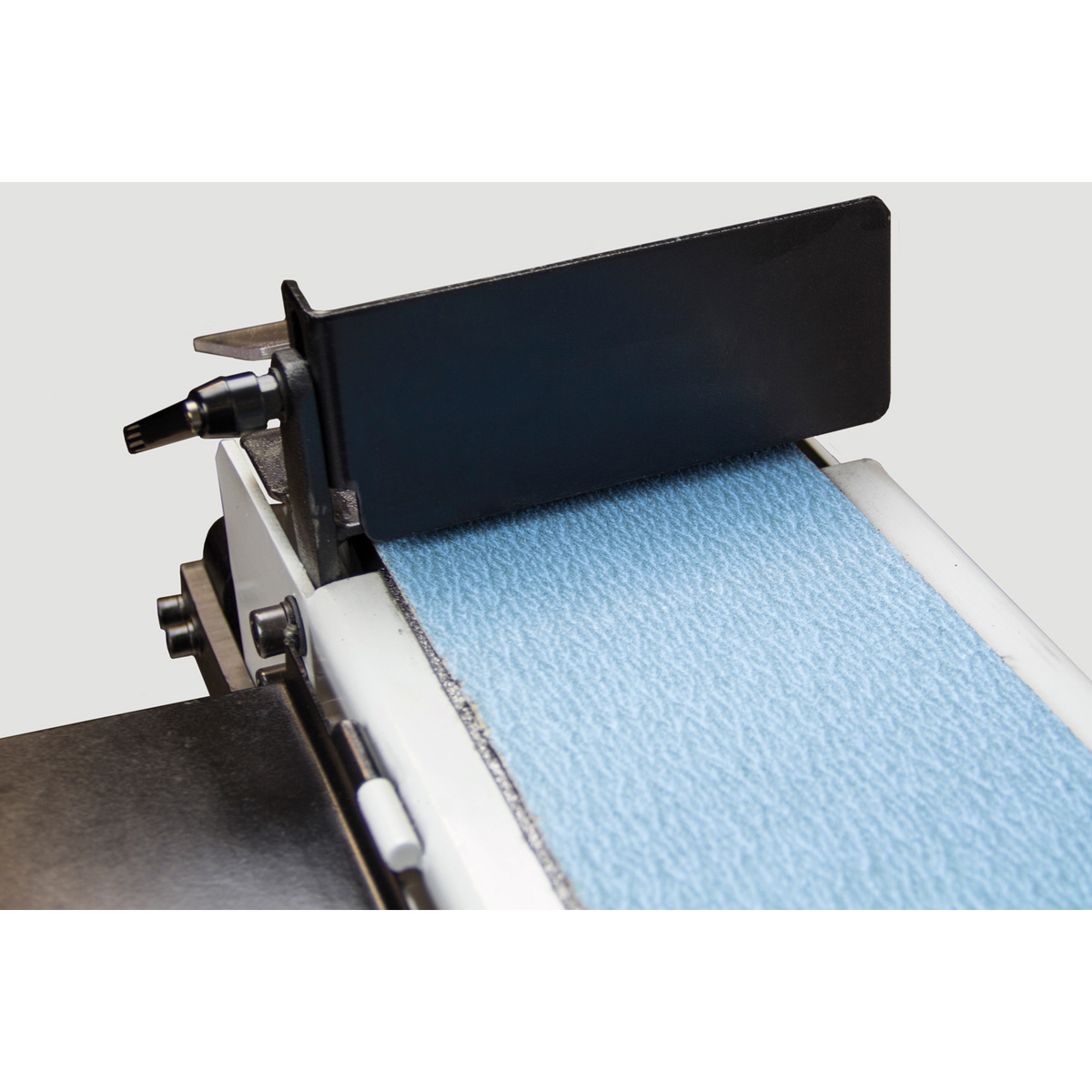

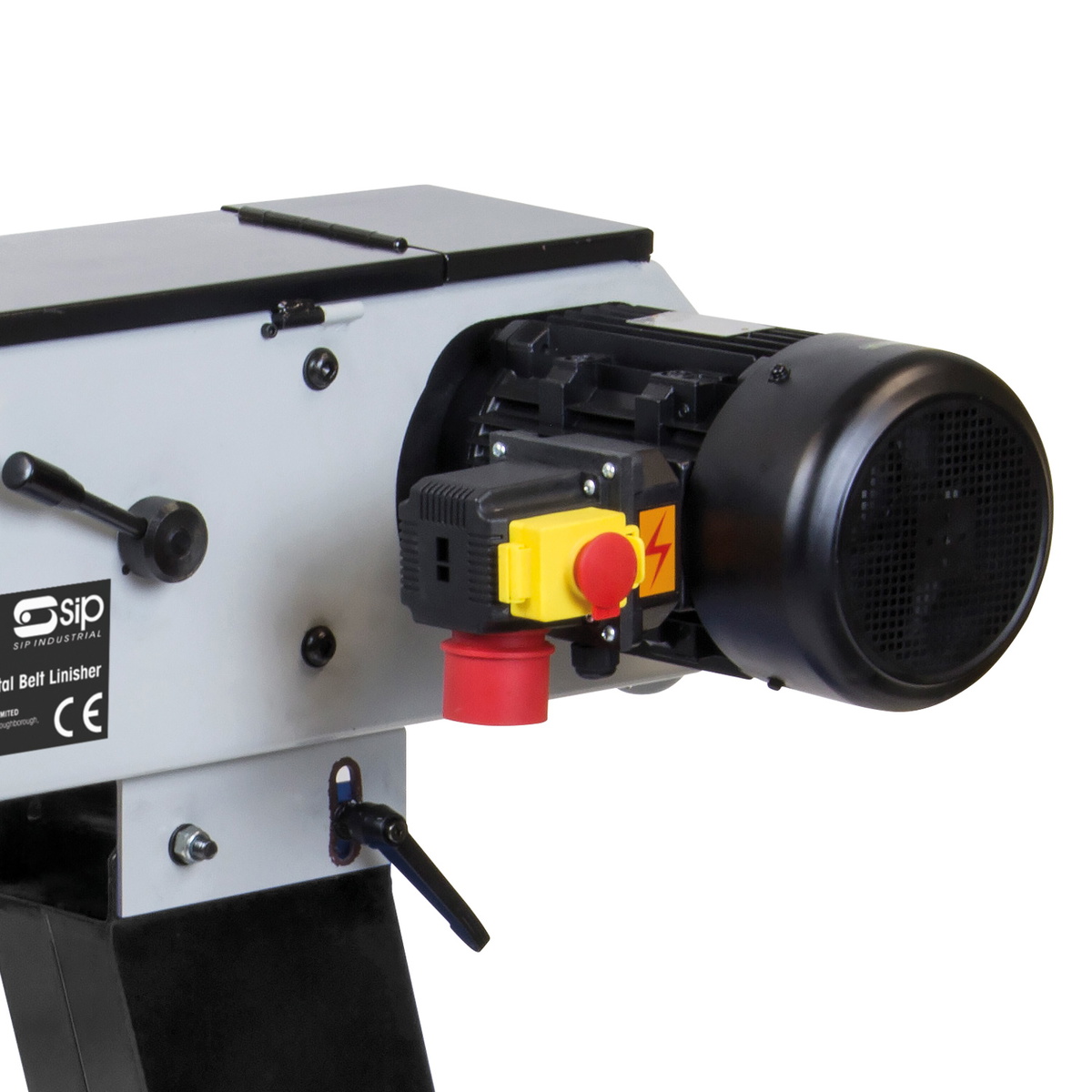

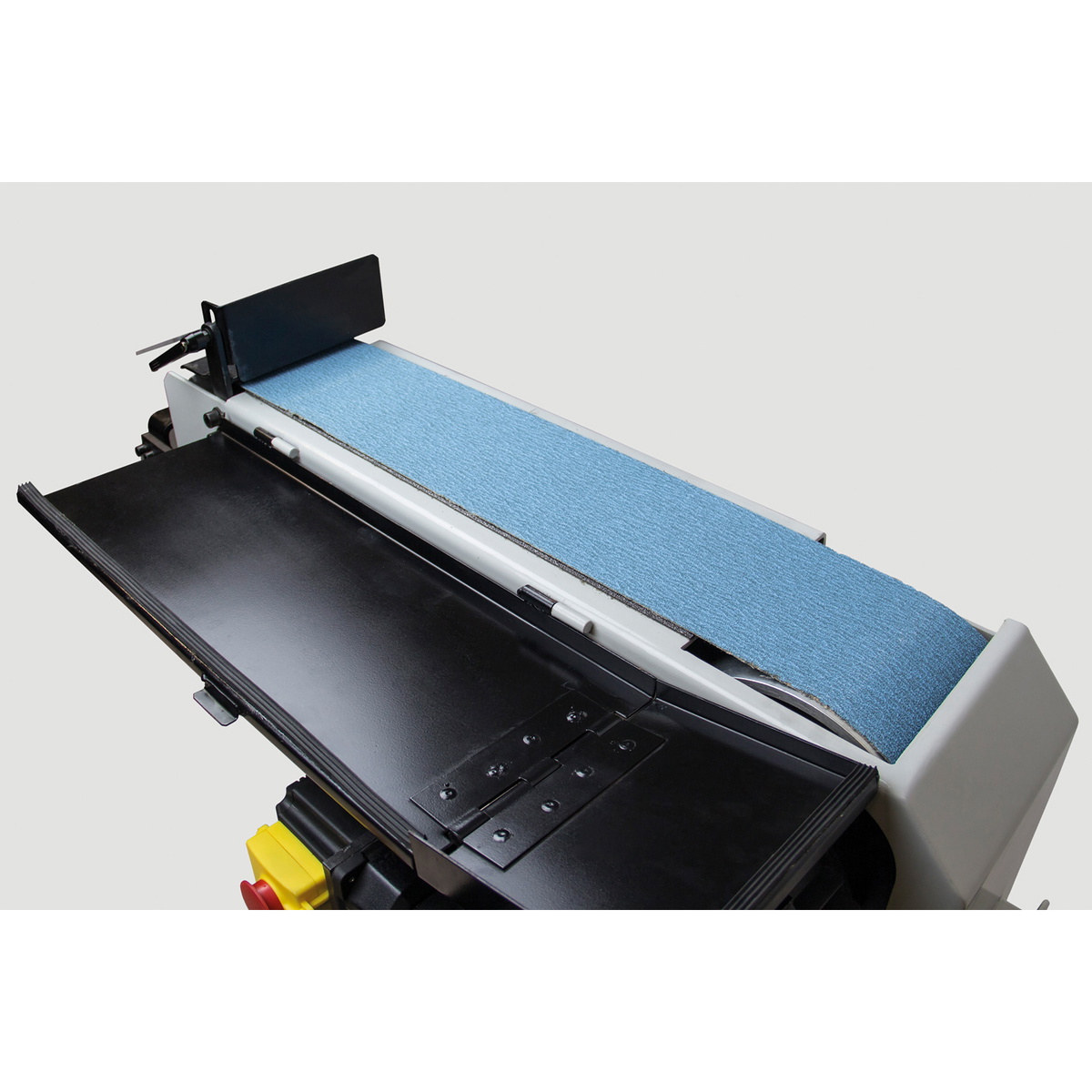

At the core of its capability is a long-lasting zirconium bonded belt — 2000mm x 75mm at 80G — driven at a belt speed of 34 metres per second. Three-point belt access, available at the wheel, platen top and full platen positions, provides a versatile working envelope to suit a wide range of tasks. A quick belt release handle and easy-access side panel make belt changing fast and straightforward, while a belt tracking adjusting knob ensures the belt runs straight and true at all times. The adjustable tool support allows accurate positioning of the workpiece with easy angle adjustment, and the linishing head tilt accommodates varying material lengths and sizes. Adjustable eye protection and an NVR switch are both fitted as standard for increased user safety.

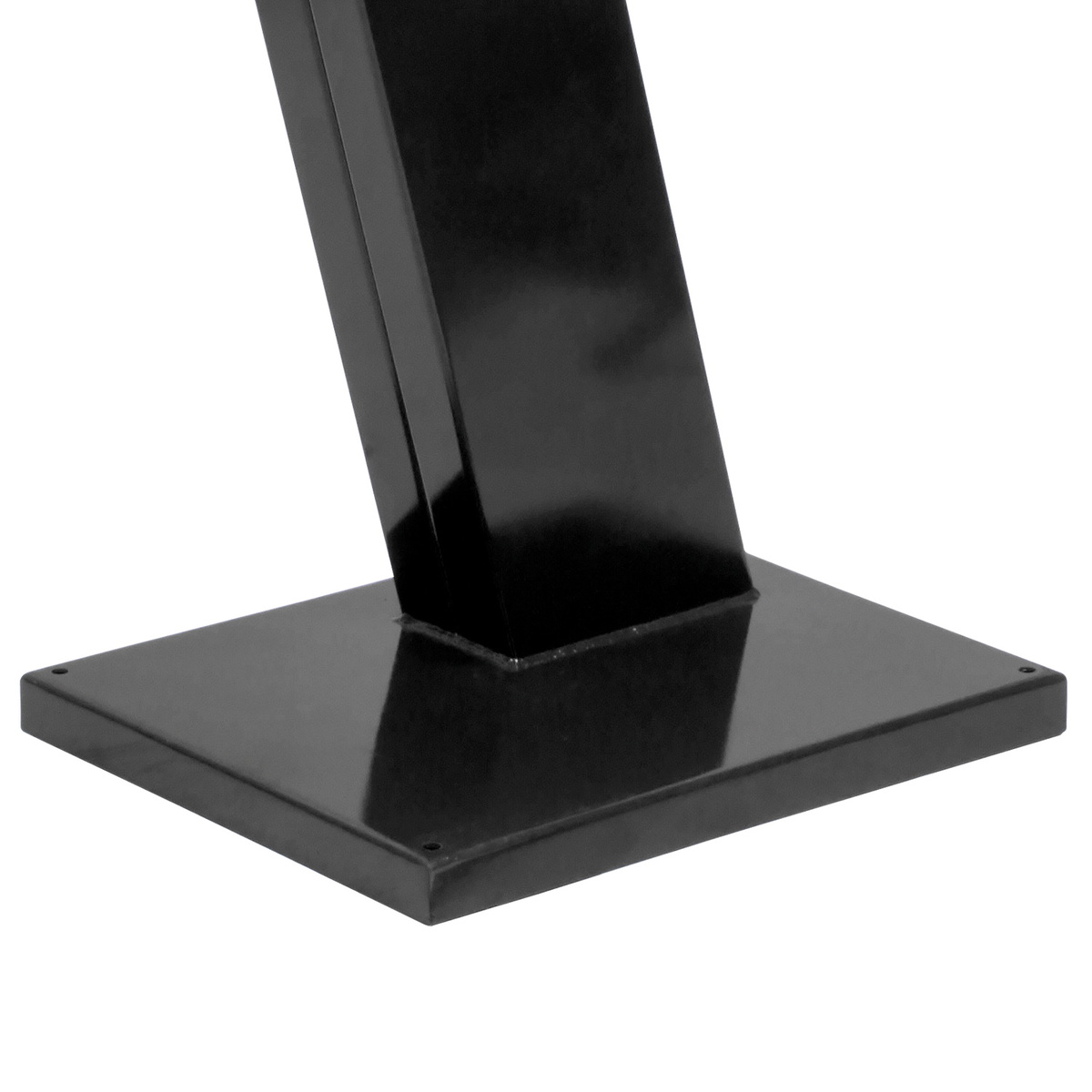

The machine is built on a heavy-duty pedestal stand construction appropriate for permanent workshop installation. Key working dimensions include a flat grinding height of 530mm, a contact wheel size of 200mm x 75mm, and a working height of 1240mm at the contact wheel. Net weight is 84.8kg, with packaged dimensions of 545(H) x 1150(W) x 560mm(D).
The SIP 01948 is supplied with the following items in the box: 1x SIP 3" Belt Linisher. It is covered by the SIP 2-Year Standard Silver Warranty and is manufactured by SIP Industrial Products.
Additional Information:
The SIP 3" Belt Linisher easily helps to improve the flatness and uniform surfacing of a variety of different material lengths and sizes using a selection of adjustable mechanisms to match the set-up of the machine to the task at hand. Adjustable tool support offers accurate positioning of the workpiece and easy angle adjustment, while the linisher head tilt accommodates varying workpieces. Moreover, 3-point belt access on the wheel, platen top, and full platen increases versatility further.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO. | 01948 |
|---|---|
| Input Supply | 400v 3-PHASE |
| Motor Power | 3kW (4hp) |
| Belt Size / Grade | 2000mm x 75mm / 80G |
| Belt Speed | 34mtr/sec |
| Flat Grinding Height | 530mm |
| Contact Wheel Size | 200mm x 75mm |
| Working Height | 1240mm (Contact Wheel) |
| Net Weight | 84.8kg |
| Gross Weight | 96.1kg |
| Product Dimensions | |
| Packaged Dimensions | 545(H) x 1150(W) x 560mm(D) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Metalworking Essentials: Types, Uses, and Tips to Buy the Perfect One Introduction: In the intricate world of metalworking, the ability to cut with precision is paramount. Metal cutting equipment...
Standard Delivery: Channel Island Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||
| Technical Specification | ||||
|---|---|---|---|---|
| PRODUCT NUMBER | 01459 | 07625 | 07628 | 07650 |
| Input Supply | 230 | 230 | 230 | |
| Motor Power | 370 | 550 | 750 | |
| Warranty | 24 | 24 | 24 | |
A. The SIP 01948 is suitable for finishing mild steel, aluminium and stainless steel. It is designed for removing sharp edges and burrs from workpieces and for cleaning, grinding and finishing of products, tubes and profiles.
A. The SIP 01948 operates on 400V three-phase input with a 3kW (4hp) motor. The belt measures 2000mm x 75mm at 80G and runs at 34 metres per second. Flat grinding height is 530mm, the contact wheel measures 200mm x 75mm, and working height at the contact wheel is 1240mm.
A. The SIP 01948 features three-point belt access — at the wheel, platen top and full platen — providing versatility for a variety of linishing tasks and workpiece profiles.
A. The SIP 01948 is fitted with a quick belt release handle that allows fast belt changing via an easy-access side panel. A belt tracking adjusting knob is also provided to ensure the belt runs straight and true after fitting.
A. The SIP 01948 is equipped with adjustable eye protection and an NVR (No-Volt Release) switch as standard, both provided for increased user safety during operation.
A. The SIP 01948 is covered by the SIP 2-Year Standard Silver Warranty.
A. The SIP 01948 is supplied as: 1x SIP 3" Belt Linisher.
A. Yes. The SIP 01948 features heavy-duty construction with a pedestal stand, making it well suited to permanent trade and professional workshop environments.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
