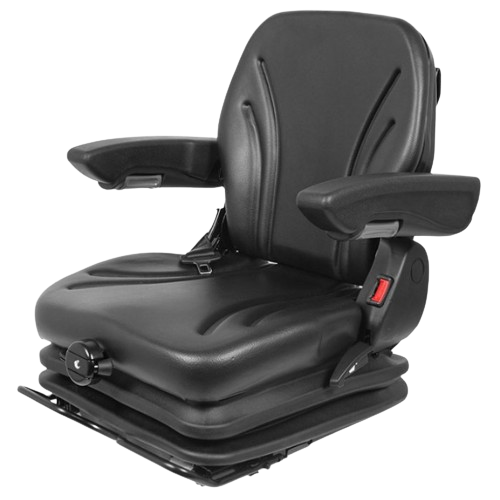

Product Number: US MGV35
The United Seats MGV 35 is suitable for all types of agricultural, forklift and other small machinery.
Product Features:
| Mounting / rail centres | slide rails at 328 mm centres |
|---|---|
| Slide rail travel | 180 mm |
| Seat width | 460 mm |
| SIP (ISO 5353) | 225 mm standard / 210 mm low version [per UnitedSeats] |
| Bracket / fitting | Not stated by manufacturer |
| Suspension type | Mechanical suspension |
| Compressor / voltage | n/a (no compressor) |
| Suspension stroke | 80 mm suspension travel |
| Weight adjustment | 50-155 kg [per UnitedSeats] |
| Height adjustment | Not stated by manufacturer |
| Fore/aft adjustment | Not stated by manufacturer |
| Backrest | Foldable and adjustable backrest |
| Trim | Heavy duty PVC trim with drainage |
| Standard features | Mechanical suspension; Weight adjustment 50-130kg; Suspension travel 80mm; Slide rail travel 180mm; Slide rails at 328mm centres; Heavy duty PVC trim with drainage; Seat width 460mm; Foldable and adjustable backrest; Seat belt |
| Optional features | UnitedSeats fabric trim; Mechanical lumbar support; Adjustable armrests; Headrest; Contact switch |
| Standards / compliance | EN 13490 / IT1 / IT2 / EM2 / EM4 / EM5 / EM7 / EM8 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
UnitedSeats MGV35.pdf
|
Open Now |
Standard Delivery: £7.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||
| Technical Specification | |||
|---|---|---|---|
| PRODUCT NUMBER | US MGV25 | US MGV 84/C1 AR | MSG65/521 |
| Machine Type | Forklift & Materials Handling | Forklift & Materials Handling | Forklift & Materials Handling |
| Suspension | Mechanical | Mechanical | Mechanical |
| Max Operator Weight | Up to 135kg | Up to 120kg | Over 150kg |
| Trim | Fabric | PVC (waterproof) | Not stated |
| OPS Switch | No | No | No |
A. Mounting data for this seat: slide rails at 328 mm centres. Measure your existing seat's mounting centres and compare before ordering. Suited applications: forklift & materials handling; construction & plant.
A. An operator presence switch is available as an option on this model - specify it when ordering if your truck's control circuit requires one. Switch wiring (normally open/closed) and connectors vary by truck - match to your machine's circuit.
A. This seat's manufacturer states: EN 13490 / IT1 / IT2 / EM2 / EM4 / EM5 / EM7 / EM8. ISO 7096 EM classes indicate the machine groups the suspension is certified for; the seat belt standard covers anchorage strength. A correctly specified suspension seat supports your whole-body vibration risk controls under the Control of Vibration at Work Regulations 2005 - it does not by itself achieve compliance.
A. The manufacturer states a weight adjustment range of 50-155 kg [per United Seats]. Set the suspension to the operator's weight for correct ride and vibration performance.
A. The US MGV35 uses mechanical suspension with 80 mm suspension travel of travel. Suspension isolates the operator from machine vibration; set it to the operator's weight where adjustment is provided.
