Product Number: LBH48H8WA
Variations
The LAP Electrical LBH48H8WA is a hurricane titan 3-led lightbar with 1220mm, white LEDs behind an amber lens. The Hurricane TITAN is LAP Electrical's premium LED lightbar range, UK designed and manufactured with ECE R65 Class I approval for on-road amber warning use. Each 3W LED module is conformal coated for moisture protection, and the bar offers four R65-approved flash patterns with three selectable operating modes. The multi-voltage 10-30V input suits both 12V and 24V vehicles, and the extruded aluminium base carries a 2.5 metre multi-core cable. Rated for extreme temperatures from -30°C to +50°C. Other lengths in this range are listed separately (LBH244WA, LBH244WA/MAG, LBH304WA, LBH364WA); choose by the roof space available on your vehicle. Hurricane TITAN lightbars carry LAP's 5 year warranty. Designed and made in the UK. The part number LBH48H8WA identifies this exact configuration; check it against your requirement before ordering. Specifications for this model are listed in the technical details below. Note the colour configuration: this model has white LEDs behind an amber lens, so the bar appears amber when off and the amber lens colours the white LED output when flashing.
Additional Information:
LAP Electrical Hurricane TITAN Range (ECE R65) is Commonly installed on agricultural, construction, industrial and utility vehicles that also use lighting products such as tractor LED work lights, 4x4 work lamps, excavator and digger lighting, magnetic light bars, hazard light bars, trailer lighting and vehicle scene lights.
Main Features:
Multi-voltage (10–30V)
4ft / 1220mm model with 24 high-output LEDs
Four ECE R6 Approved flash patterns: single, double, triple, quad flash
Compatible with optional airport flash pattern
Three selectable operating modes: simultaneous, left/right, front/back
Amber outer lenses with clear centre section
Extruded aluminium base for durability
Fully encapsulated electronic control module
Long-life LED technology with low current draw
Supports additional 3-LED and 6-LED Hurricane modules
4-bolt mounting or high-rise feet (optional)
Manufactured in the UK
3-year warranty
Optional Extra:

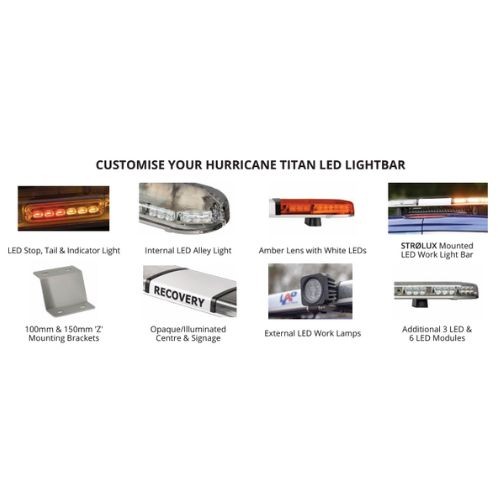

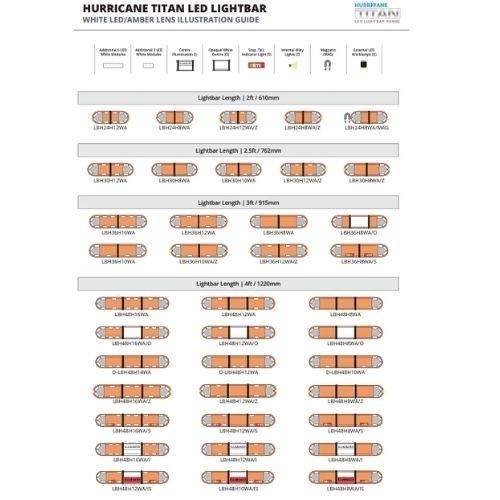

Choose from a range of standard lightbars or customise by adding extra 3-LED or 6-LED modules. Customise your Hurricane TITAN LED lightbar with add-on LED modules and lighting options. For configuration support, contact our team for guidance.
Current Consumption (per module):
3-LED Module: 0.4A @ 12V / 0.2A @ 24V
6-LED Module: 0.9A @ 12V / 0.4A @ 24V
Centre Illumination: 0.4A @ 12V / 0.2A @ 24V
Alley Light: 0.3A @ 12V / 0.2A @ 24V
Hazard Light: 0.3A @ 12V / 0.2A @ 24V
Stop / Tail / Indicator: 0.6A @ 12V / 0.3A @ 24V
LED Work lamp: 1.0A @ 12V / 0.5A @ 24V
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland.

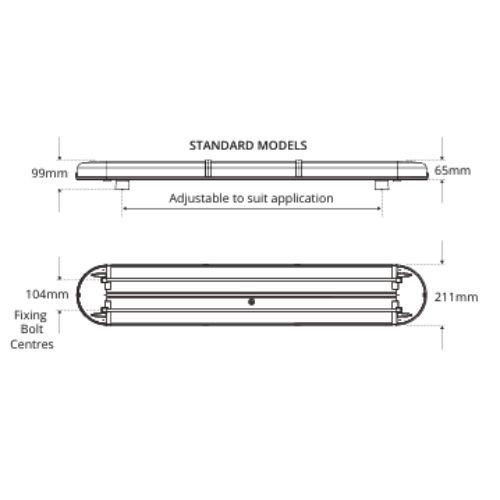

| Dimensions | 1220mm (4ft) |
|---|---|
| Multi Voltage | 10–30V DC |
| Flash Patterns | 4 × R65-approved (Single, Double, Triple, Quad) + Optional Airport Flash Pattern |
| Operating Modes | Simultaneous / Left–Right / Front–Back (Selectable) |
| Lens Material | Amber or Clear Polycarbonate Lens |
| Base Material | Extruded Aluminium Base |
| Electronics Protection | Fully Encapsulated Electronic Control Module |
| LED Technology | Long-life LED with optional Extra 3-LED & 6-LED Modules |
| Certifications | ECE R65 – Approved , ECE R10 – EMC (Electromagnetic Compatibility) Approved |
| Warranty | 3 Years |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
New Brands and Enhanced Lighting Category: Explore the Latest at PartsForMachines! Are you looking for reliable and high-quality lighting solutions for vehicles, workshops, or industrial applications? At PartsForMachines, we’re excited...
Standard Delivery: UK Mainland Free
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||
| Technical Specification | ||||
|---|---|---|---|---|
| PRODUCT NUMBER | 88-4010-1-A | 88-4010-A-M | 89-42000-EA | 88-4015-A-M |
| Colour | Amber | Amber | Amber; Blue; Red; Green; Clear; White | Amber |
| Voltage | 12/24 | 12/24 | ||
| Mount Type | DIN Pole | Magnetic | DIN Pole | Magnetic |
| Approvals | ECE R65 | ECE R65 | ECE R65 | ECE R65 |
A. This model is 1220mm. Measure the clear roof or mounting space on your vehicle and pick the closest length; other sizes in this range are LBH244WA, LBH244WA/MAG, LBH304WA, LBH364WA.
A. It has white LEDs behind an amber lens: it looks amber when off and flashes white in use.
A. It carries ECE R65 (Class I) approval, the UN regulation for special warning lamps commonly required for on-road use.
A. 5 Year from LAP Electrical.
A. Yes — every part we sell is covered by our Fit Guarantee. If it doesn't fit, we'll put it right.
