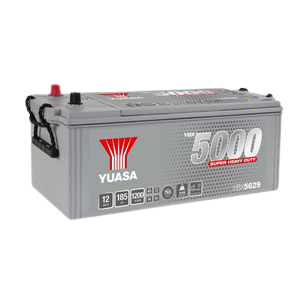

Product Number: YBX5629
Variations
| Brand | Yuasa |
|---|---|
| Voltage | 12V |
| Capacity at 20-hour Rate (Ah) | 185 |
| Cold Cranking Performance (Amps) EN1 | 1200 |
| L × W × H | 511mm × 222mm × 215mm |
| Mean Weight with Acid (kg) | 46 |
| Cell Layout | 3 |
| State of Charge Indicator | Yes |
| Water Loss | W3 |
| Charge Retention | C2 |
| Vibration | V4 |
| Terminal Type | T1 |
| Length (mm) | 511 |
| Width (mm) | 222 |
| Height (mm) | 215 |
| Case Type | DIN B |
| NCC Class | N/A |
| Hold Down | N |
| Hold Down | Terminal Type | Cell Layout |
|---|---|---|
 |  |  |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
ybx5629-yuasa-shd-deep-cycle-battery-12v-185ah-729gm.pdf
|
Open Now |
Expert Guidelines for Preserving Your Heavy Equipment Battery Heavy machinery, including forklifts, bulldozers, and excavators, relies on robust batteries to minimize downtime and maximize operational availability. These batteries must endure even more challenging conditions than typical automotive batteries. Moreover,...
Standard Delivery: £9.99
Delivery Estimate: 1 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
S5 A15 Bosch AGM Car Battery 12V 105Ah Type 020 - 605901095, 3 Years Warranty
£234.55
£229.95
2% OFF
|
TE 077 Bosch HDE EFB Truck Battery 12V 190Ah Type 629EFB - 690500105, 2 Years Warranty
£298.03
£292.19
2% OFF
|
|||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | S5A15 | S5013 | S5015 | TE077 | T5075 |
| Voltage | 12 | 12 | 12 | 12 | 12 |
| Capacity (AH) | 105 | 100 | 110 | 190 | 145 |
| Cold Cranking Amps (EN1) | 950 | 830 | 920 | 1050 | 800 |
| Terminal Type | 1 | 1 | 1 | 1 | 1 |
| Length | 394 | 353 | 394 | 513 | 513 |
| Width | 175 | 175 | 175 | 222 | 188 |
| Height | 190 | 190 | 190 | 223 | 223 |
| Show More | |||||
A. The YBX5629 is rated at 1200 amps cold cranking performance to the EN1 standard, making it suitable for high-demand commercial and heavy-duty starting applications.
A. The battery measures 511mm in length, 222mm in width, and 215mm in height. Mean weight with acid is 46kg. It is housed in a DIN B case.
A. The YBX5629 uses a T1 terminal type. Polarity is 3, meaning the positive terminal is positioned to the right when the battery is viewed from the front.
A. Start-stop compatibility for the YBX5629 is not confirmed. Customers should refer to the labelling on the product itself or consult a qualified technician before fitting to a start-stop system.
A. The YBX5629 carries a C2 charge retention classification, indicating strong ability to retain charge during periods when the battery is not in active use.
A. Yes. The YBX5629 is fitted with a built-in state of charge indicator, allowing a visual check of the battery's charge status without requiring additional test equipment.
A. The YBX5629 has a rated capacity of 185Ah measured at the 20-hour discharge rate, in accordance with standard battery testing methodology.
A. Standard delivery is 1–3 working days within UK mainland. A 30-day returns policy applies. For specific delivery timeframes or returns queries, please contact the PartsForMachines customer service team.
A. The sealed absorbed glass mat construction eliminates acid spillage risk, improves vibration resistance (rated V4), reduces water loss (rated W3), and supports low self-discharge during extended storage — all of which are advantages in commercial or off-road operating conditions.
A. The YBX5629 is supplied with a 12-month manufacturer warranty from Yuasa. Customers should retain proof of purchase and refer to Yuasa's warranty terms for full conditions.
