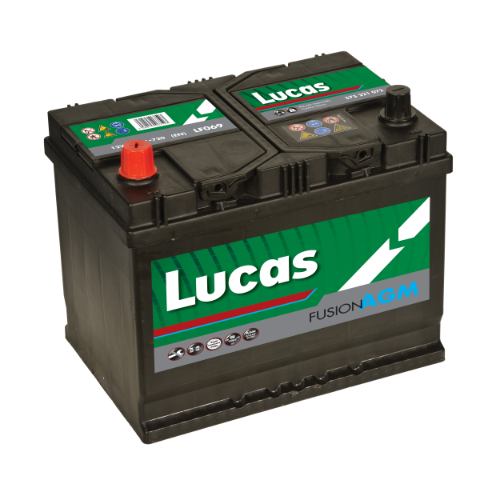

Start-stop vehicles place severe demands on the conventional lead-acid battery, requiring rapid recharge acceptance, deep-cycle tolerance and sustained performance across hundreds of partial-state-of-charge events. The Lucas LF069 Fusion AGM battery is purpose-built to meet those demands, delivering reliable cranking and energy recovery in vehicles equipped with regenerative braking and advanced energy management systems.
Lucas Automotive's Fusion AGM range employs Absorbent Glass Mat technology, in which the electrolyte is suspended within tightly packed glass fibre separators rather than free-flowing liquid. This construction delivers higher cyclic stability and faster recharge acceptance than conventional flooded or EFB batteries, making it well suited to the energy recovery and load cycles associated with regenerative braking systems.
The LF069 is rated at 12V, 75Ah capacity (C20) and 720A cold cranking amps (EN), housed in a D26 case measuring 260 mm – 175 mm – 220 mm (L × W × H) and weighing 19.6 kg. Terminal layout is Type 1 with positive polarity configuration 1, and the hold-down type is B00. The cross-reference code is 069AGM, and this battery is a recognised replacement for BCI Group and European equivalent fitments in the 069 size class.
This battery is part of the wider Lucas Fusion AGM range, which includes LF017, LF020, LF068, LF096, LF110, LF115, AGM31 and LXC25AGM, covering a broad spectrum of vehicle applications and capacity requirements.
The LF069 is supplied with a 3-year warranty, providing assurance of consistent performance throughout the expected service life.
Standard delivery: 1–3 working days within UK mainland. 30-day returns.
The Lucas Fusion AGM & EFB battery ranges feature even higher cyclic stability and recharge more quickly than conventional lead-acid batteries. These characteristics are essential, especially when it comes to advanced systems which employ regenerative braking and other fuel-saving technologies.
Key Feature:Suited for passenger cars, balancing reliable cold-cranking performance with long service life for daily use.
Uses:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
Fitment Warning:You must check your current battery against the specifications of this battery before ordering to ensure that this is the correct battery for your vehicle. Check battery technology, dimensions, terminal type, polarity, capacity (AH) and cranking performance (CCA). We cannot guarantee correct fitment under any circumstances.
| Brand | Lucas Automotive |
|---|---|
| Voltage | 12V |
| Capacity AH (C20) | 75Ah |
| Cold Cranking Amps (EN) | 720A |
| L × W × H | 260mm × 175mm × 220mm |
| Warranty period | 3 Years |
| Weight (Kg) | 19.6 |
| Capacity AH (C5) | |
| Capacity AH (C10) | |
| Capacity AH (C100) | |
| Marine Cranking Amps (MCA) | |
| Watt-Hours (WH) | |
| Length (mm) | 260 |
| Width (mm) | 175 |
| Height Inc. Terminal (mm) | 220 |
| Terminal Placement | 1 |
| Terminal Type | 1 |
| Hold Down | B00 |
| Case Size | D26 |
| ETN Number | |
| TTNR |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Expert Guidelines for Preserving Your Heavy Equipment Battery Heavy machinery, including forklifts, bulldozers, and excavators, relies on robust batteries to minimize downtime and maximize operational availability. These batteries must endure even more challenging conditions than typical automotive batteries. Moreover,...
Standard Delivery: £7.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | YBX9115 | YBX9096 | EK700 | EK720 | EK820 |
| Voltage | 12 | 12 | 12 | 12 | 12 |
| Capacity (AH) | 80 | 70 | 70 | 72 | 82 |
| Hold Down | B3 | B3 | |||
| Cold Cranking Amps (EN1) | 800 | 760 | 720 | 760 | 800 |
| Terminal Type | T1 | T1 | |||
| Length | 317 | 278 | 278 | 278 | 315 |
| Width | 175 | 175 | 175 | 175 | 175 |
| Height | 190 | 190 | 190 | 190 | 190 |
| Show More | |||||
A. The LF069 is designed for vehicles equipped with start-stop systems and regenerative braking technology, including modern passenger cars and light commercial vehicles that require a battery capable of handling frequent charge and discharge cycles.
A. The Lucas LF069 is rated at 720A cold cranking amps measured to the EN standard, providing reliable engine starting performance in cold conditions.
A. The LF069 measures 260 mm in length, 175 mm in width and 220 mm in height including terminals. It is housed in a D26 case and weighs 19.6 kg.
A. The LF069 uses a Type 1 terminal configuration with polarity code 1, meaning the positive terminal is positioned on the left-hand side when viewed from the front of the battery.
A. The Lucas LF069 carries the cross-reference code 069AGM, making it identifiable as a direct AGM replacement for vehicles specifying the 069 battery size classification.
A. Start-stop systems subject the battery to a higher number of charge and discharge cycles than conventional driving. AGM technology offers greater cyclic durability and faster recharge acceptance, characteristics that are essential for maintaining reliable performance in these applications.
A. Yes. The Fusion AGM technology used in the LF069 is specifically suited to vehicles with regenerative energy recovery systems, as it can accept rapid charge inputs more effectively than conventional flooded or EFB batteries.
A. The Lucas LF069 is supplied with a 3-year warranty covering defects in materials and workmanship under normal operating conditions.
A. Yes. The Lucas Fusion AGM range includes LF017, LF020, LF068, LF096, LF110, LF115, AGM31 and LXC25AGM, spanning a variety of sizes and capacity ratings to cover a wide range of vehicle fitments.
A. Standard delivery is 1–3 working days within UK mainland. A 30-day returns policy applies. Please refer to the PartsForMachines returns policy for full terms and conditions.
