Product Number: B12
Variations

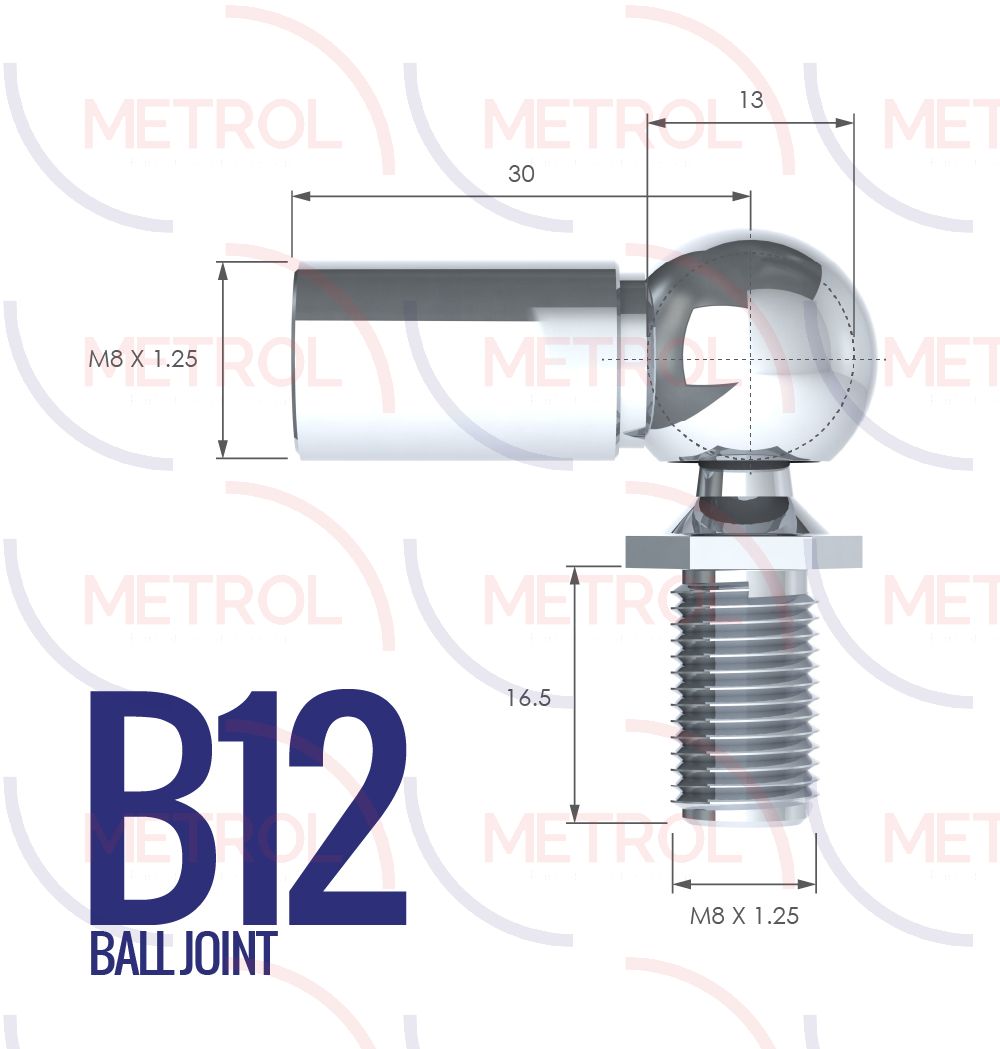

A gas strut needs an articulating end that lets the panel swing as it opens; a ball joint provides exactly that. The Metrol B12 is a steel ball joint end fitting with an M8 thread, a 30mm body and a 13mm ball. It screws onto the threaded end of the strut rod and clips onto a matching ball-stud bracket, so the strut can pivot freely through its travel. Its M8 thread suits a gas strut with a 10mm rod, and the 13mm ball clips onto BRK-4A, BRK-6A, BRK-6R-A, BRK-7A. The ball sits on a M8 stud 16.5mm long behind the 30mm body, threading into the bracket socket side. Like every end fitting in the range it transfers the strut's force to the structure: a ball joint gives a connection that swivels in any direction, an eye a single-axis hinge, a clevis fork an in-line pinned joint, and a rose eye absorbs slight misalignment. It threads onto a gas strut with a 10mm rod, and is chosen by matching the thread to the strut and the size to the space behind the mounting. Typical applications include fold-down benches, worktop flaps, toolbox lids, seat bases. Within the M8 range, its nearest sizes are B11, differing by body length.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Material | Steel |
|---|---|
| Female Thread | M8 |
| Length | 30mm |
| Ball Diameter | 13mm |
| Stud Thread | M8 |
| Stud Length | 16.5mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
metrolsprings-nitrostruts2020-cat_op_55.pdf
|
Open Now |
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | B8 | B7 | B6 | B5 | B4 |
A. Match the M8 thread to your strut rod and the 13mm ball to your bracket's ball stud.
A. Its M8 thread suits a gas strut with a 10mm rod.
A. BRK-4A, BRK-6A, BRK-6R-A, BRK-7A, SSBRK-4A.
A. They share thread and ball size; the fittings differ by body length.
A. Yes — the B12 is a genuine Metrol product, available from PartsForMachines.
A. WhatsApp us on 07754 288583 with photos of the item and packaging.
