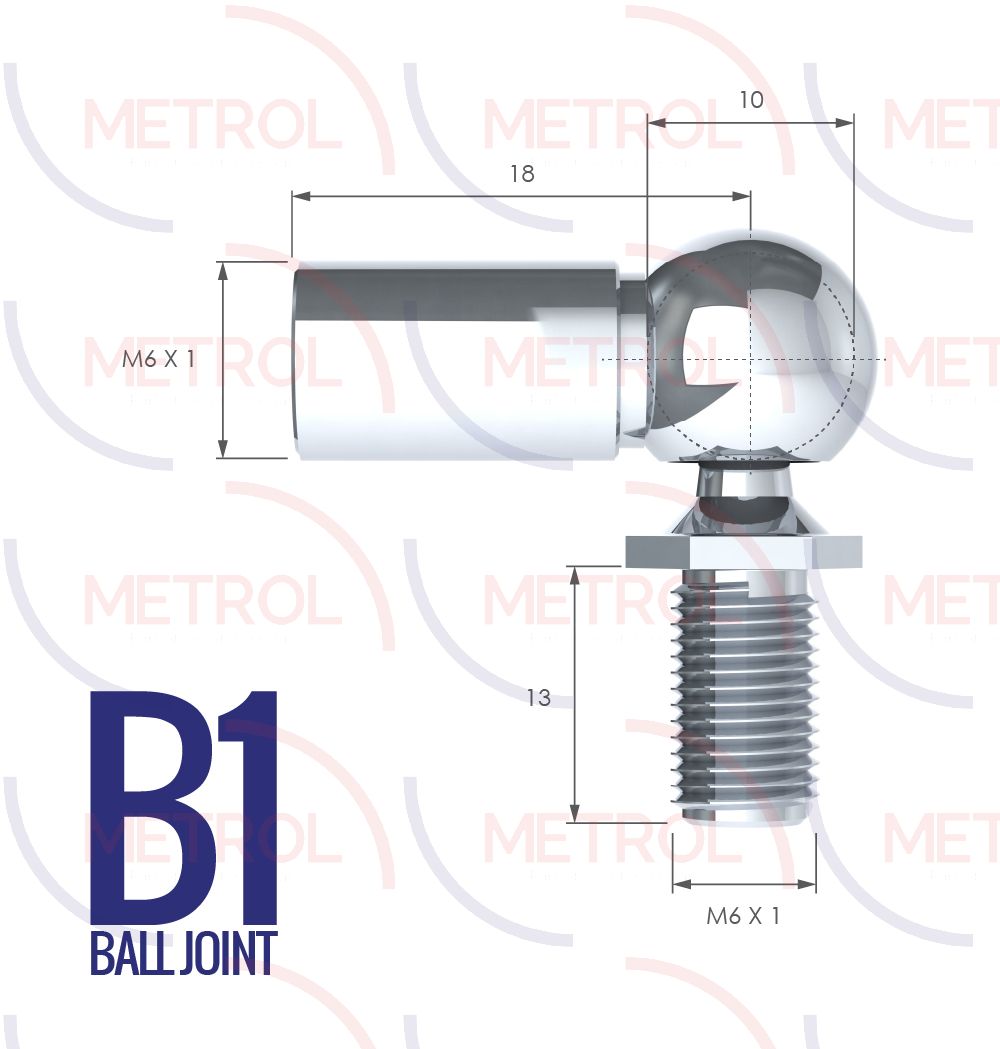

A gas strut needs an articulating end that lets the panel swing as it opens; a ball joint provides exactly that. The Metrol B1 is a steel ball joint end fitting with an M6 thread, a 18mm body and a 10mm ball. Threaded onto the strut rod, it snaps over a same-size ball stud on the mounting bracket, giving a joint that swivels as the panel moves. Its M6 thread suits a gas strut with a 6 & 8mm rod, and the 10mm ball clips onto BRK-1, BRK-2, BRK-3, BRK-4. The ball sits on a M6 stud 13mm long behind the 18mm body, threading into the bracket socket side. It is one of a family of end fittings that connect a strut to its mounting — a ball joint to swivel freely, an eye to hinge on a pin, a clevis to pin in line, or a rose eye to take up misalignment. Sized for a 6 & 8mm rod, the fitting is matched by thread to the strut and by size to the fixing. It is found on equipment covers, storage-box lids, machine guards, fold-down benches and similar panels. Within the M6 range, its nearest sizes are B5, differing by body length; a 316 stainless version is available as SSB1.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Material | Steel |
|---|---|
| Female Thread | M6 |
| Length | 18mm |
| Ball Diameter | 10mm |
| Stud Thread | M6 |
| Stud Length | 13mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
metrolsprings-nitrostruts2020-cat_op_55.pdf
|
Open Now |
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|

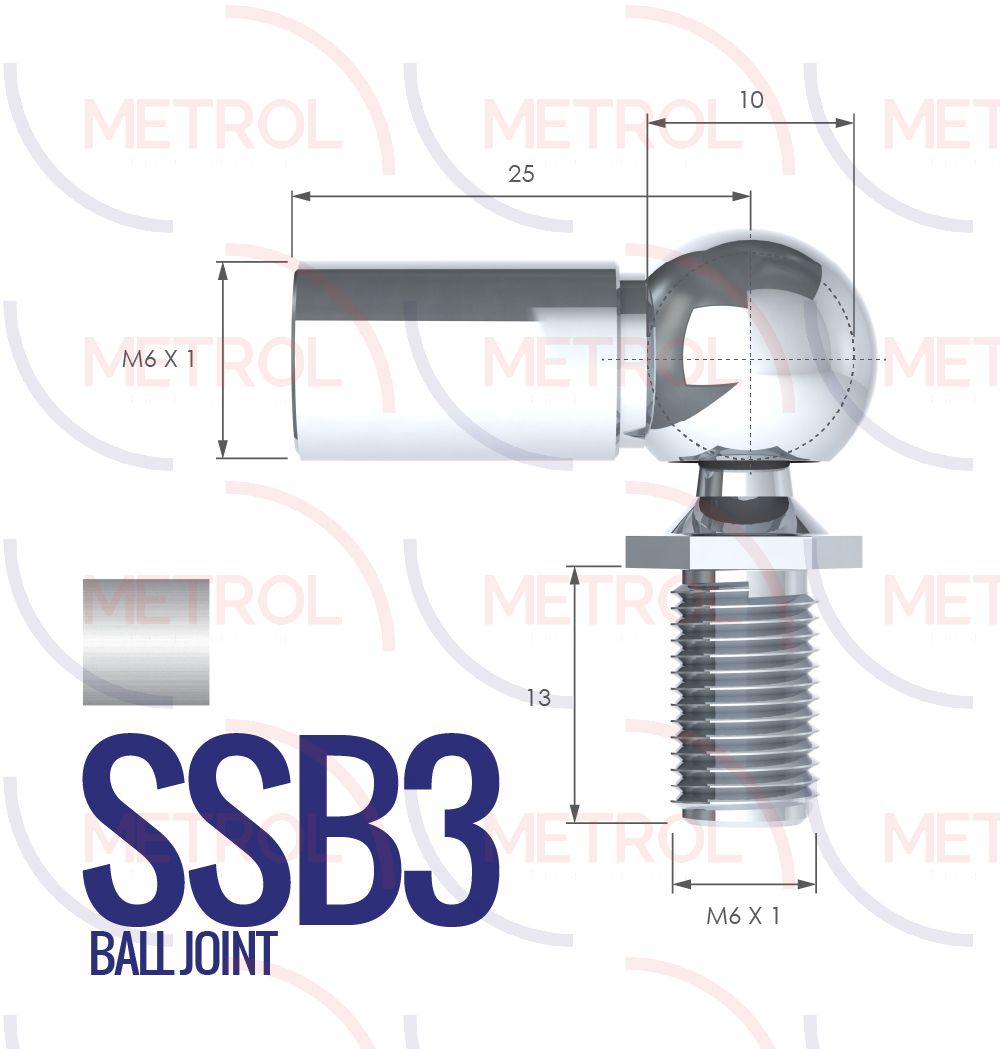

| PRODUCT NUMBER | B9 | SSB9 | SSB7 | SSB5 | SSB3 |
A. Match the M6 thread to your strut rod and the 10mm ball to your bracket's ball stud.
A. Its M6 thread suits a gas strut with a 6 & 8mm rod.
A. BRK-1, BRK-2, BRK-3, BRK-4, BRK-5.
A. Yes, SSB1.
A. They share thread and ball size; the fittings differ by body length.
A. Yes — the B1 is a genuine Metrol product, available from PartsForMachines.
