Product Number: PH30.01

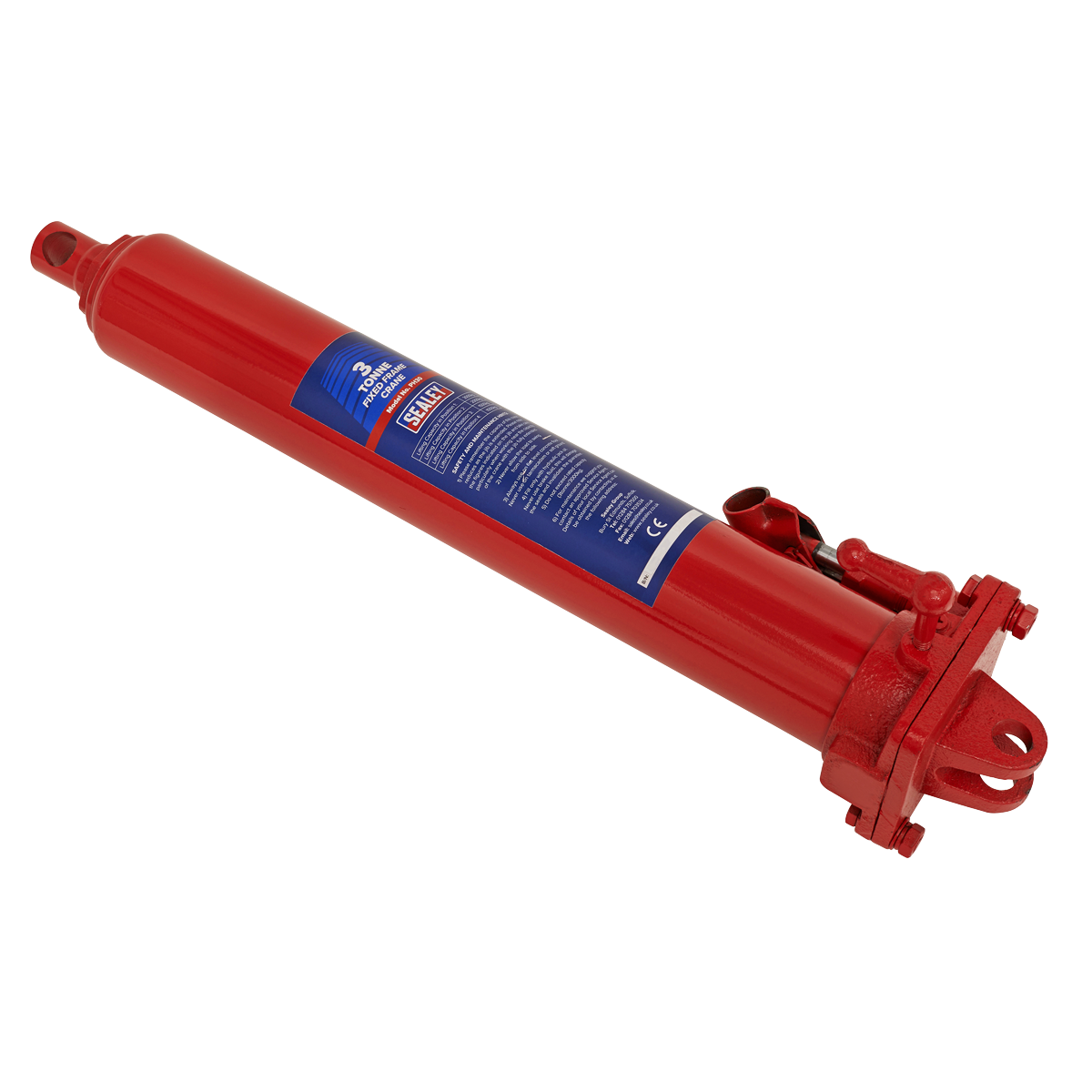

When the hydraulic ram on your PH30 engine crane is worn or damaged, continued use risks both the job and operator safety. The Sealey PH30.01 is a direct replacement hydraulic ram designed specifically for the PH30 engine crane, restoring it to full working order. It offers a ram capacity of 1,200kg and a ram travel of 494mm, with an overall minimum length of 690mm and a minimum mounting point distance of 650mm. The ram diameter is 38.05mm, the ram pin hole diameter is 22.2mm, and the clevis pin hole diameter is 21.4mm. It uses a single-speed pump type and features a double clevis base mount for secure fitment.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | PH30.01 |
|---|---|
| Brand | Sealey |
| Nett Weight | 14.7kg |
| Ram Capacity | 1200kg |
| Ram Diameter | 38.05mm |
| Ram Travel | 494mm |
| Pump Type | Single Speed |
| Ram Pin Hole Diameter | 22.2mm |
| Clevis Pin Hole Diameter | 21.4mm |
| Mounting Point Distance (Min) | 650mm |
| Overall Length (Min) | 690mm |
| Base mount Type | Double Clevis |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
PH30 | Sealey PH30 Fixed Frame Engine Crane 3 Tonne Extendable Legs | 1 Unit |
£868.78
£851.40
|
Add |
Standard Delivery: £5.99
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sykes Pickavant 92971000 BATTERY MAINTENANCE TABLE - COMPRESHENSIVE
£3,694.26
£3,621.82
2% OFF
Free delivery in UK Mainland
|
||||||||||||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 92971000 | 41733 | 41737 | 41814 | 43348 | 43390 | 43391 | LC300ST | PH10.V5-06 | PH20.V4-E | RE97XM02.H-F | RE97XM02.H-M | SC10.V3-E | SPC1000.28 | SPC2000.28 |
| Type | Lifting Table | Jack/Press/Lifting | Jack/Press/Lifting | Jack/Press/Lifting | Cover | Cover | Cover | Stand | Jack/Press/Lifting | Jack/Press/Lifting | Crane Hook | Crane Hook | Jack/Press/Lifting | Jack/Press/Lifting | Jack/Press/Lifting |
| Size | 230mm | ||||||||||||||
| Size Range | Over 200mm | ||||||||||||||
A. The PH30.01 is a replacement hydraulic ram designed specifically for the Sealey PH30 engine crane.
A. The ram has a capacity of 1,200kg.
A. The ram travel is 494mm.
A. Ram diameter is 38.05mm, overall minimum length is 690mm, minimum mounting point distance is 650mm, ram pin hole diameter is 22.2mm, and clevis pin hole diameter is 21.4mm.
A. It uses a double clevis base mount.
A. The PH30.01 uses a single-speed pump.
A. Yes, the PH30 is a variant in this product family - it is the engine crane for which the PH30.01 ram is a replacement part. Please refer to the PH30 product listing or contact Parts for Machines for full details.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
A. Next-day delivery is available on most products and will appear as an option at checkout where eligible.
A. Returns are accepted within 30 days of delivery for unused items in original packaging. Please contact us to arrange a return.
