Product Number: HRA4P02
Variations

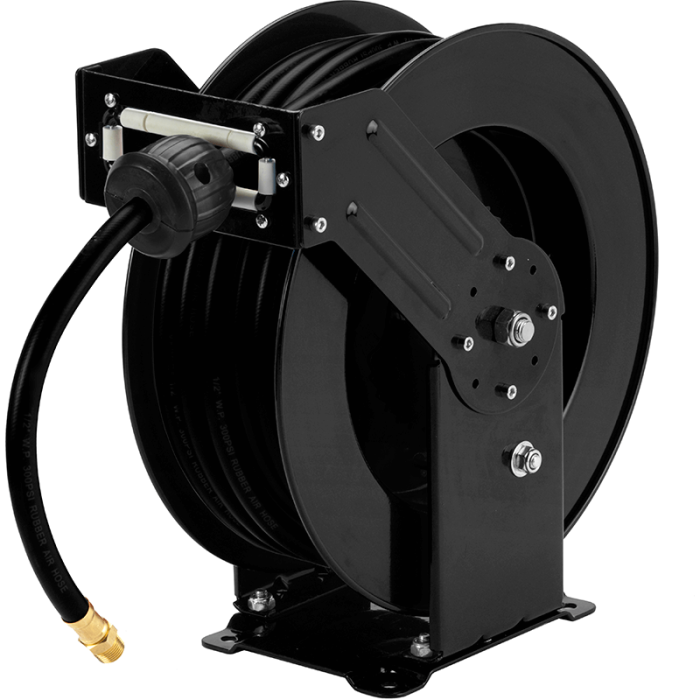

Tangled or kinked air hoses slow down workshop productivity and create trip hazards. The PCL HRA4P02 is a heavy-duty dual arm retractable steel air hose reel carrying 15 metres of 13 mm (1/2") Nitrile Rubber (NBR) hose, designed for compressed air use in garages, workshops, and industrial applications. The all-steel housing is built for demanding environments. The auto-rewind spring-powered recoil mechanism returns the hose neatly with no kinks or tangles, while a ratchet rewind mechanism allows the hose to be locked at any working length. Four non-snag hose rollers and an adjustable arm guide protect the hose during extension and retraction, and the dual pedestal base provides a stable mounting platform. A solid steel axle, mounting base with stop guard, and wall fixing hardware are all included. The NBR hose offers greater resistance to oils and acids than natural rubber, making it well suited to workshop environments where fluid contamination is likely. BSPT fixed-type 1/2" brass fittings are fitted at both inlet and outlet, with moulded strain reliefs at each connection point to prevent kinking. A ball bearing swivel joint allows the reel to rotate freely without twisting the supply hose, and a 1.5 m leader hose is included. Maximum working pressure is 21 bar (300 psi). The unit is life tested to 8,000 cycles. Weight is 17.5 kg. A companion variant is available: HRA4P01, which carries 15 m of 10 mm (1/4") hose on a 1/4" BSPT fitting. A 360° swivel base (HRA4PSB) is sold separately. Manufactured in Sheffield, UK, by PCL — part of HORNGROUP — since 1938. Wall fixing hardware is included in the box.
Product Features :
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Brand | PCL |
|---|---|
| Hose Length | 15 m |
| Inlet & Outlet | 1/2" BSPT |
| Hose I.D | 13 mm |
| L x W x H (mm) | 433.5 x 145 x 400 |
| Weight (kg) | 17.5 |
| Shipping Weight (kg) | 19.5 |
| Inlet / Outlet Connection | 1/2 in |
| Outlet Connection | 1/2 in |
| Hose I.D. | 13 mm / 1/2 in |
| Hose Material | Nitrile Rubber (NBR) |
| Maximum Working Pressure | 21 bar / 300 psi |
| Housing Material | Steel |
| EAN | 5014875172293 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
PCL HRA4L02 Steel Hose Reel, Auto retract, Air Hose, 15m of 10mm i/d Hose, 3/8" Hose Fittings
£467.30
£458.14
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | HRA4L02 | HRA3M02 | HRA3L03 | HRA3M01 | HRA3L02 |
| Type | Tee | Hose | Hose | Hose | Hose |
| Size | 10mm | 12mm | 10mm | 12mm | 10mm |
| Size Range | Up to 10mm | 11-25mm | Up to 10mm | 11-25mm | Up to 10mm |
A. The HRA4P02 is the PCL Steel Hose Reel, Air Hose, Dual Arm, 15m of 1/2" Hose, 1/2" Fittings, , PCL. The PCL HRA4P02 is a heavy-duty dual arm retractable steel air hose reel carrying 15 metres of 13 mm (1/2") Nitrile Rubber (NBR) hose, designed for compressed air use in garages, workshops, and industrial applications.
A. 15 m.
A. Yes — this is a genuine PCL product, supplied under the PCL brand of Pneumatic Components Ltd, Sheffield, UK.
A. 17.5.
A. Nitrile Rubber (NBR).
A. 21 bar / 300 psi.
A. 13 mm.
A. 433.5 x 145 x 400.
A. designed for compressed air use in garages, workshops, and industrial applications.
A. PCL (Pneumatic Components Ltd), the Sheffield, UK based world leader in tyre inflation and compressed air products, part of HORNGROUP.
