Product Number: HRA4P01
Variations

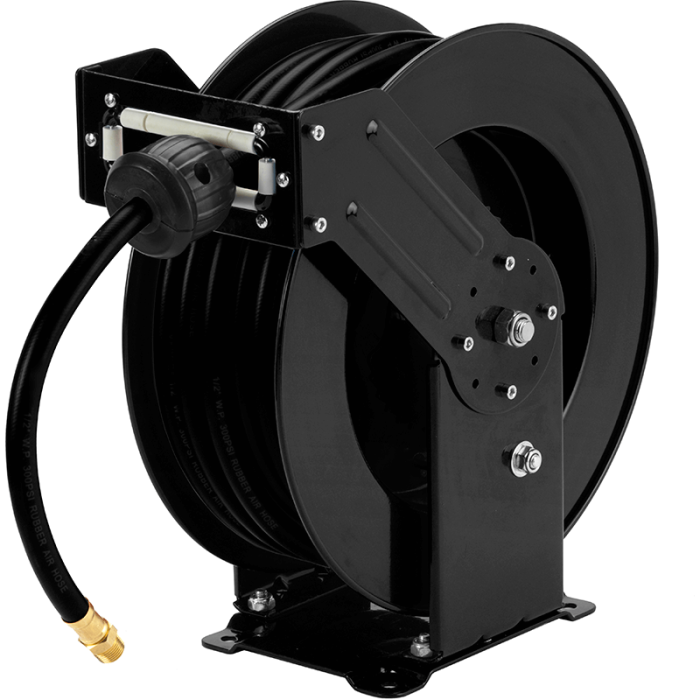

Retractable hose storage takes up space and causes tangles when the reel cannot keep pace with workshop demands. The PCL HRA4P01 is a heavy-duty, dual-arm, retractable steel air hose reel carrying 15 metres of 10 mm (3/8") bore Nitrile Rubber (NBR) hose with 1/4" BSPT fixed brass fittings, designed for use with compressed air in garages, workshops, and industrial applications. The HRA4P01 is built around an all-steel construction with a solid steel axle and a dual pedestal mounting base fitted with a stop guard. Four non-snag hose rollers reduce hose wear during deployment and retrieval, while an adjustable arm guide directs the hose cleanly onto the drum. A ball bearing swivel joint supports smooth rotation, and BSPT fixed brass fittings with moulded strain reliefs prevent kinking at the connection point. Auto-rewind is delivered by a spring-powered recoil ratchet mechanism, and wall-mounting fixings are included. The NBR hose is more resistant to oils and acids than natural rubber, making it well suited to workshop environments where fluid contamination is routine. The reel has been life tested to 8,000 cycles. Maximum working pressure is 300 psi (21 bar). A 1.5 m leader hose is supplied. The unit weighs 13 kg. For larger-bore requirements, the HRA4P02 offers the same dual-arm steel construction with 15 m of 13 mm (1/2") hose and 1/2" BSPT fittings. A 360° swivel base (HRA4PSB) is available separately to extend installation flexibility. The HRA4P01 is a PCL product manufactured in Sheffield, UK, with compressed-air expertise dating to 1938, part of the HORNGROUP.
Product Features :
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Brand | PCL |
|---|---|
| Hose Length | 15 m |
| Inlet & Outlet | 1/4" BSPT |
| Hose I.D | 10 mm |
| L x W x H (mm) | 433.5 x 105 x 400 |
| Weight (kg) | 13 |
| Shipping Weight (kg) | 14 |
| Inlet / Outlet Connection | 1/4 in |
| Outlet Connection | 1/4 in |
| Hose I.D. | 10 mm / 3/8 in |
| Hose Material | Nitrile Rubber (NBR) |
| Maximum Working Pressure | 21 bar / 300 psi |
| Housing Material | Steel |
| EAN | 5014875172002 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £8.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
PCL HRA4L02 Steel Hose Reel, Auto retract, Air Hose, 15m of 10mm i/d Hose, 3/8" Hose Fittings
£467.30
£458.14
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | HRA4L02 | HRA3M02 | HRA3L03 | HRA3M01 | HRA3L02 |
| Type | Tee | Hose | Hose | Hose | Hose |
| Size | 10mm | 12mm | 10mm | 12mm | 10mm |
| Size Range | Up to 10mm | 11-25mm | Up to 10mm | 11-25mm | Up to 10mm |
A. The HRA4P01 is the PCL Steel Hose Reel, Air Hose, Dual Arm, 15m of 3/8" Hose, 1/4" Fittings, , PCL. The PCL HRA4P01 is a heavy-duty, dual-arm, retractable steel air hose reel carrying 15 metres of 10 mm (3/8") bore Nitrile Rubber (NBR) hose with 1/4" BSPT fixed brass fittings, designed for use with compressed air in ga
A. 15 m.
A. Yes — this is a genuine PCL product, supplied under the PCL brand of Pneumatic Components Ltd, Sheffield, UK.
A. 13
A. Nitrile Rubber (NBR).
A. 21 bar / 300 psi.
A. 10 mm.
A. 433.5 x 105 x 400.
A. designed for use with compressed air in garages, workshops, and industrial applications.
