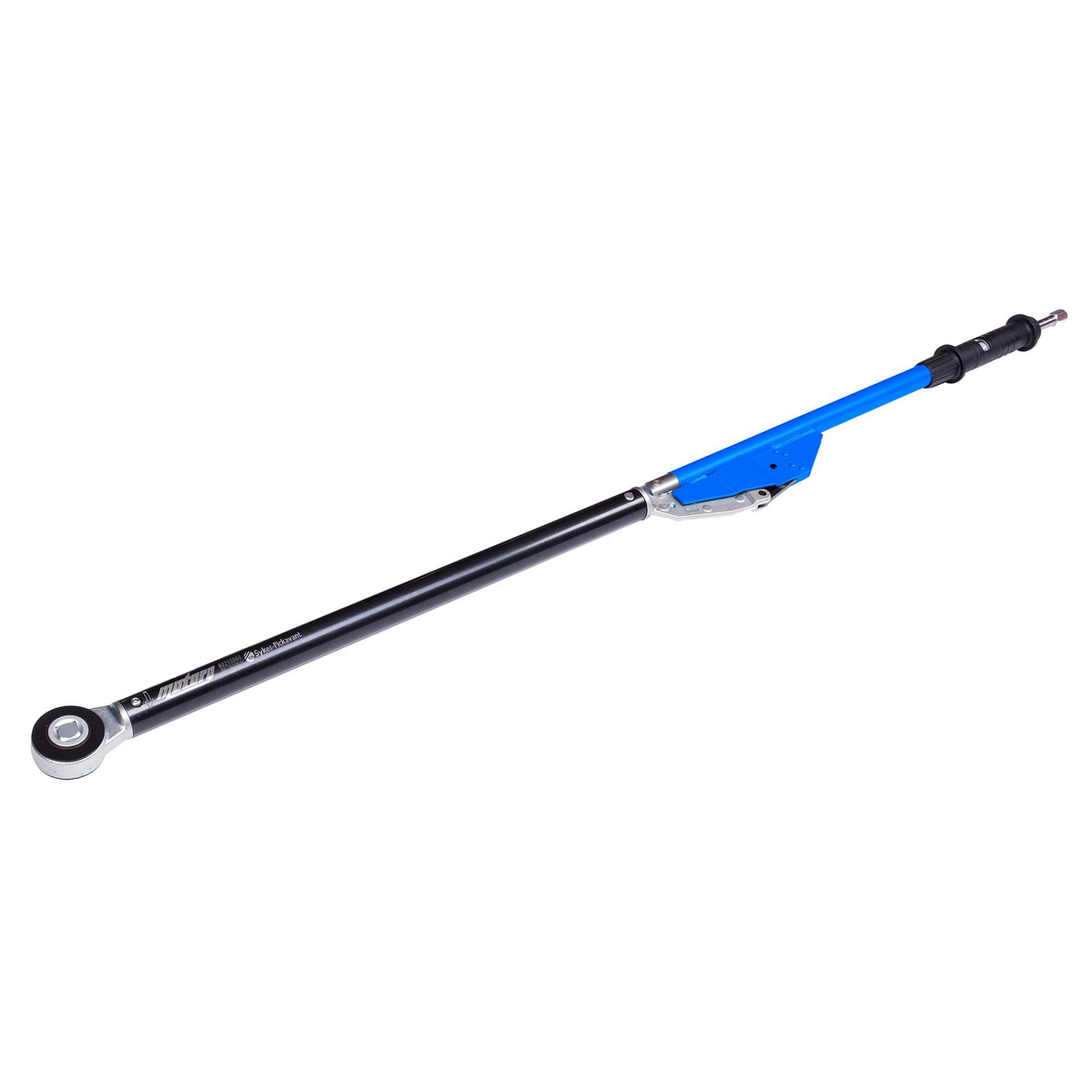

Sykes Pickavant 80255000 Motorq Torque Wrench - Split - 1 Sq Dr 700-1500Nm

Product Number: 80255000

£826.81 £810.60

BUY NOW

ADD TO CART

Variations

3/4" Drive 200-800Nm

3/4" Drive 300-1000Nm

34DR

Sykes-Pickavant 80255000 Motorq Split Torque Wrench is a 1 in drive, extra high capacity torque wrench covering an impressive range from 700 to 1500 newton metres, or 500 to 1000 pounds feet. Designed for large HGV, plant and industrial fasteners, the split design allows the wrench to be broken down into two sections for easier handling and storage. A push through ratchet provides bi directional torqueing capability, and the profiled cam and reaction plate create a distinct break point with a large break angle to reduce the chance of over tightening. The wrench delivers accuracy within plus or minus four percent of reading and is supplied with a declaration of conformance that meets ISO 6789-1:2017. The easy to read scale is protected from contamination, while the new handle design improves comfort and guides the user to the correct grip. This 1 inch drive 700-1500 Nm torque wrench is ideal where very high torque values are required.

Additional Information-

80255000 - Motorq Torque Wrench - Split - 1 Sq Dr 700-1500Nm

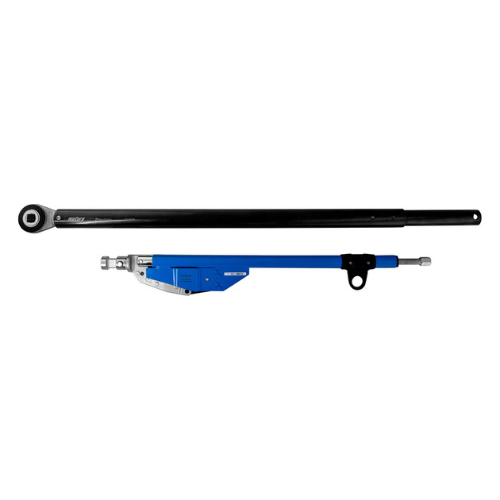

Split Torque Design - The new generation design can be split into two parts for easy and economic storage and shipping

Easy to read scale is shielded from dust, dirt and spray
Unique profiled cam and reaction plate - gives much clearer ' torque break point' reducing the possibility of over torquing
Robust construction gives accurate results to ±4% even in arduous working conditions
Easy to set accurately

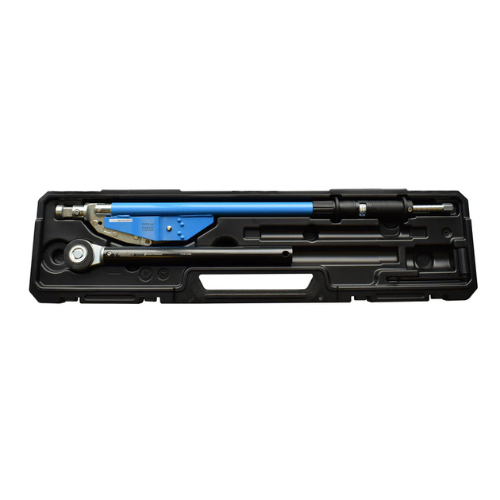

Can be split and packed in two parts for a smaller, easier to transport package
Push-through ratchet allows two direction torquing
Designed to be cost effectively serviced
New handle - more comfortable and guides operator's hand to correct position
Supplied with a Declaration of Conformance, which meets the requirements of ISO 6789-1:2017

Specifications:

1" push thru sq dr
700-1500 Nm / 500 - 1000 lbs.ft
Tool Length: 1764mm
Weight: 9.6 Kg

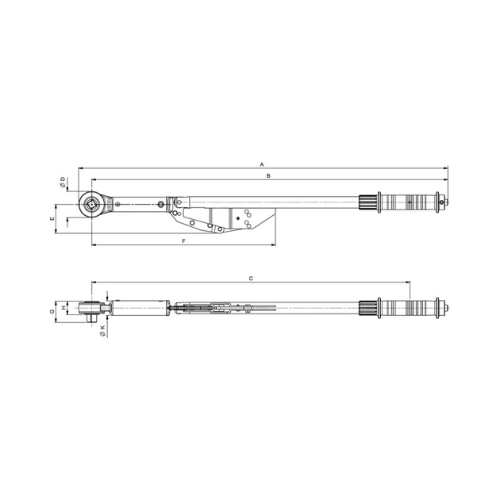

Drawing Dimensions
A - 1764 mm
B - 1730 mm
C - 1608 mm
D - 69 mm
E - 75 mm
F - 1379mm
G - 55-64 mm
H - 35 mm
K - 38 mm
Weight - 9.6 Kg

About Parts For Machines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

BUY NOW

ADD TO CART

Product Dimensions (L x W x H)	1180 x 260 x 100 mm
Product Weight	9.6 Kg

BUY NOW

ADD TO CART

Engine Parts	Product Number	Product Name	Recommended Units	Product Price

BUY NOW

ADD TO CART

Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 1 to 2 working days
Save Extra With 1 Offer
Compare With Similar Items
Use promo code "RMPK1" to get Additional 1% OFF

Question about this product? Click here

Technical Specification
Compare with Similar products	Compare Sykes Pickavant SPEEDLINE100 TORQUE WRENCH 1/2" 20-100 Nm £142.84 £140.04 2% OFF Free delivery in UK Mainland ADD	Compare Sykes Pickavant SPEEDLINE200 TORQUE WRENCH 1/2" 40-200 Nm £150.53 £147.58 2% OFF Free delivery in UK Mainland ADD	Compare Sykes Pickavant SPEEDLINE300 TORQUE WRENCH 1/2" 60-300 Nm £156.73 £153.66 2% OFF Free delivery in UK Mainland ADD	Compare Sykes Pickavant 80250000 Motorq Torque Wrench Split - 3/4" Drive 300-1000Nm £510.45 £500.44 2% OFF Free delivery in UK Mainland ADD	Compare Sykes Pickavant 80240000 Motorq Torque Wrench Split - 3/4" Drive 200-800Nm £495.73 £486.01 2% OFF Free delivery in UK Mainland ADD	Compare Chicago Pneumatic CP8681CQ, 36V 1-1/2" Cordless Torque Wrench £16,368.44 £15,891.69 3% OFF Free delivery in UK Mainland ADD	Compare Chicago Pneumatic CP8613CQ, 36V 3/4" Cordless Torque Wrench £9,851.03 £9,564.11 3% OFF Free delivery in UK Mainland ADD	Compare Sealey VS2245 Torque Stick 1/2" Drive 110Nm - Impact Wrench Torque Limiter £20.87 £20.46 2% OFF ADD	Compare Draper 17653 Expert Ratchet Torque Wrench 3/8" 20-142Nm £105.67 £103.60 2% OFF Free delivery in UK Mainland ADD
PRODUCT NUMBER	SPEEDLINE100	SPEEDLINE200	SPEEDLINE300	80250000	80240000	6151570200	6151570020	VS2245	17653

RELATED CATEGORIES

Torque Wrenches

Torques

Square Drives

Socketrys

Technical

Q 1. What torque range does the 80255000 Motorq split wrench provide?

A. It covers seven hundred to one thousand five hundred newton metres for very high torque applications.

Q 2. What drive size is used on the 80255000 torque wrench?

A. It features a one inch push through square drive for large, heavy duty sockets.

Q 3. How does the split design benefit handling of the 80255000 wrench?

A. It allows the long tool to be separated into two shorter sections for easier storage and transport.

Q 4. To what accuracy does the 80255000 wrench operate?

A. It delivers results within four percent of reading, even in harsh working environments.

Q 5. Which standard does the 80255000 declaration of conformance satisfy?

A. It meets ISO 6789-1:2017, assuring compliance with recognised torque tool standards.

Q 6. What does the profiled cam and reaction plate do on 80255000?

A. They create a clearer break point and help avoid over torqueing by giving a distinct feel when reaching set torque.

Q 7. What ergonomic features assist operators using 80255000 at high torque?

A. A comfortable, guided handle improves grip and positioning when applying substantial force.

Q 8. How is the scale on 80255000 protected in use?

A. The easy to read scale is shielded from dust, dirt and spray to preserve legibility.

Q 9. What are the key dimensions and weight of 80255000?

A. Tool length is about one thousand seven hundred sixty four millimetres, with weight around nine point six kilograms.

Q 10. In which scenarios is the 80255000 wrench particularly useful?

A. It is ideal for heavy industrial, construction and large vehicle fasteners requiring very high torque.

Q 11. Can 80255000 be economically serviced over its lifetime?

A. Yes, it is designed for cost effective servicing and recalibration when required.

Q 12. What basic care helps maintain 80255000 performance?

A. Handle with care, avoid shock loading, store split in its case and maintain regular calibration intervals.
