Product Number: STW806

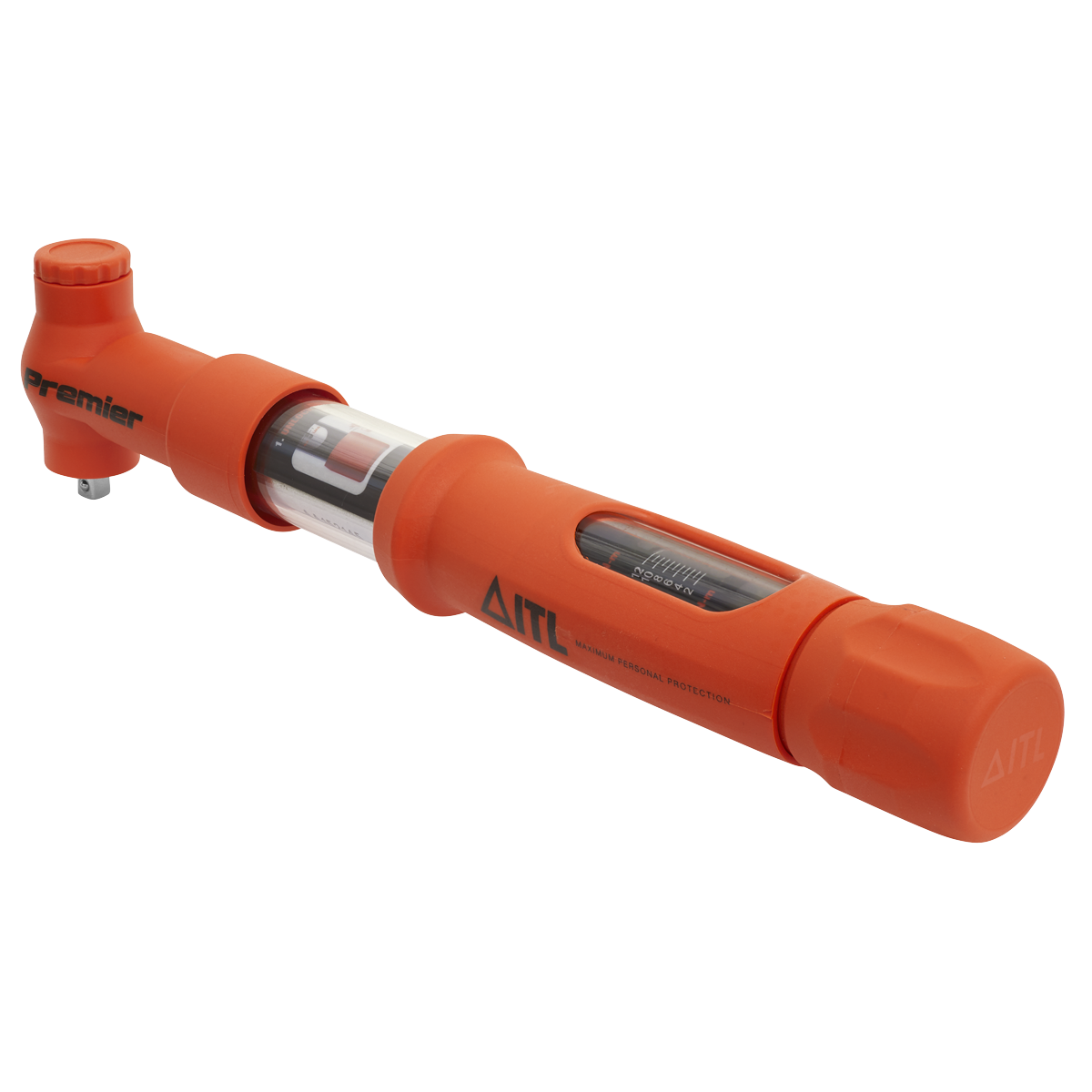

Working on hybrid and electric vehicle high-voltage systems or any live electrical environment demands tools that combine precise torque application with full electrical insulation. A standard torque wrench offers no protection against electric shock, creating serious risk in these applications. The Sealey STW806 is a fully insulated 1/4"Sq drive torque wrench from the Sealey Premier hand tool range, built to BS EN IEC 60900:2018 and rated for live working at up to 1500V DC and 1000V AC. The 60-tooth ratchet head is manufactured from Chrome Vanadium steel, and the body combines impact resistant polycarbonate tubing with injection moulded nylon thermoplastic for total insulation. Torque range runs from 2 to 12Nm (1.48-8.85 lb.ft) with micrometer-type adjustment and a scale graduated in both Nm and lb.ft. Accuracy is ±1% at 21°C, calibration is in accordance with BS EN ISO 6789:2017, and a test and calibration certificate is included. The wrench torques in both directions, has an overall length of 285mm, and is cold and heat resistant across a temperature range of -40°C to +70°C. Supplied with a lifetime guarantee.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | STW806 |
|---|---|
| Brand | Premier |
| Drive | 1/4"Sq |
| Length | 285mm |
| Nett Weight | 0.755kg |
| Range | 2-12Nm(1.48-8.85lb.ft) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey STW803 Insulated Torque Wrench 3/8" Drive 12-60Nm - 1000V AC / 1500V DC Safe
£514.21
£503.93
2% OFF
Free delivery in UK Mainland
|
Sealey STW804 Insulated Torque Wrench 1/2"Sq Drive 12-60Nm EV Safe
£607.05
£594.91
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 80250000 Motorq Torque Wrench Split - 3/4" Drive 300-1000Nm
£510.45
£500.44
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 80134000 Motorq 1/2" Drive 60-340 Nm Push-Thru Professional Torque Wrench
£211.52
£207.37
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 80105000 Motorq 3/8" Drive 10 - 50 Nm Push-Thru Professional Torque Wrench
£190.12
£186.39
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 80240000 Motorq Torque Wrench Split - 3/4" Drive 200-800Nm
£495.73
£486.01
2% OFF
Free delivery in UK Mainland
|
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | STW803 | STW804 | 80250000 | 80134000 | 80105000 | 80240000 |
| Type | Click Wrench | Click Wrench | Click Wrench | Click Wrench | Click Wrench | Click Wrench |
| Drive Size (Inch) | 3/8 | 1/2 | 3/4 | 1/2 | 3/8 | 3/4 |
| Length (mm) | 350 | 350 | 100 | 50 | 40 | 100 |
| Model No | STW803 | STW804 | ||||
| Torque Range (Nm) | 60 | 60 | 1000 | 340 | 50 | 800 |
| Weight (kg) | 94 | 105 | 55 | 25 | 0.7 | 9.1 |
A. Yes. The STW806 is fully insulated to BS EN IEC 60900:2018 and rated for 1500V DC safe live working, making it ideal for technicians working on modern hybrid and electric vehicles. It is also suitable for electricians and other trades requiring 1000V AC safe live working.
A. The torque range is 2-12Nm (1.48-8.85 lb.ft).
A. The STW806 has an accuracy of ±1% at 21°C, with calibration tolerance in accordance with BS EN ISO 6789:2017. A test and calibration certificate is included.
A. The STW806 uses a 1/4" square drive.
A. The STW806 is fully insulated to BS EN IEC 60900:2018, protecting against electric shocks up to 1500V DC and 1000V AC.
A. The 60-tooth ratchet head is manufactured from Chrome Vanadium steel. The body uses impact resistant polycarbonate tubing combined with injection moulded nylon thermoplastic to provide total insulation.
A. The STW806 is cold and heat resistant across a temperature range of -40°C to +70°C.
A. Yes. The STW806 torques in both directions, with micrometer-type torque range adjustment and a scale graduated in both lb.ft and Nm.
A. Yes. The following alternatives are available as different products with torque wrench functionality: STW101, STW701, STW901, and STW901B. Please check individual listings for drive sizes and torque ranges.
A. Returns are accepted within 30 days of delivery for unused items in original packaging. Please contact us to arrange a return.
