Product Number: 52416

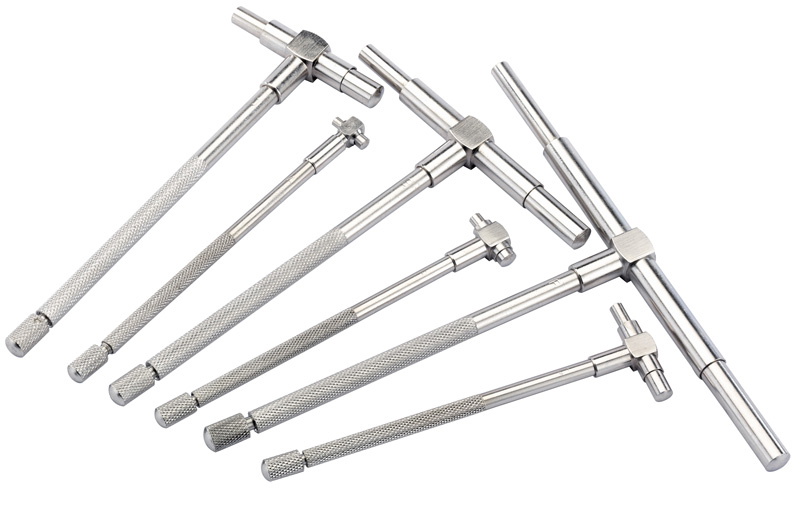

Achieving accurate bore diameter and groove width measurements demands tooling that can reach confidently into confined internal features and hold a precise reading for transfer to a micrometer. The Draper Expert Telescopic Gauge Set (6 Piece) — SKU 52416 — is designed exactly for that purpose, making it a practical choice for engine rebuilds, cylinder head work, and precision component inspection in professional workshop environments. Each gauge operates via a spring-loaded plunger that expands outward to contact the bore wall. Once seated correctly, the knurled locking screw holds the plunger contacts firmly in position, allowing the gauge to be withdrawn and measured against an outside micrometer without any risk of the contacts shifting. The satin chrome finish resists corrosion and maintains a clean, professional appearance during regular workshop use. The set of six gauges covers a combined range from 8 mm to 150 mm (5⁄16" to 6"), spanning the most commonly encountered bore sizes in automotive and general engineering work. The three smaller gauges — covering 8–13 mm, 13–19 mm, and 19–31 mm — are 115 mm in length, whilst the three larger gauges — covering 31–54 mm, 54–89 mm, and 89–150 mm — are 145 mm in length. Metric and imperial ranges are marked on each gauge for immediate reference. The complete set is supplied in a PVC storage wallet with each gauge's range clearly marked, keeping the instruments organised, protected, and ready for use.
Expert Quality, for measuring of bore diameter and groove width. The spring - loaded plunger expands within the hole. Knurled locking screw allows plunger contacts to be held in position, removed and measured with a micrometer. Satin chrome finish. Supplied in PVC storage wallet with ranges marked.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £4.99
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 46607 Metric External Micrometer Set (4 Piece)
£130.27
£127.72
2% OFF
Free delivery in UK Mainland
|
Sealey AK9636D Digital Height Gauge 0-300mm (0-12")
£206.00
£201.96
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 46607 | 59110 | AK10116 | AK9636D | WW002 | WW001 |
A. The set of six gauges covers a combined range from 8 mm to 150 mm (5⁄16" to 6"). The individual ranges are: 8–13 mm, 13–19 mm, 19–31 mm, 31–54 mm, 54–89 mm, and 89–150 mm.
A. The spring-loaded plunger on each gauge expands to contact the bore wall. Tightening the knurled locking screw holds the plunger contacts in position. The gauge can then be removed from the bore and the contact width measured with an outside micrometer to obtain the bore diameter.
A. Yes. The Draper 52416 set is designed for measuring both bore diameter and groove width, making it suitable for a wide range of internal measurement tasks in automotive and engineering applications.
A. The three smaller gauges (8–13 mm, 13–19 mm, and 19–31 mm) are 115 mm in length. The three larger gauges (31–54 mm, 54–89 mm, and 89–150 mm) are 145 mm in length.
A. The set is supplied in a PVC storage wallet with the range of each gauge clearly marked, keeping the instruments organised and protected between uses.
A. Each gauge features a satin chrome finish, which provides resistance to corrosion and maintains the condition of the instruments during regular workshop use.
