Product Number: TB042

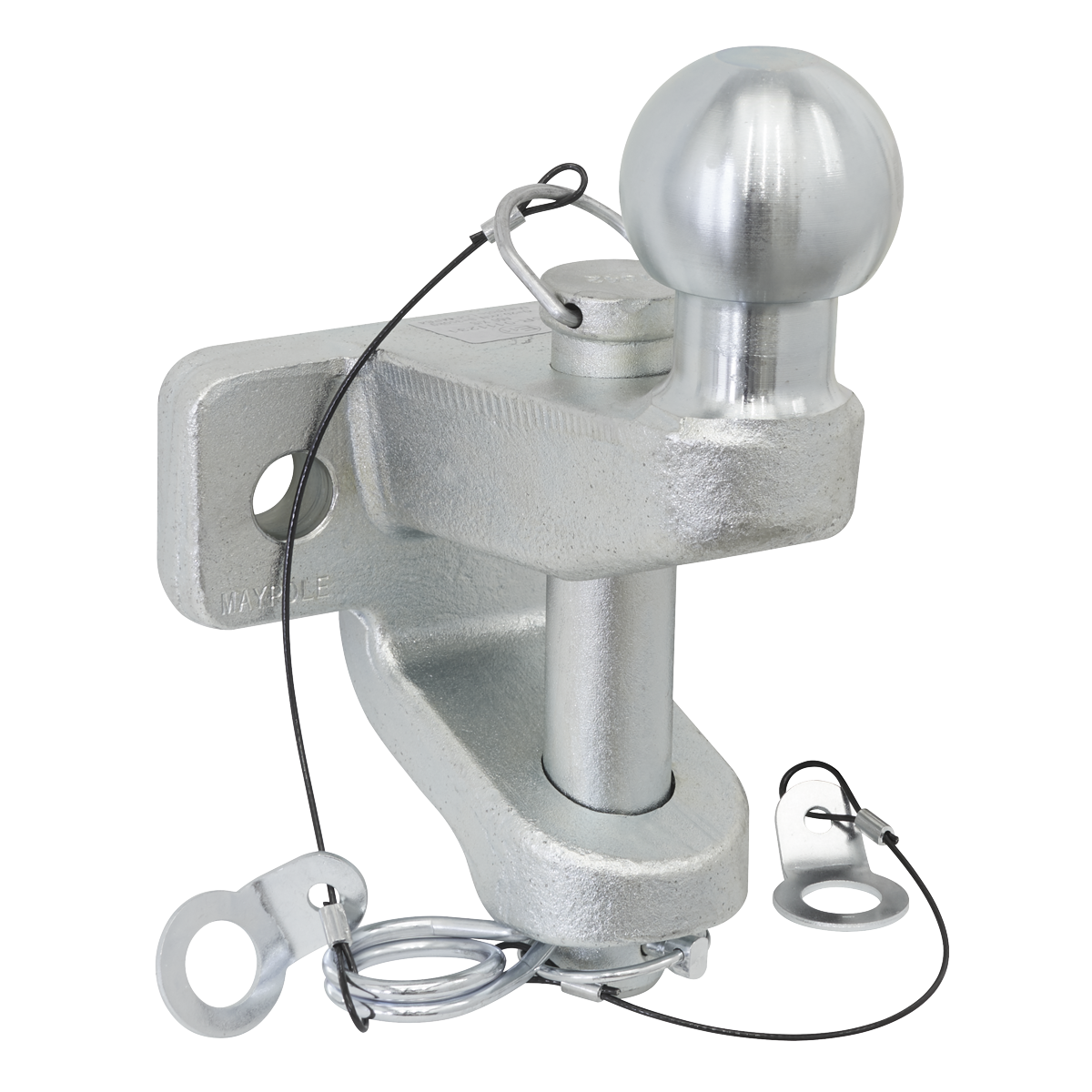

Towing heavy trailers demands components you can trust. The Sealey TB042 is a 50mm forged tow-ball with pin coupling assembly, rated for towing trailers of up to 3.5 tonnes and carrying Regulation 55 approval (Approval Number: E11 55R 0111231). The 25mm diameter pin and forged construction provide the strength and reliability required for demanding towing applications. Mounting is straightforward with pre-drilled fixing points at 90mm centres, accepting M16 bolts (x2). Key ratings: D Value 20.2kN, S Value 350kg.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | TB042 |
|---|---|
| Ball Size | 50mm |
| Brand | Sealey |
| Nett Weight | 3.99kg |
| D Value | 20.2Kn |
| S Value | 350kg |
| Mounting Bolt Fixing Holes | M16 (x2) |
| Fixing Centres | 90mm |
| Appoval Number | E11 55R 0111231 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
TB10 | Sealey TB10 Tow-Ball Cover Plastic 50mm for TB03E & TB042 | 1 Unit |
£8.23
£8.07
|
Add |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | TB03E | TB102 | 99673 | 99674 | 99657 | 99659 |
| Type | Tow Balls & Bracket | Tow Balls & Bracket | Tow Balls & Bracket | Tow Balls & Bracket | Tow Balls & Bracket | Tow Balls & Bracket |
| Brand | Sealey | Sealey | ||||
| Length (mm) | 50 | 50 | 50 | 50 | ||
| Model No | TB03E | TB102 | ||||
| Nett Weight | 1.7kg | 0.12kg | ||||
| Weight (kg) | 1.7 | 12 | 96 | 35 | 07 | 15 |
A. The Sealey TB042 is suitable for towing trailers of up to 3.5 tonnes.
A. The tow-ball diameter is 50mm.
A. The pin diameter is 25mm.
A. The pre-drilled mounting points are at 90mm centres, accepting M16 fixing bolts (x2).
A. Yes. The TB042 carries Regulation 55 approval, with Approval Number E11 55R 0111231.
A. The D Value is 20.2kN and the S Value is 350kg.
