Product Number: AK451DX

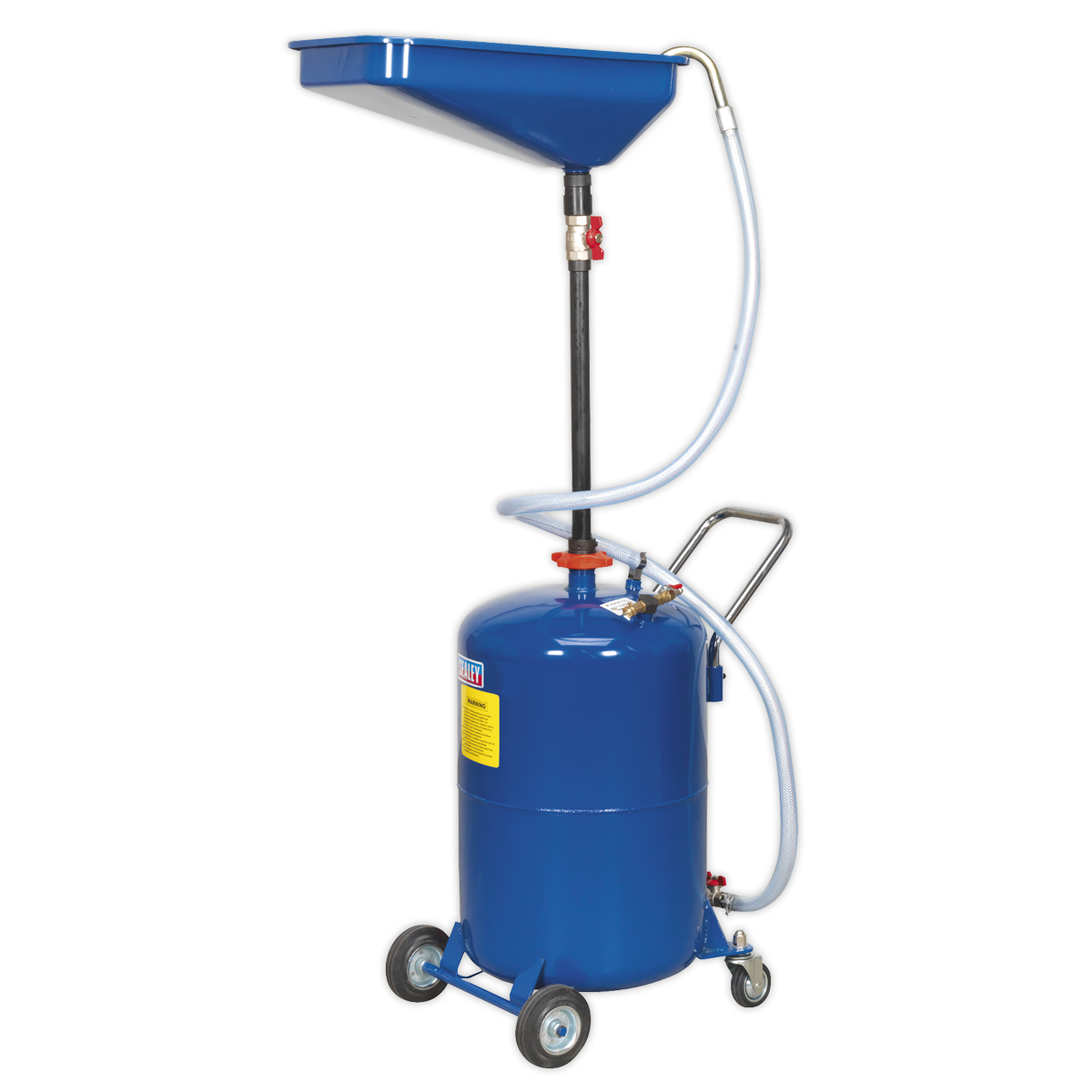

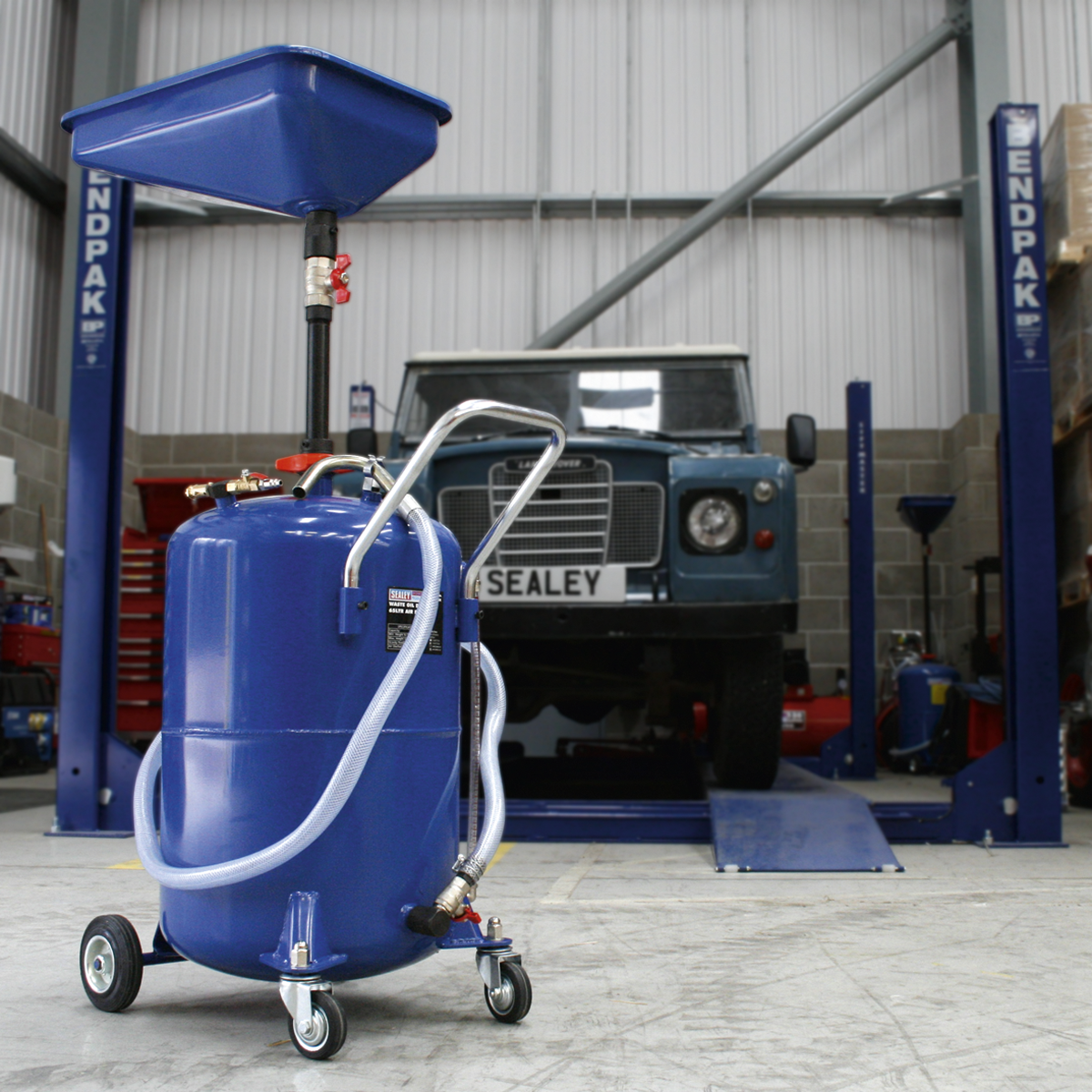

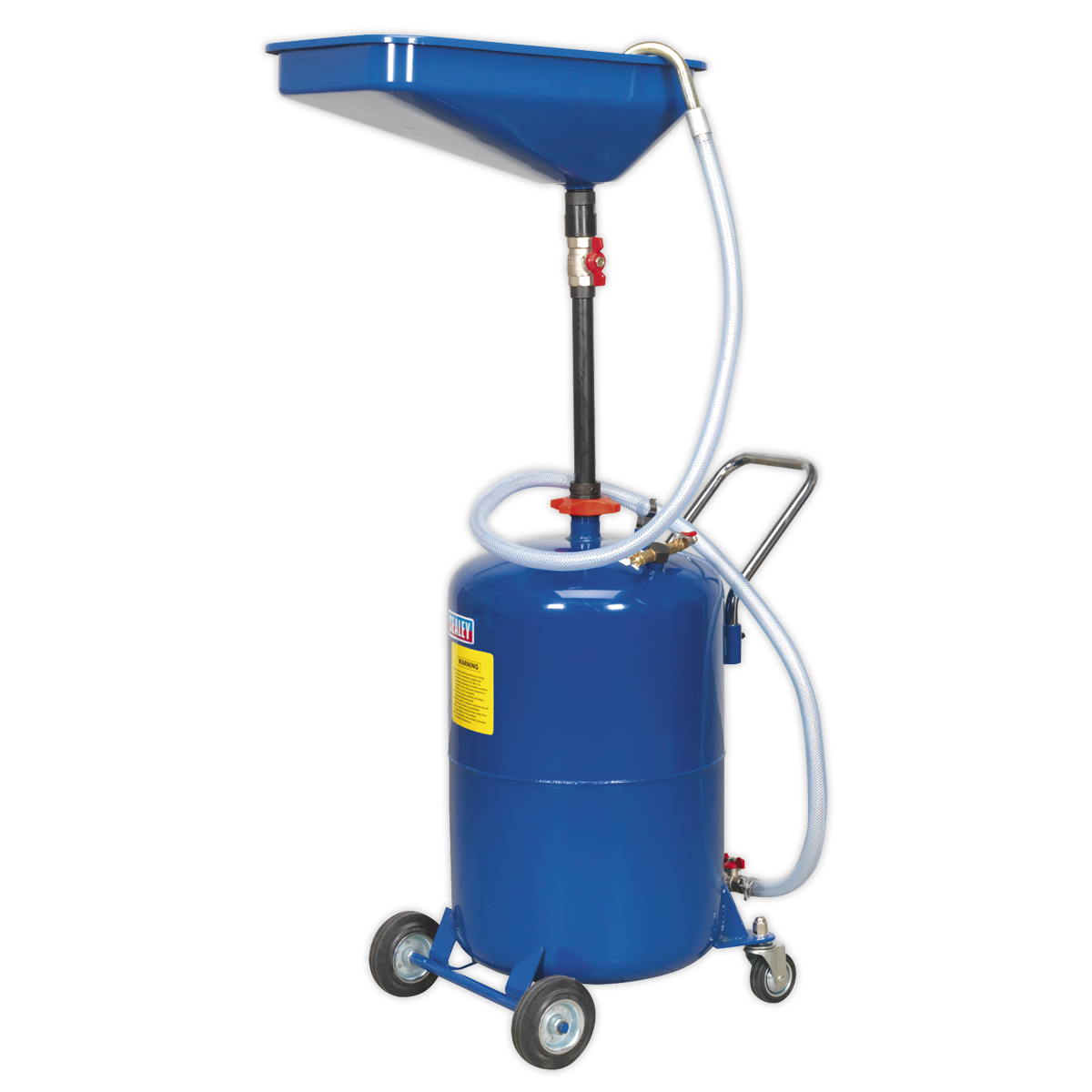

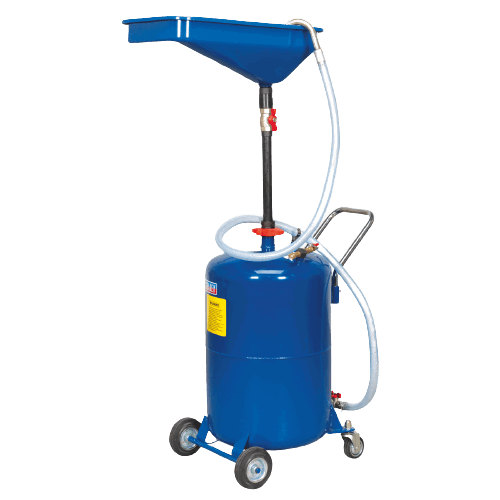

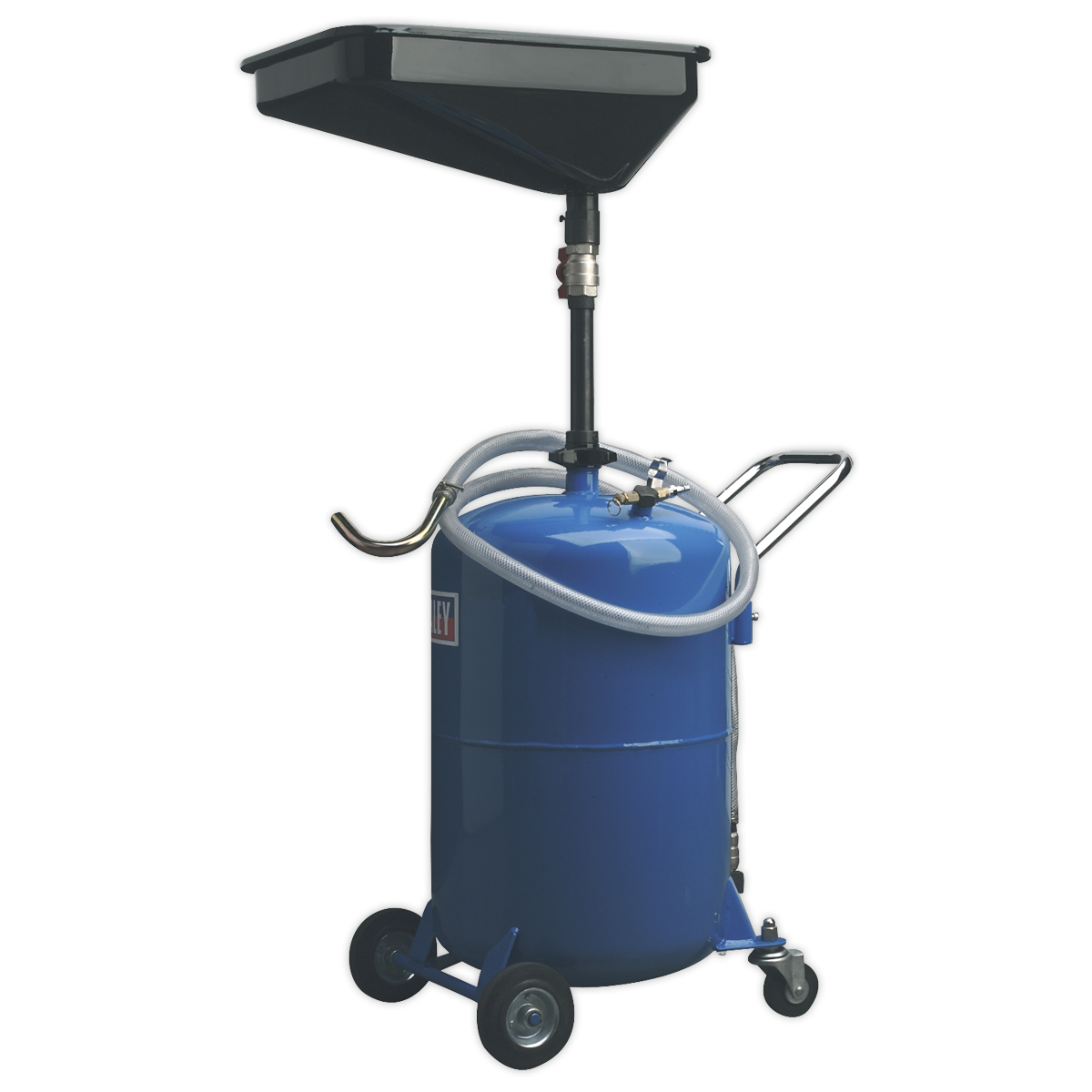

Draining engine oil without the right equipment means mess, awkward positioning, and wasted time. The Sealey AK451DX tackles this with a steel fabricated 65L reservoir and an 18L telescopic steel drain pan fitted with a grid filter, giving you a hygienic, contained collection system with a generous capacity for professional workshop use. The telescopic pan adjusts between 1070mm and 1590mm to suit a wide range of vehicle heights, so you can position it accurately under the drain plug without compromising. Oil flows by gravity feed into the reservoir, and discharge is handled via an air discharge drain with hose, requiring a 1/4" air inlet, with a discharge pressure of 0.7 bar. A reservoir oil level indicator tube lets you monitor fill status at a glance, helping you manage waste oil safely and efficiently before disposal.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | AK451DX |
|---|---|
| Air Discharge | Yes |
| Air Inlet Size | 1/4" |
| Brand | Sealey |
| Capacity | 65L |
| Collection Bowl Capacity (L) | 18L |
| Gravity Discharge | No |
| Gravity Feed | Yes |
| Manual Discharge | No |
| Maximum Height to Pan | 1590mm |
| Minimum Height to Pan | 1070mm |
| Nett Weight | 23kg |
| Oil Discharge Pressure (bar) | 0.7bar |
| Pump Discharge | No |
| Suction Probe | No |
| Temperature Range | <80°C |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
sealey-waste-oil-drainer-65l-air-discharge.pdf
|
Open Now |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey AK462DX Mobile Oil Drainer with Probes 80L Cantilever Air Discharge
£1,281.01
£1,255.39
2% OFF
Free delivery in UK Mainland
|
Sealey AK80D Mobile Oil Drainer 80L Gravity Discharge
£206.63
£202.50
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | AK462DX | AK80D | 18114 | 77057 | 47812 |
| Type | Oil Drainer | Oil Drainer | Oil Drainer | Oil Drainer | Oil Drainer |
| Brand | Sealey | Sealey | |||
| Capacity (L) | 80 | 80 | |||
| Model No | AK462DX | AK80D | |||
| Nett Weight | 48kg | 6.6kg | |||
| Weight (kg) | 48 | 6.6 | 4 | ||
A. The AK451DX has a 65L reservoir capacity and an 18L collection bowl capacity.
A. The AK451DX uses air discharge via a hose. It requires a 1/4" air inlet and operates at a discharge pressure of 0.7 bar. It does not feature gravity discharge, manual discharge, or pump discharge.
A. The telescopic steel drain pan adjusts between a minimum height of 1070mm and a maximum height of 1590mm.
A. Yes, the steel drain pan is fitted with a grid filter.
A. Yes, the AK451DX is fitted with a reservoir oil level indicator tube so you can check fill status without removing any components.
A. No, the AK451DX is gravity fed and does not include a suction probe. If you require suction probe functionality, please refer to the similar products listed for alternatives.
A. The reservoir is steel fabricated.
A. Similar alternatives include the AK36D, AK449D, AK450DX, and AK458DX, each offering different capacities or discharge methods to suit different workshop requirements.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we'll resolve the issue in line with our returns policy.
A. Standard UK mainland delivery is 3-5 working days.
