Product Number: AK459DX

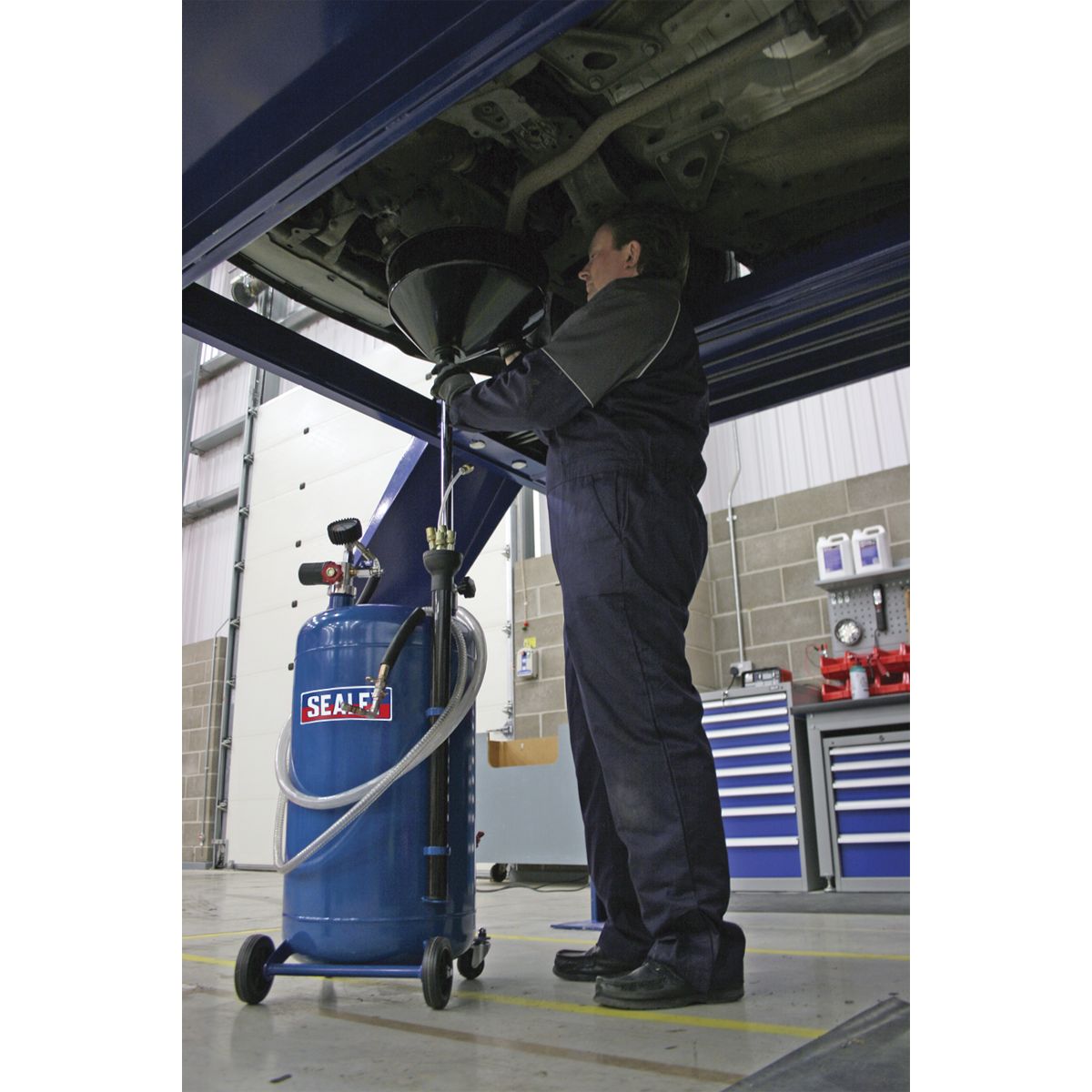

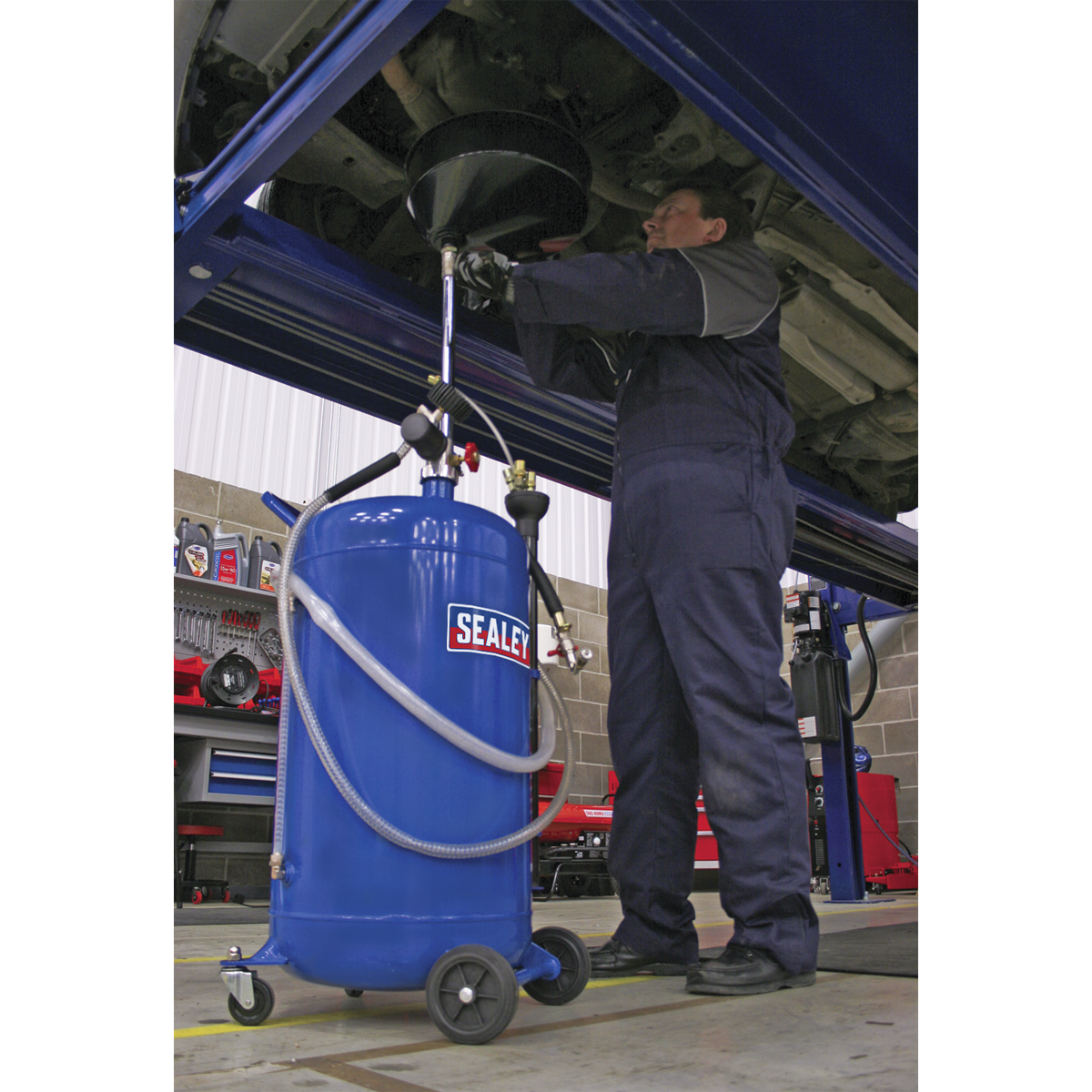

Changing oil via the drain plug is not always practical on many modern vehicles, particularly those from BMW and VW, extraction via the dipstick tube is the preferred or only accessible method. The Sealey AK459DX addresses this with a 90L steel fabricated reservoir and a venturi suction pump system that powers quick-release oil dipstick probes, allowing oil to be drawn directly from the sump without getting underneath the vehicle. The kit includes three flexible probes (5 x 700mm, 6 x 700mm, and 8 x 700mm), one copper tube probe (6 x 700mm), and two specialised connectors for VW and BMW vehicles. For conventional drain plug jobs, the height-adjustable steel drain pan with grid filter and gravity feed remains available, with a pan height range of 1300mm to 1850mm. Air discharge is via a 1/4" air inlet at 0.5 bar discharge pressure, with a maximum inlet pressure of 6-8 bar. A reservoir oil level indicator tube and heavy-duty wheels and castors round out a package built for productive, mobile workshop use. The 11L collection bowl provides initial capture ahead of the 90L reservoir.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | AK459DX |
|---|---|
| Air Discharge | Yes |
| Air Inlet Size | 1/4" |
| Brand | Sealey |
| Capacity | 90L |
| Collection Bowl Capacity (L) | 18L |
| Gravity Discharge | No |
| Gravity Feed | Yes |
| Maximum Height to Pan | 1750mm |
| Maximum Inlet Pressure | 7bar |
| Minimum Height to Pan | 1300mm |
| Nett Weight | 26kg |
| Oil Discharge Pressure (bar) | 0.5bar |
| Pump Discharge | No |
| Suction Probe | Yes |
| Temperature Range | <90°C |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
sealey-mobile-oil-drainer-with-probes-90l-air-discharge.pdf
|
Open Now |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey AK462DX Mobile Oil Drainer with Probes 80L Cantilever Air Discharge
£1,281.01
£1,255.39
2% OFF
Free delivery in UK Mainland
|
Sealey AK80D Mobile Oil Drainer 80L Gravity Discharge
£206.63
£202.50
2% OFF
Free delivery in UK Mainland
|
Draper 13265 Suction Oil Drainer with Chamber 90L
£264.30
£259.12
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | AK462DX | 13247 | AK80D | 13265 | 13246 |
| Type | Oil Drainer | Oil Drainer | Oil Drainer | Oil Drainer | Oil Drainer |
| Brand | Sealey | Sealey | |||
| Capacity (L) | 80 | 90 | 80 | 90 | 90 |
| Model No | AK462DX | AK80D | |||
| Nett Weight | 48kg | 6.6kg | |||
| Weight (kg) | 48 | 6.6 | |||
A. The AK459DX includes three flexible probes (5 x 700mm, 6 x 700mm, and 8 x 700mm), one copper tube probe (6 x 700mm), and two specialised connectors for VW and BMW vehicles.
A. The AK459DX uses a venturi suction pump powered by compressed air to draw oil through the quick-release dipstick probes. The maximum inlet pressure is 6-8 bar.
A. The reservoir has a 90L capacity and the collection bowl has an 11L capacity.
A. Yes, the unit includes two specialised connectors specifically for VW and BMW vehicles, in addition to the standard flexible and copper probes.
A. The drain pan adjusts between a minimum height of 1300mm and a maximum of 1850mm.
A. Waste oil is discharged via an air discharge hose connected through a 1/4" air inlet at a discharge pressure of 0.5 bar. Gravity discharge, manual discharge, and pump discharge are not featured.
A. Yes, the unit is fitted with a reservoir oil level indicator tube so you can monitor fill level at a glance.
A. Yes, the AK456DX is a variant in the same product line. Please refer to that product listing or contact Parts for Machines to confirm the differentiating specification.
A. The AK462DX is listed as a similar alternative. Please refer to that product listing for details on how it compares.
