Product Number: AK470DX

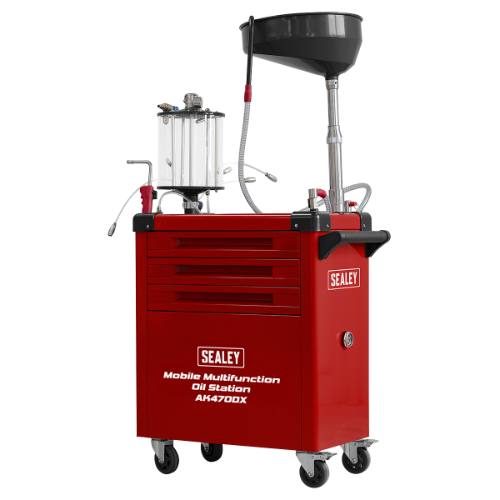

Managing oil changes across multiple vehicles means juggling tools, extractors, and waste oil often without a clear system. The Sealey AK470DX Mobile Multifunction Oil Station brings everything together in one manoeuvrable workshop unit. Three drawers keep your 61-piece oil filter tool set organised and within reach, covering a wide range of filter sizes and types using cup wrenches, handcuff wrenches, square sockets, hex sockets, spline, torx, and triangle sockets. Five PVC suction wands (5mm to 8mm, 800mm to 1m long) extract used oil via the dipstick port on most vehicles, with pumping rates from 1.9 to 6.5 L/min. A clear 10L measuring cup makes extracted oil visible for inspection before draining into the 70L sump tank large enough for multiple oil changes between empties. The adjustable pan height runs from 1,410mm to 1,525mm to suit different vehicle clearances. Air supply required at 7-8 bar, with a minimum air consumption of 150L/min. Overall dimensions: 805 x 420 x 1,410/1,525mm.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | AK470DX |
|---|---|
| Air Consumption | 150L/Min |
| Brand | Sealey |
| Minimum/Maximum Air Pressure | 7-8bar |
| Nett Weight | 76kg |
| Air Supply Pressure | 7-8bar |
| Oil Discharge Pressure | 0.18-0.2Mpa |
| Working Oil Temperature | 40-60°C |
| Cup Capacity | 10L |
| Pan Capacity | 20L |
| Tank Capacity | 70L |
| Contents | Oil Filter Wrenches, 64/65mm - 14 flutes, 86/87mm -16, 66/67mm -14 , 84mm-14, 73/74mm-14, 75/76mm-15, 74mm-8, 73/74mm-15, 72/73mm-14, 77mm-12, 78-79mm-15, 73mm-15, 74/75mm-14, 86mm-18, 88/89mm-15, 90/91mm-15, 92/93mm-15, 93/94mm-15, 80mm-12, 79/80mm-15, 101mm-15, 91/92mm-15, 89mm-12, 64/65mm-14, 64/65mm-14, 95.5mm-16, 91.6mm-16, 27mm-6, 32mm-6, 36mm-6, 86.3mm-16, 74.4mm-14, Ring Spanner 251mm, Small Handcuff Wrench 65-85mm, Medium Handcuff Wrench 80-100mm, 9x square sockets (5/16" - 3/8" - 7 - 8 - 10 - 11 - 12 - 13 - 14 mm), 7x hex sockets (8 - 9 - 10 - 12 - 13 - 14 - 17 mm), 2x extension bar （3" & 6"), 1x sliding T-bar, 1x spline socket M16, 1x torx socket T45, 1x triangle socket 10 mm, 1x socket 10 mm, 1x L Wrench 1/2*250mm, 1x Wrench 1/2*250mm, 1x Wrench 1/2*125mm, PVC Oil Suction Wands, 1x Ø8mm 1m long (6.5 L/Min. pumping rate), 1x Ø8mm 800mm long (6.5 L/Min. pumping rate), 1x Ø6mm 1m long (3.7 L/Min. pumping rate), 1x Ø6mm 800mm long (3.7 L/Min. pumping rate), 1x Ø5mm 800mm long (1.9 L/Min. pump |
| Overall Dimensions (W x D x H) | 805 x 420 x 1410/1525mm (depending on pan height). |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Oil Drainer or Extractor? Is Sucking Oil Out as Good as Draining? Oil change due but no pit, ramps or lift? Or a workshop that needs somewhere to put 80 litres of waste oil? A gravity drainer catches oil from the sump plu...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | AK449D | 77057 | 47812 | 18114 | VS2000D |
| Type | Oil Drainer | Oil Drainer | Oil Drainer | Oil Drainer | Oil Drainer |
| Brand | Sealey | Sealey | |||
| Model No | AK449D | VS2000D | |||
| Nett Weight | 12.75kg | 0.28kg | |||
| Weight (kg) | 75 | 4 | 28 | ||
A. The sump tank has a 70L capacity, allowing for multiple oil changes before emptying is required.
A. The set includes cup wrenches ranging from 64mm up to 101mm across multiple flute configurations, plus small and medium handcuff wrenches (65-85mm and 80-100mm), covering a wide range of filter sizes and types.
A. Yes. Five PVC suction wands are included - in Ø5mm, Ø6mm, and Ø8mm diameters, at 800mm and 1m lengths - designed to extract used oil via the dipstick port on most vehicles.
A. An air supply of 7-8 bar pressure is required, with a minimum air consumption of 150L/min. An air supply is not included.
A. Yes. The unit features a clear 10L measuring cup that makes extracted oil visible for inspection and measuring before it drains into the 70L sump tank.
A. Yes. The AK470DX is designed to be wheeled around the workshop, keeping tools and equipment mobile and close to hand during oil change work.
A. The pan height adjusts between 1,410mm (minimum) and 1,525mm (maximum) to suit different working positions and vehicle clearances.
A. The set includes 9 square sockets (5/16" to 14mm), 7 hex sockets (8-17mm), extension bars (3" and 6"), a sliding T-bar, spline socket M16, Torx socket T45, triangle socket 10mm, and multiple wrenches including a 1/2" L-wrench and two 1/2" wrenches.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN). You may also be asked to share images of the product and its packaging for verification. Items that do not meet these conditions will not be accepted for return. If your return is approved, we will initiate a refund to your credit card or original method of payment. A restocking fee of up to 15% of the order value may apply to each returned item.
A. Standard UK mainland delivery is 3-5 working days.
