Product Number: 06805
Variations

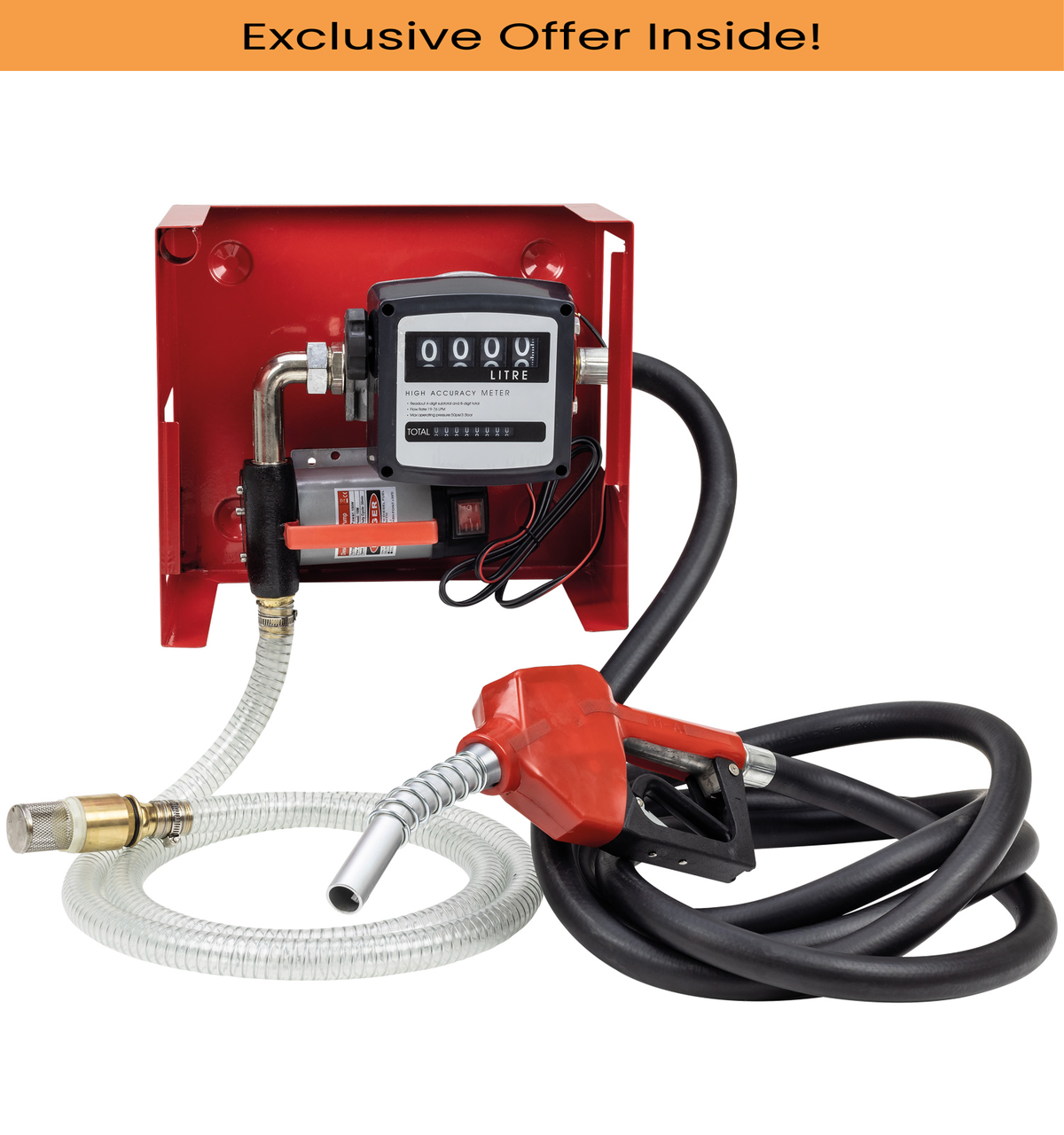

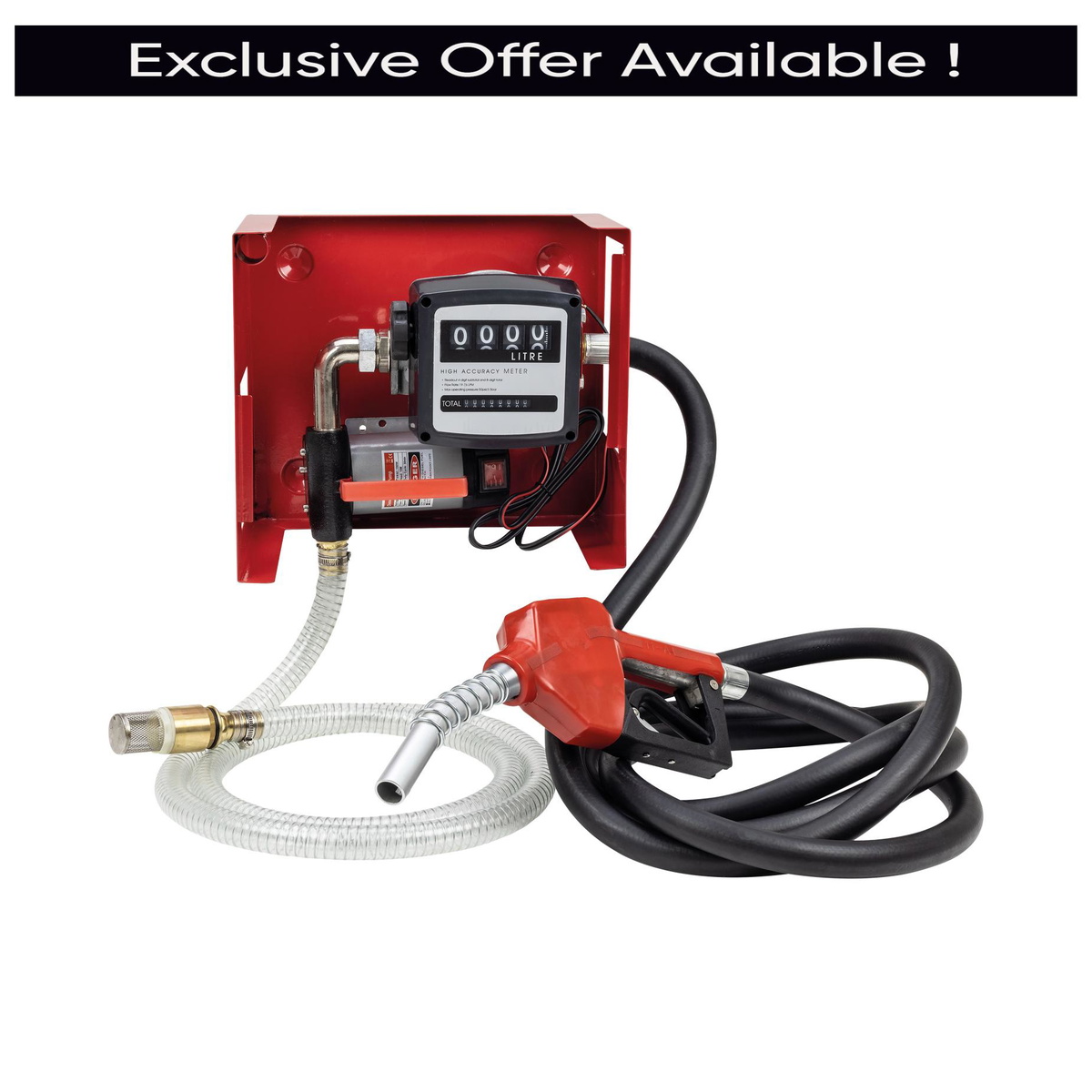

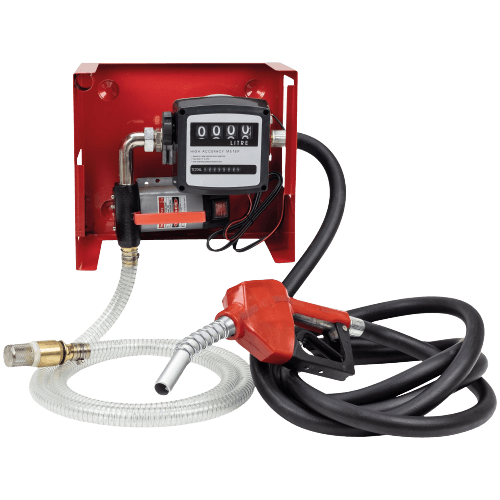

The SIP 06805 is a 12V DC electric diesel transfer pump rated at 40 litres per minute, built for the safe and accurate dispensing of diesel and fuel oils in professional workshop and fleet environments. Powered by a 160W DC motor with copper-wound armatures, it delivers a maximum pumping head of 10 metres and a maximum suction head of 2 metres, making it well suited to a variety of vehicle refuelling and industrial machinery applications.

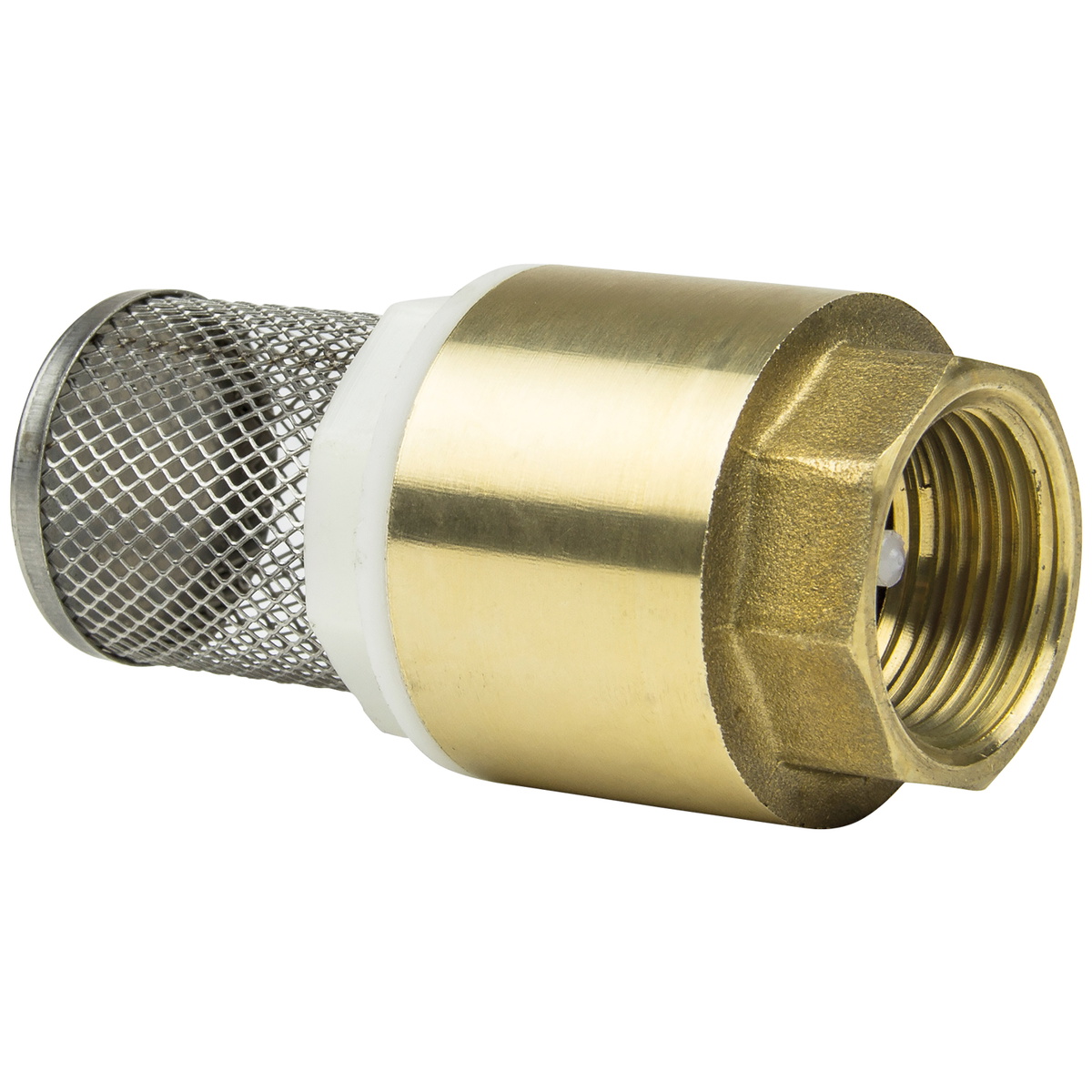

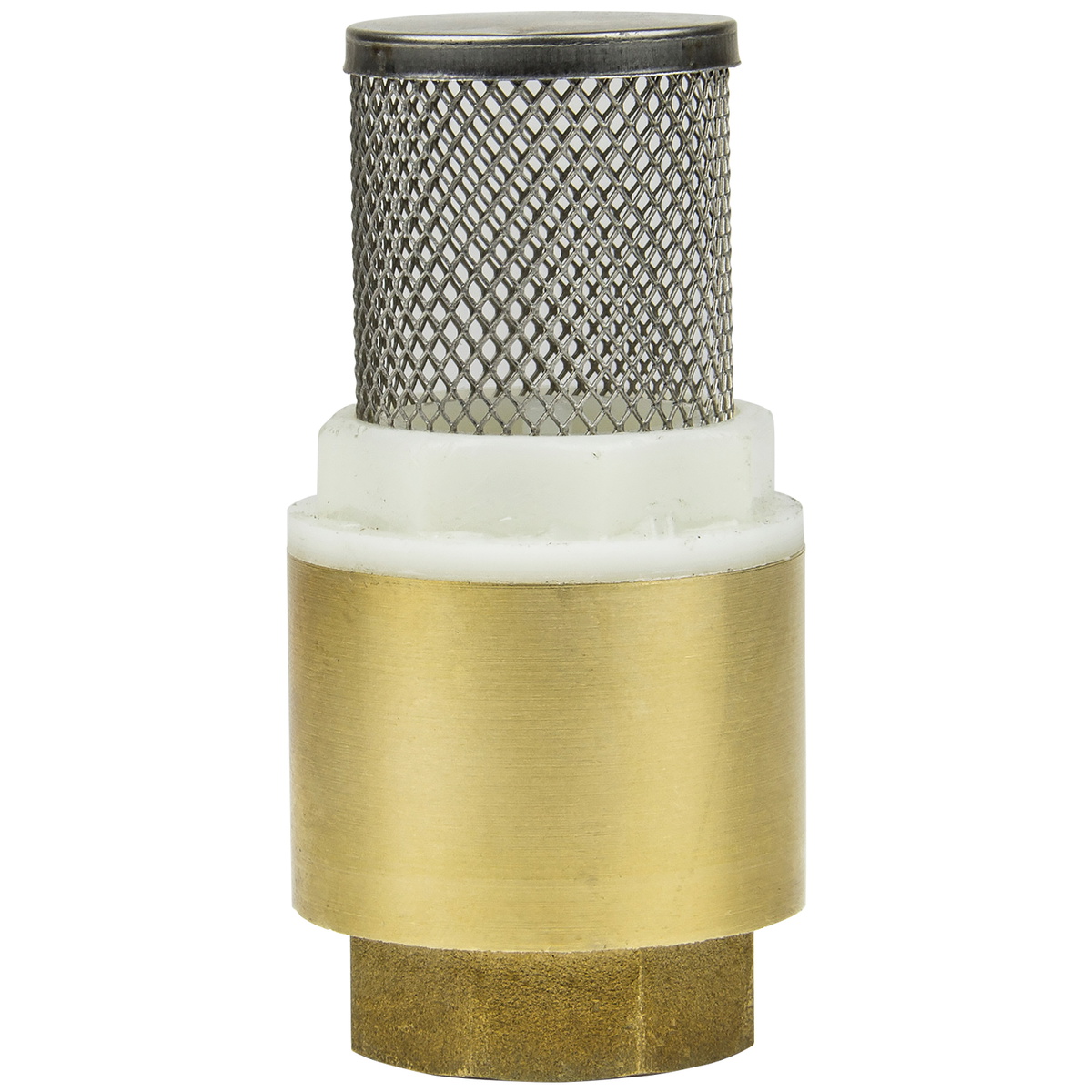

The pump is equipped with a fuel meter featuring a 4-digit subtotal and 8-digit grand total display, providing high accuracy and speed of use during dispensing operations. A built-in bypass system enables clean start-and-stop operation, while the supplied non-return valve aids self-priming. The high-quality aluminium nozzle offers added durability under regular workshop use, and the unit comes complete with both delivery and suction hoses.
Operating at 3,200 RPM, the SIP 06805 achieves a maximum working pressure of 15 PSI (1 bar) with IPX4 splash-protection rating and a 30-minute duty cycle. The 3/4" BSP connection is compatible with standard fuel delivery fittings, and the suction hose measures 2 metres with a 4-metre delivery hose supplied as standard. The compact design includes a wall-mountable bracket, allowing the unit to be installed at a fixed dispensing point for fleet or workshop use.
This product carries the SIP 2-Year Standard Silver Warranty.
Additional Information:
The SIP 12v Diesel Transfer Pump with Fuel Meter is a robust electric diesel transfer pump designed with a reliable, well-constructed fuel meter display plus 10mtr pumping head and 2mtr suction head. This makes it ideal for safe dispensing of diesel and fuels oils, and provides high accuracy and speed-of-use. This compact fuel transfer pump with meter is ideal for a variety of applications including the easy refuelling of vehicles, fleets and other industrial machinery.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 06805 |
|---|---|
| Input Voltage | 12v DC |
| Motor Power | 160w |
| Max. Pumping Head | 10mtr |
| Max. Flow Rate | 40ltr/min |
| Speed | 3200rpm |
| Max. Working Pressure | 15psi (1bar) |
| Duty Cycle | 30min |
| Connection | 3/4" BSP |
| Protection | IPX4 |
| Suction Hose Length | 2mtr |
| Delivery Hose Length | 4mtr |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
More Info
|
Open Now |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 06807 230v 60LPM Diesel Transfer Pump with Fuel Meter
£230.32
£225.80
2% OFF
Free delivery in UK Mainland
|
Draper 23248 Pneumatic Fluid Extractor/Dispenser
£140.70
£137.94
2% OFF
Free delivery in UK Mainland
|
|||||||||||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 06807 | 13381 | 13420 | 23248 | 22265 | 43904 | 43967 | 43986 | 47808 | 90141 | 18140 | VSE055 | EC96 | EC97 | TP6801 |
| Type | Barrel and Drum Pump | Barrel and Drum Pump | Barrel and Drum Pump | Barrel and Drum Pump | Barrel and Drum Pump | Barrel and Drum Pump | Barrel and Drum Pump | Barrel and Drum Pump | Barrel and Drum Pump | Barrel and Drum Pump | Barrel and Drum Pump | Barrel and Drum Pump | Barrel and Drum Pump | Barrel and Drum Pump | Barrel and Drum Pump |
| Brand | Sealey | Sealey | Sealey | Sealey | |||||||||||
| Capacity (L) | 60 | ||||||||||||||
| Model No | VSE055 | EC96 | EC97 | TP6801 | |||||||||||
| Nett Weight | 0.09kg | 0.15kg | 0.08kg | 2.60kg | |||||||||||
| Weight (kg) | 09 | 15 | 08 | 60 | |||||||||||
A. The SIP 06805 delivers a maximum flow rate of 40 litres per minute, powered by a 160W DC motor operating at 3,200 RPM.
A. The SIP 06805 operates on 12V DC, making it suitable for use with vehicle batteries and portable 12V power sources in fleet and field environments.
A. The pump is fitted with a digital fuel meter displaying a 4-digit subtotal and an 8-digit grand total, providing accurate monitoring of dispensed volumes.
A. The SIP 06805 has a maximum pumping head of 10 metres and a maximum suction head of 2 metres.
A. The unit is supplied with a 2-metre suction hose and a 4-metre delivery hose. The connection size is 3/4" BSP.
A. Yes. The compact design includes a wall-mountable bracket, allowing the pump to be installed at a fixed dispensing station in a workshop or fleet setting.
A. The SIP 06805 is covered by the SIP 2-Year Standard Silver Warranty.
A. The SIP 06805 has a duty cycle of 30 minutes and a maximum working pressure of 15 PSI (1 bar). It carries an IPX4 splash-protection rating.
