Product Number: 66021000

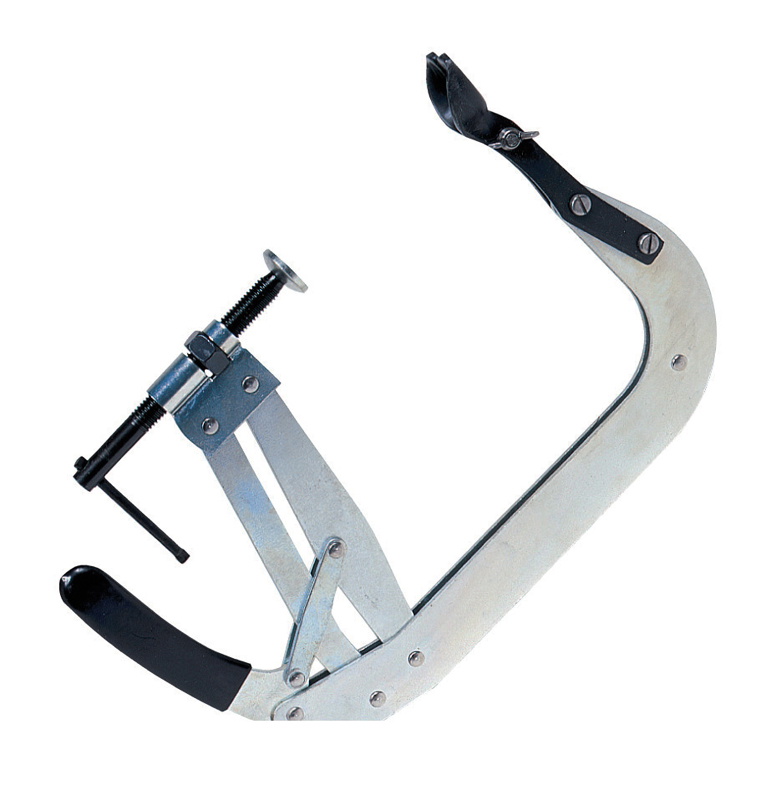

Removing valves from overhead valve engines without the correct tooling risks damaging valve springs, retainers, and collets — and can turn a straightforward service into a costly repair. The Sykes Pickavant 66021000 Valve Spring Compressor is designed specifically for the removal of valves on small and medium OHV engines, providing a controlled, secure means of compressing valve springs without endangering surrounding components.
The tool operates via a cam action mechanism that delivers parallel lift throughout the compression stroke, ensuring the spring is compressed evenly rather than at an angle. An automatic locking action holds the compressed position securely, freeing both hands for collet removal without the need to maintain pressure on the tool.
The compressor is supplied with straight adjustable width jaws, with a jaw width range of 70 mm minimum to 135 mm maximum, accommodating a variety of spring diameters across small and medium OHV applications. The throat depth measures 150 mm, providing the clearance needed to reach valve springs within the engine. Overall dimensions are 450 x 235 x 40 mm and the tool weighs 1.3 kg.
The parallel lift cam action and automatic locking mechanism together distinguish this tool from basic lever-type compressors, making it a reliable choice for workshops handling regular OHV engine valve work.
Additional Information
Valve Spring Compressor - OHV Engines For the removal of valves on small / medium OHV engines Cam action provides parallel lift Automatic locking action Supplied with straight adjustable width jawsSpecificationA - Jaw (mm) Min 70mm Max 135mmB - Throat (mm) 150mm
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Product Dimenstions (L x W x H) | 450 x 235 x 40 mm |
|---|---|
| Product Weight | 1.3 Kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Next Day Delivery Available
Delivery Estimate: 1 to 2 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sykes Pickavant 03950000 VALVE SPRING COMPRESSOR
£118.93
£116.60
2% OFF
Free delivery in UK Mainland
|
Draper 02325 Expert Valve Spring Compressor 35-142mm
£50.51
£49.52
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant GO970 VALVE SPRING COMPRESSOR - 125 KGF
£579.32
£567.96
2% OFF
Free delivery in UK Mainland
|
Draper 30832 Expert Multi-Way Valve Spring Compressor Set 9 Piece
£65.41
£64.13
2% OFF
Free delivery in UK Mainland
|
|
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 03950000 | 02325 | GO970 | 02713 | 30832 |
| Length (mm) | 50 | 142 | 140 | 175 | |
| Product Dimenstions (L x W x H) | 470 x 240 x 50 mm | 390 | |||
| Weight (kg) | 45 | 4.2 | |||
A. The tool is designed specifically for the removal of valves on small and medium OHV (overhead valve) engines.
A. The cam action provides parallel lift throughout the compression stroke, meaning the valve spring is compressed evenly and squarely rather than at an angle.
A. Yes. The tool features an automatic locking action that holds the spring in the compressed position, allowing both hands to be used for collet or retainer removal.
A. The straight adjustable width jaws span a minimum of 70 mm to a maximum of 135 mm, accommodating a range of valve spring diameters on small and medium OHV engines.
A. The throat depth is 150 mm, providing the clearance required to reach valve springs within the engine.
A. The tool measures 450 x 235 x 40 mm and weighs 1.3 kg.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
A. Every product comes with a different guarantee and warranty. Warranty details are shown in the product's tech specs or datasheet where available.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility, and we'll help you choose the right product.
