Product Number: 66090200

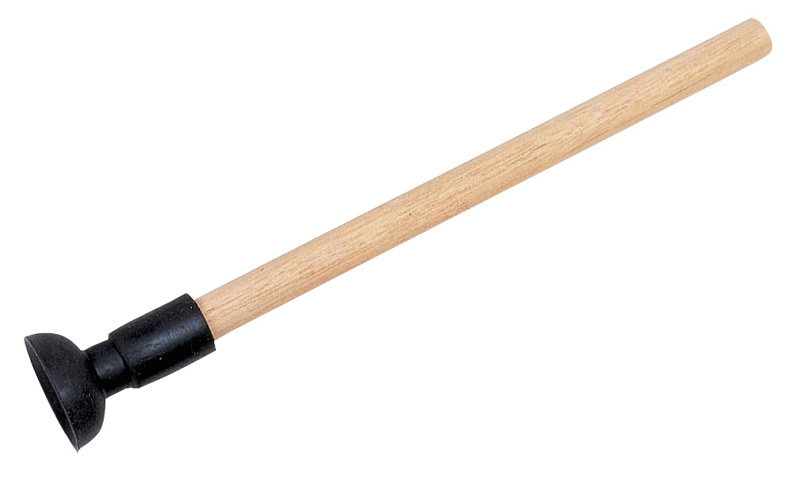

Grinding and lapping valves in heavy-duty engines demands a tool with the reach and cup size to match large valve heads reliably. Standard valve sticks are simply too small for HGV, agricultural and industrial plant engines, where oversized valves must seat precisely to maintain compression and performance. The Sykes Pickavant 66090200 Valve Grinding Stick addresses this directly, providing a purpose-built solution for professional workshop and field engine rebuilds.
The tool works by applying valve grinding compound between the valve head and its seat. The 32 mm diameter cup engages large valve heads securely, allowing the technician to rotate and lap the valve against its seat with consistent pressure and control. The wooden handle provides a comfortable, durable grip suited to sustained workshop use, and the single-ended design keeps the tool straightforward and efficient in operation.
The grinding stick measures 32 mm in cup diameter and 224 mm in overall length, with product dimensions of 290 x 50 x 20 mm and a weight of 0.04 kg. It is specifically suited to valve grinding and lapping applications in HGV, agricultural machinery and industrial plant engines where larger valve diameters are standard.
Three additional sizes are available from Sykes Pickavant to cover a broader range of engines: the 66090300 at 22 mm, the 66090400 at 19 mm, and the 66090500 as a double-ended 19/22 mm combination, all sharing the same 224 mm overall length.
Additional Information
Wooden handled valve stick for grinding and lapping valvesLarge cup - 32mm diameter - Ideal for HGV, agricultural and industrial plant enginesSingle-Ended 32mm x 224mm
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Product Dimenstions (L x W x H) | 290 x 50 x 20 mm |
|---|---|
| Product Weight | 0.04 Kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Next Day Delivery Available
Delivery Estimate: 1 to 2 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 30832 Expert Multi-Way Valve Spring Compressor Set 9 Piece
£65.41
£64.13
2% OFF
Free delivery in UK Mainland
|
|||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 66090400 | VS1653 | 72891 | 30832 | 66090300 | 56244 |
| Type | Valve Tool | Valve Tool | Valve Tool | Valve Tool | Valve Tool | |
| Length (mm) | 19 | 225 | 22 | 57 | ||
| Product Dimenstions (L x W x H) | 290 x 50 x 20 mm | 290 x 50 x 20 mm | ||||
| Weight (kg) | 04 | 080 | 04 | |||
A. The cup diameter is 32 mm, making it specifically suited to large valve heads found in HGV, agricultural and industrial plant engines.
A. The grinding stick is 224 mm in overall length, with overall product dimensions of 290 x 50 x 20 mm.
A. It is designed for heavy-duty engines, specifically HGV, agricultural and industrial plant engines where larger valve diameters require a correspondingly larger cup size.
A. The handle is wooden, providing a comfortable and durable grip for workshop use.
A. It is single-ended, offering a straightforward and efficient design for valve grinding and lapping tasks.
A. Yes — three additional sizes are available: the 66090300 at 22 mm, the 66090400 at 19 mm, and the 66090500 as a double-ended 19/22 mm combination, all at 224 mm in length.
A. Every product comes with a different guarantee and warranty. Warranty details are shown in the product's tech specs or datasheet where available.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility, and we'll help you choose the right product.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we'll resolve the issue in line with our returns policy.
A. Next-day delivery is available on most products and will appear as an option at checkout where eligible.
