Product Number: 51729

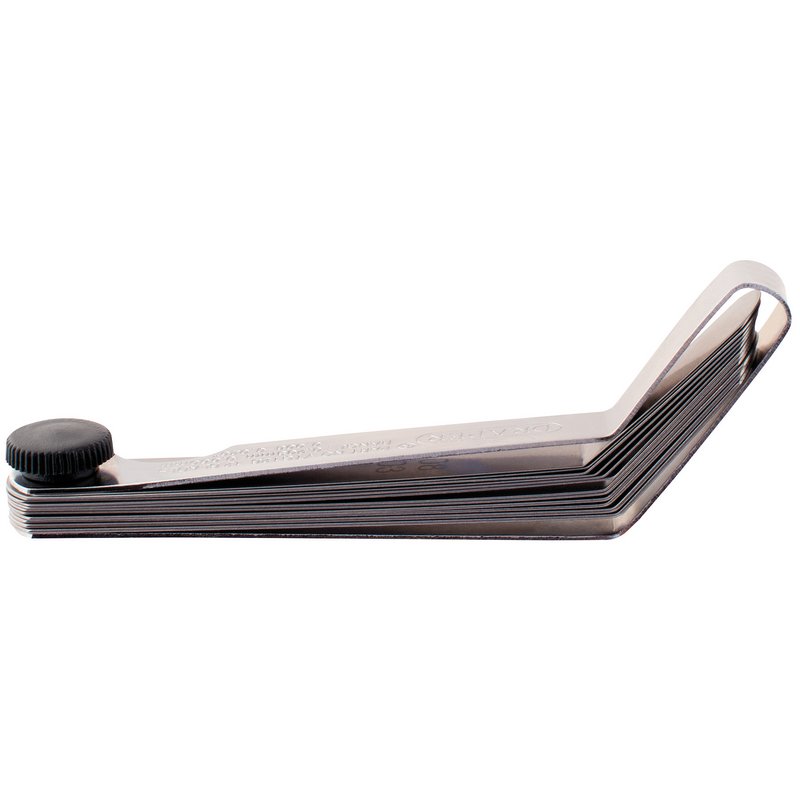

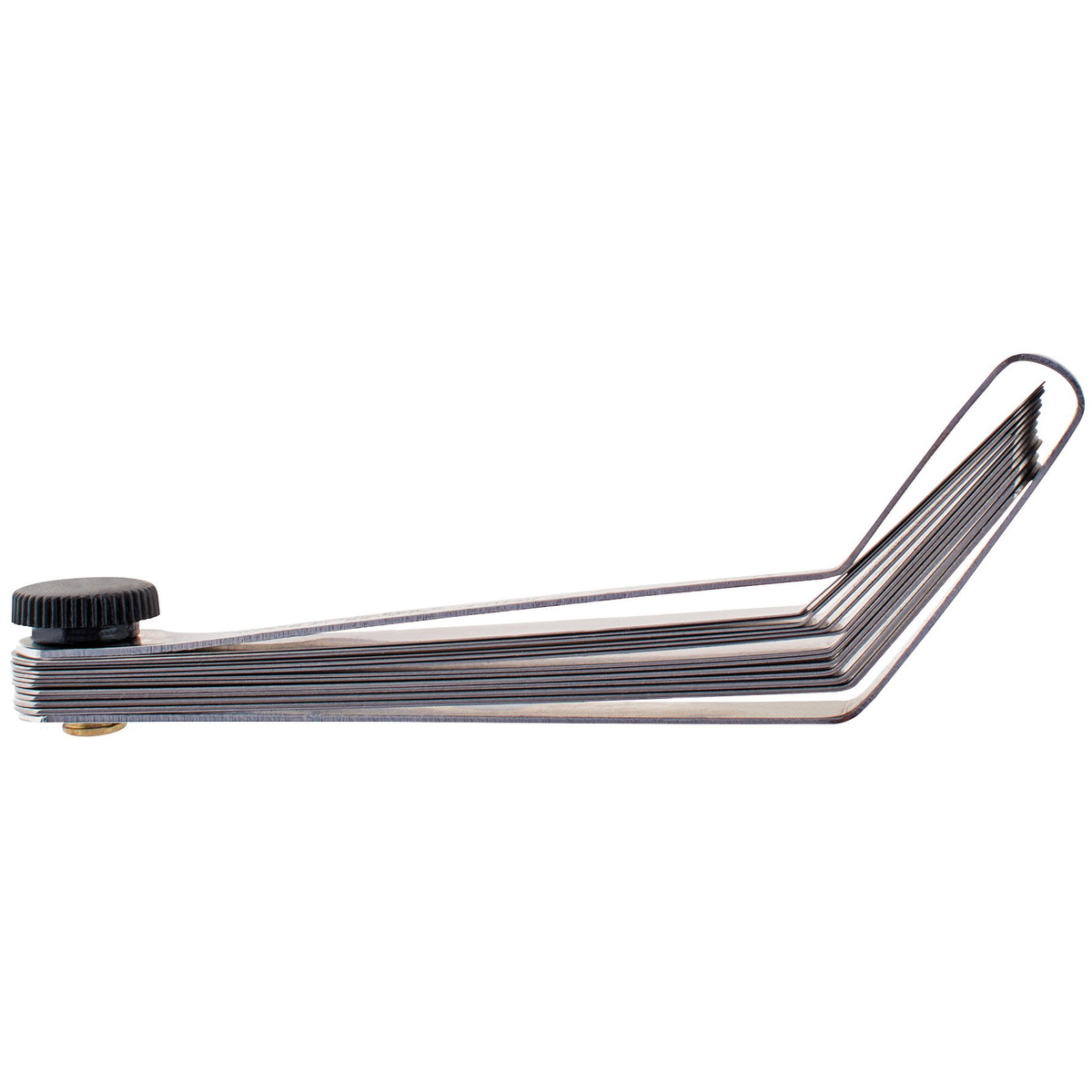

Setting valve tappets accurately demands a gauge with sufficient reach and the right blade geometry to work within the confined clearances found in motorcycle, mower, car and van engines. The Draper 51729 angled tappet feeler gauge addresses this directly: its 24 dual-marked blades are offset so that the working end can access restricted areas of the engine that a straight gauge would not reach. Each blade measures 95mm in length and is hardened and polished to maintain dimensional accuracy throughout its working life. Both the metric and imperial measurements are marked on every blade, so there is no need to swap between gauges mid-task. The full metric range runs from 0.203mm to 0.660mm across 12 blades (0.203, 0.254, 0.305, 0.330, 0.356, 0.381, 0.406, 0.457, 0.483, 0.508, 0.635 and 0.660mm), while the corresponding imperial range runs from 0.008" to 0.026" across 12 blades (0.008, 0.010, 0.012, 0.013, 0.014, 0.015, 0.016, 0.018, 0.019, 0.020, 0.025 and 0.026"). All blades fold neatly into a polished steel case secured by a thumbscrew, keeping them protected and organised between uses. Each blade is individually marked with its size for quick selection at the bench. The gauge is display packed and suitable for professional workshop and owner-operator use across a wide range of small and large engines.
Combination gauge for the setting of valve tappets on motorcycles, mowers, cars, vans, etc. The dual marked blades are 95mm long and offset to give improved access to the engine and are hardened and polished for long accurate life. Each blade is marked with its size and folds into a polished steel case with thumbscrew.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £4.99
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 36174 | 36169 | VS515 | S0514 | VS512 | S0516 |
| Type | Feeler Gauge | Feeler Gauge | Feeler Gauge | Feeler Gauge | Feeler Gauge | Feeler Gauge |
| Brand | Premier | Siegen | Premier | Siegen | ||
| Length (mm) | 762 | 254 | 889 | 660 | ||
| Model No | VS515 | S0514 | VS512 | S0516 | ||
| Nett Weight | 0.19kg | 0.06kg | 0.14kg | 0.08kg | ||
| Weight (kg) | 19 | 06 | 14 | 08 | ||
A. The gauge contains 24 blades in total. The 12 metric blades cover: 0.203, 0.254, 0.305, 0.330, 0.356, 0.381, 0.406, 0.457, 0.483, 0.508, 0.635 and 0.660mm. The 12 imperial blades cover: 0.008, 0.010, 0.012, 0.013, 0.014, 0.015, 0.016, 0.018, 0.019, 0.020, 0.025 and 0.026 inches.
A. The blades are offset to give improved access to the engine, allowing the working end of the gauge to reach valve tappet clearances in locations where a straight gauge blade would not fit.
A. Each blade is 95mm long. They are hardened and polished to maintain accuracy over their working life.
A. Yes. Every blade carries both its metric and imperial measurement, so the gauge can be used for tappet settings specified in either unit without needing a separate tool.
A. The gauge is suitable for setting valve tappets on motorcycles, mowers, cars, vans and similar petrol and diesel engines where tappet clearance falls within the blade range of 0.203–0.660mm (0.008–0.026").
A. All blades fold into a polished steel case secured by a thumbscrew. Each blade is individually marked with its size for rapid identification.
