Product Number: SCW275SPL

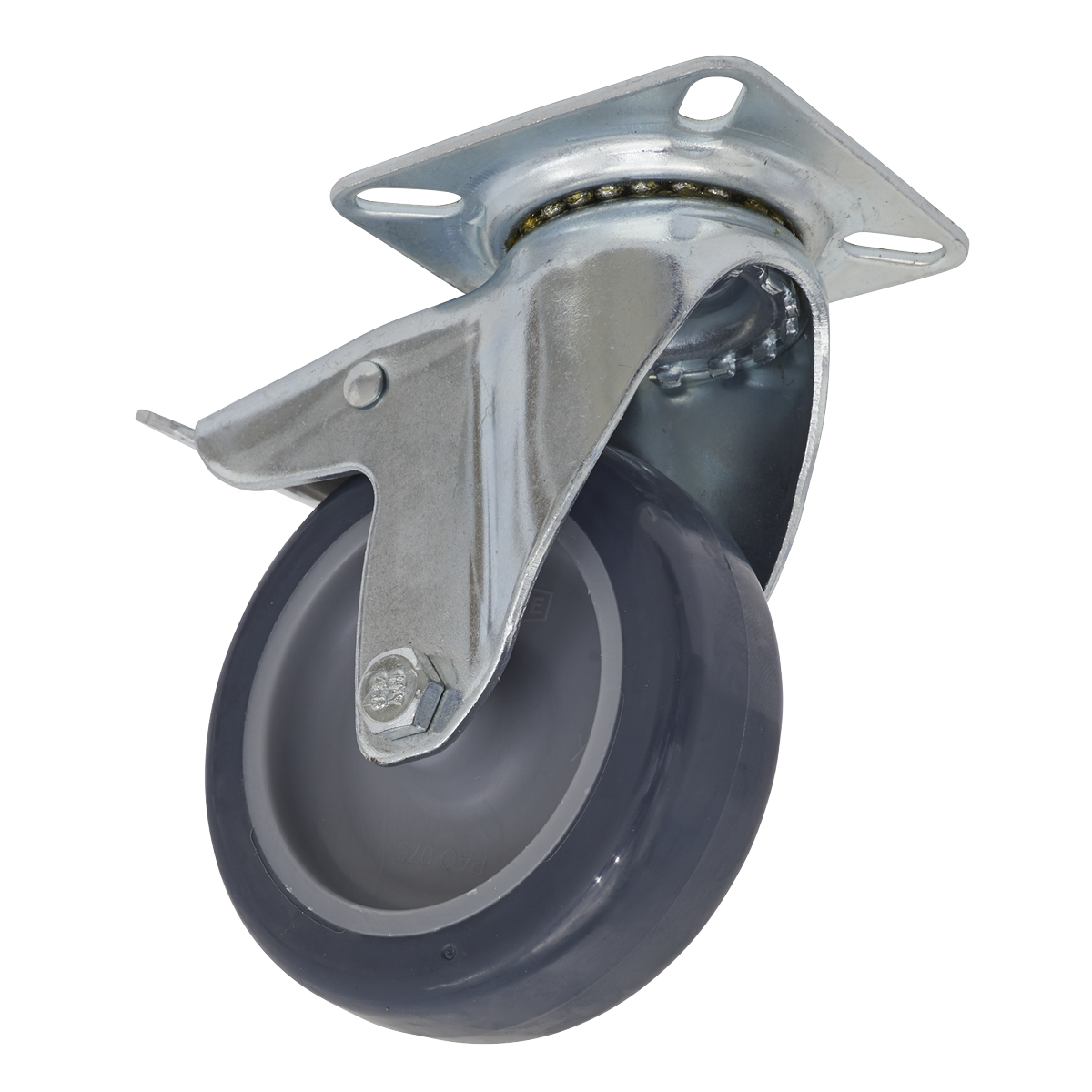

Castors without a reliable braking system can allow equipment to shift unexpectedly, creating a safety risk in the workshop or workplace. The Sealey SCW275SPL addresses this with a total lock brake system that locks the entire castor not just the wheel keeping your equipment firmly in place when stationary. This medium-duty swivel plate castor features a non-marking polypropylene and polyurethane wheel, 75mm in diameter with a 25mm tread width, and has a load capacity of 60kg per wheel. The plate fixing (60mm plate size, 11mm hole diameter) allows straightforward installation, while the 25mm offset and 100mm overall height make it well suited to a range of light to medium-duty trolleys, carts, and furniture. Backed by a 2-year guarantee.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | SCW275SPL |
|---|---|
| Brand | Sealey |
| Castor Type | Swivel with Total Lock System |
| Fixing Type | Plate |
| Load Capacity | 60kg |
| Offset Size | 25mm |
| Overall Height | 100mm |
| Plate Hole Centre | n/a |
| Plate Hole Diameter | 11mm |
| Plate Size | 60mm |
| Tread Width | 25mm |
| Wheel Diameter | Ø75mm |
| Wheel Material | Polypropylene/Polyurethane |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 65513 | SCW275SPLEM | 65475 | SCW275SB | 65474 |
| Type | Castor | Castor | Castor | Castor | Castor |
| Brake | No | Yes | No | No | Yes |
| Diameter | 75mm | 75mm | 75mm | 75mm | 75mm |
| Diameter Range | 51-100mm | 51-100mm | 51-100mm | 51-100mm | 51-100mm |
| Format | Single | Single | Single | Single | Single |
| Load Capacity | 70kg | 60kg | 70kg | 60kg | 70kg |
| Mounting | Swivel plate | Swivel with total lock | Swivel bolt fixing | Swivel bolt fixing | Swivel plate |
| Non-Marking | Yes | ||||
| Wheel Material | Polyurethane | Rubber | Rubber | ||
| Show More | |||||
A. The SCW275SPL has a load capacity of 60kg per castor.
A. Yes. It features a total lock brake system that locks the whole castor, not just the wheel, preventing both rolling and swivelling when engaged.
A. No. The wheel is made from non-marking polypropylene and polyurethane.
A. The plate size is 60mm and the plate hole diameter is 11mm.
A. The wheel diameter is 75mm, the tread width is 25mm, and the overall height is 100mm.
A. The SCW275SPL is covered by a 2-year guarantee.
A. Other versions in this product family include SCW275SB, SCW275SBEM, SCW275SBL, and SCW275SBLEM, which differ in fixing type or brake specification. Please check each SKU for its individual details.
