Product Number: SCW3160SPL

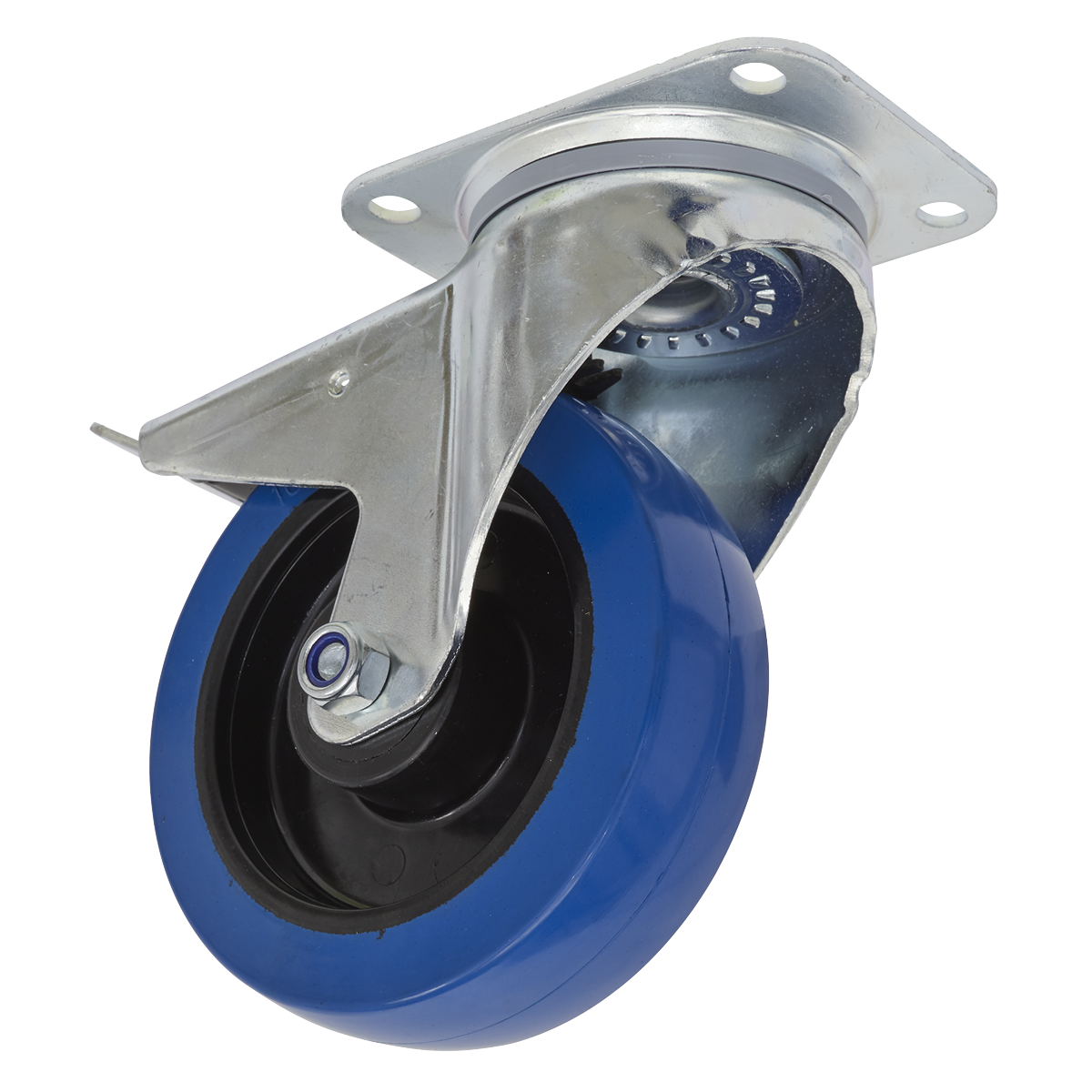

On sloped or uneven workshop floors, castors that only lock the wheel not the full swivel can still shift and cause equipment to move unexpectedly. The Sealey SCW3160SPL solves this with a total lock brake system that locks the entire castor, not just the wheel, keeping equipment fully stationary when required. Rated to 300kg with a non-marking polyamide and elastic wheel, this extra-heavy-duty 160mm swivel plate castor features a plate size of 137 x 105mm, hole centres of 105 x 80/75mm, 11mm plate hole diameter, 60mm offset, 46mm tread width, and an overall height of 200mm. Backed by a 2-year guarantee.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | SCW3160SPL |
|---|---|
| Brand | Sealey |
| Castor Type | Swivel with Total Lock System |
| Fixing Type | Plate |
| Load Capacity | 300kg |
| Nett Weight | 2.54kg |
| Offset Size | 60mm |
| Overall Height | 200mm |
| Plate Hole Centre | 105 x 80/75mm |
| Plate Hole Diameter | 11mm |
| Plate Size | 137 x 105mm |
| Tread Width | 46mm |
| Wheel Diameter | 160mm |
| Wheel Material | Polyamide/Elastic |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | SCW3160FP | SCW3160SPEM | SCW5160SPL | SCW3160SPLEM | SCW5160SP |
| Type | Castor | Castor | Castor | Castor | Castor |
| Brake | No | No | Yes | Yes | No |
| Diameter | 160mm | 160mm | 160mm | 160mm | 160mm |
| Diameter Range | 101-200mm | 101-200mm | 101-200mm | 101-200mm | 101-200mm |
| Duty | Heavy duty | Heavy duty | |||
| Format | Single | Single | Single | Single | Single |
| Load Capacity | 300kg | 600kg | 600kg | ||
| Mounting | Fixed plate | Swivel plate | Swivel with total lock | Swivel with total lock | Swivel plate |
| Wheel Material | Elastic rubber | Elastic rubber | |||
| Show More | |||||
A. The load capacity is 300kg.
A. The total lock brake system locks the whole castor - both the wheel and the swivel - not just the wheel, preventing any movement when engaged.
A. The wheel is made from polyamide and elastic rubber, and is non-marking.
A. The plate size is 137 x 105mm with hole centres of 105 x 80/75mm and a hole diameter of 11mm.
A. The overall height is 200mm and the tread width is 46mm.
A. Yes, it is backed by a 2-year guarantee.
A. Yes. Variants include SCW3160FP, SCW3160FPEM, SCW3160SPEM, and SCW3160SPLEM, offering different fixing types, wheel materials, and locking configurations.
A. The offset size is 60mm.
A. The SCW3160SPL is a distinct product with a total lock system. For alternatives that perform a similar function, please contact Parts for Machines for confirmation.
A. Yes - WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility, and we'll help you choose the right product.
