Product Number: SCW5160SPL

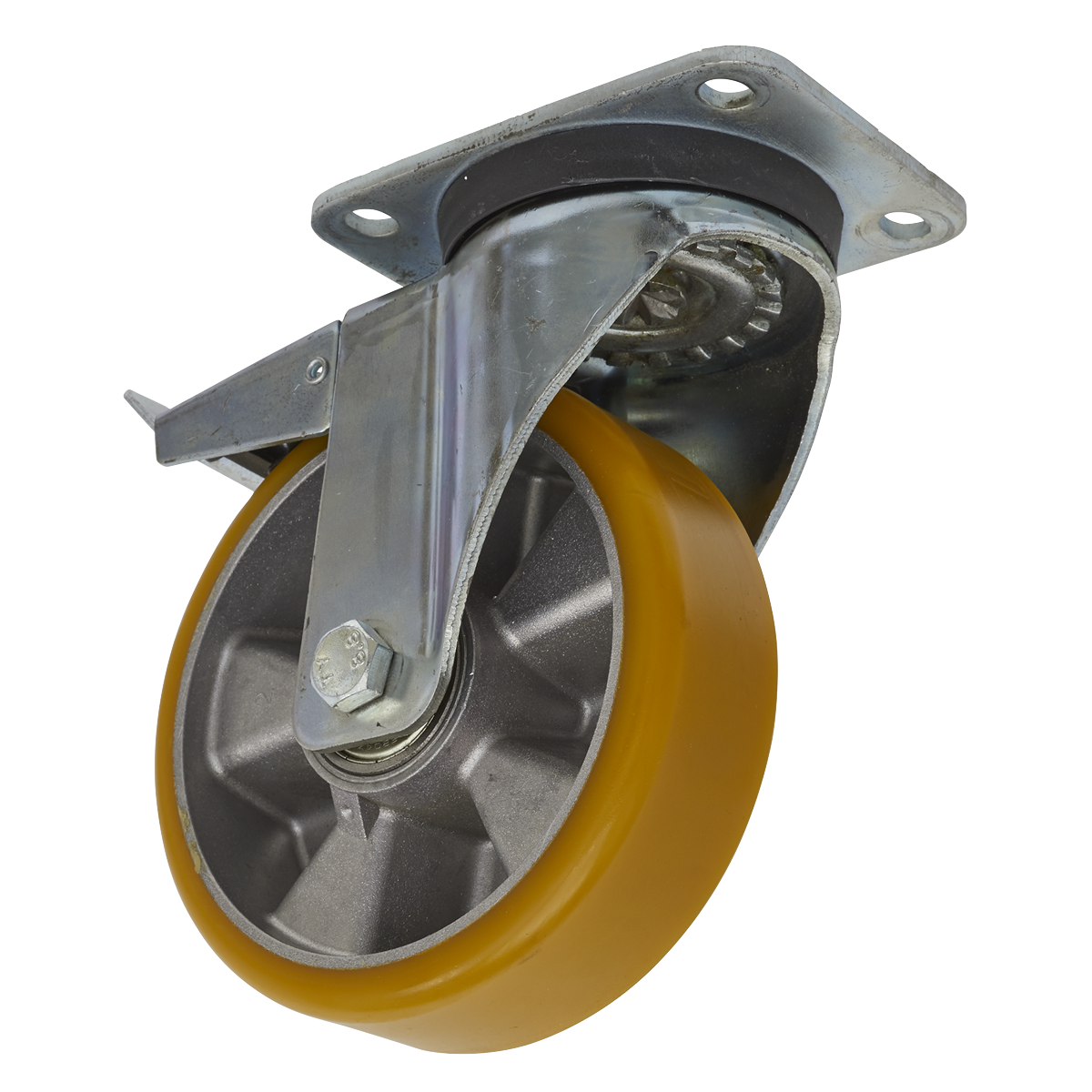

When heavy equipment needs to move freely but stay firmly in place when required, an ordinary castor simply isn't enough. The Sealey SCW5160SPL is an ultra-heavy-duty swivel plate castor with a total lock brake system that locks the entire castor not just the wheel giving you secure, stable positioning under load. The non-marking aluminium and polyurethane wheel measures 160mm with a 50mm tread width, and the castor carries a maximum load capacity of 600kg. The swivel plate fixes via a 137 x 105mm plate with 11mm hole diameter and hole centres of 105 x 80/75mm. Overall height is 200mm with an offset size of 60mm. Backed by a 2-year guarantee.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | SCW5160SPL |
|---|---|
| Brand | Sealey |
| Castor Type | Swivel with Total Lock System |
| Fixing Type | Plate |
| Load Capacity | 600kg |
| Nett Weight | 3.28kg |
| Offset Size | 60mm |
| Overall Height | 200mm |
| Plate Hole Centre | 105 x 80/75mm |
| Plate Hole Diameter | 11mm |
| Plate Size | 137 x 105mm |
| Tread Width | 50mm |
| Wheel Diameter | 160mm |
| Wheel Material | Aluminium/Polyurethane |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | SCW3160FP | SCW3160SPEM | SCW3160SPL | SCW3160SPLEM | SCW5160SP |
| Type | Castor | Castor | Castor | Castor | Castor |
| Brake | No | No | Yes | Yes | No |
| Diameter | 160mm | 160mm | 160mm | 160mm | 160mm |
| Diameter Range | 101-200mm | 101-200mm | 101-200mm | 101-200mm | 101-200mm |
| Duty | Heavy duty | Heavy duty | |||
| Format | Single | Single | Single | Single | Single |
| Load Capacity | 300kg | 600kg | |||
| Mounting | Fixed plate | Swivel plate | Swivel with total lock | Swivel with total lock | Swivel plate |
| Wheel Material | Elastic rubber | Elastic rubber | |||
| Show More | |||||
A. The SCW5160SPL has a load capacity of 600kg.
A. The wheel diameter is Ø160mm.
A. The total lock brake system locks the whole castor, not just the wheel.
A. The plate size is 137 x 105mm, with hole centres of 105 x 80/75mm and a hole diameter of 11mm.
A. The wheel is made from aluminium and polyurethane and is non-marking.
A. The tread width is 50mm and the overall height is 200mm.
A. The offset size is 60mm.
A. Yes, the SCW5160SPL is backed by a 2-year guarantee.
A. Yes, the variant SCW5160SP is available in the same product family with a different specification. Please refer to that product listing or contact Parts for Machines for confirmation of the difference.
A. Next-day delivery is available on most products and will appear as an option at checkout where eligible.
