Product Number: AC28307CTH

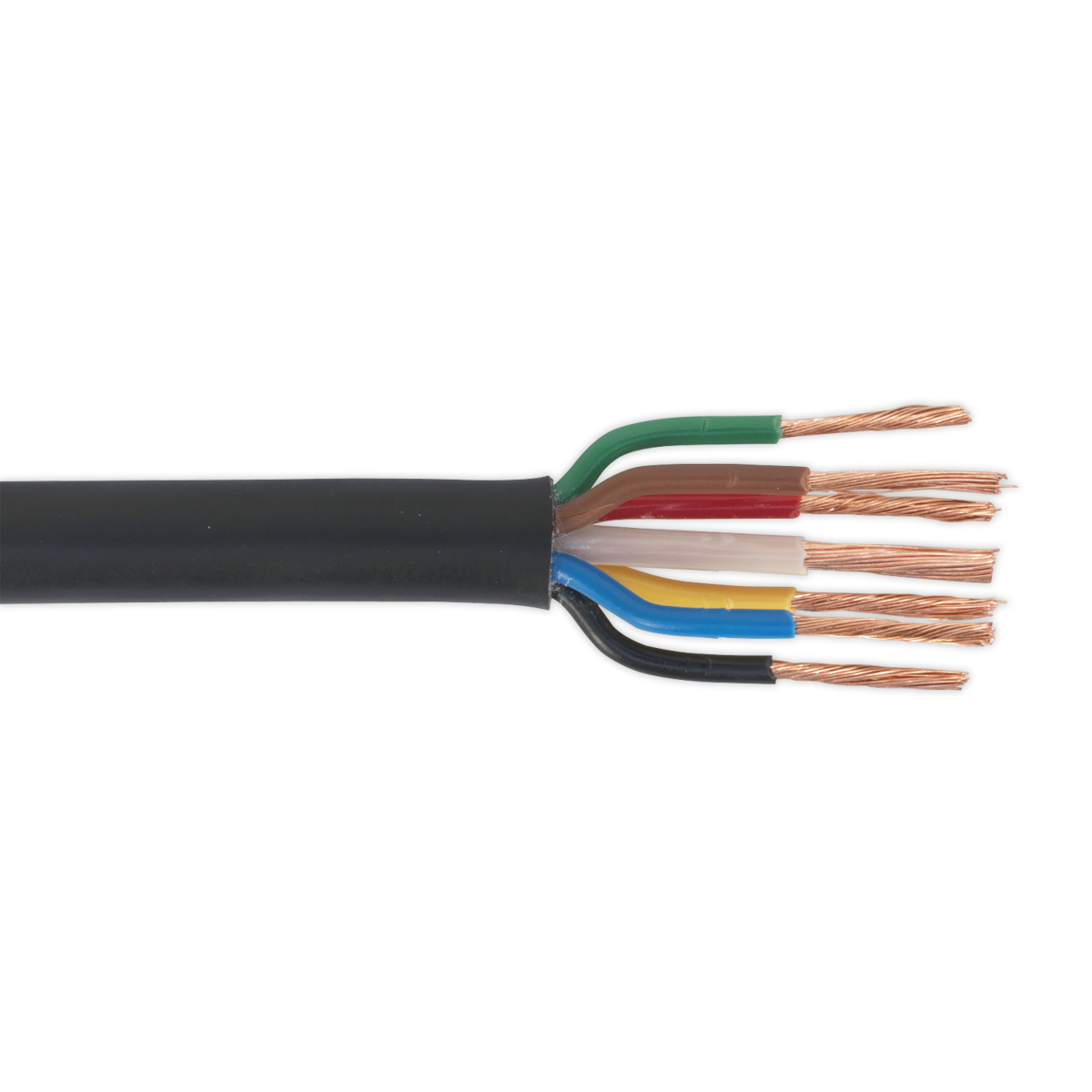

Wiring a vehicle with multiple circuits often requires running several cables through tight spaces, increasing bulk and installation time. The Sealey AC28307CTH solves this with a seven-core thin wall automotive cable that combines six 1mm² conductors rated at 16.5A and one 2mm² conductor rated at 25A into a single 30m black-sheathed reel. The thin wall construction reduces overall cable diameter without compromising current capacity, making it easier to route through confined areas. Each of the seven cores is colour-coded Black, Blue, Brown, Green, Red, White, and Yellow so individual circuits can be identified quickly during installation and fault-finding. The conductor specification is 6 x 32/0.20mm and 1 x 28/0.30mm. Supplied on a cardboard reel. RoHS compliant.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | AC28307CTH |
|---|---|
| Amps | 16.5A, 25A |
| Brand | Sealey |
| Cable Type | Thin Wall |
| Colour | Sheath; Black, Core; Black, Blue, Brown, Green, Red, White, Yellow |
| Conductor Specification | 6 x 32/0.20mm, 1 x 28/0.30mm |
| Core Type | 6 + 1 Core |
| Length | 30m |
| Nett Weight | 3.97kg |
| Section | 6 x 1mm², 1 x 2mm² |
| Size (OD) | n/a |
| Temperature Range | n/a |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | AC24207CTH | AC2830TWTN | AVS-ALARM300 | AVS-ALARM200 | AVS-ALARM600 | AVS-ALARM500 |
| Type | Automotive Cable | Automotive Cable | Automotive Cable | Automotive Cable | Automotive Cable | Automotive Cable |
| Colour | Sheath | Sheath | ||||
| Brand | Sealey | Sealey | ||||
| Model No | AC24207CTH | AC2830TWTN | ||||
| Nett Weight | 2.72kg | 1.83kg | ||||
| Weight (kg) | 72 | 83 | ||||
A. The six 1mm² cores are each rated at 16.5A, and the single 2mm² core is rated at 25A.
A. The six smaller cores are 32/0.20mm and the larger core is 28/0.30mm.
A. The cores are Black, Blue, Brown, Green, Red, White, and Yellow.
A. The cable is supplied on a 30m cardboard reel.
A. Six cores are 1mm² and one core is 2mm².
A. Yes, the AC28307CTH is RoHS compliant.
A. It is a thin wall multi-core automotive cable with a seven-core (6 + 1) conductor arrangement.
A. The outer sheath is Black.
