Product Number: PDM260F
Variations

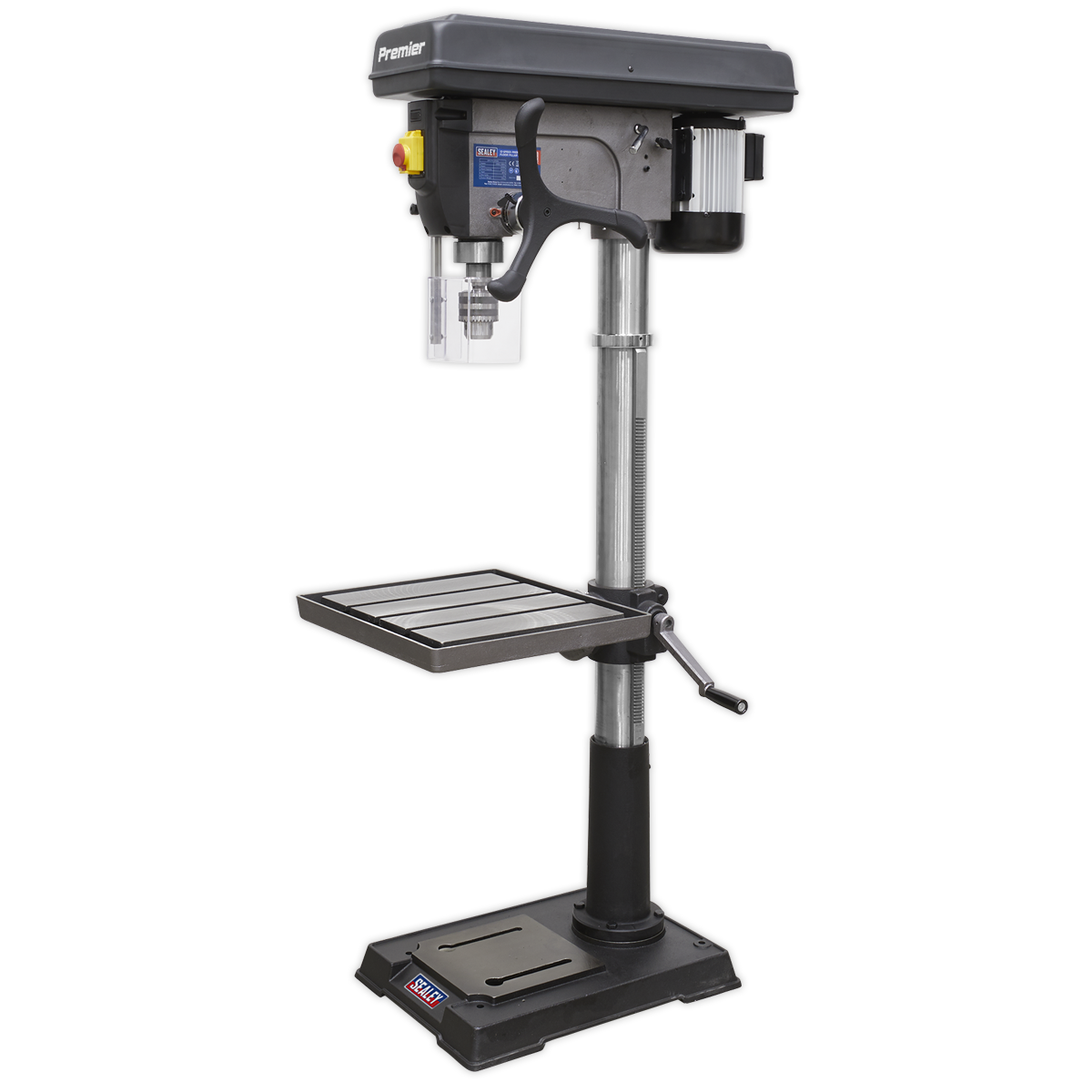

Inconsistent drilling results and inadvertent start-ups are a genuine risk with lesser machines the Sealey PDM260F Floor Pillar Drill is built to eliminate both. The heavy-duty aluminium-bodied motor delivers long, reliable performance, while a no-volt release switch prevents inadvertent start-up, making the PDM260F approved for use in educational establishments. A microswitch on the pulley cover means the drill cannot operate while the cover is open, and an electrically interlocked chuck guard adds a further layer of protection. Twelve speeds spanning 120-3,480rpm give you precise control across a wide range of materials, and the 20mm (3/4") chuck capacity with MT4 taper handles demanding tasks with ease. The spindle centre-to-column reach of 260mm suits larger workpieces, and the large square table with precision rack and pinion height adjustment makes repositioning quick and accurate. An integral work light illuminates the drilling table for a clear view of every operation (60W E27 bulb not included). Overall height is 1,710mm, with a maximum spindle-to-table distance of 680mm and spindle-to-base of 1,160mm. Base size is 575 x 455mm. Backed by a 3-year guarantee. Optional accessory: PDM/KC Keyless Pillar Drill Chuck 16mm.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | PDM260F |
|---|---|
| Base Size | 575 x 455mm |
| Brand | Premier |
| Collar Diameter | Ø85mm |
| Column Diameter | Ø92mm |
| Drilling Capacity (Chuck Size) | 20mm |
| Integral Work Light | Yes |
| Maximum Distance Spindle to Base | 1160mm |
| Maximum Distance Spindle to Table | 680mm |
| Motor Power (Start) | 1100W(1500W) |
| Nett Weight | 110kg |
| Number of Speeds | 12 |
| Optional Accessories | PDM/KC - Keyless Pillar Drill Chuck 16mm |
| Overall Height | 1710mm |
| Speed Range | 120-3480rpm |
| Spindle Centre to Column | 260mm |
| Spindle Nose Taper | MT4 |
| Spindle Travel | 120mm |
| Supply | 230V |
| Swing | 520mm |
| Working Base Surface Size | 410 x 330mm |
| Working Table Surface Size | 425 x 475mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
PDM/CS | Sealey PDM/CS Coolant System for PDM210F, PDM240F & PDM260F | 1 Unit |
£48.97
£48.01
|
Add |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey PDM125B Pillar Drill Bench 16-Speed 1050mm 230V
£446.88
£438.12
2% OFF
Free delivery in UK Mainland
|
Sealey PDM155B Pillar Drill Bench 16-Speed 1050mm Height 230V
£565.03
£553.95
2% OFF
Free delivery in UK Mainland
|
Sealey PDM170F Floor Pillar Drill 16-Speed 1610mm 230V
£510.88
£500.86
2% OFF
Free delivery in UK Mainland
|
Sealey PDM210F Floor-Standing Pillar Drill 16-Speed 1610mm 370W 230V
£594.56
£582.90
2% OFF
Free delivery in UK Mainland
|
| Technical Specification | ||||
|---|---|---|---|---|
| PRODUCT NUMBER | PDM125B | PDM155B | PDM170F | PDM210F |
| Base Size | 450 x 270mm | 495 x 290mm | 450 x 270mm | 495 x 290mm |
| Collar Diameter | Ø55mm | Ø60mm | Ø55mm | Ø60mm |
| Length (mm) | 1050 | 1050 | 1610 | 1610 |
| Spindle Travel | 80mm | 80mm | 80mm | 80mm |
| Weight (kg) | 45 | 55 | 47 | 62 |
A. The PDM260F has a 20mm (3/4") chuck capacity with an MT4 taper.
A. The PDM260F offers 12 speeds with a range of 120-3,480rpm.
A. Yes. The PDM260F is fitted with a no-volt release switch to prevent inadvertent start-up, which allows insurance company approval for use in educational establishments.
A. Safety features include a no-volt release switch to prevent inadvertent start-up, a microswitch on the pulley cover that prevents the drill from operating when the cover is open, and an electrically interlocked chuck guard.
A. Yes, the PDM260F features an integral work light to illuminate the drilling table. The 60W E27 bulb is not included.
A. Overall height is 1,710mm. Base size is 575 x 455mm. Spindle centre to column is 260mm. Maximum spindle-to-table distance is 680mm and maximum spindle-to-base is 1,160mm. Column diameter is Ø92mm and collar diameter is Ø85mm.
A. The motor power is 1,100W with a start power of 1,500W.
A. Yes, there are alternative floor-standing pillar drills in the Sealey range including the PDM125B, PDM155B, PDM170F, and PDM210F, each offering different capacities and specifications. Please refer to each product listing for details.
A. Yes, the PDM/KC Keyless Pillar Drill Chuck 16mm is listed as an optional accessory for the PDM260F.
A. Standard UK mainland delivery is 3-5 working days.
