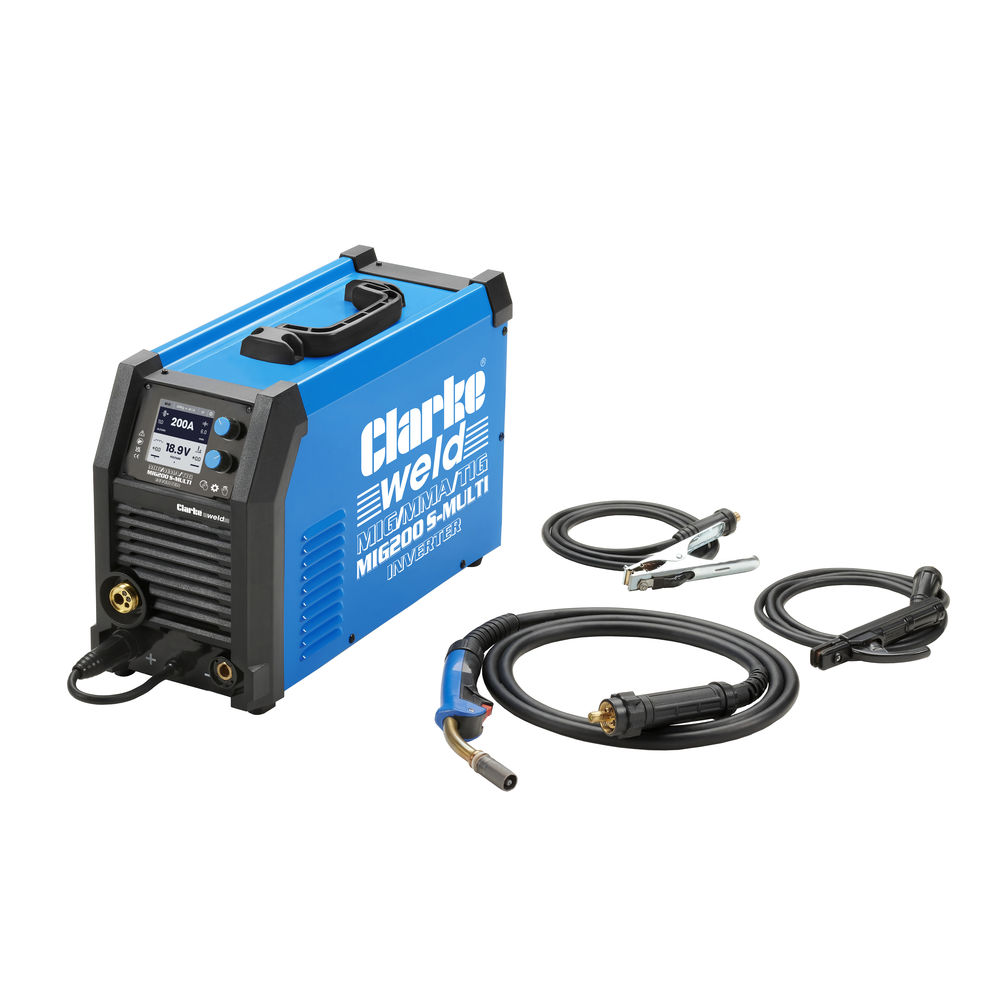

Product Number: 6015605
Synergic control takes the guesswork out of MIG setup. Synergic operation links wire speed to voltage automatically, so dialling in the right weld parameters takes seconds rather than minutes of experimentation. Output spans 20 - 200A with a duty cycle of rated at max amps. Compatible with wire diameter 0.8 - 1.2mm, material thickness 8mm. Synergic LED-guided setup. Supplied with:MB 25AK Torch 1.2mm tip fitted for aluminium weldingElectrode Holder. LeadEarth Clamp. LeadChipping Hammer. Wire BrushSet V Rollers V0.8/1.0mm (2pc in box)Hose Clips and related accessoriesSuitable for welding stainless steel and aluminium. The 6015605 is a gas-shielded MIG welder. It uses CO2, Argon, or CO2/Argon mix shielding gas for clean welds on mild steel and stainless steel. A gas cylinder, regulator, and hose are required separately. Operators comparing synergic MIG welders benefit from the 6015605's automatic wire-speed-to-voltage linking, which simplifies setup across different materials and wire diameters - particularly valuable in bodyshops where settings change frequently between jobs.
Additional Information:
| Min/Max Amps | 20 - 200A |
|---|---|
| Power Supply | Must be Hardwired |
| Volts | 230 |
| Mild Steel Capability | 8mm |
| No Gas/Gas | Gas |
| Welding Wire Sizes | 0.8 - 1.2mm |
| Packaged Weight | 22.25kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Pro Tips for Buying Welding Machines: Types, Uses, and Choosing the Perfect Fit Introduction:Welding, the art of joining metals through heat and precision, has evolved significantly with the advent of adv...
Standard Delivery: UK Mainland Free
Delivery Estimate: 5 to 7 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey INVMIG200 Inverter Welder MIG, TIG & MMA 200A
£544.47
£533.58
2% OFF
Free delivery in UK Mainland
|
Sealey MINIMIG160i MIG/TIG & MMA (ARC/STICK) Inverter Welder 160A 230V
£187.01
£183.27
2% OFF
Free delivery in UK Mainland
|
Sealey MIG200i MIG/TIG & MMA (ARC/STICK) Inverter Welder 200A
£356.33
£349.20
2% OFF
Free delivery in UK Mainland
|
Sealey POWERMIG300i 300A Professional Gas/Gasless MIG/TIG/MMA Inverter Welder 400V 3ph
£1,502.44
£1,472.39
2% OFF
Free delivery in UK Mainland
|
SIP 05738 WELDMATE® AUTOPLUS 160A MIG/ARC/TIG Synergic Inverter Welder
£315.05
£308.87
2% OFF
Free delivery in UK Mainland
|
SIP 05751 WELDMATE® AUTOPLUS 250A MIG/ARC/TIG Synergic Welder
£770.05
£754.95
2% OFF
Free delivery in Channel Island
|
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | INVMIG200 | MINIMIG160i | MIG200i | POWERMIG300i | 05738 | 05751 |
| Type | MIG/ARC/TIG | MIG/ARC/TIG | MIG/ARC/TIG | MIG/ARC/TIG | MIG/ARC/TIG | MIG/ARC/TIG |
| Output Current | 20A - 160A (MIG) / 20A - 160A (ARC) / 20 | 30A - 250A (MIG), 30A - 250A (ARC), 10A | ||||
| Input Supply | 230v (16A) | 230v (32A) | ||||
| Output Voltage | 15.5v - 26.5v (MIG), 21.2v - 30v (ARC), | |||||
| Voltage (V) | 230 | 230 | 230 | 230 | ||
| Weight (kg) | 15 | 6.9 | 11.1 | 67 | 0.7 | 5 |
A. Yes. The 6015605 supports both gas MIG (CO₂, Argon, or Argon/CO₂ mix) and gasless flux-cored wire welding. Switch between modes by reversing the torch polarity — no other changes needed.
A. The 6015605 requires a Must be Hardwired supply. If you are unsure whether your supply is adequate, consult a qualified electrician before installation.
A. The 6015605 is fitted with thermal overload protection that cuts output automatically if the machine exceeds its rated temperature. Welding at lower amperages extends the continuous run time available before a cool-down period is needed.
A. The 6015605 is supplied with MB 25AK Torch (1.2mm tip fitted for aluminium welding, Electrode Holder & Lead, Earth Clamp & Lead, Chipping Hammer & Wire Brush, Set V Rollers V0.8/1.0mm (2pc in box). Additional consumables such as contact tips, nozzles, and electrodes are available separately.
A. The 6015605 is primarily designed for workshop use. Check the specification for weight and portability details.
A. The 6015605 welds stainless steel and aluminium. Different shielding gas types are recommended for different materials — refer to the product specification.
A. Synergic control automatically links wire feed speed to output voltage — adjusting one parameter causes the other to compensate, maintaining correct arc characteristics without manual balancing. This simplifies setup when changing between materials, thicknesses, or wire types, and is particularly useful in bodyshop environments where settings change frequently between jobs.
A. The 6015605 does not include a foot pedal as standard. A compatible foot pedal may be available as an optional accessory — check the product listing for compatible accessories.
A. Synergic control links wire feed speed to output voltage automatically — change one parameter and the other adjusts to maintain correct arc characteristics. This means faster setup when switching between materials, thicknesses, or wire types, and more consistent weld quality. On the 6015605, select the wire type, diameter, and gas, and the machine calculates the rest.
