Product Number: 83605
Variations

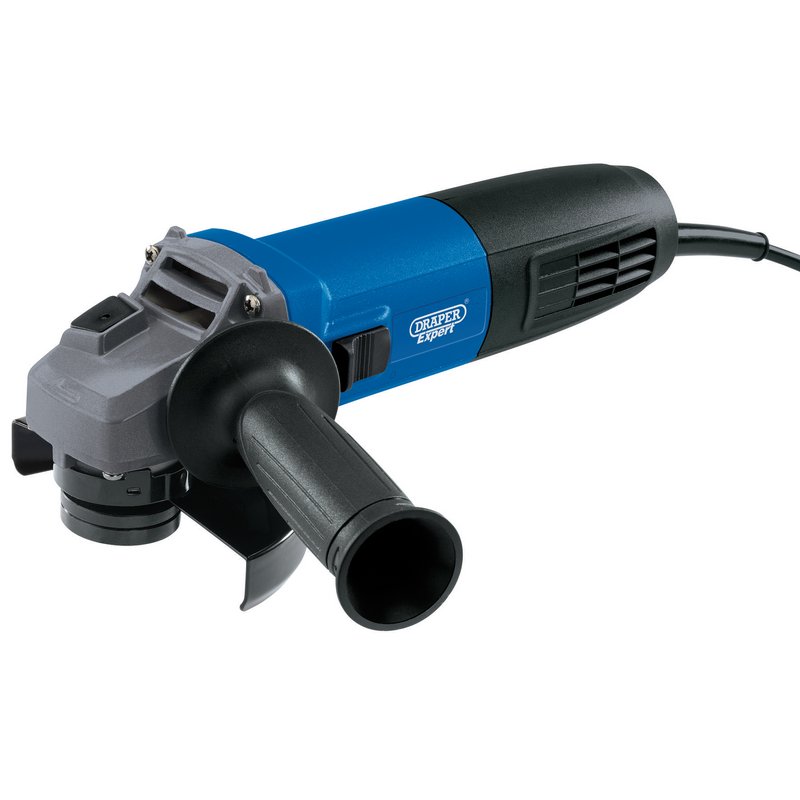

Angle grinders place significant demands on the operator's ability to control the tool safely and precisely — the Draper Expert 83605 addresses this through a combination of ergonomic and protective features designed for sustained professional use. The two-position side handle allows the user to adopt the grip best suited to the task, whilst the adjustable guard provides optimised coverage across a range of cutting and grinding applications.At the core of the machine is an 850W motor operating at 230V, delivering a no-load speed of 11,000rpm through an M14 spindle thread. The 115mm disc diameter and 22.2mm bore are standard professional dimensions, ensuring compatibility with a wide range of readily available abrasive and cutting discs. Spindle lock is incorporated to simplify disc changes, and the tool is supplied with a reversible lock nut and flange to accommodate different disc types.Out of the box, the 83605 is ready to work: the package includes a disc changing spanner and a 3-metre cable fitted with a BS plug, removing the need for additional expenditure before first use. The tool weighs 1.85kg, keeping operator fatigue manageable during extended tasks. It is not supplied in a case. As a Draper Expert tool, it is positioned within Draper's professional-grade range for tradespeople and workshop users requiring reliable, specification-led performance.
Features: Expert Quality, Spindle lock, Two position side handle, Adjustable guard, Supplied with reversible lock nut and flange, disc changing spanner and 3M cable with BS plug
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Bore | 22.2mm |
|---|---|
| Disc Diameter | 115mm |
| No Load Speed | 11000rpm |
| Spindle Thread | M14 |
| Supplied In Case | No |
| Voltage | 230V |
| Wattage | 850W |
| Weight | 1.85kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
85139 | Draper BRUSHES FOR AG850/83605 | 1 Unit |
£10.76
£10.55
|
Add |
83605ins.pdf
|
Open Now |
Standard Delivery: £4.99
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 55478 D20 20V Brushless Angle Grinder, 115mm (Sold Bare)
£68.69
£67.34
2% OFF
Free delivery in UK Mainland
|
Draper 56610 Expert 230V Angle Grinder, 230mm, 2600W
£108.78
£106.65
2% OFF
Free delivery in UK Mainland
|
Sealey CP1210KIT 12V Cordless Angle Grinder Kit 75mm SV12 Series - 2 Batteries
£165.70
£162.45
2% OFF
Free delivery in UK Mainland
|
Sealey CP1210 Cordless Mini Angle Grinder 75mm 12V SV12 Series Body Only
£90.58
£88.80
2% OFF
Free delivery in UK Mainland
|
Sealey CP108VAGBO Cordless Angle Grinder 10.8V Body Only
£62.99
£61.75
2% OFF
Free delivery in UK Mainland
|
||||||||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 54956 | 55478 | 56457 | 56480 | 56488 | 56610 | 98437 | CP1210KIT | SAG101 | SAG115 | SG125EU | SAG125 | SAG230 | CP1210 | CP108VAGBO |
A. The Draper Expert 83605 accepts 115mm diameter discs with a 22.2mm bore and an M14 spindle thread, which are standard professional dimensions compatible with a wide range of abrasive and cutting discs.
A. The Draper Expert 83605 operates at a no-load speed of 11,000rpm, driven by an 850W motor on a 230V supply.
A. The tool is supplied with a reversible lock nut and flange, a disc changing spanner, and a 3-metre cable fitted with a BS plug.
A. Yes, the Draper Expert 83605 incorporates a spindle lock to hold the spindle stationary during disc changes, making the process safer and more convenient.
A. The tool features an adjustable guard and a two-position side handle, allowing the operator to configure grip and coverage to suit the application.
A. No, the Draper Expert 83605 is not supplied in a case.
A. Standard UK mainland delivery is 3–5 working days.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN). You may also be asked to share images of the product and its packaging for verification. Items that do not meet these conditions will not be accepted for return. If your return is approved, we will initiate a refund to your credit card or original method of payment. A restocking fee of up to 15% of the order value may apply to each returned item.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
A. Every product comes with a different guarantee and warranty. Warranty details are shown in the product's tech specs or datasheet where available.
