Product Number: SM2502

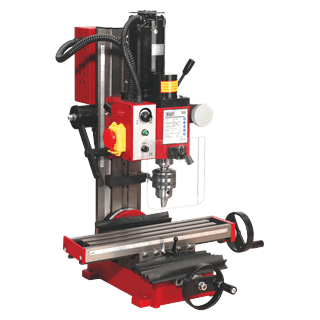

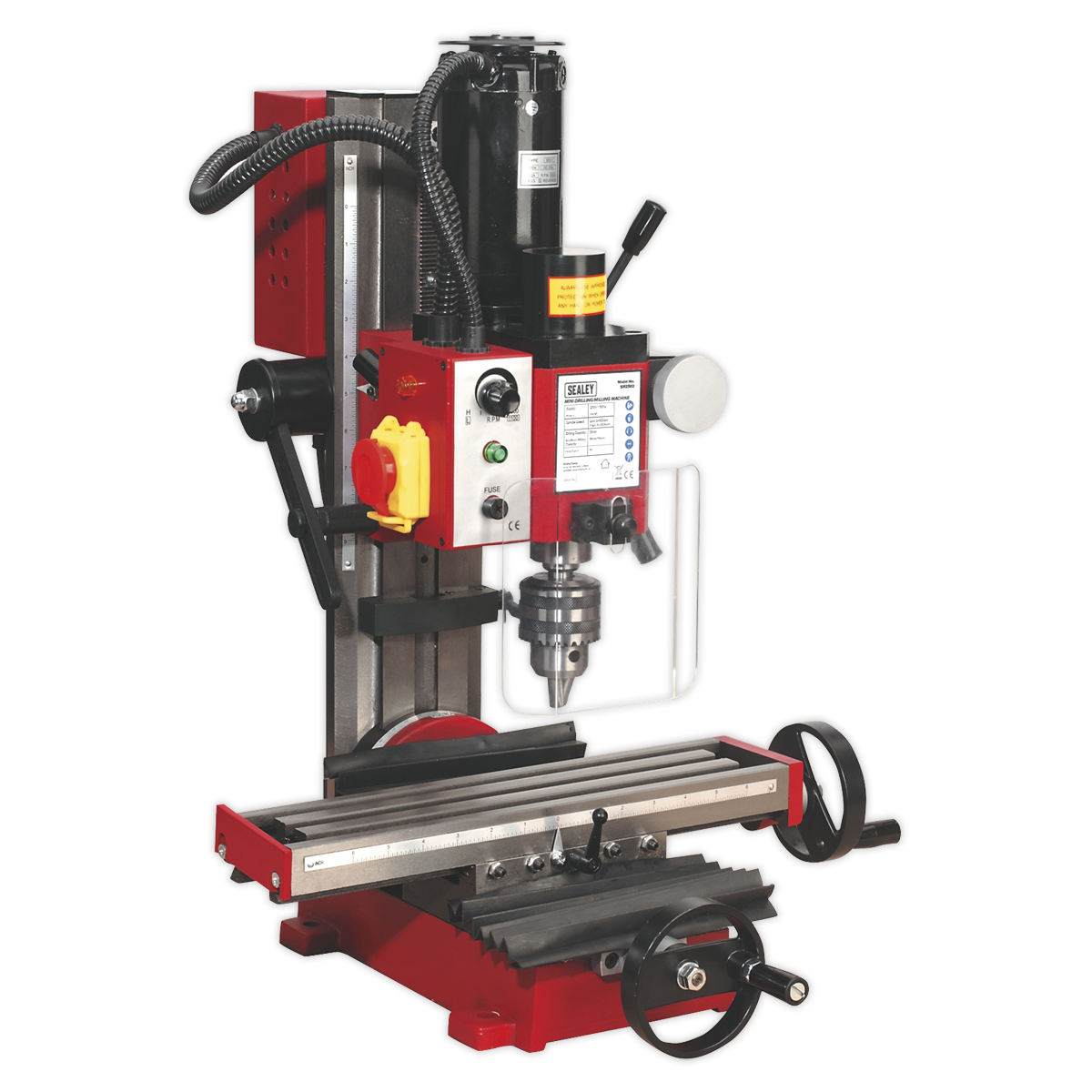

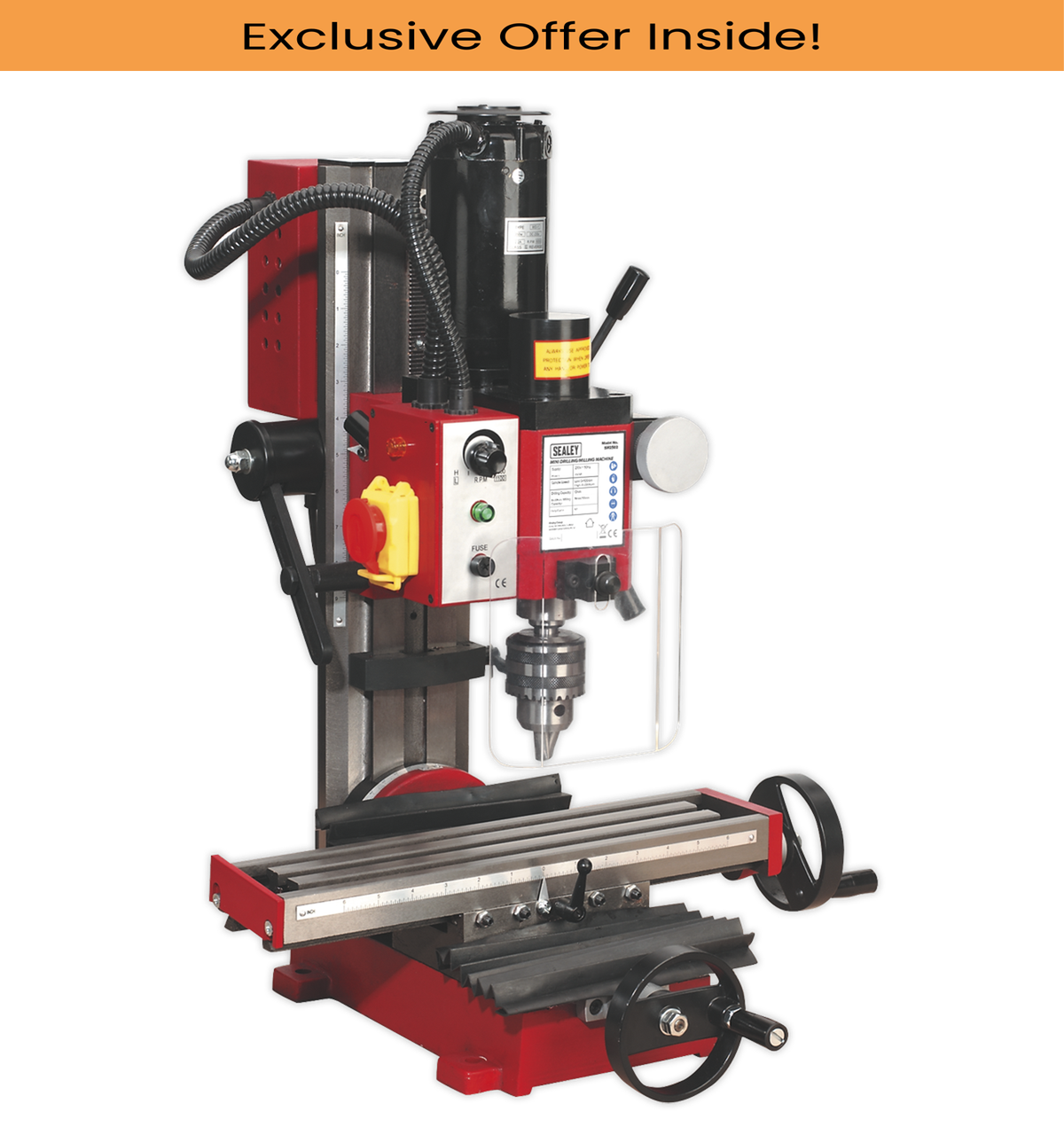

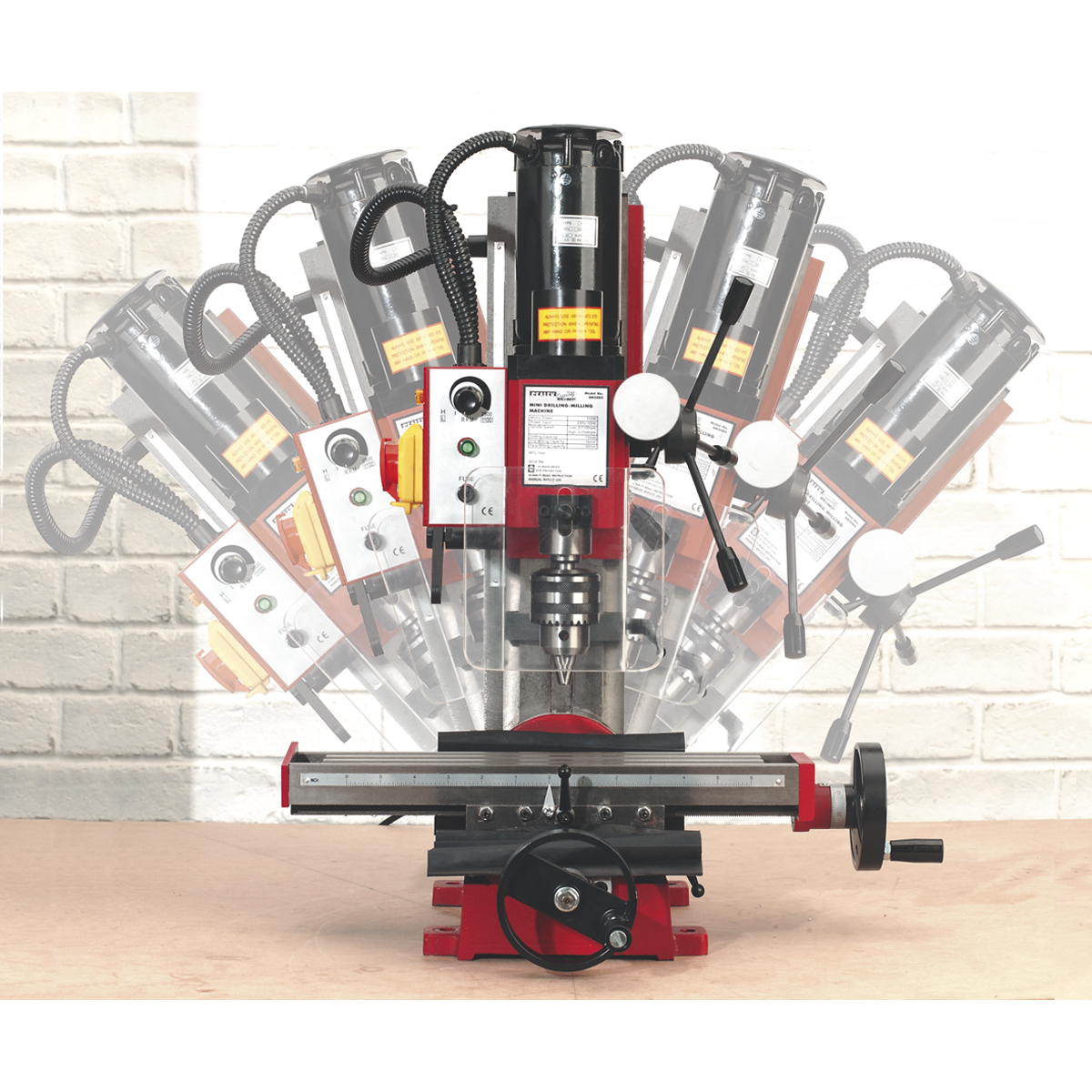

Tackling precise drilling and milling work on the bench demands a machine that combines flexibility with genuine performance. The Sealey SM2502 Mini Drilling and Milling Machine delivers exactly that, with a 350W motor and variable speed drive giving you control across two spindle speed ranges: 0-1100rpm (low) and 0-2500rpm (high). The working table features T-slots for secure clamping of workpieces and is equipped with metric graduated compound scales, with a longitudinal axis of 220mm and cross axis of 100mm. A headstock travel of 180mm adds further versatility, while the tilting column allows drilling and milling at ±45° from vertical ideal where angled work is required. The MT3 spindle nose taper supports a drilling capacity of 13mm chuck, end mill capacity of 16mm, and face mill capacity of 30mm. Supplied with a 13mm chuck accessory kit for setting and adjusting, and running on a standard 230V supply, the SM2502 is ready for bench mounting straight from the box. An optional stand (Model No. SM3002ST) is available separately, and a comprehensive range of compatible accessories can also be ordered.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | SM2502 |
|---|---|
| Brand | Sealey |
| Cross Axis | 100mm |
| Drilling Capacity (Chuck Size) | 13mm |
| End Mill Capacity | 16mm |
| Face Mill Capacity | 30mm |
| Headstock Travel | 180mm |
| Longitudinal Axis | 220mm |
| Motor Power | 350W |
| Nett Weight | 68kg |
| Spindle Nose Taper | MT3 |
| Spindle Speed - High Range | 0-2500rpm |
| Spindle Speed - Low Range | 0-1100rpm |
| Spindle Tilt Angle | ±45° |
| Supply | 230V |
| T-Slot | 12mm |
sealey-mini-drilling-milling-machine.pdf
|
Open Now |
Metalworking Essentials: Types, Uses, and Tips to Buy the Perfect One Introduction: In the intricate world of metalworking, the ability to cut with precision is paramount. Metal cutting equipment...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 34023 Variable Speed Mini Milling/Drilling Machine, 350W
£918.95
£900.93
2% OFF
Free delivery in UK Mainland
|
Clarke CDP502F 12 Speed Floor Standing Industrial Drill Press (230V)
£835.48
£819.10
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 34023 | 7610850 | 7610860 | DPG230 | DPG30 | 6505592 |
A. The SM2502 is fitted with a 350W motor running on a 230V supply.
A. The SM2502 offers two variable speed ranges: 0-1100rpm on the low range and 0-2500rpm on the high range.
A. The SM2502 has a drilling capacity (chuck size) of 13mm, an end mill capacity of 16mm, and a face mill capacity of 30mm.
A. Yes. The tilting column on the SM2502 allows drilling and milling of workpieces at ±45° from vertical.
A. The SM2502 is supplied with a 13mm chuck accessory kit for adjusting and setting.
A. Yes. An optional stand is available separately - order Model No. SM3002ST.
A. The spindle nose taper is MT3.
A. The longitudinal axis is 220mm, the cross axis is 100mm, and the headstock travel is 180mm.
