Product Number: SM1300

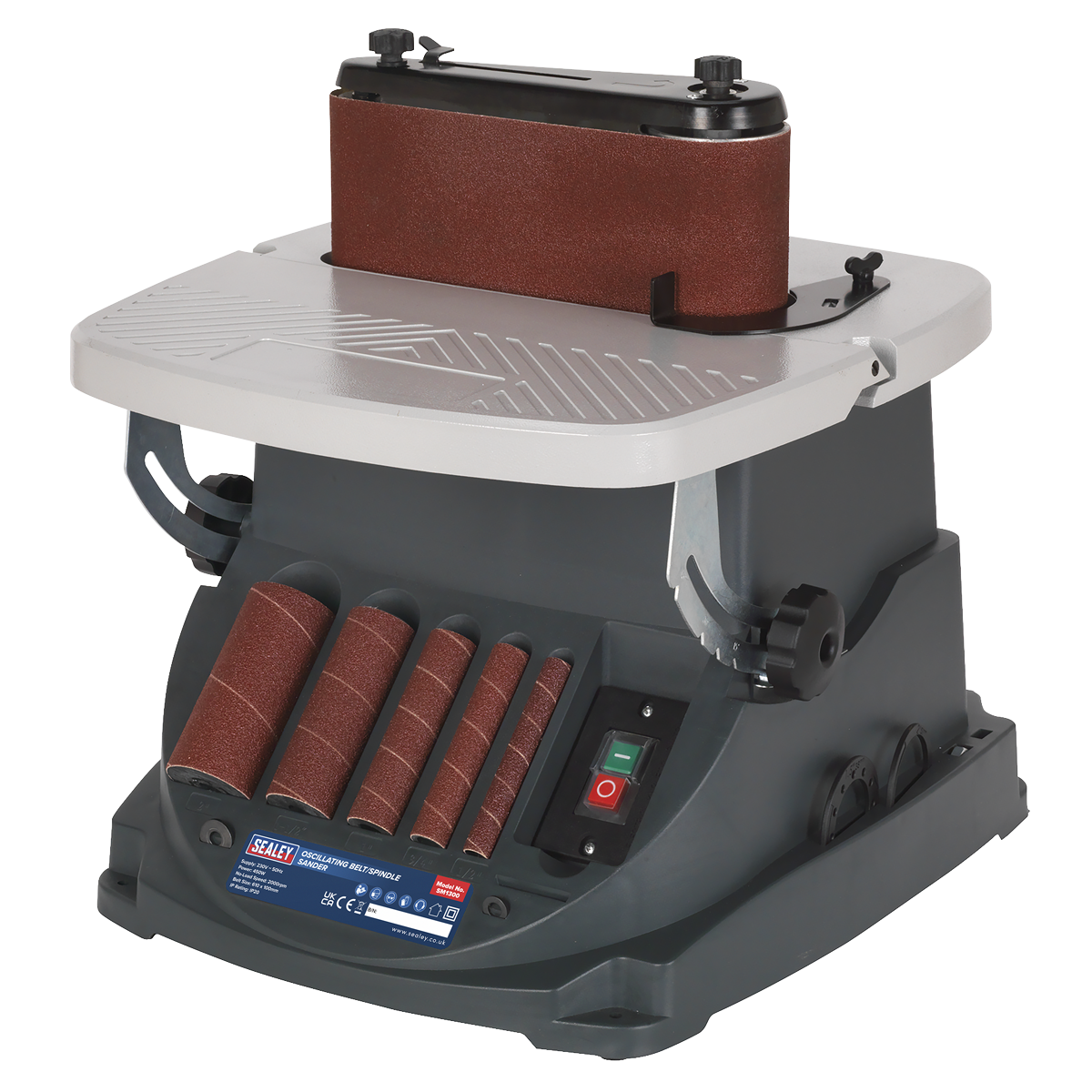

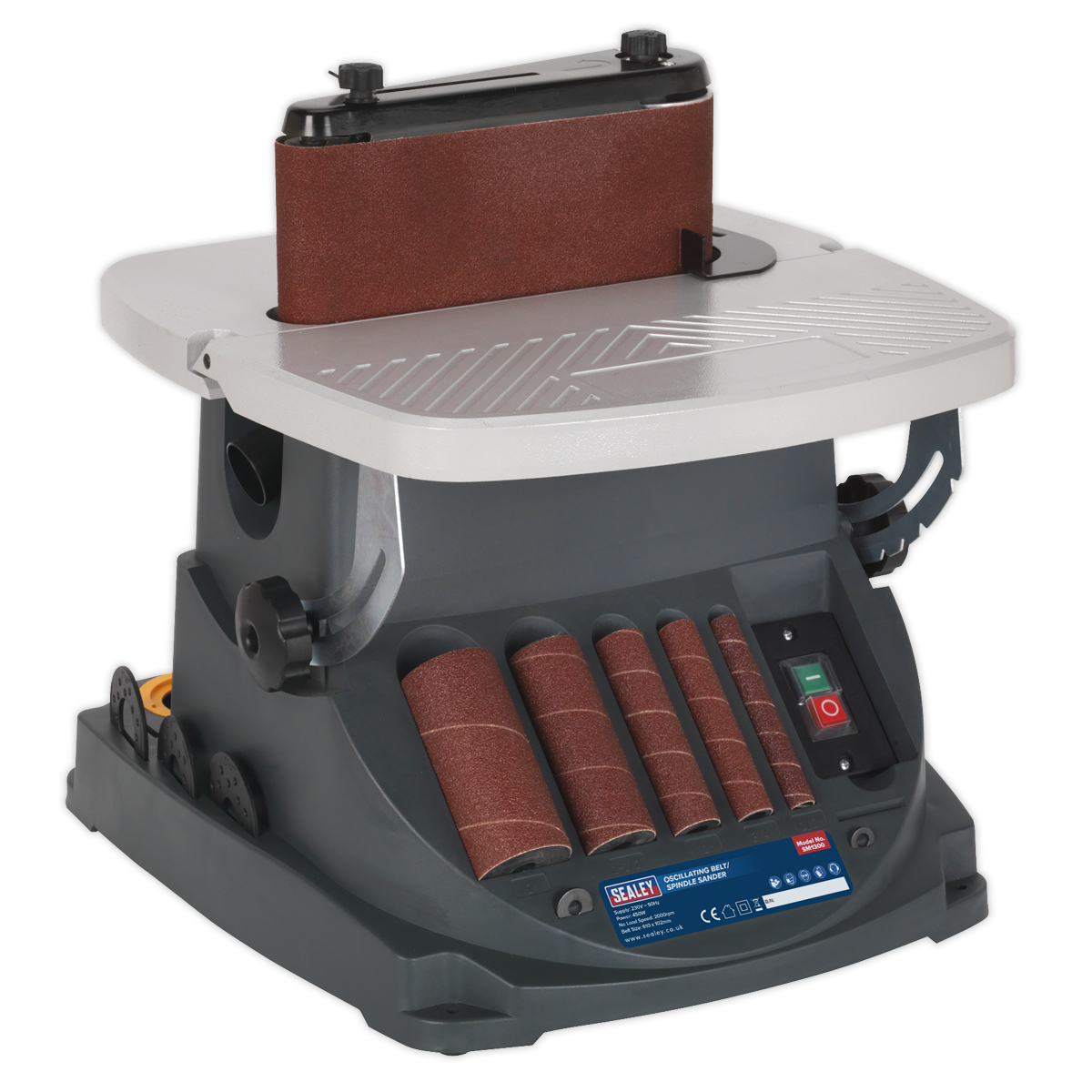

Flat-bed sanders scorch workpiece edges and struggle with curved profiles, forcing you to switch between multiple machines. The Sealey SM1300 combines an oscillating belt sander and a spindle/bobbin sander in a single 450W, 230V unit, with the oscillating action specifically designed to prevent burning of the workpiece while delivering faster material removal. The tilting front table reaches up to 48° with positive indents at 0°, 15°, 22.5°, 30°, and 45° for repeatable bevel sanding. Spindle speed is 1,995rpm with an oscillation rate of 60 per minute; belt speed is 470m/min on a 610 x 100mm belt. Five bobbin sizes are included 13, 19, 25, 38, and 50mm alongside drums, washers, throat plates, and a sanding belt assembly, with all parts storing in dedicated slots in the housing. Switching between belt and spindle modes requires only the supplied wrench. A dust extraction port (36/39mm ID/OD) keeps the work area clear, and the 489 x 483mm table provides ample support for larger workpieces. Spindle height is 102mm.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | SM1300 |
|---|---|
| Belt Size(s) | 610 x 100mm |
| Bobbins Included | Ø13, 19, 25, 38, 50mm |
| Brand | Sealey |
| Dust Extraction Diameter | ID/OD - Ø36/39mm |
| Motor Power | 450W - 230V |
| Nett Weight | 12kg |
| No-Load Speed | Spindle speed 1995rpm, Belt speed 470m/min |
| Oscillations | 60/min |
| Spindle Height | 102mm |
| Table Size | 489 x 483mm |
| Table Tilt | 0-48° |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
SM1300B610 | Sealey SM1300B610 Sanding Belt 610 x 100mm 80Grit | 1 Unit |
£12.13
£11.89
|
Add |
|
SS5ASS | Sealey SS5ASS Sanding Sleeves 80 Grit Assorted - Pack of 5 for SM1200/SM1300 | 1 Unit |
£15.12
£14.82
|
Add |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 98427 Expert 230V Oscillating Spindle Sander, 370W
£391.01
£383.34
2% OFF
Free delivery in UK Mainland
|
Sealey OS400 Random Orbital Electric Sander 150mm 400W 230V
£187.70
£183.95
2% OFF
Free delivery in UK Mainland
|
Sealey DAS151PS 80 x 133mm Dual Action Variable Speed Brushless Sander 350W 230V
£202.10
£198.06
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 98427 | OS400 | 92624 | DAS151PS | 69039 | 92613 |
| Type | Sander | Sander | Sander | Sander | Sander | Sander |
| Length (mm) | 370 | 150 | 125 | 133 | 182 | |
| Pad Size | Ø150mm | 80 x 133mm | ||||
| Power (W) | 370 | 400 | 450 | 350 | 280 | 240 |
| Voltage (V) | 230 | 230 | 230 | 230 | 230 | 230 |
| Weight (kg) | 28.5 | 01 | 2.1 | 71 | 2.0 | |
A. The SM1300 is a 450W 230V oscillating belt and spindle/bobbin sander. The oscillating action allows faster sanding and prevents burning of the workpiece. It can be used as either a belt sander or a spindle/bobbin sander, switching between modes with the supplied wrench.
A. Spindle speed is 1,995rpm, belt speed is 470m/min, and the oscillation rate is 60 per minute.
A. Five bobbin sizes are included: Ø13, 19, 25, 38, and 50mm, along with appropriate drums, washers, and throat plates.
A. The SM1300 uses a 610 x 100mm sanding belt.
A. Yes. The front table tilts from 0° to 48° with positive indents at 0°, 15°, 22.5°, 30°, and 45° for accurate, repeatable bevel sanding.
A. Yes. It features a dust extraction port with an internal diameter of Ø36mm and an external diameter of Ø39mm.
A. All sanding parts and accessories have allocated storage slots built into the housing of the machine.
A. Yes. The following alternatives are available: S01046, SA35, SA354, and SA355. Contact Parts for Machines for guidance on which best suits your requirements.
A. The SM1300 includes a sanding belt assembly, five sanding sleeves with appropriate drums, washers and throat plates, and a wrench for changing between belt and spindle modes.
A. Yes - WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility, and we'll help you choose the right product.
