Product Number: TC180

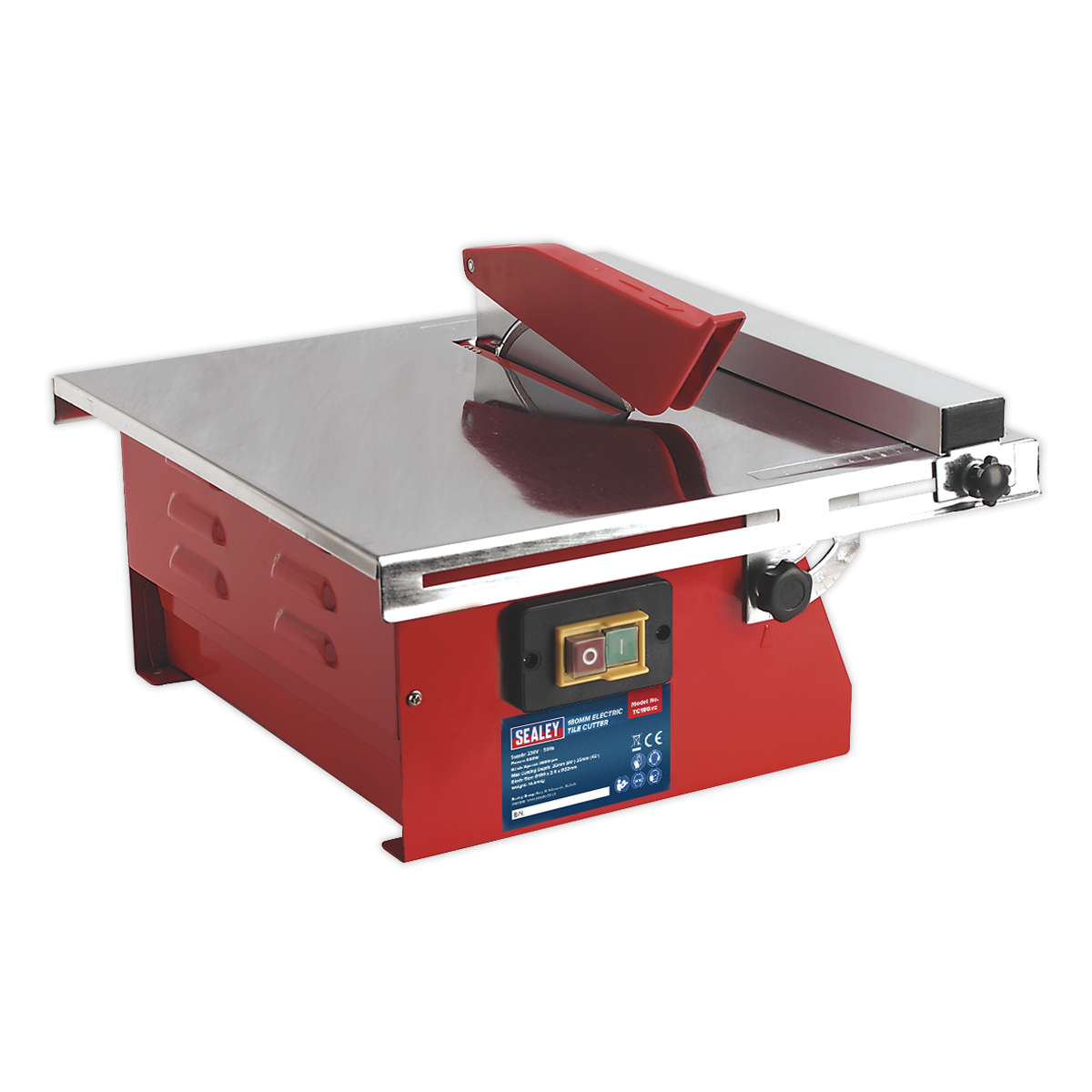

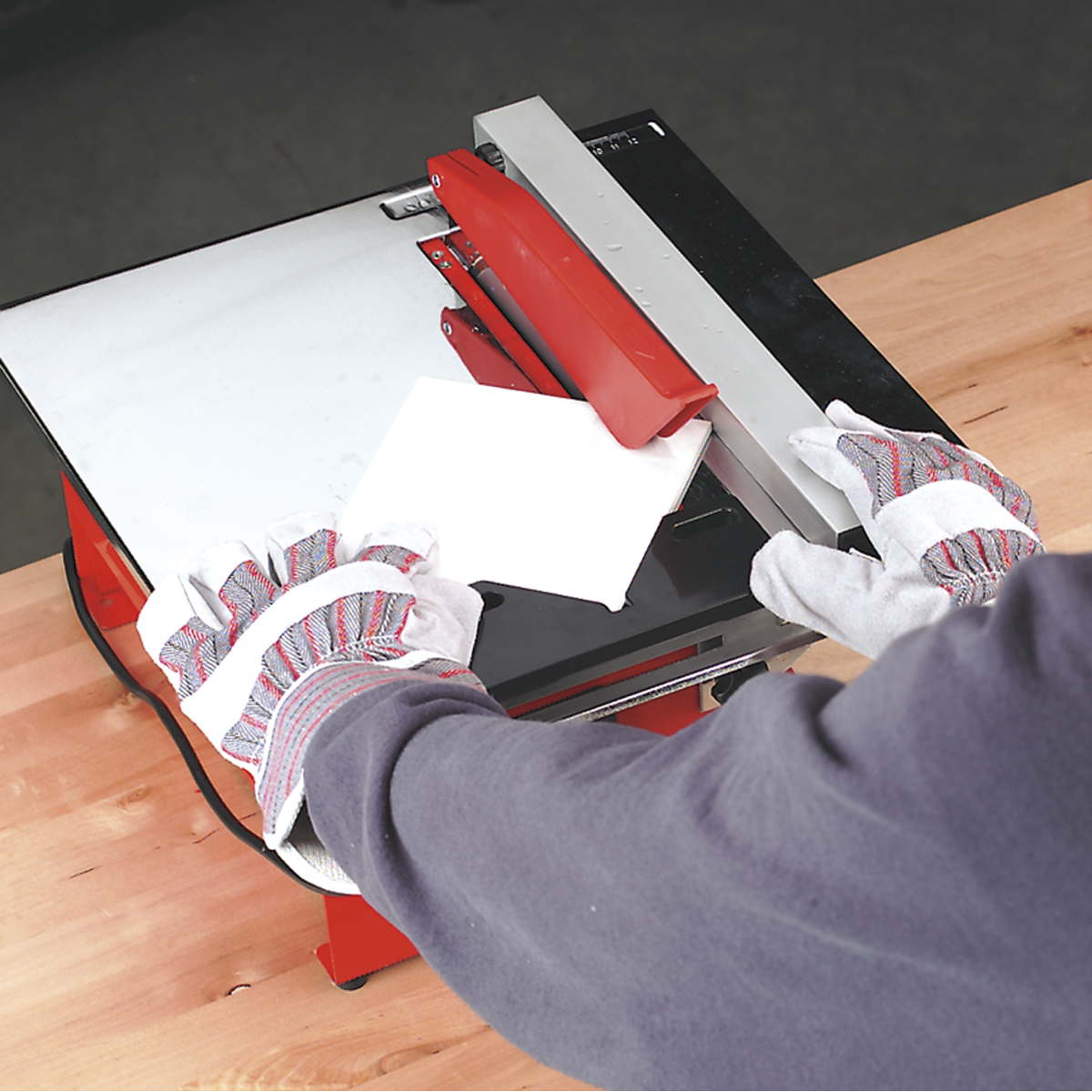

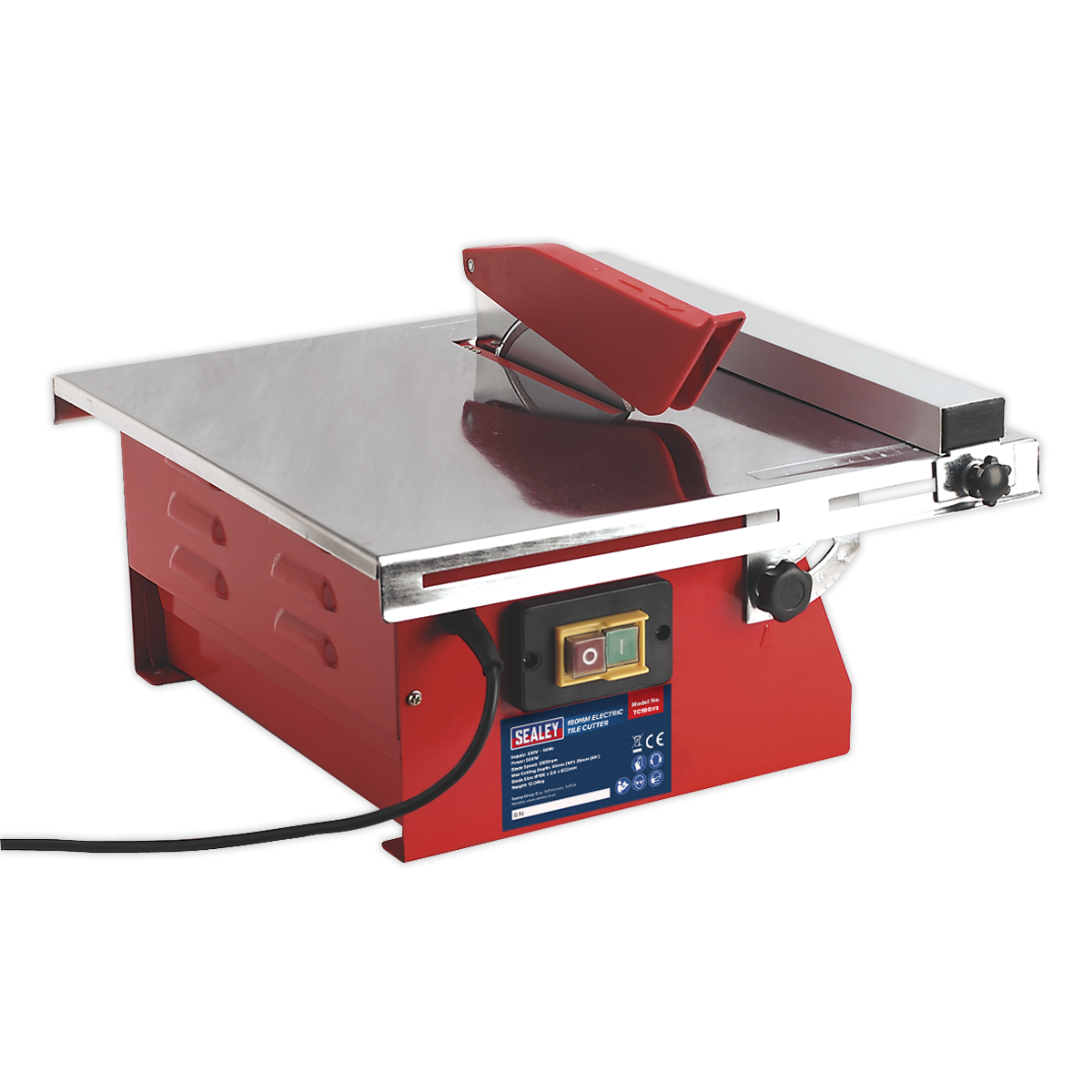

Cutting ceramic, porcelain, quarry, slate, and natural stone tiles accurately and safely demands a machine with the right power, blade cooling, and precise angle adjustment. The Sealey TC180 is a 500W 230V electric tile cutter fitted with a 180mm continuous rimmed diamond cutting blade, capable of cutting to a maximum depth of 35mm at 90° and 25mm at 45°, running at 2800rpm. The chrome-plated table measures 395 x 385mm, tilts from 0° to 45°, and is fitted with an adjustable parallel cutting fence as well as a 45° cutting guide for accurate repeatable cuts. A 3.5-litre water reservoir keeps the blade cool during use. The motor features thermal overload protection and a VDE-approved magnetic safety switch for added protection. Supplied with a 3-pin plug. The replacement blade reference is TC180B/04.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | TC180 |
|---|---|
| Blade Size(s) | Ø180 x 2.6 x Ø22mm |
| Bore | Ø22mm |
| Brand | Sealey |
| Maximum Cutting Depth - 45° | 25mm |
| Maximum Cutting Depth - 90° | 35mm |
| Motor Power | 500W - 230V |
| Nett Weight | 12.04kg |
| Replacement Blades | TC180B/04 |
| Speed | 2800rpm |
| Table Size | 395 x 385mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
TC180B/04 | Sealey TC180B/04 Diamond Blade 180mm for TC180 | 1 Unit |
£21.87
£21.43
|
Add |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | TC115 | CP20VJS | 56768 | 3402150 | 6460077 |
| Type | Jigsaw | ||||
| Length (mm) | 80 | 10 | |||
| Model No | 115 | 20 | |||
| Nett Weight | 4.7 | 2 | |||
| Power (W) | 500 | 800 | |||
| Voltage (V) | 20 | 230 | |||
| Weight (kg) | 2 | 2.2 | |||
| Show More | |||||
A. The TC180 is supplied with a continuous rimmed diamond cutting blade suitable for glazed ceramic, porcelain, quarry, slate, and natural stone tiles.
A. The maximum cutting depth is 35mm at 90° and 25mm at 45°.
A. The TC180 uses a Ø180 x 2.6 x Ø22mm blade with a Ø22mm bore. The replacement blade part number is TC180B/04.
A. Yes. It incorporates a 3.5-litre capacity water reservoir for blade cooling during use.
A. The motor is rated at 500W, 230V and operates at 2800rpm. It features thermal overload protection and a VDE-approved magnetic safety switch.
A. The chrome-plated table tilts from 0° to 45° and is fitted with an adjustable parallel cutting fence. A 45° cutting guide is also included.
A. The table measures 395 x 385mm.
A. Yes. The TC180 is fitted with a standard 3-pin plug.
A. Yes. The TC115 is listed as an alternative tile cutter that performs a similar function. Please refer to the TC115 product page or contact Parts for Machines for further details.
A. Yes - WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility, and we'll help you choose the right product.
