Product Number: SM2503B

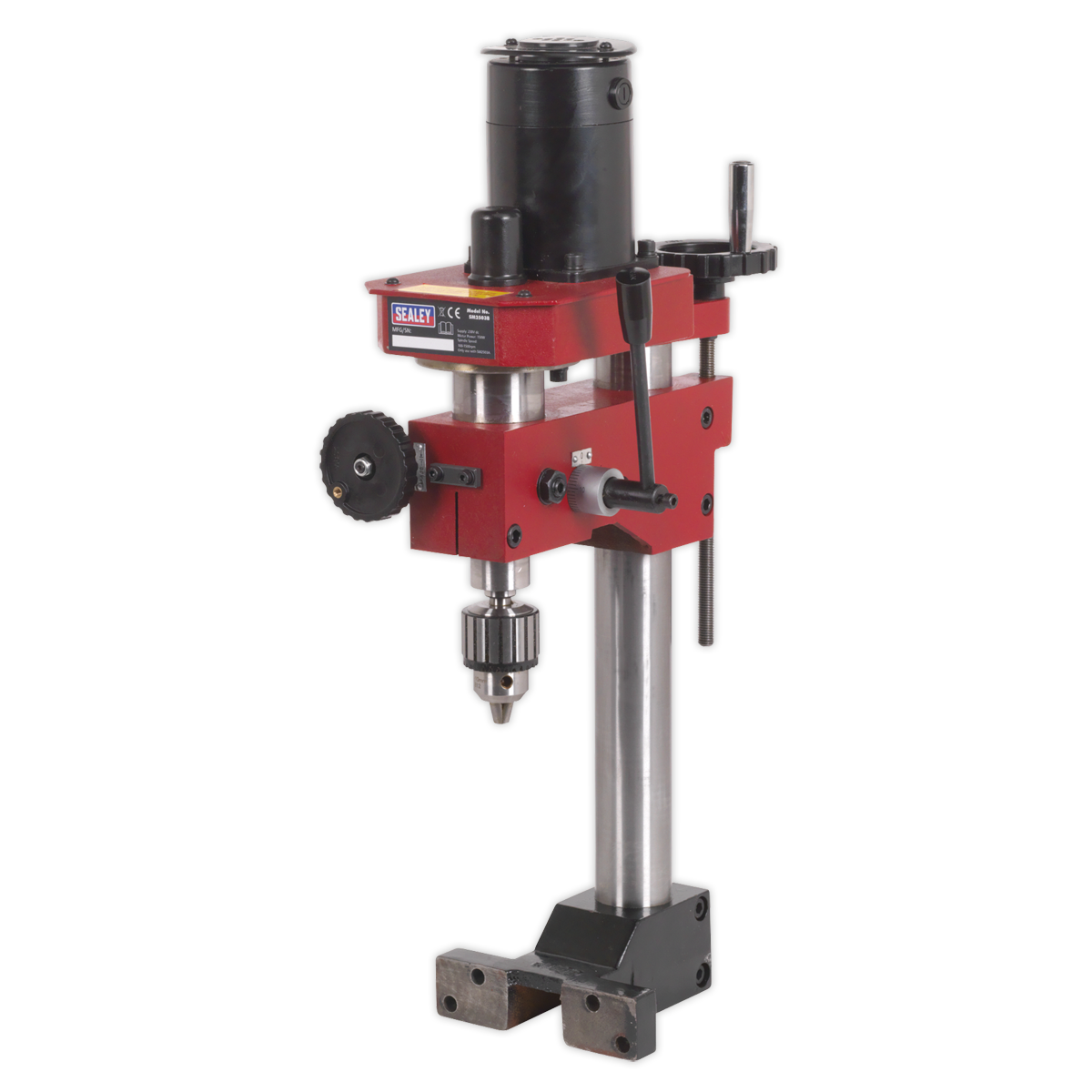

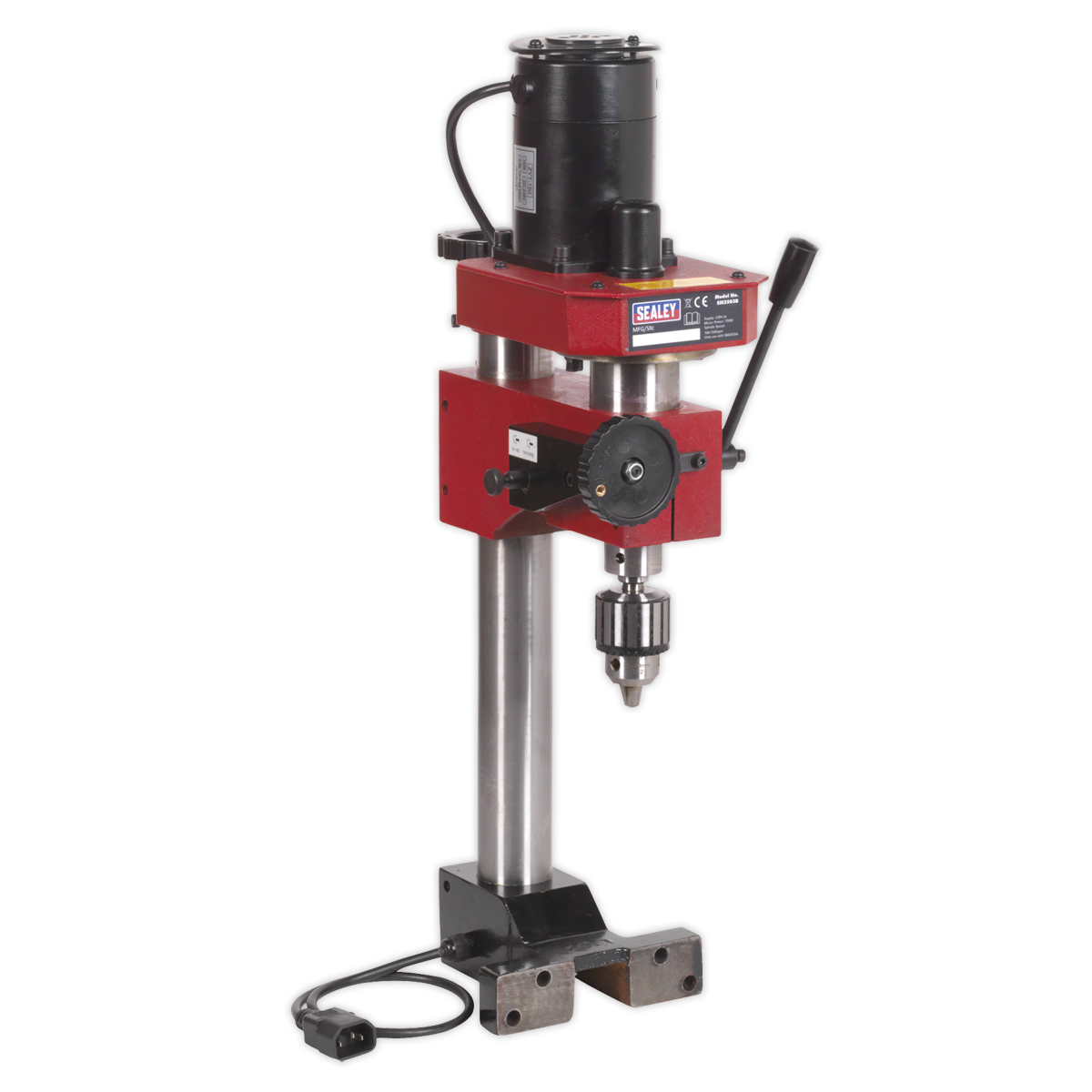

If you already own the Sealey SM2503A Metalworking Mini Lathe and want to expand what it can do without investing in a separate machine, the SM2503B Drill Head transforms it into a combined lathe, mill, and drill unit. It is easily retrofitted to the SM2503A and creates a space-efficient, versatile lathe mill/drill combination without needing additional workshop floor space. The 150W, 230V motor drives the milling and drilling spindle at speeds between 100 and 1300rpm, with 30mm of spindle travel. Maximum drilling and milling capacity is 10mm. The spindle uses an MT2 taper, the distance from spindle centre to column is 100mm, distance from spindle to table is 180mm, and the T-slot measures 8mm. The head offers the flexibility to handle most materials, making it a practical upgrade for the home workshop machinist or small engineering operation working with the SM2503A lathe.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | SM2503B |
|---|---|
| Brand | Sealey |
| Distance from Spindle Centre to Column | 100mm |
| Distance from Spindle to Table | 180mm |
| Drilling/Milling Spindle Speed | 100-1300rpm |
| Drilling/Milling Spindle Travel | 30mm |
| Maximum Drilling/Milling Capacity | 10mm |
| Motor Power | 150W - 230V |
| Nett Weight | 14kg |
| Spindle Taper | MT2 |
| T-Slot | 8mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 60988 Variable Speed Mini Wood Lathe, 250W
£215.03
£210.81
2% OFF
Free delivery in UK Mainland
|
Draper 33893 Variable Speed Metal Work Lathe, 250W
£905.91
£888.15
2% OFF
Free delivery in UK Mainland
|
Draper 60989 COMPACT DIGITAL VARIABLE SPEED WOOD LATHE, 550W
£353.54
£346.61
2% OFF
Free delivery in UK Mainland
|
Sealey SM3002 Metalworking Lathe 300mm Between Centres
£1,159.52
£1,136.33
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 7610700 | SM2503A | 60988 | 33893 | 60989 | SM3002 |
| Type | Pillar Drill | Pillar Drill | Pillar Drill | Pillar Drill | Pillar Drill | |
| Distance Between Centres (mm) | 300 | |||||
| Length (mm) | 250 | 300 | 300 | 457 | 300 | |
| Weight (kg) | 26.2 | 21 | 42 | 32 | 40 | |
A. The SM2503B is designed specifically to fit the Sealey SM2503A Metalworking Mini Lathe.
A. It transforms the SM2503A mini lathe into a lathe/mill drill combination machine.
A. The SM2503B features a 150W motor running on 230V.
A. The drilling and milling spindle speed runs from 100 to 1300rpm, with 30mm of spindle travel.
A. The maximum drilling and milling capacity is 10mm.
A. The SM2503B uses an MT2 spindle taper.
A. The distance from spindle centre to column is 100mm, the distance from spindle to table is 180mm, and the T-slot is 8mm.
A. The SM2503B is described as easily retrofitted to the SM2503A.
A. Every product comes with a different guarantee and warranty. Warranty details are shown in the product's tech specs or datasheet where available.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
