Product Number: CS 85-C1 AR

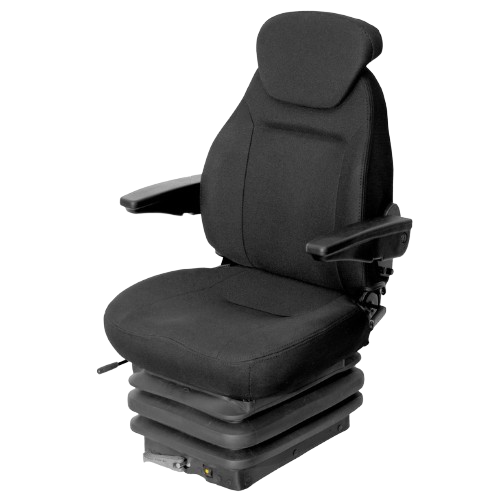

The CS 85 - C1 AR seat from United Seats is ideal for agricultural and construction vehicles.
Product Features:
| Mounting / rail centres | Not stated by manufacturer |
|---|---|
| Slide rail travel | Not stated by manufacturer |
| Seat width | Not stated by manufacturer |
| SIP (ISO 5353) | 320 mm |
| Bracket / fitting | Not stated by manufacturer |
| Suspension type | Mechanical Suspension |
| Compressor / voltage | n/a (no compressor) |
| Suspension stroke | 90 mm |
| Weight adjustment | 50 - 125 kg |
| Height adjustment | 60 mm in 3 stages |
| Fore/aft adjustment | Not stated by manufacturer |
| Backrest | Not stated by manufacturer |
| Trim | Not stated by manufacturer |
| Standard features | Suspension; Backrest adjustment; Mechanical lumbar; Headrest |
| Optional features | Armrests; Seat belt; Suspension; Seat is also available in PVC trim |
| Standards / compliance | Not stated by manufacturer |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
UnitedSeats-CS85 C1.pdf
|
Open Now |
Replacing a Tractor, Forklift or Digger Seat: Will It Bolt On? The cushion has split, the suspension bottoms out or a hard seat makes long days miserable. Before ordering, check how the new seat mounts, which suspension s...
Standard Delivery: £7.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||
| Technical Specification | ||
|---|---|---|
| PRODUCT NUMBER | CS85 H90 | US MGV 84/C1 AR |
| Machine Type | Tractor | Forklift & Materials Handling |
| Suspension | Mechanical | Mechanical |
| Max Operator Weight | Up to 135kg | Up to 120kg |
| Trim | PVC (waterproof) | PVC (waterproof) |
| OPS Switch | No | No |
A. The CS 85-C1 AR is supplied for agricultural and construction vehicles, including smaller and mid-size tractors. Its mounting width is 260 mm across the foot of the CS 85-C1 AR base box.
A. The CS 85-C1 AR mounting width is 260 mm. Its fore and aft row of holes sits at 136, 167, 221, 246, 277, 292, 307 and 325 mm from the front hole.
A. The CS 85-C1 AR mechanical suspension has a 90 mm stroke and a weight adjustment of 50 to 125 kg.
A. No. A seat belt and an operator presence switch are listed as options on the CS 85-C1 AR, while armrests, lumbar support and a backrest extension are standard.
A. It is covered for 12 months from delivery against defects in workmanship or materials. Fair wear and tear is excluded.
