Product Number: LLM9R
Variations

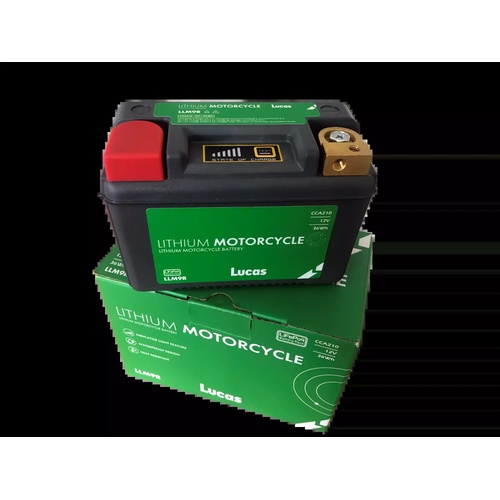

Motorcycle starting systems demand a power source that combines minimal weight with reliable cranking performance across a wide operating temperature range. The Lucas LLM9R is a 12V 3Ah lithium motorcycle battery engineered to meet those demands, offering a compact, maintenance-free solution for a broad range of solo and small-displacement motorcycles.
Developed under the Lucas Automotive lithium motorcycle range, the LLM9R employs lithium-ion cell chemistry rated to deliver up to four times the cycle life of equivalent lead-acid batteries. At 36Wh energy capacity and a cold cranking figure of 210A (with a maximum charge input of 6A), the battery provides a strong power-to-weight ratio suited to modern lightweight motorcycle applications. The LLM9R delivering 210 - MAX 6AA Cold Cranking Amps (EN).
The LLM9R measures 134mm (L) × 65mm (W) × 92mm (H including terminal) and weighs 2kg, representing a significant mass saving over lead-acid equivalents of comparable capacity. The battery features polarity type 1 (right-hand positive terminal orientation). No direct cross-reference codes are held at the time of listing; buyers should verify fitment against original equipment specifications and the product label. Start-stop compatibility is not confirmed – refer to the product label before installation.
The Lucas lithium motorcycle battery range includes additional variants such as the LLM14BL, LLM14BR, LLM14R, LLM18L, LLM18R, LLM20L, and LLM7L, covering a spectrum of capacities and terminal configurations to suit differing motorcycle platforms." The LLM9R is supplied with a 1-year manufacturer warranty covering defects in materials and workmanship under normal operating conditions. "Delivery: hazardous goods shipping applies, typically 3–5 working days within UK mainland. 30-day returns.
With an extensive life cycle of up to 4 times longer than traditional lead acid batteries, the new Lucas Lithium Motorcycle range is the new generation battery for Motorcycle application. Lucas Lithium batteries are extremely light and are perfect for track bikes and dirt bikes. The batteries are able to start a vehicle after 12 months’ in storage, they have an exceptionally low discharge rate.
Key Feature:optimised for motorcycles and two-wheelers, ensuring consistent ignition power, rapid recharge capability, and stable energy supply for compact high-performance engines and accessory systems.
Uses:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
Fitment Warning:You must check your current battery against the specifications of this battery before ordering to ensure that this is the correct battery for your vehicle. Check battery technology, dimensions, terminal type, polarity, capacity (AH) and cranking performance (CCA). We cannot guarantee correct fitment under any circumstances.
| Brand | Lucas Automotive |
|---|---|
| Voltage | 12V |
| Capacity AH (C20) | 3Ah |
| Cold Cranking Amps (EN) | 210 - MAX 6AA |
| L × W × H | 134mm × 65mm × 92mm |
| Warranty period | 1 Year |
| Weight (Kg) | 2 |
| Capacity AH (C5) | |
| Capacity AH (C10) | |
| Capacity AH (C100) | |
| Marine Cranking Amps (MCA) | |
| Watt-Hours (WH) | 36 |
| Length (mm) | 134 |
| Width (mm) | 65 |
| Height Inc. Terminal (mm) | 92 |
| Terminal Placement | 1 |
| Terminal Type | 0 |
| Hold Down | |
| Case Size | |
| ETN Number | |
| TTNR |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Expert Guidelines for Preserving Your Heavy Equipment Battery Heavy machinery, including forklifts, bulldozers, and excavators, relies on robust batteries to minimize downtime and maximize operational availability. These batteries must endure even more challenging conditions than typical automotive batteries. Moreover,...
Standard Delivery: £7.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Exide ELT9B Li-Ion Lithium Motorbike Battery -12V 3Ah, 1 Year Warranty
£135.88
£133.22
2% OFF
|
Exide ELTX12 Li-Ion Lithium Motorbike Battery -12V 3.5Ah, 1 Year Warranty
£143.91
£141.09
2% OFF
|
Exide ELTX9 Li-Ion Lithium Motorbike Battery -12V 3Ah, 1 Year Warranty
£120.64
£118.27
2% OFF
|
|
| Technical Specification | ||||
|---|---|---|---|---|
| PRODUCT NUMBER | ELT9B | ELTX12 | ELTX9 | BLTX9-BS |
| Voltage | 12 | 12 | 12 | 12 |
| Capacity (AH) | 3 | 3.5 | 3 | 3 |
| Cold Cranking Amps (EN1) | 190 | 210 | 180 | 180 |
| Length | 150 | 150 | 150 | 150 |
| Width | 65 | 90 | 90 | 87 |
| Height | 95 | 95 | 105 | 105 |
A. The LLM9R measures 134mm in length, 65mm in width, and 92mm in height including the terminal. Always verify these dimensions against your motorcycle's battery compartment before ordering.
A. The LLM9R is rated at 210 cold cranking amps (EN standard), with a maximum charge input of 6A. This figure reflects the battery's ability to deliver starting current under cold conditions.
A. The LLM9R uses polarity type 1, which denotes a right-hand positive terminal orientation. Confirm this matches your motorcycle's wiring layout before installation.
A. Start-stop compatibility for the LLM9R has not been confirmed by the manufacturer. Refer directly to the product label or contact Lucas Automotive for clarification before fitting to a start-stop equipped vehicle.
A. The LLM9R has an energy capacity of 36Wh. This figure is relevant when assessing compatibility with battery management systems or when comparing energy storage across battery chemistries.
A. Lucas states that the lithium motorcycle range offers a cycle life of up to four times longer than traditional lead-acid batteries. The LLM9R also weighs 2kg, which typically represents a meaningful weight saving over lead-acid equivalents of similar capacity.
A. No direct cross-reference codes are held for the LLM9R at the time of listing. Buyers should verify fitment using original equipment specifications, the vehicle handbook, or by contacting PartsForMachines directly.
A. The LLM9R is supplied with a 1-year manufacturer warranty covering defects in materials and workmanship under normal operating conditions. Warranty does not apply to damage resulting from incorrect installation or misuse.
A. Additional variants in the Lucas lithium motorcycle range available from PartsForMachines include the LLM14BL, LLM14BR, LLM14R, LLM18L, LLM18R, LLM20L, and LLM7L, covering a range of capacities and terminal configurations.
A. The LLM9R is classified as a hazardous good under ADR Class 9 due to its lithium cell chemistry. Hazardous goods shipping applies, with delivery typically taking 3–5 working days to UK mainland addresses. A 30-day returns policy is in place; please ensure the battery is unused and in original packaging for return eligibility.
