Product Number: AK4561D

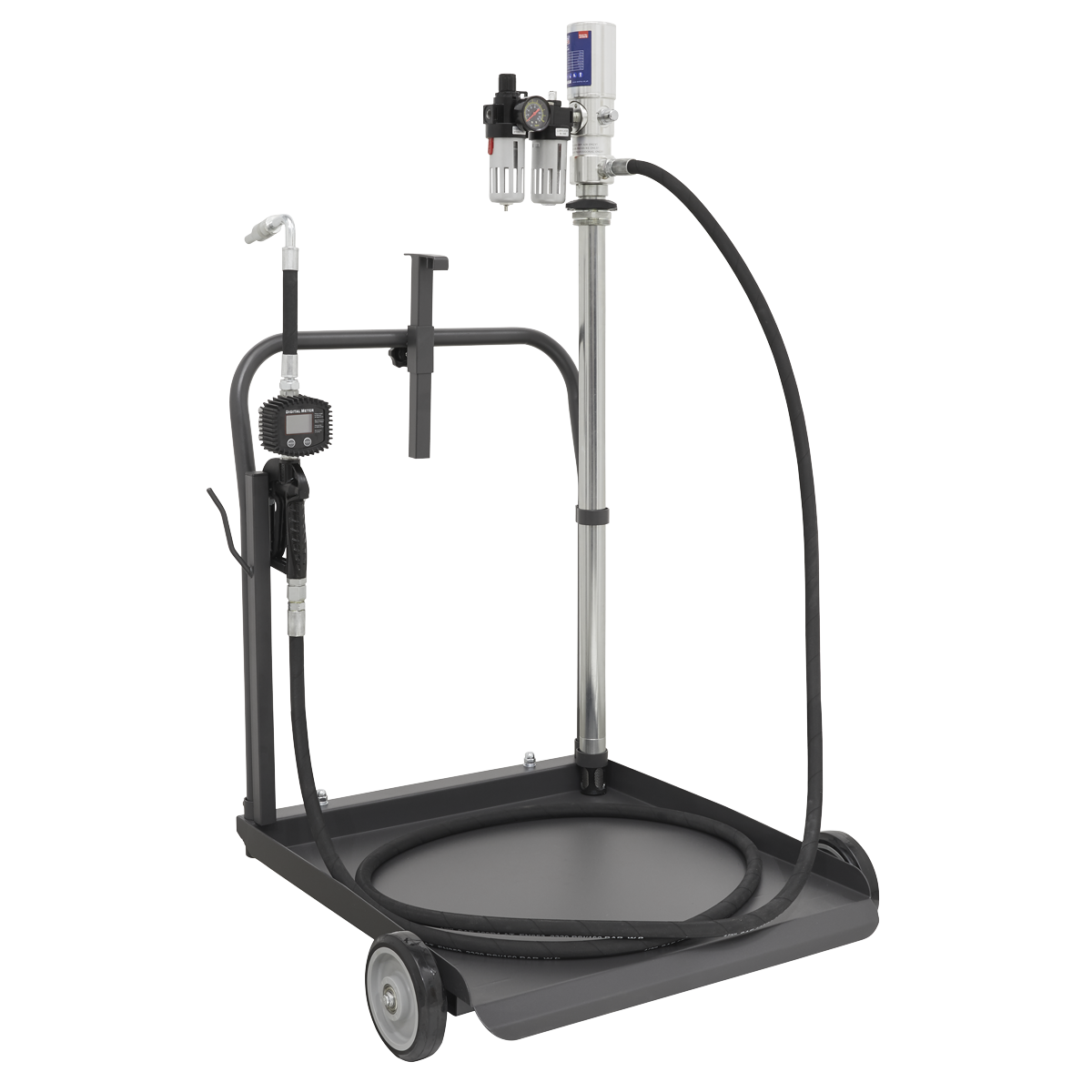

Manually dispensing oil from large drums is slow, messy, and risks spillage particularly in busy workshops handling high-viscosity lubricants. The Sealey AK4561D is a mobile, air operated oil dispensing system built around a 3:1 double acting pump, designed for use with 205L drums and tanks fitted with 2" BSP fittings. The pump connects to a 940mm rigid suction probe with a non-return valve, drawing oil efficiently from the drum base. An air management system is included, with a recommended operating pressure of 70 psi and a maximum air pressure of 115 psi. Maximum output pressure is 350 psi, with a maximum flow rate of 12 litres per minute, making it suitable for engine, hydraulic, synthetic, gear, and transmission oils up to SAE150 viscosity. The unit is mounted on a trolley with a maximum capacity of 220 kg, and includes a 4m hose and a digital oil metre (model AK4565D) for accurate dispensing. The outlet size is 1/2" BSP. Compatible with the AK4565D digital oil metre.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | AK4561D |
|---|---|
| Brand | Sealey |
| Maximum Air Pressure | 115psi |
| Maximum Flow Rate | 12L/min |
| Maximum Output Pressure | 350psi |
| Maximum Trolley Capacity | 220kg |
| Maximum Viscosity | SAE150 |
| Nett Weight | 28.00kg |
| Outlet Size | 1/2"BSP |
| Pump Ratio | 0.125694444444444 |
| Recommended Air Pressure | 70psi |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey AC110K Air Coupling Kit 110pc - Air Line Couplings, Adaptors & Hose Connections
£352.56
£345.51
2% OFF
Free delivery in UK Mainland
|
Sealey CAS22AP Aluminium Air Pipe 22mm x 3m (Pack of 5)
£229.64
£225.05
2% OFF
Free delivery in UK Mainland
|
|||||||||||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | AC110K | AB9321 | AC15 | AC52 | AC80 | AC81 | AC82 | AC87 | SA821 | SA824 | SC138 | CAS22AP | SA53.V3-30 | SA53.V3-32 | SA53.V3-31 |
| Type | Hose | Airbrush Kit | Coupling | Union | Hose | Hose | Hose | Adaptor | Hose Reel | Hose Reel | Paint Pot | Pipe & Tubing | Blade | Blade | Blade |
| Size | 1/4in | 22mm | |||||||||||||
| Drive | 1/4" | 3/8" | 1/2" | ||||||||||||
| Pack Qty | 3 | 5 | |||||||||||||
| Size Range | 11-25mm | ||||||||||||||
| Thread | 1/4" | 1/4" | 3/8" | 1/2" | |||||||||||
A. The AK4561D is a mobile, air operated oil dispensing system with a 3:1 double acting pump, designed for use with 205L drums or tanks fitted with 2" BSP fittings. It includes a trolley, air management system, 940mm rigid suction probe, 4m hose, and a digital oil metre (model AK4565D).
A. The AK4561D is suitable for engine, hydraulic, synthetic, gear, and transmission oils up to SAE150 viscosity.
A. The maximum flow rate is 12 litres per minute, and the maximum output pressure is 350 psi.
A. The recommended air pressure is 70 psi. The maximum air pressure is 115 psi.
A. The AK4561D is designed for use with 205L drums and tanks with 2" BSP fittings.
A. The trolley has a maximum capacity of 220 kg.
A. Several alternative oil dispensing products are listed on the site: AK4560D, AK4562D, and AK4563D. Each is a different product offering similar oil dispensing functionality - please refer to the individual listings to compare specifications.
A. The outlet size is 1/2" BSP.
A. The pump ratio is 3:1.
