Product Number: 600TRQ

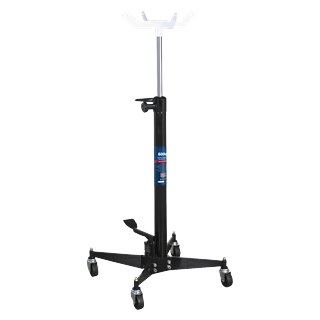

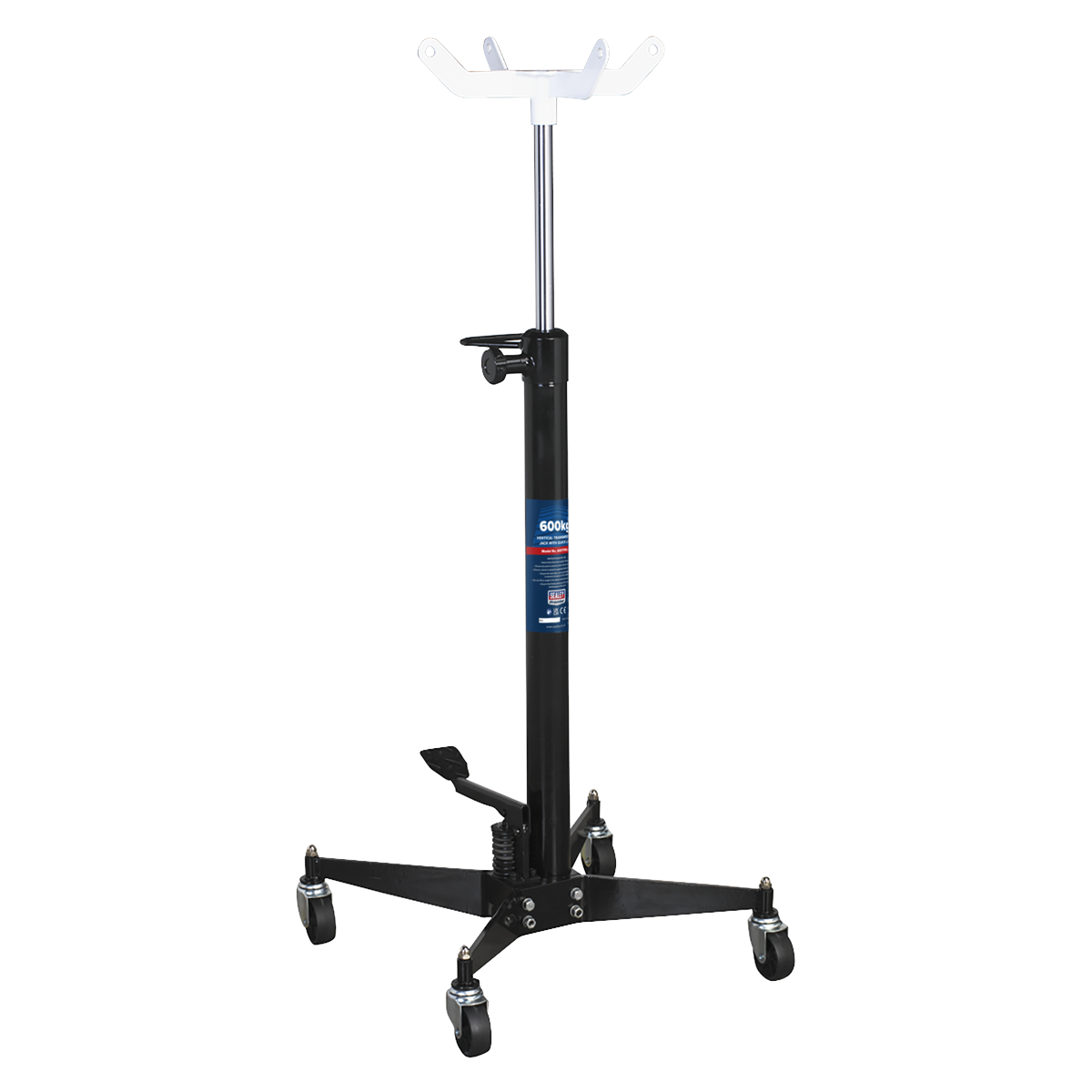

Removing or refitting a gearbox is one of the most physically demanding workshop tasks getting a heavy transmission into position without the right equipment wastes time and risks injury. The Sealey 600TRQ Transmission Jack takes the strain out of the job with a quick-lift hydraulic system that reaches full saddle height in a maximum of 22 pump strokes, significantly reducing the time and effort needed to bring the saddle up to the gearbox. With a 600kg capacity and a maximum saddle height of 1986mm (minimum 1146mm), the 600TRQ is built to handle substantial transmissions at full ramp height. The spring-loaded dead man's safety release control reduces the risk of inadvertent lowering, while the 2-way hydraulic unit ensures the saddle descends at a controlled speed at all times even without a load. Single foot pedal operation keeps both hands free throughout the lift. The fixed saddle is reversible, allowing a jack pad to be fitted to support items other than transmissions, and the unit is compatible with the optional Adjustable Gearbox Support ADT3 and ADT7 for additional versatility. Extra castors and a side handle make positioning straightforward. The hydraulic unit is larger than economy models for improved performance and durability. Base size is 600 x 600mm with 840mm ram extensions. Backed by a 3-year guarantee.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | 600TRQ |
|---|---|
| Base Size | 600x600mm |
| Brand | Viking |
| Capacity | 600kg |
| Fixed/Adjustable Saddle | Fixed |
| Maximum Saddle Height | 1986mm |
| Minimum Saddle Height | 1146mm |
| Nett Weight | 34.8kg |
| Optional Accessories | Adjustable Gearbox Supports - ADT3, ADT7 |
| Pump Strokes to Maximum Height | 22 |
| Ram Extensions | 840mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
ADT3 | Sealey ADT3 Adjustable Gearbox Support 500kg for 300TR 300TRQ 600TR 600TRQ | 1 Unit |
£142.59
£139.74
|
Add |
sealey-transmission-jack-600kg-vertical-quick-lift.pdf
|
Open Now |
Raising the Standards: The Ultimate Guide to Vehicle Lifting Equipment Introduction: Vehicle lifting equipment are one of the most versatile and essential pieces of kit for any workshop. Whether you are a professional mechanic running a repair workshop or a DIY enthusiast, having the right lifting equipment...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 03629 Under Vehicle Support Stand, Weight Capacity - 680 Kg
£141.70
£138.92
2% OFF
Free delivery in UK Mainland
|
SIP 03685 Foldable Engine Crane, Weight Capacity - 1 Tonne
£223.16
£218.78
2% OFF
Free delivery in UK Mainland
|
SIP 03687 Foldable Engine Crane, Weight Capacity - 2 Tonne
£306.19
£300.19
2% OFF
Free delivery in UK Mainland
|
SIP 03690 Quick-Lift Transmission Jack, Weight Capacity - 500 Kg
£303.13
£297.19
2% OFF
Free delivery in UK Mainland
|
SIP 03693 Transmission Jack with Free Adaptor, Weight Capacity - 1 Tonne
£467.88
£458.71
2% OFF
Free delivery in UK Mainland
|
SIP 03871 Transmission Jack, Weight Capacity - 500 Kg
£246.13
£241.30
2% OFF
Free delivery in UK Mainland
|
Sealey 1000TR Transmission Jack 1 Tonne Vertical
£582.99
£571.33
2% OFF
Free delivery in UK Mainland
|
Sealey 1500TR Transmission Jack 1.5 Tonne Vertical
£682.59
£669.21
2% OFF
Free delivery in UK Mainland
|
Draper 85629 AUTOMOTIVE UNDER VEHICLE SUPPORT STAND, 680KG
£103.87
£101.83
2% OFF
Free delivery in UK Mainland
|
Sealey 1000E Transmission Jack 1 Tonne Floor Jack with Adjustable Saddle
£1,182.74
£1,159.09
2% OFF
Free delivery in UK Mainland
|
|||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 03629 | 03681 | 03685 | 03687 | 03690 | 03693 | 03871 | 300TR | 600TR | 1000TR | 1500TR | 85629 | 19788 | 70668 | 1000E |
| Type | Transmission Stands and Jack | Transmission Stands and Jack | Transmission Stands and Jack | Transmission Stands and Jack | Transmission Stands and Jack | Transmission Stands and Jack | Transmission Stands and Jack | Transmission Stands and Jack | Transmission Stands and Jack | Transmission Stands and Jack | Transmission Stands and Jack | Transmission Stands and Jack | Transmission Stands and Jack | Transmission Stands and Jack | Transmission Stands and Jack |
| Brand | Sealey | Sealey | Sealey | Sealey | Premier | ||||||||||
| Length (mm) | 1365 | 2050 | 2250 | 1250 | 1258 | 1175 | 570 | 570 | 680 | 700 | 300 | 940 | 175 | 885 | |
| Model No | 300TR | 600TR | 1000TR | 1500TR | 1000E | ||||||||||
| Nett Weight | 26kg | 40kg | 47kg | 51kg | 130kg | ||||||||||
| Weight (kg) | 680 | 340 | 750 | 500 | 500 | 500 | 300 | 600 | 47 | 51 | 680 | 000 | 600 | 130 | |
A. The 600TRQ has a capacity of 600kg, making it suitable for a wide range of transmission and gearbox removal and refitting tasks.
A. The minimum saddle height is 1146mm and the maximum saddle height is 1986mm. Ram extensions are 840mm.

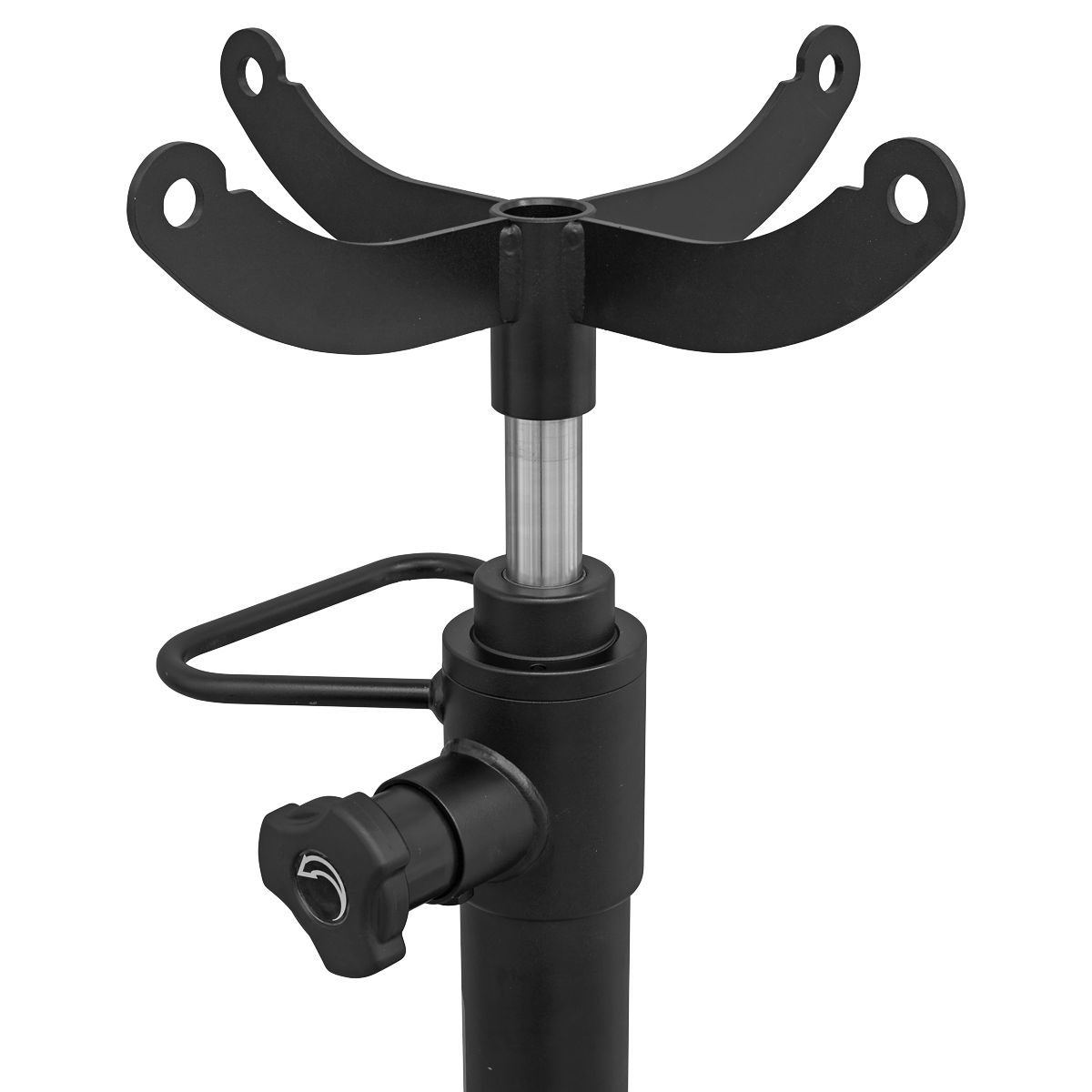

A. The saddle is fixed but reversible, which allows a jack pad to be fitted to support items other than transmissions. It is also compatible with the optional Adjustable Gearbox Support - model ADT3 or ADT7.
A. A spring-loaded dead man's safety release control is fitted, which reduces the risk of inadvertent lowering. The 2-way hydraulic unit also ensures the saddle lowers at a controlled speed at all times, even without a load.
A. Yes, the 600TRQ is backed by a 3-year guarantee.
A. Alternative products that perform a similar function include the 1000TRQ, 300TRQ, PTJ120, and PTJ30 - each a different product suited to different capacity or application requirements.
A. The base size is 600 x 600mm.
