Product Number: PBJ5S

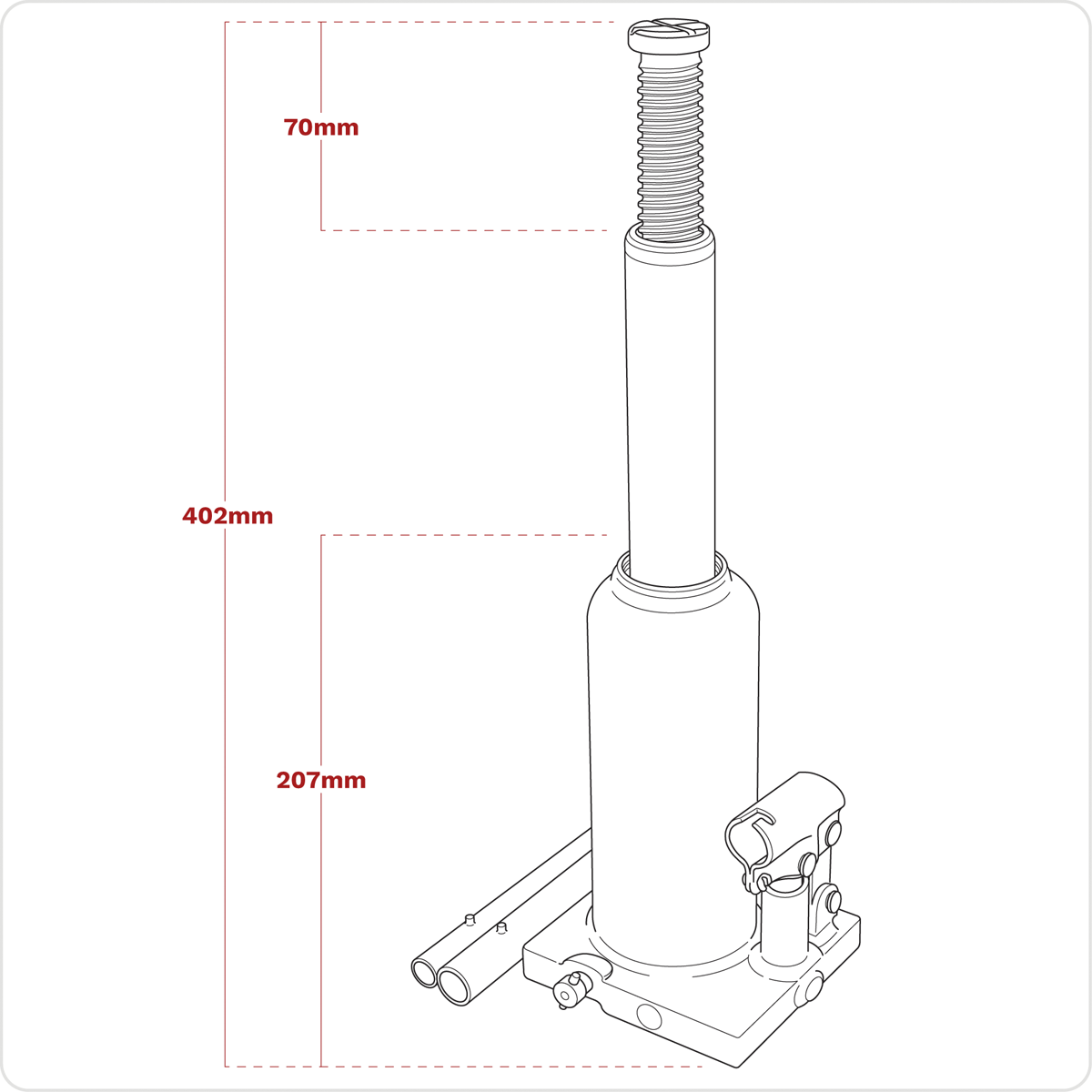

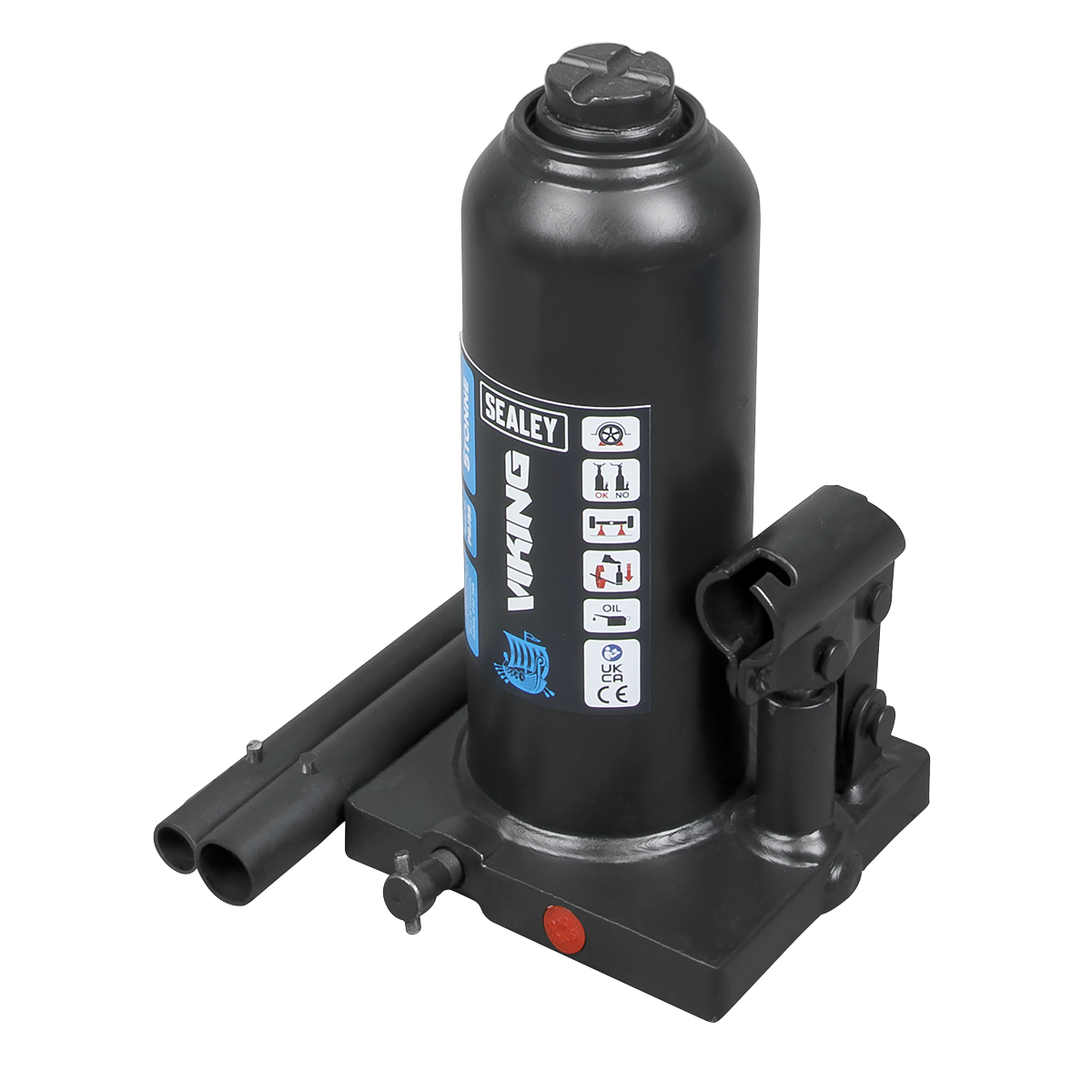

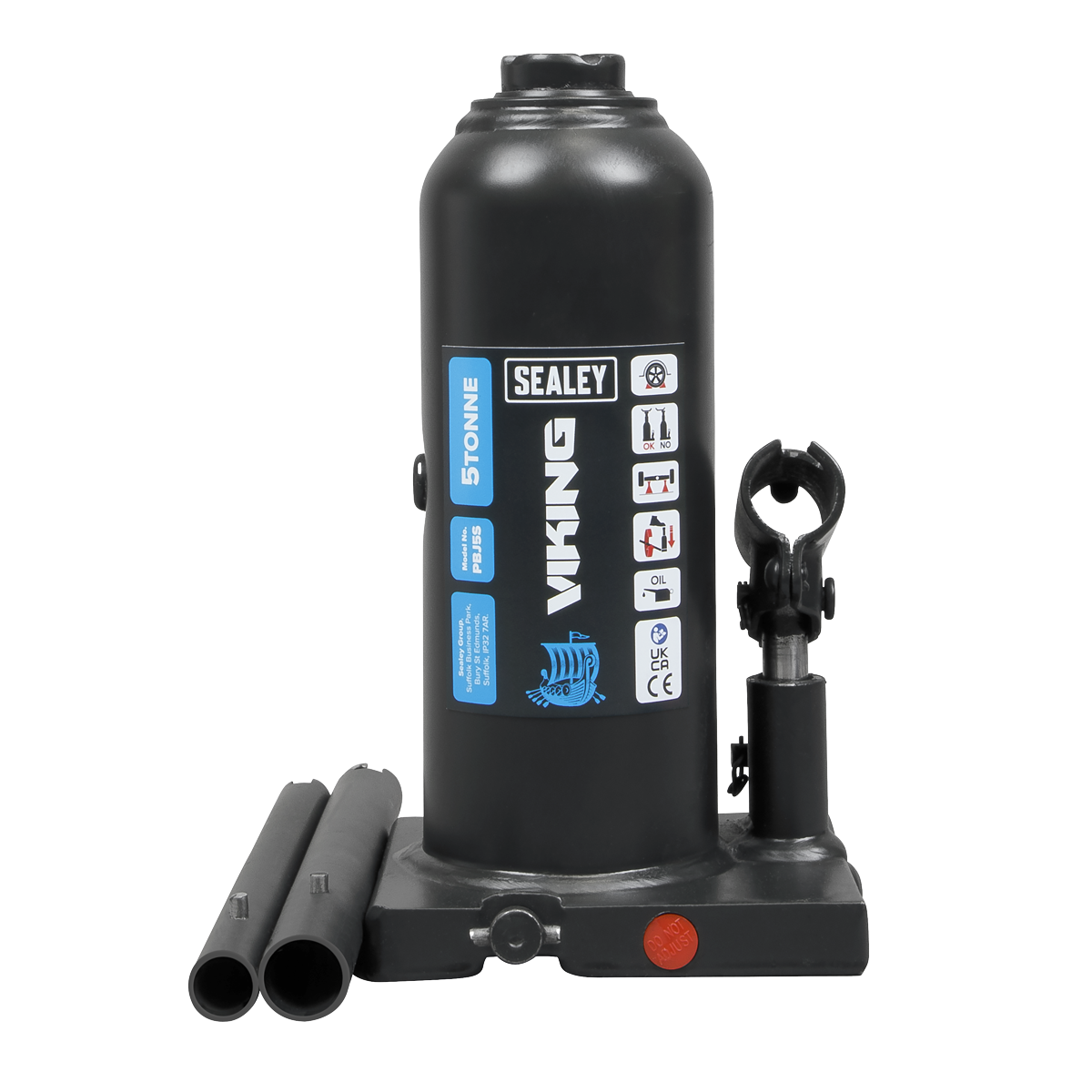

Lifting heavy vehicles or machinery safely demands equipment that will not fail under load or develop hydraulic leaks over time. The Sealey PBJ5S is a 5 tonne capacity bottle jack built for reliable, controlled lifting in workshop and roadside environments. The base and reservoir are machine welded to increase structural strength and eliminate the risk of leakage a common failure point on lesser jacks. An overload valve is fitted as standard to prevent the jack being used beyond its rated capacity, protecting both the operator and the load. The jack operates across a minimum height of 207mm to a maximum hydraulic lift height of 402mm, with a 125mm hydraulic lift stroke supplemented by a 70mm screw extension for fine height adjustment. A 2-piece handle is supplied. Backed by a 3 year guarantee.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | PBJ5S |
|---|---|
| Brand | Viking |
| Capacity | 5 Tonne |
| Hydraulic Lift | 125mm |
| Maximum Height | 402mm |
| Minimum Height | 207mm |
| Nett Weight | 3.95kg |
| Screw Extension | 70mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Raising the Standards: The Ultimate Guide to Vehicle Lifting Equipment Introduction: Vehicle lifting equipment are one of the most versatile and essential pieces of kit for any workshop. Whether you are a professional mechanic running a repair workshop or a DIY enthusiast, having the right lifting equipment...
Standard Delivery: £5.99
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 09843 WINNTEC Bottle Jack, Weight Capacity - 12 Tonne
£76.06
£74.57
2% OFF
Free delivery in UK Mainland
|
SIP 09820 WINNTEC Bottle Jack, Weight Capacity - 30 Tonne
£128.57
£126.05
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | SJ5BMC | SJ5 | 09843 | 09820 | 08554 | 03658 |
| Warranty | 12 | 12 | 36 | 36 | 24 | |
| Type | Bottle Jack | Bottle Jack | Bottle Jack | Bottle Jack | Bottle Jack | Bottle Jack |
| Capacity | 5 Tonne | 5 Tonne | ||||
| Length (mm) | 127 | 125 | 214 | 285 | 210 | |
| Minimum Height | 207mm | 207mm | ||||
| Screw Extension | 70mm | 70mm | 60mm | No | 60mm | |
| Weight (kg) | 4.3 | 70 | ||||
| Show More | ||||||
A. The PBJ5S has a rated capacity of 5 tonnes.

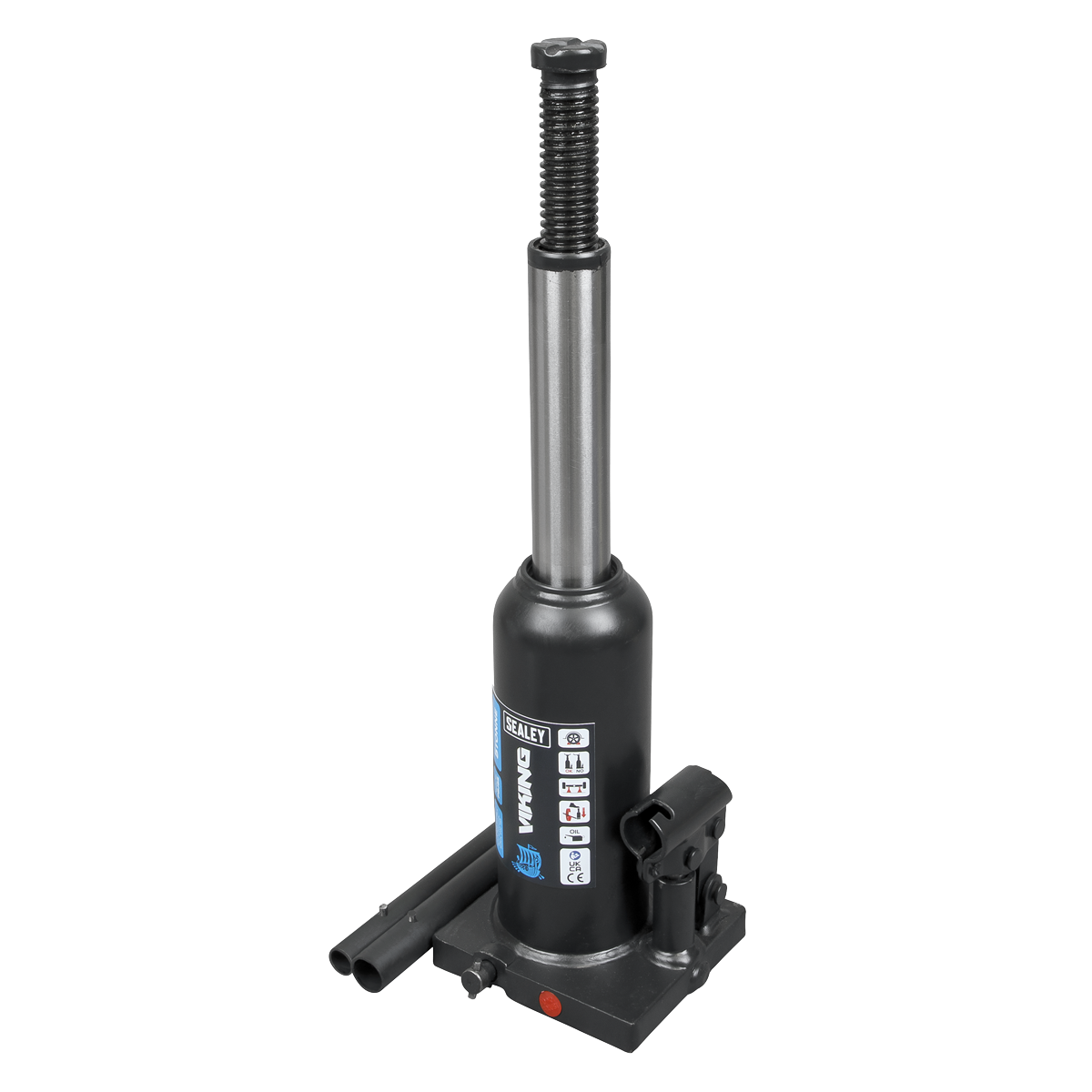

A. The minimum height is 207mm. Maximum height with full hydraulic lift and screw extension reaches 402mm, with 125mm of hydraulic lift and a 70mm screw extension.
A. Yes, the jack is fitted with an overload valve to prevent use beyond its rated 5 tonne capacity.
A. The base and reservoir are machine welded rather than joined, which Sealey state increases strength and eliminates leakage.
A. Yes, a 2-piece handle is supplied with the jack.
A. The PBJ5S is backed by a 3 year guarantee. Please refer to Sealey's guarantee terms for full conditions.
A. Yes - the same bottle jack range includes PBJ10S, PBJ12S, PBJ15S, and PBJ20S, each offering a higher rated capacity. Check the Parts for Machines website for specifications on each variant.
A. Alternative lifting products include the AM20, AM20S, AM20SLE, and AM30, which are different products that perform a similar lifting function. See the Parts for Machines website for details on each.
A. Every product comes with a different guarantee and warranty. Warranty details are shown in the product's tech specs or datasheet where available.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
