Product Number: 155200XT
Variations
This advanced Hydraulic Puller & Separator Kit from the 1500 Series features the high-performance 150000XT Extra Travel Hydraulic Ram, designed to provide extended reach and faster operation - all within a rugged, lockable metal case. Engineered for both automotive and industrial applications, this kit delivers 8 tonnes of pulling force while ensuring streamlined, safe operation.
Key Features:
Equivalent to TMHP 10E TMHC 110E
Dimensions:
Contents:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Puller Spread Min - Max | 50-150mm |
|---|---|
| Puller Reach Max | 150mm |
| External Spread Min - Max | 20-105mm |
| External Reach Max | 876mm |
How to select the right Puller for removing Gears, Hub Cap, Bearings, and Pulleys A puller is a specialized tool used to remove or extract objects such as gears, bearings, pulleys, and other components that are pressed onto a shaft or otherwise tightly fitted onto another part. Pullers typically use mechanical force, such as a threade...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 1 to 2 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sykes Pickavant 155800V2 HYDRAULIC PULLER & SEPARATOR SET
£934.03
£915.72
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 15520800 Hydraulic Puller & Separator Kit | 8 Tonne | 50–200mm
£520.25
£510.05
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 15360000 HYDRAULIC PULLER - TRIPLE LEG
£198.26
£194.37
2% OFF
Free delivery in UK Mainland
|

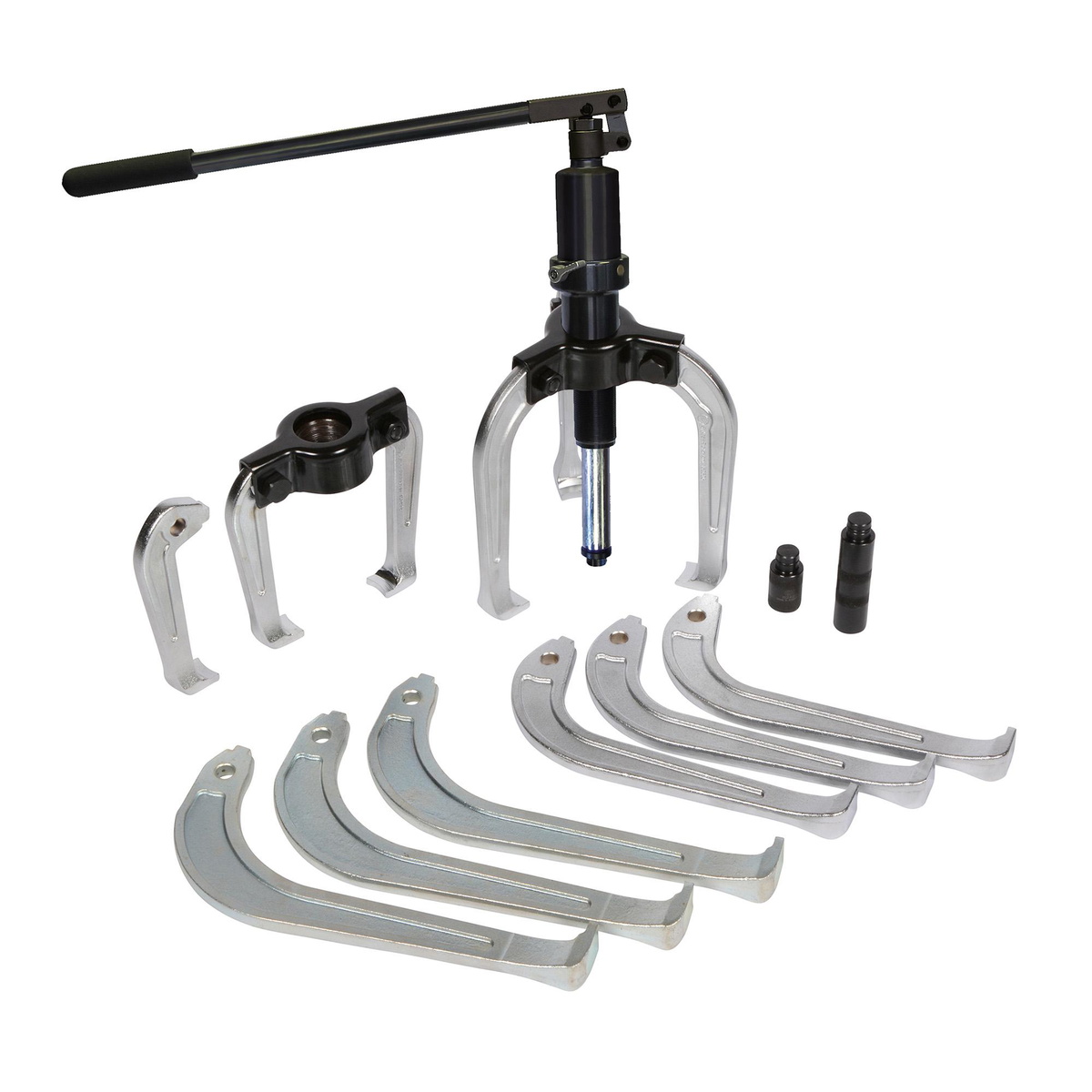

Sykes Pickavant 155100XT Hydraulic 2/3 Leg Puller Kit 50-250mm- Extra Travel Ram
£786.73
£771.30
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 15520000 Hydraulic Puller & Separator Kit | 8 Tonne | 50–150mm
£452.45
£443.58
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 155800V2 | 15520800 | 15340500 | 15360000 | 155100XT | 15520000 | 50094 | 93509 | PS990 |
| Separator Min. Spread | 35mm | ||||||||
| Separator Max. Spread | 140mm | ||||||||
| Puller Reach (mm) | 100 - 199 | 200 - 299 | |||||||
| Puller Max. Spread (Ext.) (mm) | 200 - 399 | 45 - 199 | 45 - 199 | ||||||
| Ram Extension | 50mm | 50mm | 100mm | ||||||
| Legs | Triple | Triple | Triple | ||||||
A. It features the 150000XT extra travel ram, offering 85mm of stroke to reduce setup time and speed up pulling operations versus standard 1500 Series rams.
A. The extra travel design can make setup and operation up to four times faster by reducing the need for frequent repositioning or additional extensions.
A. Yes, it provides up to 8 tonnes of pulling capacity, matching the rated force of other 1500 Series hydraulic puller systems.
A. A pressure relief valve activates at 8 tonnes to prevent overload, safeguarding both the ram and connected puller components during demanding pulls.
A. It can form four different twin or triple leg pullers plus a bearing separator configuration, giving flexible setups for varied removal tasks.
A. It supports 50-150mm puller spread, around 150mm reach and external separator spreads up to approximately 105mm, similar to 15520000.
A. Choose 155200XT when repetitive pulling tasks benefit from reduced setup time and where extra ram travel simplifies working on deeper assemblies.
A. Yes, it comes in a rugged, lockable metal case that keeps the extra travel ram and associated puller components safe between jobs.
A. It suits automotive, industrial and maintenance engineers handling frequent, time-sensitive pulling jobs where faster hydraulic operation is commercially valuable.
A. Yes, the 150000XT ram retains 1500 Series thread and mounting interfaces, enabling use with compatible legs, beams and separators within rated limits.
A. Follow Sykes Pickavant guidance, using the full stroke within specified limits and avoiding running the ram against mechanical stops under full pressure.
A. Keep ram surfaces clean, inspect legs and beams for deformation, lubricate threads lightly and return components to the protective case after each job.
