Product Number: SPBC40

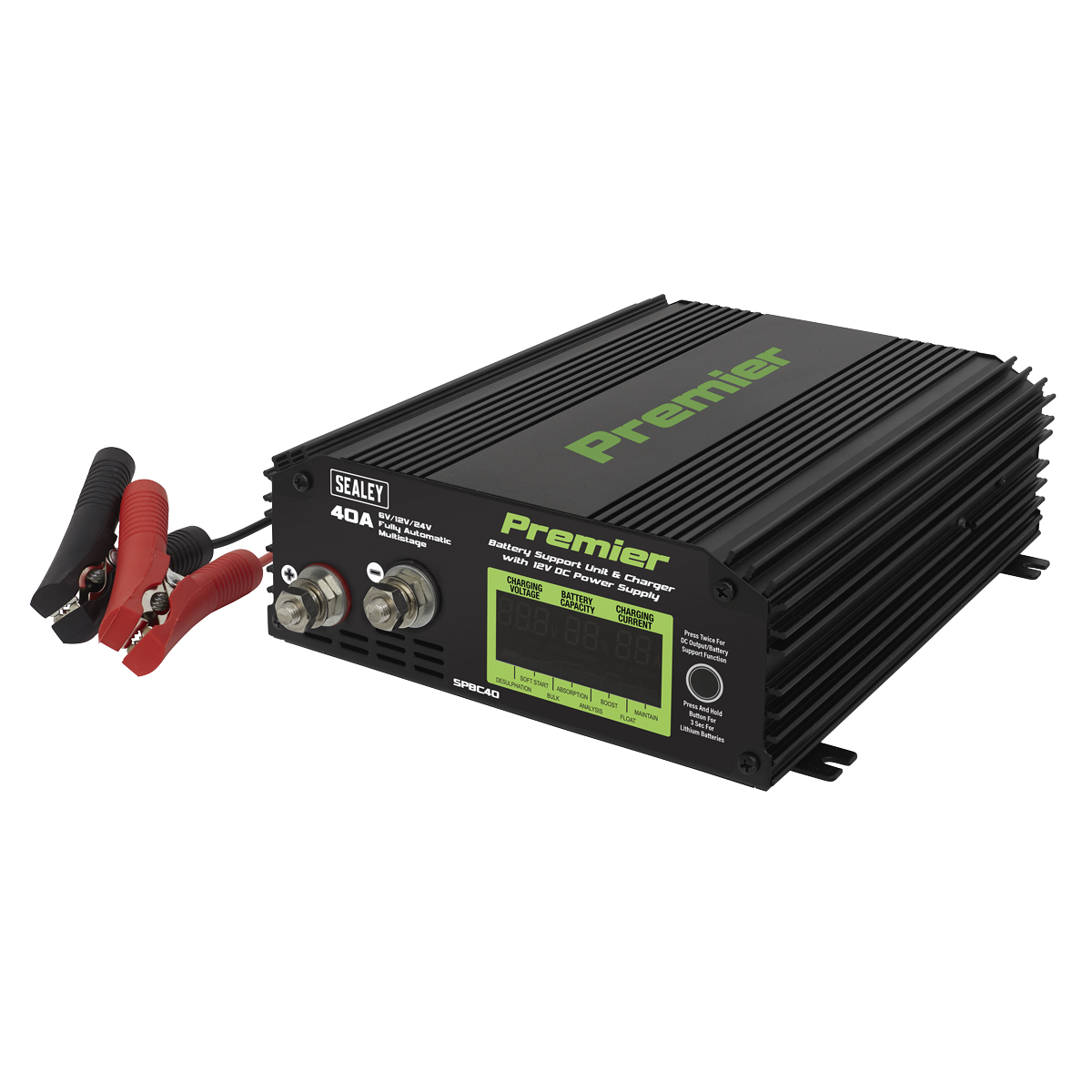

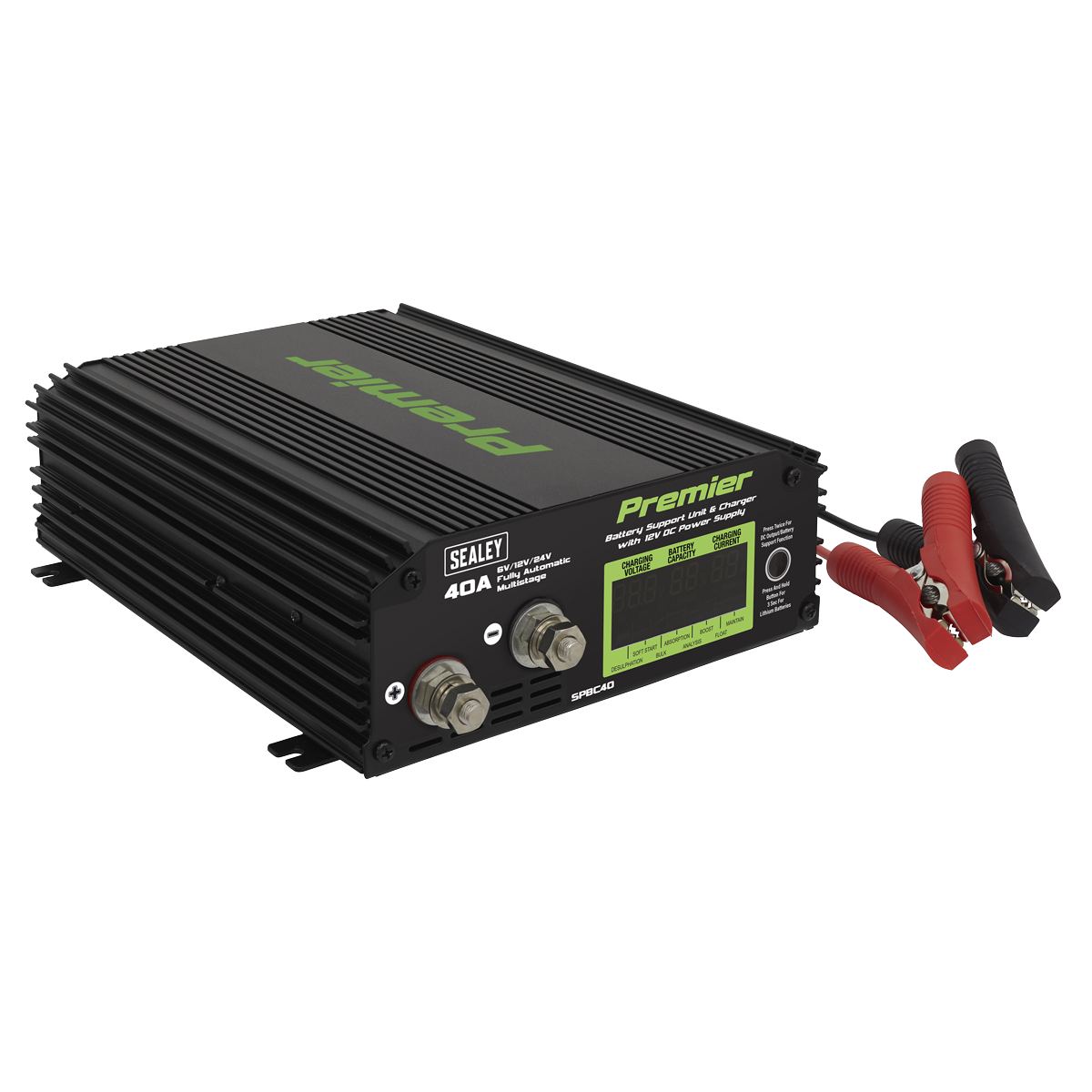

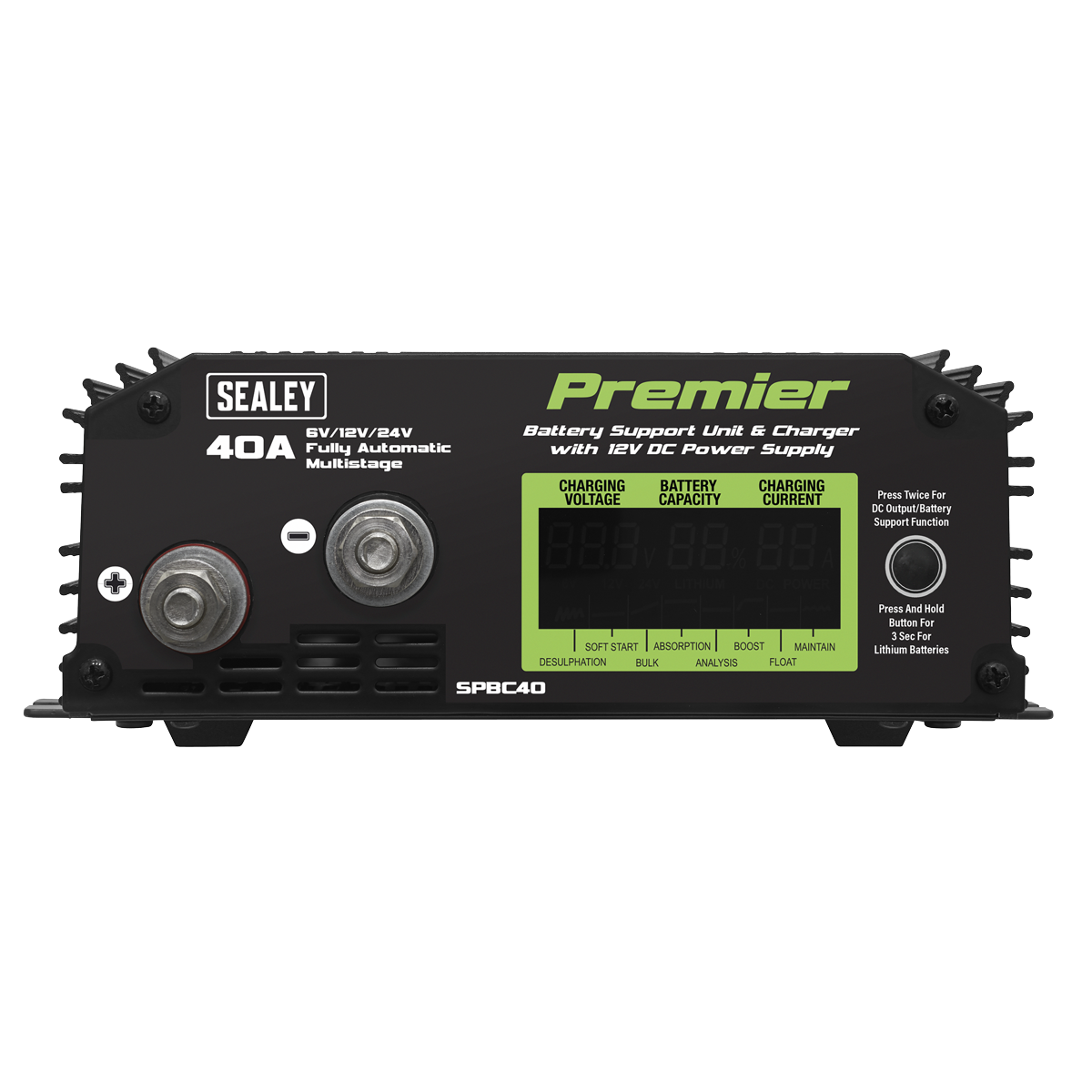

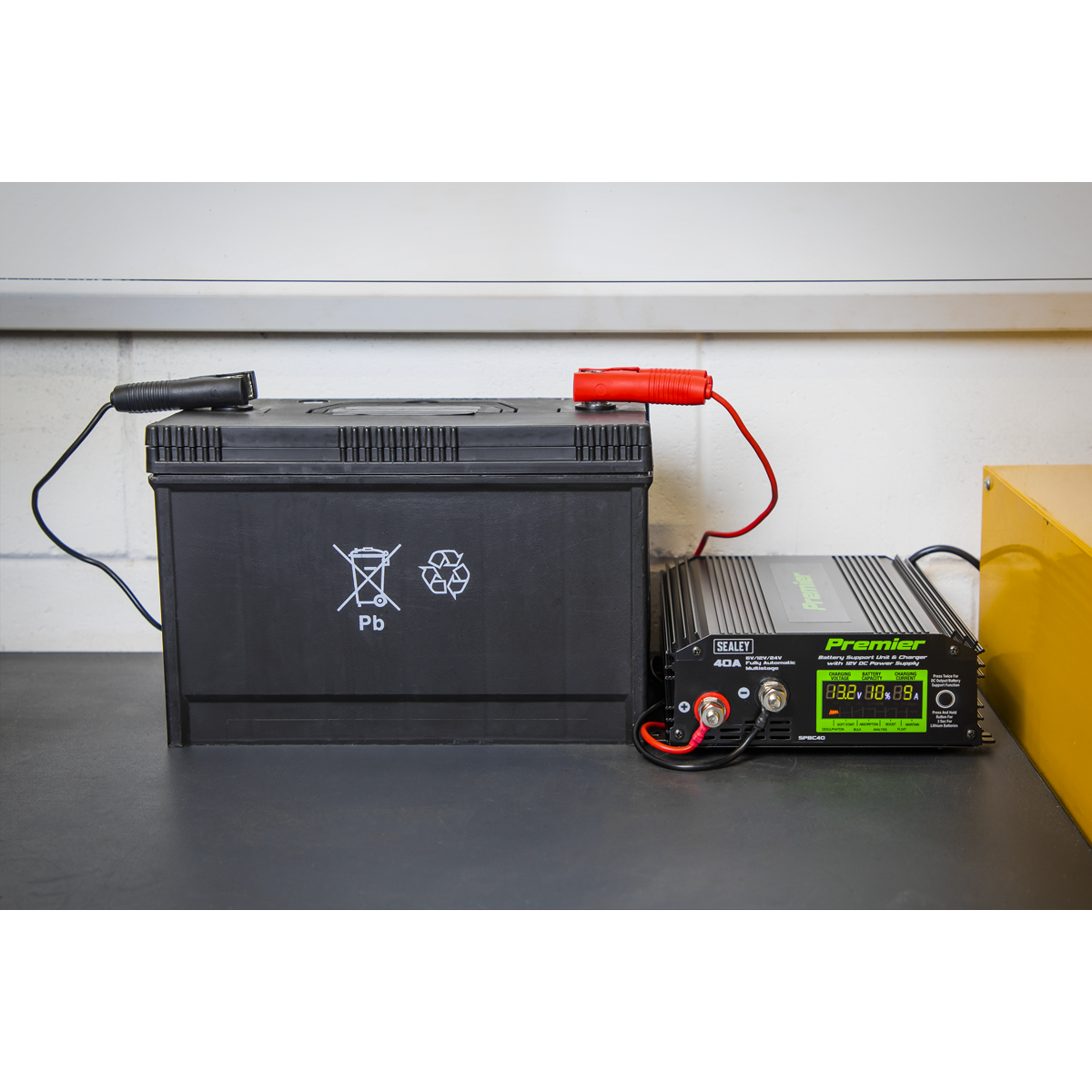

Keeping vehicle electronics stable during diagnostic work is a constant challenge voltage drop mid-session can corrupt ECU data and cause failed resets. The Sealey SPBC40 solves this with a dual-function unit combining a fully automatic 7-stage battery charger and maintainer with a dedicated 13.5V DC battery support mode, supplying up to 40A to hold the vehicle's electrical system steady throughout prolonged diagnostic checks. Compatible with EFB and AGM stop/start, GEL, lead acid, and calcium batteries, the SPBC40 features auto chemistry selection and automatically identifies and charges 6V, 12V, or 24V batteries. Lithium battery charging is also available via a selection button. The charge output is 40A at 6/12V and 21A at 24V, covering a battery range of 80-400Ah. Zero-volt charging allows recovery of a completely discharged battery, and an old battery sulfation repair function helps restore neglected units. The intuitive LED screen displays charging voltage, current, battery capacity percentage, and illuminated charging stages, while built-in reverse polarity, short circuit, over-temperature, and overcharging protection keep both the unit and vehicle safe. A built-in cooling fan operates only when required. Compact at 202 x 76 x 282mm with mounting brackets for permanent workshop fitting, the SPBC40 runs from a 230V supply and is rated IP20 for workshop use across an operating temperature range of -15°C to 50°C. Cable and clamp length is 1.1m. Backed by a 5-year guarantee.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | SPBC40 |
|---|---|
| Brand | Premier |
| Cable & Clamp Length | 2m |
| Nett Weight | 3.0kg |
| Supply | 230V |
| Output | 6/12/24V |
| Output Charge | 40A @ 6/12V (21A @ 24V) |
| Battery Range | 80Ah – 400Ah |
| Battery Support Mode | 13.5V dc – 40A |
| Cable Length | 2m |
| IP Rating | IP20 |
| Dimensions | 202 x 76 x 282mm |
| Op. Temperature Range | -15°C - 50°C |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 94903 D20 20V Wireless Speaker with 1 x 3.0Ah Battery and Charger
£71.62
£70.22
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 52985 | 52965 | CHARGE112 | CHARGE106 | 94903 |
| Type | Charger | Charger | |||
| Voltage | 24 | 24 | |||
| Voltage (V) | 24 | 24 | 24 | 24 | |
| Weight (kg) | 8.1 | 6.2 | 20 | 30 | |
A. The SPBC40 is compatible with EFB and AGM (stop/start), GEL, lead acid, and calcium batteries, with auto chemistry selection. Lithium batteries can also be charged via a dedicated selection button.
A. The unit automatically selects and charges 6V, 12V, or 24V batteries. Output charge is 40A at 6/12V and 21A at 24V.
A. The SPBC40 covers a battery range of 80-400Ah.
A. Yes. The zero-volt charging function enables recovery and charging of a completely discharged battery, providing any load has been removed from the battery.
A. The battery support mode provides a 13.5V DC output at up to 40A to maintain the vehicle's electrical system during prolonged diagnostic checks, preventing voltage drop that could interfere with ECU diagnostics or resets.
A. Yes. The SPBC40 includes an old battery sulfation repair function to help restore batteries that have been subjected to sulphation through prolonged discharge or neglect.
A. The unit features reverse polarity, short circuit, over-temperature, and overcharging protection, and the built-in cooling fan operates only when required. For further guidance on unattended use, please refer to the product label for guidance, or contact Parts for Machines for confirmation.
A. Yes. A variant is available - the SPBC30 - which is a battery support unit and charger from the same product family at a different output. Check the SPBC30 listing for its specific specification.
A. Yes. The compact design at 202 x 76 x 282mm includes mounting brackets for permanent fitting.
A. Yes - WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility, and we'll help you choose the right product.
