Product Number: M926CE
Variations
| Main Mirror (Click a part number to navigate to the product page) | ||||
| Product Number | Mirror Class | Dimension | Fitment | Radius |
|---|---|---|---|---|
| M926CE | II III & IV | 184mm x 384mm | 16 -28mm | Main Lens 1200mm & Wide Angle Lens 300mm |
| M626CE | II & III | 329mm x 238mm | 16-28mm | 1800mm |
| M450CE | II & III | 232mm x 176mm | 10-20mm | 1200mm |
| M5000CEA4 | II & III | 160mm x 260mm | 10-20mm | 1800mm |
| M5000CE | II & III | 160mm x 260mm | 10-20mm | 1800mm |
| M640CEB | II & III | 316mm x 211mm | 16-28mm | 1200mm |
| M440CE | II & III | 162mm x 245mm | 10-20mm | 1200mm |
| M440CEB | II & III | 162mm x 245mm | 16-28mm | 1200mm |
| M440CEB-Yellow | II & III | 162mm x 245mm | 16-28mm | 1200mm |
| M440CE-Yellow | II & III | 162mm x 245 | 10-20mm | 1200mm |
| M450CEB | II | 176mm x 232mm | 16-28mm | 1200mm |
| MX440CE-YELLOW | II & III | 162mm x 245mm | 10-20mm | 1200mm |
| M528CE | III | 215mm x 296mm | 16-28mm | 1800mm |
| MX450CE | II | 176mm x 232 mm | 10 - 20mm | 1200mm |
| M545CE | II | 200mm x 259mm | 10-20mm | 1800mm |
| MX450CEB | II | 176mm x 232mm | 16-28mm | 1200mm |
| M545CEB | II | 200mm x 259mm | 16-28mm | 1800mm |
| M555CE | II & III | 185mm x 276mm | 10-20mm | 1200mm |
| M555CEB-Yellow | II & III | 185mm x 276mm | 16-28mm | 1200mm |
| M555CE-Yellow | II & III | 185mm x 276mm | 10-20mm | 1200mm |
| MX555CE | II & III | 185mm x 276mm | 10-20mm | 1200mm |
| MX555CEB | II & III | 185mm x 276 mm | 16-28mm | 1200mm |
| MX640CEB | II | 211mm x 316mm | 16-28mm | 1200mm |
| MX725CEB | II and III | 190mm x 390mm | 16-28mm | 1200mm |
| M610CE-YELLOW | II | 195mm x 325mm | 16-28mm | 1800mm |
| MX725CEB-YELLOW | II and III | 190mm x 390mm | 16-28mm | 1200mm |
| M6261CE | III | 238mm x 329mm | 16-28mm | 1200mm |
| MX926CE | II ,III & IV | 184mm x 384 mm | 16 - 28mm | Main Lens 1200mm & Wide Angle Lens 300mm |
| M640CEB | II & III | 211mm x 316mm | 16-28mm | 1200mm |
| M725CEB-YELLOW | II & III | 190mm x 393mm | 16-28mm | 1200mm |
| M820CE | II | 228mm x 422mm | 16-28mm | 1800mm |
| M8231CEB | II & lll | 217mm x 420mm | 16-28mm | 1200mm |
| M310CEB-Yellow | III | 252mm x 168mm | 16-28mm | 1200mm |
| M926CEH | II III & IV | 184mm x 384 mm | 16 -28mm | Main Lens 1200mm & Wide Angle Lens 300mm |
| M926CEH -YELLOW | II III & IV | 184mm x 384mm | 16-28mm | 300mm |
| M926CE-YELLOW | II III & IV | 184mm x 384mm | 16-28mm | Main Lens 1200mm & Wide Angle Lens 300mm |
| M440CE_A1 | II & III | 162mm x 245mm | 10-20mm | 1200mm |
| M440CE_A2 | II & III | 162mm x 245mm | 10-20mm | 1200mm |
| M440CEB_A1 | II & III | 162mm x 245mm | 16-28mm | 1200mm |
| M440CEB_A2 | II & III | 162mm x 245mm | 16-28mm | 1200mm |
| M450CE_A1 | II & III | 176mm x 232mm | 16-28mm | 1200mm |
| M450CE_A2 | II & III | 176mm x 232mm | 16-28mm | 1200mm |
| M450CEB_A1 | II & III | 176mm x 232mm | 16-28mm | 1200mm |
| M450CEB_A2 | II & III | 176mm x 232mm | 16-28mm | 1200mm |

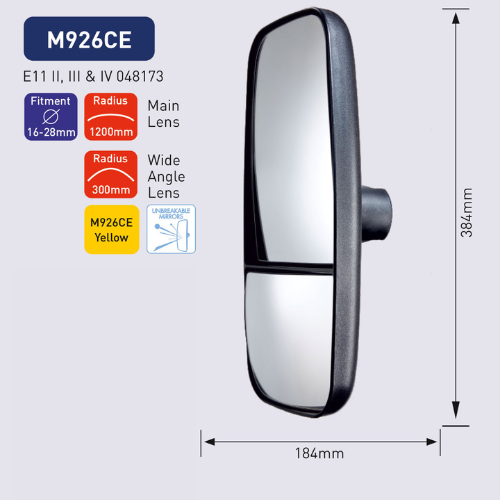

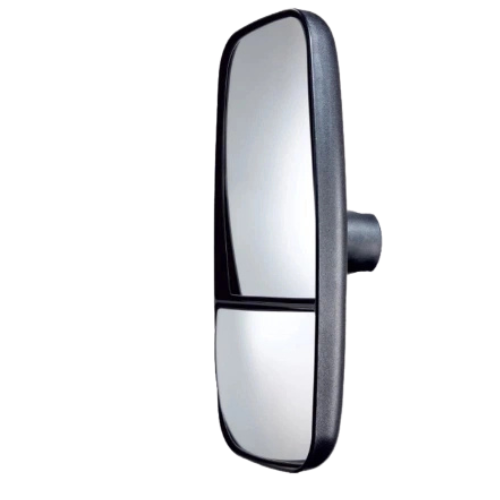

The Ashtree M926CE manually adjustable main mirror is a class II III & IV commercial vehicle mirror designed for use on trucks, HGVs, buses, agricultural tractors and construction machinery. Measuring 184mm x 384mm with a Main Lens 1200mm and Wide Angle Lens 300mm convex radius, it helps improve visibility and reduce blind spots around the vehicle.
Designed to fit 16 -28mm diameter mirror arms, this mirror is suitable as a replacement or supplementary visibility mirror for both road-going and off-highway vehicles. Featuring a durable housing and high-quality mirror glass, it is built to withstand demanding on-road, off-road and site environments where reliable driver visibility and safety are essential. Commonly used on tractors, loaders, HGVs, telehandlers and diggers across agricultural, industrial and construction applications.
Key Features:This mirror is commonly used on commercial vehicles and machinery to improve driver awareness during reversing, manoeuvring, junction turns and site operation. It is suitable for use on trucks, HGVs, tractors, loaders, telehandlers and other industrial equipment, helping reduce blind spots and support safer operation in urban, agricultural and construction environments.
Still not sure about what you are looking for, you can find the Ashtree PDF in the Download section. By selecting the product number within the Document, you'll be redirected to the corresponding product page. Also Check out the Video on Ashtree Mirror Guide attached in image section.
About Parts For Machines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland.
| Type | Manually Adjustable Mirror |
|---|---|
| Class | II III & IV |
| Dimension | 184mm x 384mm |
| Radius | Main Lens Radius 1200mm |
| Wide Angle Lens Radius | 300mm |
| Fitment | 16 -28mm |
Title: Your Ultimate Guide to Choosing the Perfect Mirror Introduction: Welcome to PartsForMachines, where safety on a construction site, a farm, or a road is our top priority. Mirrors are essential to any Plant or Agriculture machine's safety, providing dri...
Quick delivery and the product at a very competitive price.
Highly Recommend
I ordered a starter motor for my Polaris ranger, best price around and prompt service.
thanks for sending the part so quickly, and was just the job
1st class,excellent service.
Excellent service
You stock the parts that I needed and delivered quickly and efficiently.
Worth the Money
Strong and Excellent Quality.
10 out of 10 from me!
Great price.
Great delivery.
Very easy transaction the machine arrived on time and well packaged,
Absolutely spot on!
Excellent website, easy ordering, great price, speedy delivery and an excellent machine at an excellent price!
Thanks very much!!
Great service with speedy delivery, easy ordering system and great during & after service support.
Rating
Standard Delivery: £3.99
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Ashtree Wide Angle Mirror, Class IV & V, Unbreakable Glass, 245mm x 162mm, M4402CEB
£32.87
£32.23
2% OFF
|
||||||||||||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | M626CE | M455CE | M450CE | MX635CE | M5000CEA4 | M5000CE | M922CEH | MX250CEB-YELLOW | M4402CEB | MX250CE - YELLOW | M440CE | MX950-stud | MX430CE | M440CEB | MX950-tunnel |
| Type of Mirror | Main Mirror | Wide Angle Mirror | Main Mirror | Wide Angle Mirror | Main Mirror | Main Mirror | Powered & Adjustable Mirror | Unbreakable Mirror | Unbreakable Mirror | Unbreakable Mirror | Unbreakable Mirror | Unbreakable Mirror | Unbreakable Mirror | ||
| Class of Mirror | II & III | IV | II & III | VI | II & III | II & III | II & IV | IV & V | IV & V | IV & V | II & III | IV | II & III | ||
| Mirror Dimension | 329mm x 238mm | 161mm x 246mm | 232mm x 176mm | 307mm x 307mm | 160mm x 260mm | 160mm x 260mm | 400mm x 210mm | 208mm x 208mm | 245mm x 162mm | 208mm x 208mm | 162mm x 245mm | 315mm x 250mm | 240mm x 155mm | 162mm x 245mm | 315mm x 250mm |
| Mirror Fitment | 16-28mm | 10-20mm | 10-20mm | 10-20mm | 10-20mm | 10-20mm | 16-28mm | 16-28mm | 10-20mm | 10-20mm | 10-20mm | 3/8 UNC Stud | 10-20mm | 16-28mm | |
| Mirror Radius | 1800mm | 300mm | 1200mm | 225mm | 1800mm | 1800mm | Main Lens:1800mm;Wide Angle Lens:300mm | 300mm | 450mm | 300mm | 1200mm | 125mm-185mm | 300mm | 1200mm | 125mm-185mm |
A. Standard UK Mainland delivery is 2–3 working days.
A. No, delivery charges are calculated separately at checkout based on order weight, size, and delivery location.
A. This product is covered under a 12 month warranty from the date of purchase.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN). You may also be asked to share images of the product and its packaging for verification. Items that do not meet these conditions will not be accepted for return. If your return is approved, we will initiate a refund to your credit card or original method of payment. A restocking fee of up to 15% of the order value may apply to each returned item.
A. To choose the right mirror, you should consider: 1. The type of vehicle (truck, bus, construction machinery, agricultural equipment) 2. The mirror class required (Class II, III, IV, V, or VI) 3. The mounting method (clamp-on, bolt-on, arm-mounted) 4. The arm diameter your vehicle uses.
If you’re unsure, checking the existing mirror size or arm diameter on your vehicle helps ensure correct fitment.
A. Mirror classes are defined by European safety regulations:
Class II & III: Main rear-view mirrors for trucks, buses, and off-highway vehicles.
Class IV: Wide-angle mirrors to reduce blind spots near the vehicle.
Class V: Kerb-side mirrors for near-side visibility.
Class VI: Front-view mirrors to improve visibility directly in front of the vehicle.
Using the correct class helps meet visibility and safety requirements.
A. Some mirror models are supplied with arms, while others are sold as mirror head only. Product description clearly indicate whether:
1. The arm is included
2. The arm is sold separately
3. A specific arm model is required
Always check the product details before purchase.
A. Mirror arms are selected based on: 1. Arm diameter 2. Mounting style 3. Mirror fixing type (stud or clamp)
Ashtree offers a wide range of arms in different diameters and lengths to suit various vehicles.
A. Flat mirrors provide accurate distance perception whereas Convex (wide-angle) mirrors increase field of view and reduce blind spots. Many vehicles use a combination of both for improved safety.
A. Yes. Ashtree mirrors are widely used on: 1. Construction equipment 2. Agricultural machinery 3. Material handling vehicles 4. Off-highway applications
They are designed for durability, vibration resistance, and harsh working environments.
A. Unbreakable lens mirrors use impact-resistant materials instead of glass, making them ideal for:
1. Construction sites 2. Off-road environments 3. High-vibration vehicles.
They improve safety and reduce replacement costs.
A. You can confirm compatibility by checking: 1. Existing mirror dimensions 2. Arm diameter 3. Product number.
If unsure, contact us on WhatsApp 07754288583 or call 01926754100 with vehicle details so we can help you to ensure the correct selection.
A. Yes. Properly selected mirrors: 1. Reduce blind spots 2. Improve driver visibility 3. Help meet safety regulations 4. Enhance on-site and road safety.
They are a critical safety component for commercial and industrial vehicles.
A. Yes. Ashtree mirrors are commonly used as aftermarket replacements for OEM mirrors and are compatible with many vehicle manufacturers.
A. Clamp-mounted mirrors attach to round mirror arms using clamps, while stud-mounted mirrors fix directly using a threaded stud. The catalogue specifies the mounting type for each mirror.
A. Many Ashtree mirror heads are compatible with multiple arm styles, but compatibility depends on arm diameter and fixing type. Always match the mirror fixing to the correct arm.
You can checkout the compatiable mirror arms in the Compatiable Accessories section of the mirrors.
A. Some mirrors are compatible with different arm diameters or mounting styles, giving flexibility across various vehicle types.
