Product Number: 01505

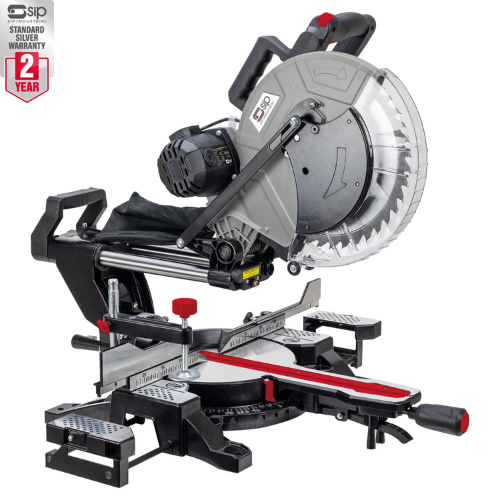

The SIP 01505 12" (305mm) Sliding Compound Mitre Saw with Laser is a powerful, versatile and accurate woodcutting saw rated at 1.8kW (2.4hp), designed for professional woodworking workshops, domestic or commercial premises and DIY uses. Its belt-driven motor delivers smoother handling and quieter operation compared with direct-drive alternatives, making it equally well suited to busy trade environments and home workshops alike.

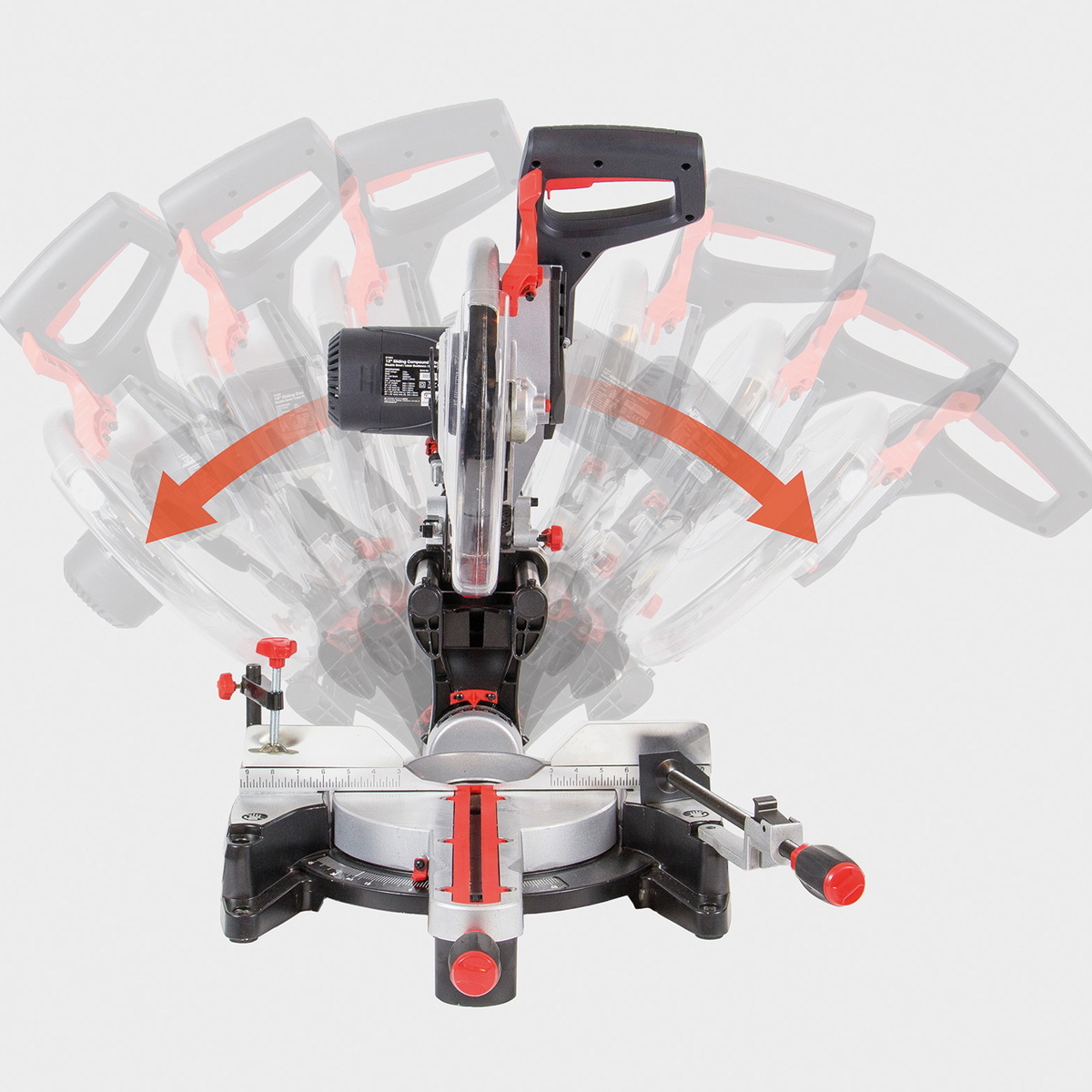

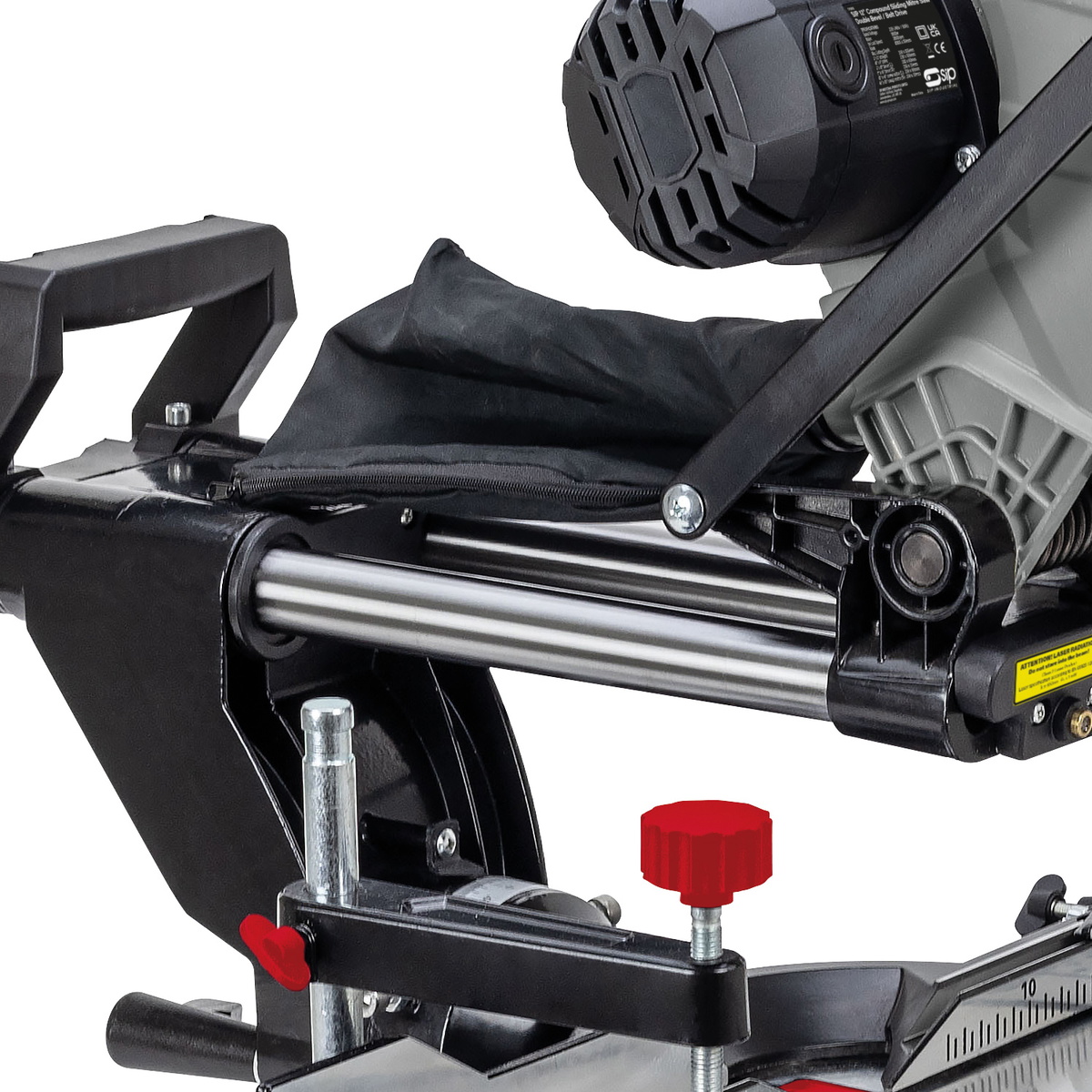

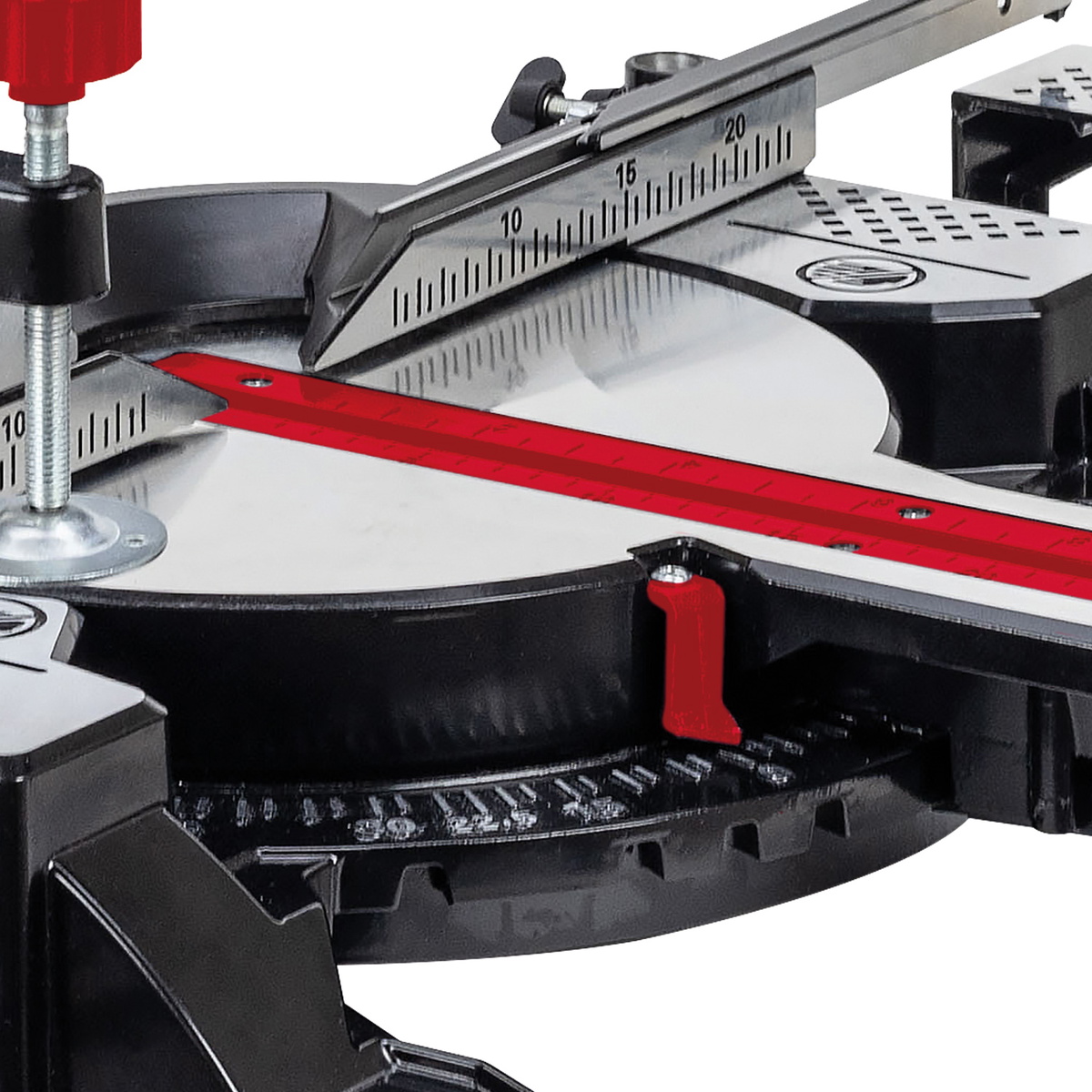

The 305mm 40TCT saw blade handles larger workpieces and performs deeper cuts, while a sliding mechanism extends the width of the cutting range beyond that of a fixed-head machine. An adjustable depth-cut setting enables tenoning and trenching tasks, and a laser guide indicates the blade cutting path for greater accuracy during layout-critical work. Compound functionality allows the head to tilt both left and right to deliver double bevel cuts in addition to mitre cuts, with the bevel range adjustable up to 45° in both directions and the mitre gauge covering -45° / 0° / +45°. A heavy-duty rotating table features pre-set mitre stops and a clamp for securing workpieces, and a slow-start industrial grip-and-trigger power handle contributes to controlled start-up. An automatic retracting lower blade guard and a dust collection bag for reducing sawdust and debris in the work area complete the safety and housekeeping provision.
Full compound cutting capacities are: straight 330mm x 105mm; mitre (45° x 0°) 230mm x 105mm; left bevel (0° x 45°) 330mm x 60mm; right bevel (0° x 45°) 230mm x 33mm; left compound mitre (45° x 45°) 230mm x 60mm; right compound mitre (45° x 45°) 230mm x 33mm. The blade bore size is 30mm, blade speed is 3,800rpm, and blade thickness compatibility spans 1.8mm minimum to 2.8mm maximum. Input supply is 230V (13A). The robust cast steel base provides stability in operation, and the tool is bench-top or work-frame mountable with a carry handle for transporting between sites.
The SIP 01505 is covered by the SIP 2-Year Standard Silver Warranty.
Additional Information:
The SIP 12" Sliding Compound Mitre Saw with Laser is a powerful, versatile and accurate woodcutting saw. Designed with a belt-driven motor for smoother handling and quieter operation, it is ideal for professional woodworking workshops, domestic or commercial premises and DIY uses. Featuring a 12" blade for handling larger workpieces and making deeper cuts, plus compound functionality to perform both bevel and mitre cuts, this heavy-duty multi-process tool is ideal for frequent day-to-day use. Applications & uses: Designed for professional woodwork applications. Ideal for use in woodworking workshops. Suitable for tradespeople in commercial and domestic settings.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 01505 |
|---|---|
| Input Supply | 230v (13A) |
| Motor Power | 1.8kW (2.4hp) |
| Blade Speed | 3800rpm |
| Blade Diameter | Ø 305mm |
| Blade Bore Size | 30mm |
| Blade Teeth | 40TCT |
| Blade Thickness | 1.8mm min. / 2.8mm max. |
| Mitre Range | -45° / 0° / +45° |
| Bevel Range | Up to 45° (left and right) |
|
Cutting Capacities: 00° x 00°: 330mm x 105mm (straight) / 45° x 00°: 230mm x 105mm (mitre) / 00° x 45°: 330mm x 60mm (left bevel) / 00° x 45°: 230mm x 33mm (right bevel) / 45° x 45°: 230mm x 60mm (left compound mitre) / 45° x 45°: 230mm x 33mm (right compound mitre)
|
|
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
More Info
|
Open Now |
Woodworking Machines: Bandsaw, Table Saw, Planer or Log Saw? A bandsaw that can't cut a thick block, or a planer that dips at every board end: first machines are easy to get wrong. Buy for the cut you make most, then...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 22791 VARIABLE SPEED SCROLL SAW WITH FLEXIBLE DRIVE SHAFT AND WORKLIGHT, 405MM, 90W
£156.36
£153.29
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 22791 | 01457 | SM1302 | LS450H | SM1303 |
| Type | Scroll Saw | Spindle Moulder | Scroll Saw | Log Splitter | Bandsaw |
| Length (mm) | 405 | 500 | 406 | 450 | 200 |
| Motor Power | 120W | 180W | |||
| Voltage (V) | 230 | 230 | |||
| Weight (kg) | 13 | 08 | 9.5 | 15 | |
A. The SIP 01505 is fitted with a 1.8kW (2.4hp) belt-driven motor and runs on a standard 230V (13A) UK supply.
A. The saw is fitted with a 305mm diameter 40TCT blade with a 30mm bore size. Compatible blade thickness ranges from 1.8mm minimum to 2.8mm maximum, and the blade runs at 3,800rpm.
A. The mitre gauge adjusts between -45°, 0° and +45°. The double bevel function tilts up to 45° both left and right, enabling bevel cuts in addition to standard mitre and compound mitre cuts.
A. Straight (0° x 0°): 330mm x 105mm. Mitre (45° x 0°): 230mm x 105mm. Left bevel (0° x 45°): 330mm x 60mm. Right bevel (0° x 45°): 230mm x 33mm. Left compound mitre (45° x 45°): 230mm x 60mm. Right compound mitre (45° x 45°): 230mm x 33mm.
A. Yes. A laser guide indicates the blade cutting path for greater accuracy. The saw also features a heavy-duty rotating table with pre-set mitre stops, a workpiece clamp, and an adjustable depth-cut setting for tenoning and trenching tasks.

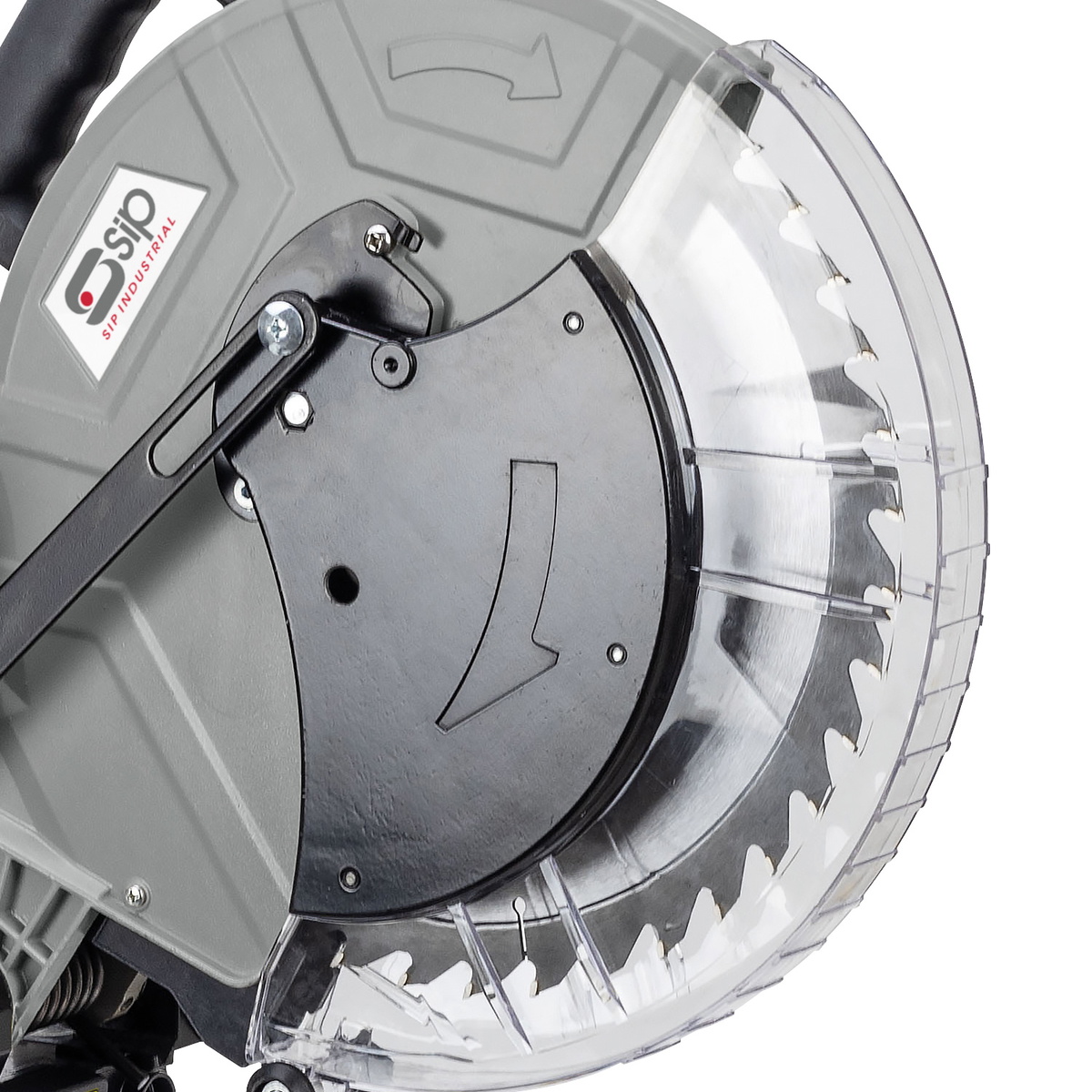

A. The saw is equipped with an automatic retracting lower blade guard for user safety and a dust collection bag to help reduce sawdust and debris in the work area.
A. The SIP 01505 is bench-top or work-frame mountable. It features a robust cast steel base for stability and a carry handle for transporting the tool between work sites.
A. The SIP 01505 is covered by the SIP 2-Year Standard Silver Warranty.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
