Product Number: SM2503

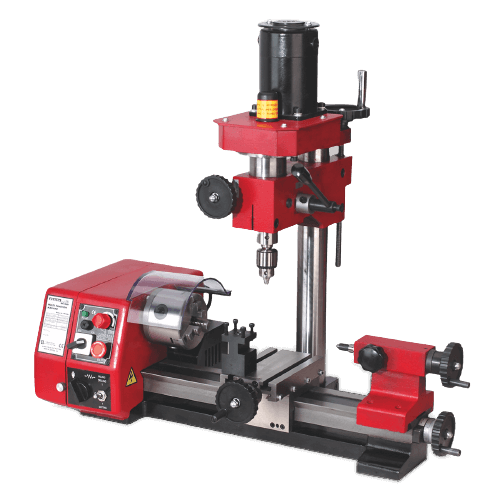

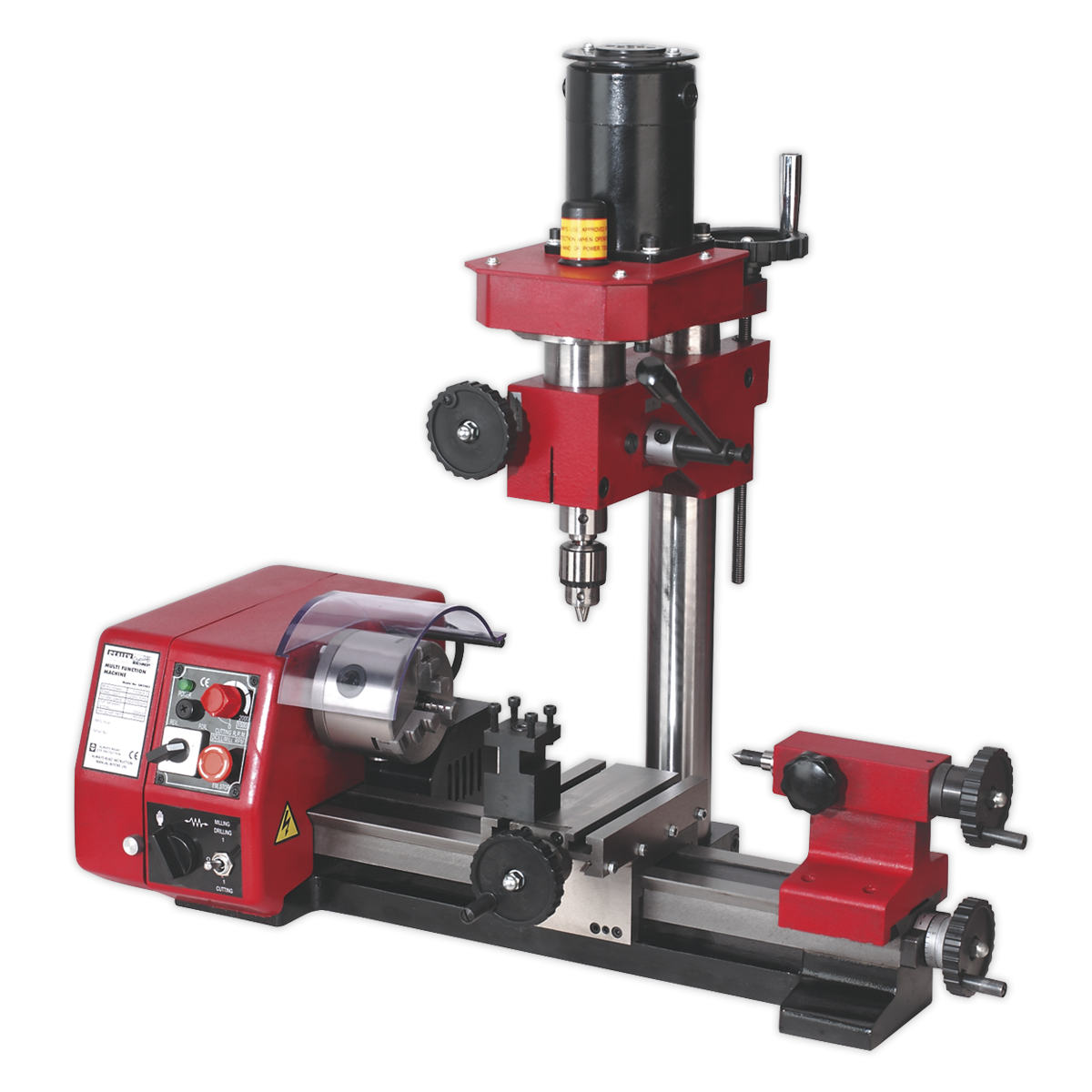

When workshop space is limited but you need the capability to turn, drill, and mill, a single-purpose machine simply will not do. The Sealey SM2503 Mini Lathe and Drilling Machine is a bench-mounting multifunction unit combining a lathe, drill, and mill in one compact machine. Two independent 150W motors power the separate functions one drives the drill and mill, the other powers the lathe so both can be optimised without compromise. The lathe spindle runs at variable speeds from 100-2000rpm with a swing over bed of 140mm and a distance between centres of 250mm. The lathe cutting feed can be power driven or advanced manually, and thread cutting is supported via an optional thread cutting kit, with five metric thread pitches available (0.5-1.25mm). The drilling and milling head offers a maximum capacity of 10mm with a spindle speed range of 100-1300rpm and a spindle travel of 30mm, with 180mm distance from spindle to table. An 8mm T-slot table enables secure workpiece clamping, and metric graduated scales are fitted throughout. Supplied with all tools necessary for setting and adjusting. An optional stand is available, order Model No. SM3002ST.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | SM2503 |
|---|---|
| Brand | Sealey |
| Nett Weight | 39.2kg |
| Specification - Cutting | |
| Swing Over Bed | 140mm |
| Distance Between Centres | 250mm |
| Spindle Hole Taper | MT2 |
| Cross Slide Travel | 61mm |
| Tailstock Taper | MT1 |
| Spindle Speed (Variable) | 100-2000rpm |
| Range of Metric Threads | 5 Pitches (0.5-1.25mm) |
| Specification - Drilling | |
| Maximum Drilling/Milling Capacity | 10mm |
| Drilling/Milling Spindle Travel | 30mm |
| Drilling/Milling Spindle Speed | 100-1300rpm |
| T-Slot | 8mm |
| Distance from Spindle to Table | 180mm |
| Distance from Spindle Centre to Column | 100mm |
| Motor Power | 2 x 150W - 230V |
| Weight | 39.2kg |
sealey-mini-lathe-drilling-machine.pdf
|
Open Now |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Clarke CWL1000CF 40" 1000mm Wood Lathe with Variable Speed & Copy Follower (230V)
£541.57
£530.95
2% OFF
Free delivery in UK Mainland
|
SIP 01458 14" x 40" Starter Wood Lathe w/ Chisel Kit
£167.95
£164.66
2% OFF
Free delivery in UK Mainland
|
Sealey SM1100 Wood Lathe 10-Speed 1100mm Centres 550W
£505.94
£496.02
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 01936 | 01938 | SM1308 | 6500689 | 01458 | SM1100 |
| Type | Wood Lathe | Wood Lathe | Wood Lathe | Wood Lathe | Wood Lathe | |
| Distance Between Centres | 432mm (17") | 900mm (36") | 1000mm | 1000 | 1016mm | 1100mm |
| Length (mm) | 432 | 900 | 1000 | 1016 | 1100 | |
| Motor Power | 550w (0.75hp) | 550w (0.75hp) | 370W - 230V | 370w (0.5hp) | 550W - 230V | |
| Voltage (V) | 230 | 230 | 230 | 230 | 230 | |
| Weight (kg) | 30 | 00 | 00 | 00 | 85 | |
A. The SM2503 is a multifunction machine combining a mini lathe, drill, and mill in a single bench-mounting unit.

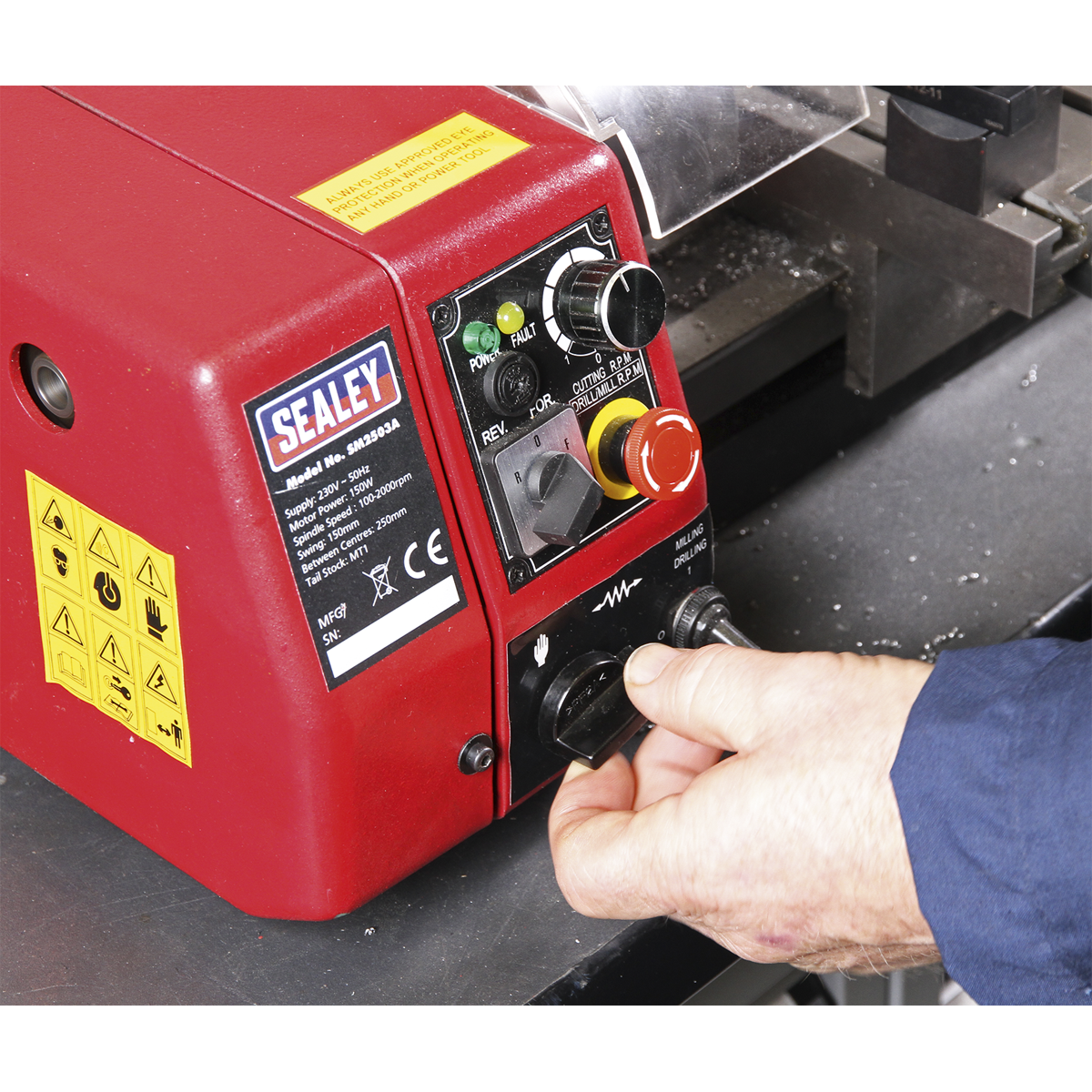

A. The SM2503 features two 150W motors - one operates the drill and mill, and the other powers the lathe.

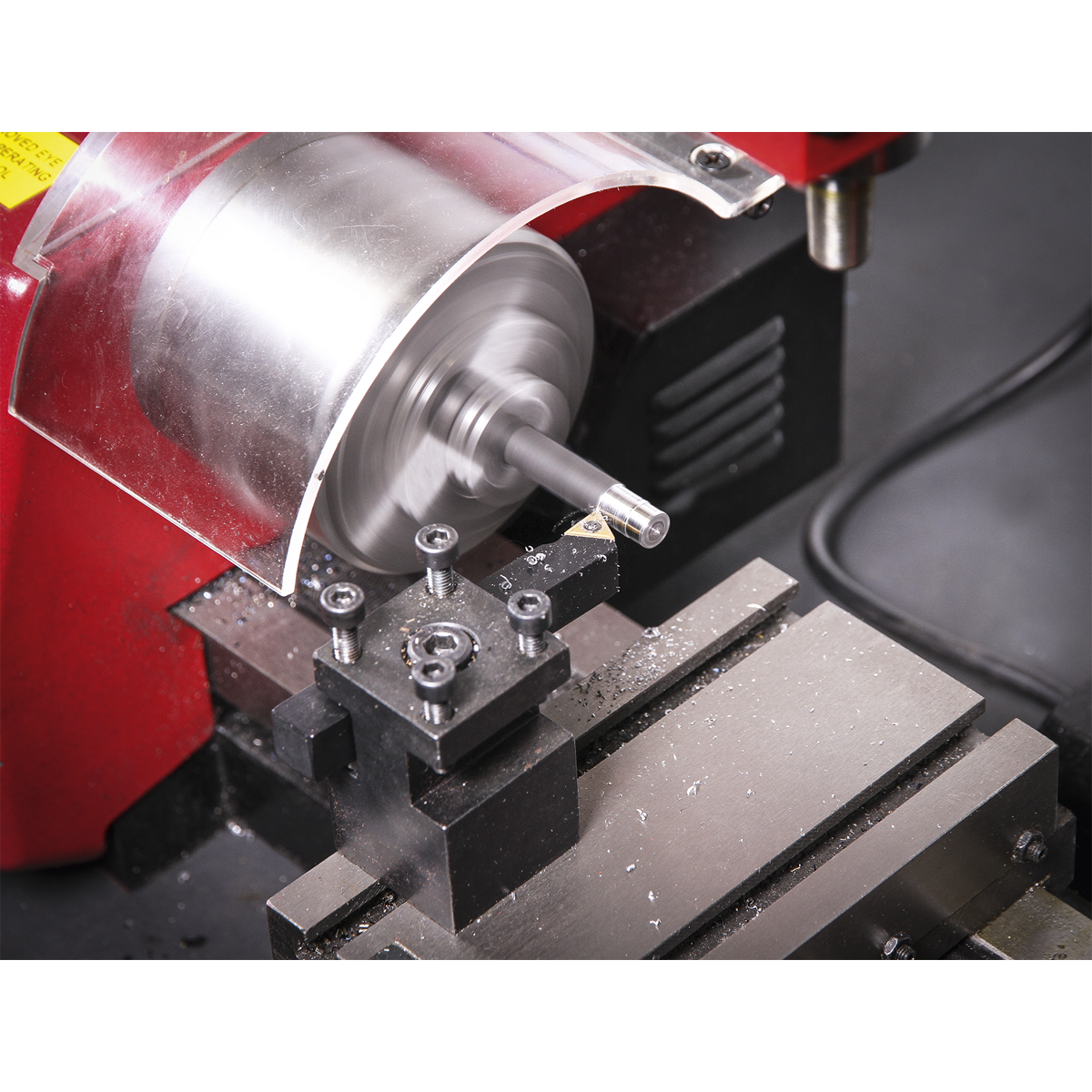

A. The lathe has a swing over bed of 140mm, a distance between centres of 250mm, and a variable spindle speed of 100-2000rpm.
A. Yes. Thread cutting can be undertaken using the optional thread cutting kit. Five metric thread pitches are available, ranging from 0.5mm to 1.25mm.

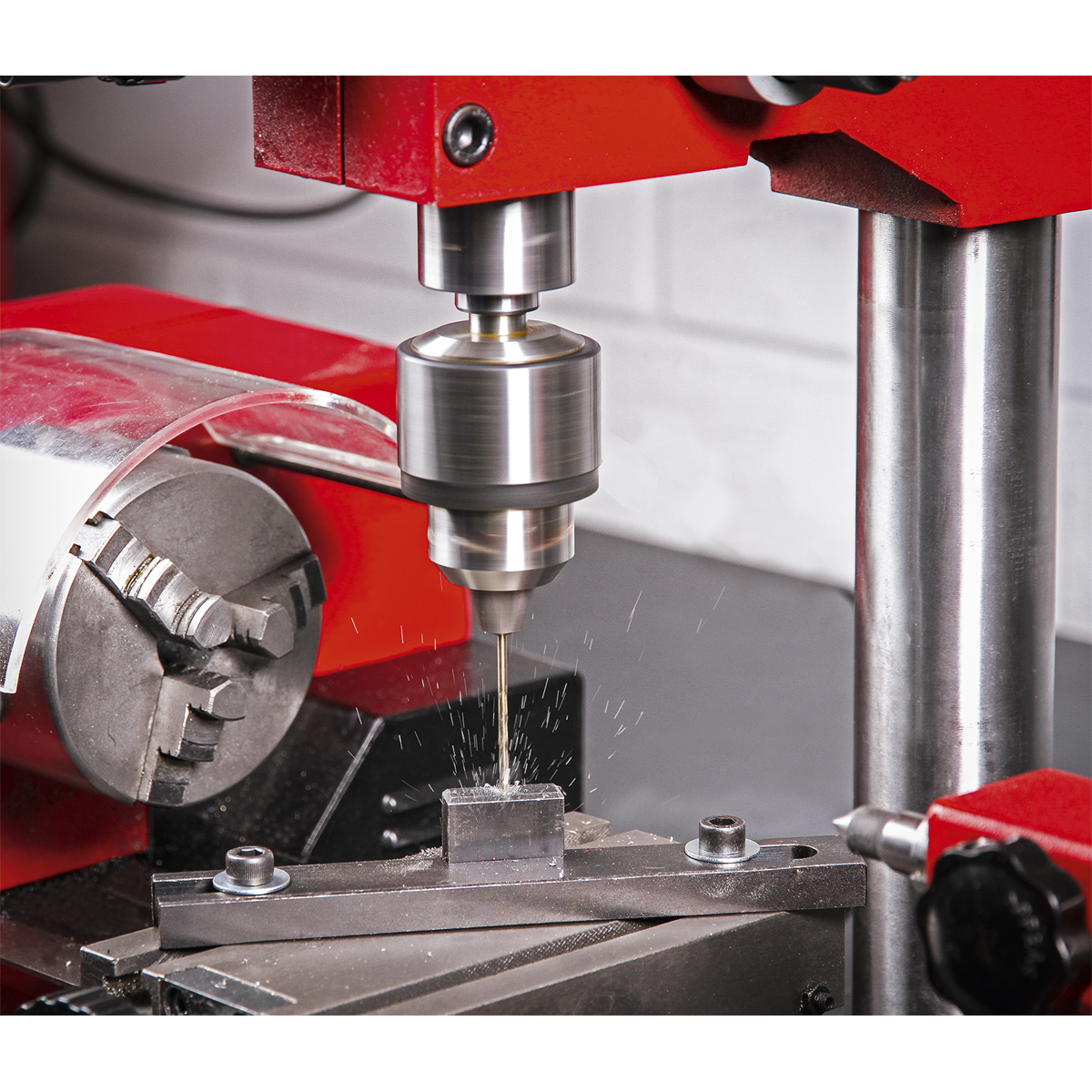

A. The maximum drilling and milling capacity is 10mm, with a spindle speed range of 100-1300rpm and a spindle travel of 30mm.
A. The SM2503 is supplied with metric graduated scales and all tools required for setting and adjusting.
A. Yes. An optional stand is available separately - order Model No. SM3002ST.
A. The main spindle hole taper is MT2 and the tailstock taper is MT1.
A. The T-slot size is 8mm.
A. Standard UK mainland delivery is 3-5 working days.
